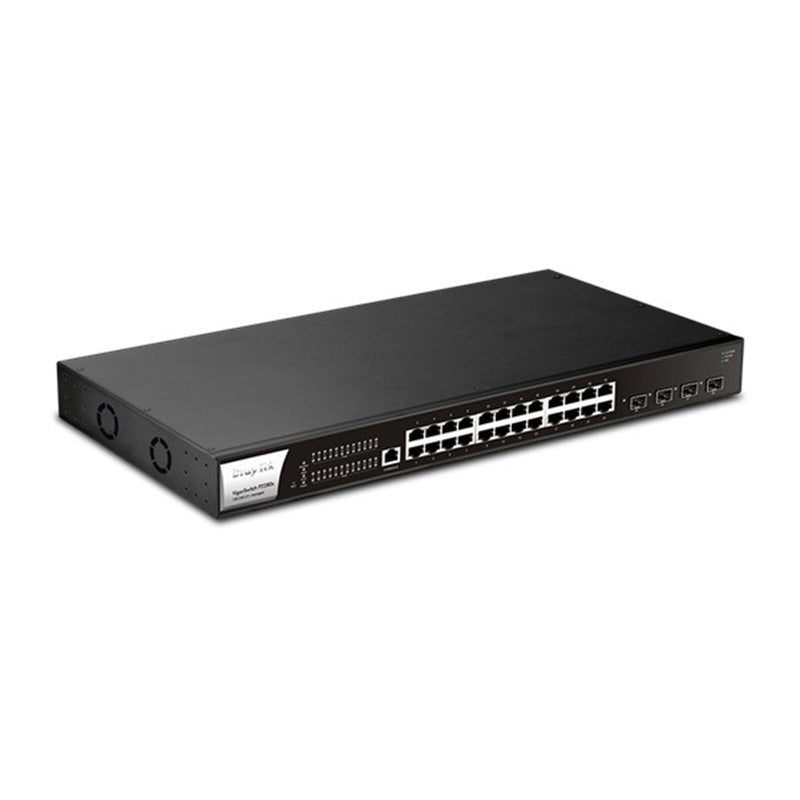

L2+ Managed PoE Switch with 4 x 10GbE SFP+ slots, 24 x GbE ports, 1 x console port, Auto Surveillance & Voice VLAN, ONVIF-Friendly, Energy-Efficient Ethernet, and Central Switch Management


DrayTek VigorSwitch P2280x is a Layer 2+ Managed Gigabit PoE switch ideal for a network with growing network traffic. The switch has 24 x Gigabit Ethernet PoE/PoE+ ports with a power budget of 400 watts and 4 additional dedicated SFP+ for 10G Fiber link.


Business can get enhanced network performance through the integrated L2 and L2+ features, it provides various types of VLAN for you to segment the local network and keep the traffic only at where it needs to go. Moreover, it supports VLAN routing to route the inter-VLAN traffic directly, shares loads of the router, and improve overall network performance.



L2+ Managed PoE Gigabit Switch
24 x Gigabit Ethernet Ports with PoE+
4 x 10GbE SFP+ slots
Up to 128 Gbps switching capacity
PoE ports 802.3at and 802.3af compliant providing up to 30W per port
PoE power budget of 400 watts
802.1q tagged VLANs (MAC address, and protocol)
Voice and Surveillance VLANS with QoS (OUI Mode) providing improved call and video quality
ONVIF (Open Network Video Interface Forum) compliant
QoS with 8 queues for traffic prioritisation
Enterprise-Level security features
802.1x Port Security, ACL, IP Source Guard and DHCP Snooping
Access Control (IPv4, IPv6 and MAC address)
Support IPv6 with MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver
Authentication by local database, multiple RADIUS, and TACACS+ servers
IEEE 802.3az (Energy-Efficient Ethernet) compliant
Support SNMP v1/v2c/v3, RMON, and Syslog for network monitoring
Port Mirroring & Link Aggregation
1 x RJ-45 console port
Compliant with Central Switch Management features of DrayTek Vigor devices for simplified network management
Compliant with VigorConnect software for local network management
Support VigorACS 2 Central Management System for remote network management
2 years back to base warranty

  • DrayTek VigorSwitch 2280x Series
  • Datasheets and Guides
  • View the Ports

Click HERE to access the Datasheet

Click HERE to access the User Guide

Click HERE to access the Installation Guide
