Fitting out our home office for ethernet, the USW Pro Max 16 PoE is the perfect choice. We don't need 24, let alone 48 ports nor the cost to step up. This is ideal with Layer 3 features. With etherlighiting it will make for a colourful (pretty), colour-coded (useful), addition to the rack!
DavidUSW-Pro-Max-16-PoE (180W) Ubiquiti UniFi Switch Pro Max 16 Port PoE
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description

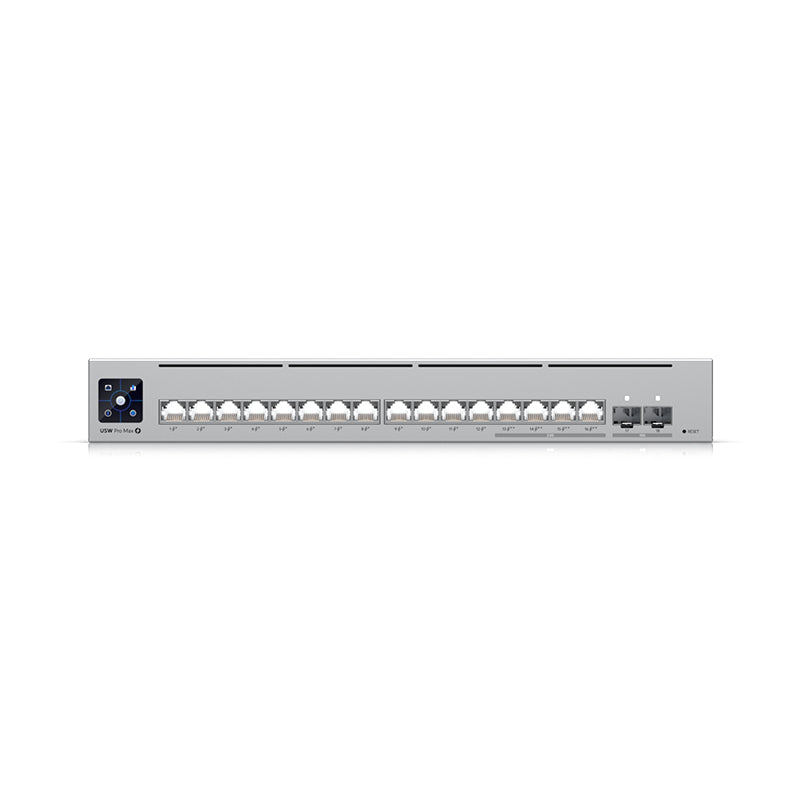

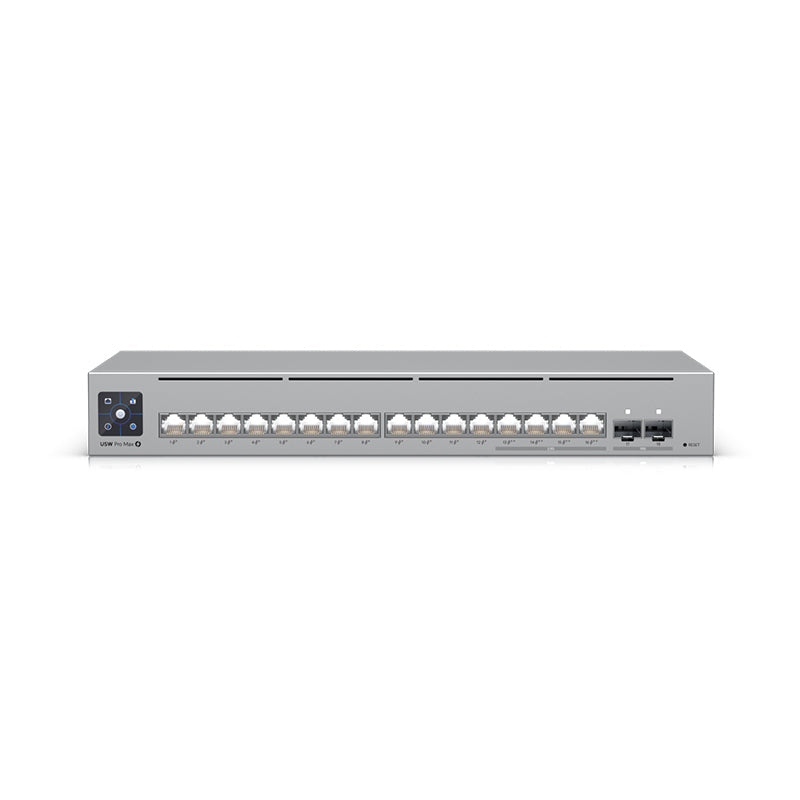

A 16-port, Layer 3 Etherlighting™ switch with 2.5 GbE, PoE++ output, and versatile mounting options.

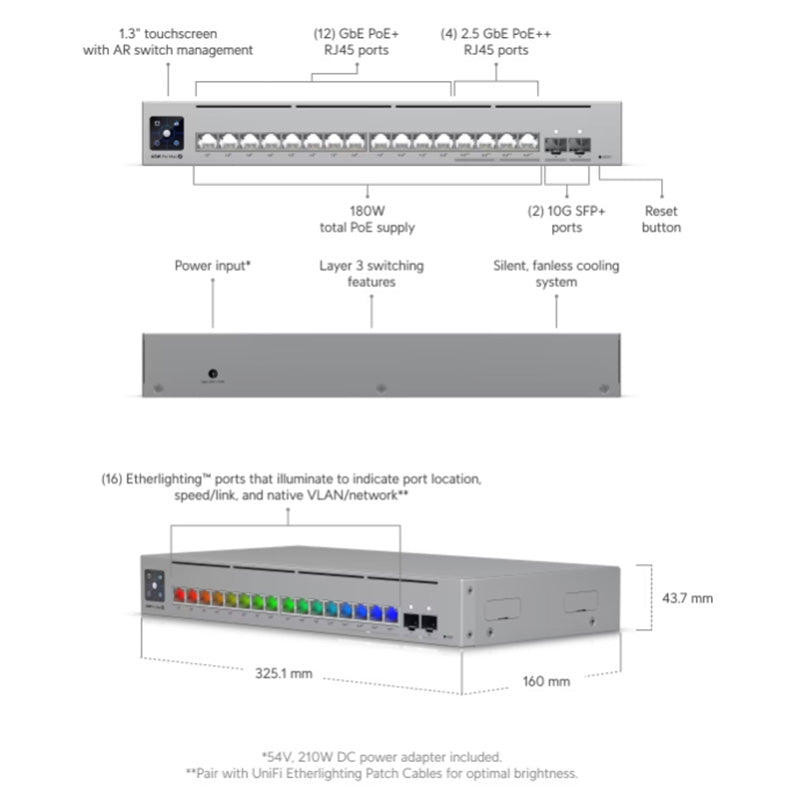

Features:

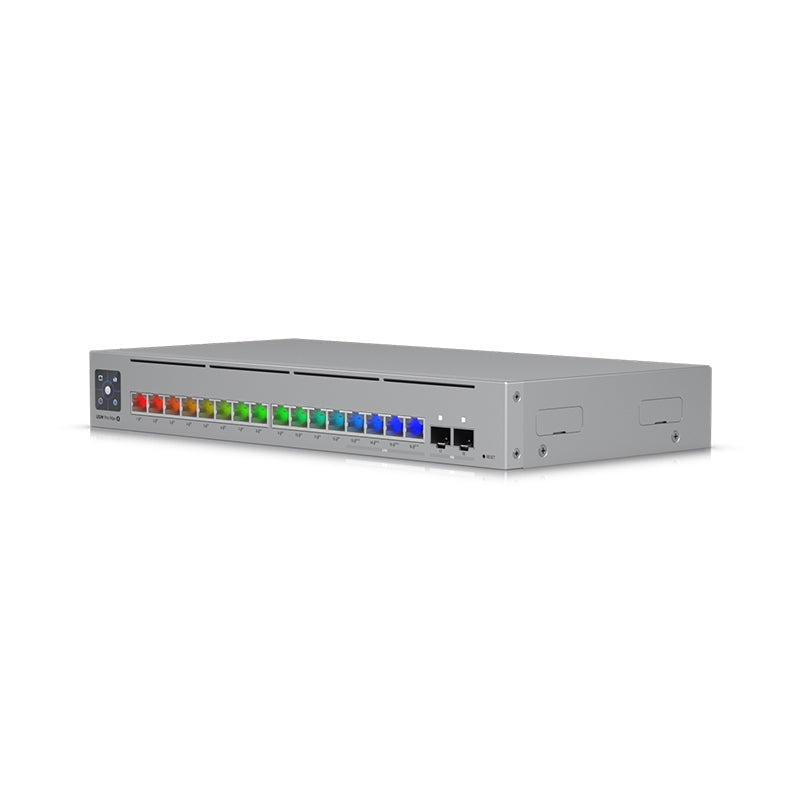

Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
(4) 2.5 GbE PoE++ ports
(12) GbE PoE+ ports
(2) 10G SFP+ ports
180W total PoE availability

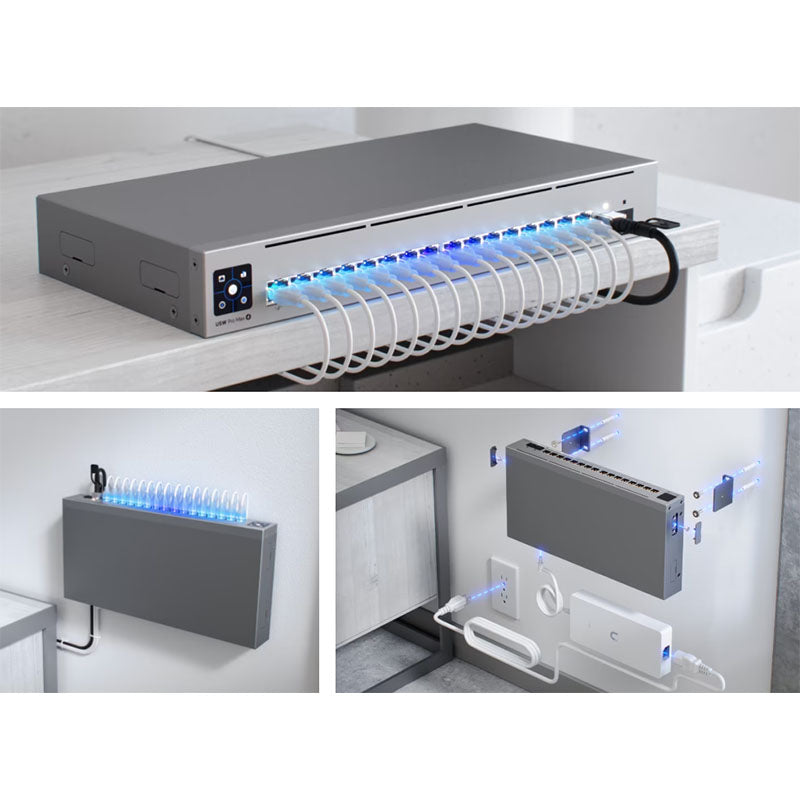

Versatile desktop, wall, and rack** mounting
Silent, fanless cooling system
*Pair with UniFi Etherlighting Patch Cables for optimal brightness.
**Requires add-on Rack Mount accessory.
Frequently asked questions5 questions
How many ports does this switch have and what speeds do they support?
How much PoE power is available?
Does it need a rack, or can it be placed on a desk?
Is the switch noisy?
What are Etherlighting ports?
Customer reviews
5.0
· 7 reviews
For me this was a great upgrade from a UniFi 8 port POE switch. Etherlighting is a useful feature. The small information screen is an eye opener with how much information at a glance is available on the network. Its not cheap but its a worthwhile spend for the features.
NeilI needed an additional Unifi switch to support a home upgrade. Reviewing all their switches, creating a spreadsheet and analysing power budgets, the Pro Max came out as the best bang for the buck, which was a huge surprise. The actual switch is just a managed 16 port PoE switch. Not too much to get excited by.
Unless... you're a bit of a nerd and love that it's silent, it supports multiple different PoE types, that some ports are 2.5gbps and it has a 10gbps uplink. And it has coloured ports that change colour depending on what you want to show. And that can 'breathe'. In that case, you'll love this switch.
Integration with your existing Unifi setup is a breeze. It really is super simple. Management is as usual with Unifi switches. Being the latest generation it does have all the management tools you need and as the Unifi Network application keeps on getting updated, being the latest it will support all the new features for some time.
If you need a high performance 16 Port PoE capable switch, perhaps have some Wifi 7 AP's that need power and backhaul this is a perfect solution. Add it to your existing Unifi controller and gateway and you will have a switch that should last a long time and meet or exceed most peoples expectations.
Amazing switch. Easy to use and powerful enough to run my gear in the office.
RayneWhat a great device. Very comprehensive configurations to suit every scenario. Love the 2.5G ports
JohnSpecifications37 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 325.1 x 160 x 43.7 mm / (12.8 x 6.3 x 1.7") |
| Port Layout · 1 GbE RJ45 | 12 (All PoE+) / (1G/100M/10M) |
| Port Layout · 2.5 GbE RJ45 | 4 (All PoE++) / (2.5G/1G/100M/10M) |
| Port Layout · 10G SFP+ | 2 / (10G/1G) |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | 180W |
| Form Factor | Rack mount (1U), desktop, wall |
| Performance | |
| Switching Capacity | 84 Gbps |
| Total Non-Blocking Throughput | 42 Gbps |
| Forwarding Rate | 62 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| IPv4 Static Routes | 256 |
| Packet Buffer Size | 1.5 MB |
| Access Lists · IPv4 | 128 |
| Access Lists · MAC | 128 |
| Hardware | |
| PoE Ports · PoE+ | 12 |
| PoE Ports · PoE++ | 4 |
| Max. PoE Wattage per Port by PSE · PoE | 15.4W |
| Max. PoE Wattage per Port by PSE · PoE+ | 32W |
| Max. PoE Wattage per Port by PSE · PoE++ | 60W |
| Max. Power Consumption | 25W (Excluding PoE Output) / 210W (Including PoE Output) |
| Power Method | AC Adapter |
| Power Input Method | AC input |
| Power Supply | AC/DC, external, 210W |
| Supported Voltage Range | 50–54V DC |
| Management | Ethernet / AR |
| Heat Dissipation | 68 BTU/hr (Excluding PoE Output) |
| Weight | 2.1 kg (4.6 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm / (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 08953-24-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 8.1.127 and later |
