Description

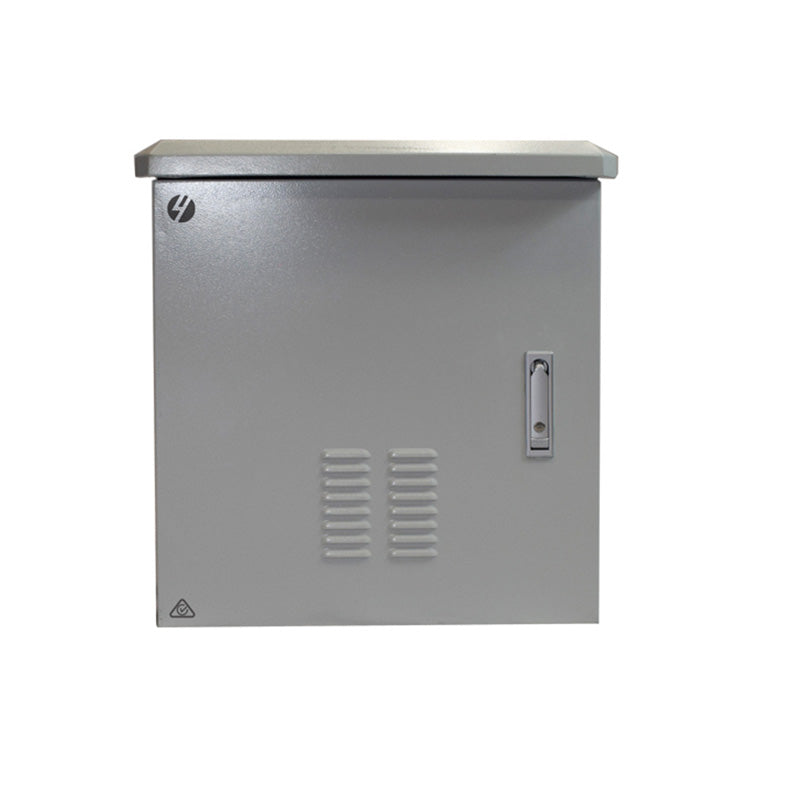

18RU 600mm Wide x 600mm Deep Outdoor Wall Mount Ventilated Server Rack, IP45.

4Cabling's Outdoor Wall Mount Server Rack Cabinets are designed to protect your sensitive network equipment from harsh environments. We have included features to safeguard it from the elements, while still keeping the equipment secure and well ventilated.

The outdoor server racks include a high-grade polyurethane door joint strip, rain hood and is secured with a 3-point swing handle locking system. All fixtures are internal to the cabinet to provide a secure solution.

FEATURES AND INCLUSIONS

      • Vented front door with 3-point locking system and replaceable filter

      • Fully welded design for strength and durability

      • Made from powder-coated 1.2mm welded cold-rolled steel

      • Supplied fully assembled, ready to be installed

      • Rain hood included

      • Adjustable 19" mounting rails installed front and rear with RU markings

      • Max rail to rail depth of 425mm that can be adjusted to your needs

      • Front-mounted vertical cable management rings on both sides

      • Round cable glands with removable rubber covers on the base

      • IP45 rated to protect it from rain

      • High-grade polyurethane door joint strip

      • 2-way ceiling mount fan kit with switch included

      • Static load capacity of 130kg

SPECIFICATIONS

      • External Dimensions: 650mm Wide x 650mm Deep x 920mm High

      • Colour: Grey

      • Protection Rank: IP45 rated standard IEC 60529:2013

      • RU Size: 18RU

      • Material: Cold rolled steel 1.2mm thick

      • Net Weight: 57KG

      • Load Capacity: 130KG

WARRANTY

2-year limited warranty.

WHY 4CABLING?

  • Australia's leading importer & wholesaler of 19" server racks, copper, ethernet cable, fibre optic leads & structured networking products

  • ISO 9001, NSW Govt. & GITC (QLD Govt.) approved supplier

  • Secure online shopping 24/7

  • A loyal customer base of 100k+ who trust us for their data & electrical needs

  • Over 3000 quality products in stock ready to go

  • All products are approved as per local Australian standards

  • Warranty & peace of mind return policy

  • Lightning fast delivery nationwide

  • Expert advice

  • Proudly 100% Australian owned & operated

Frequently asked questions5 questions
What is this cabinet designed for?
It is an outdoor wall mount ventilated cabinet that protects network equipment from harsh environments while keeping it secure and ventilated. It is IP45 rated to IEC 60529:2013 for rain protection and includes a rain hood and a polyurethane door joint strip.
What are the external dimensions and weight?
The cabinet measures 650mm wide x 650mm deep x 920mm high and has a net weight of 57kg. It provides 18RU of mounting space and is finished in grey.
How much equipment can it hold, and how deep can the mounting rails go?
It has a static load capacity of 130kg. The adjustable 19" mounting rails at the front and rear carry RU markings and allow a maximum rail to rail depth of 425mm.
How is the cabinet secured and ventilated?
The vented front door closes with a 3-point swing handle locking system and has a replaceable filter. A 2-way ceiling mount fan kit with a switch is included, and all fixtures are internal to the cabinet.
Does it come assembled, and what is the warranty?
It is supplied fully assembled and ready to install, made from welded 1.2mm powder-coated cold-rolled steel. It is covered by a 2-year limited warranty.
