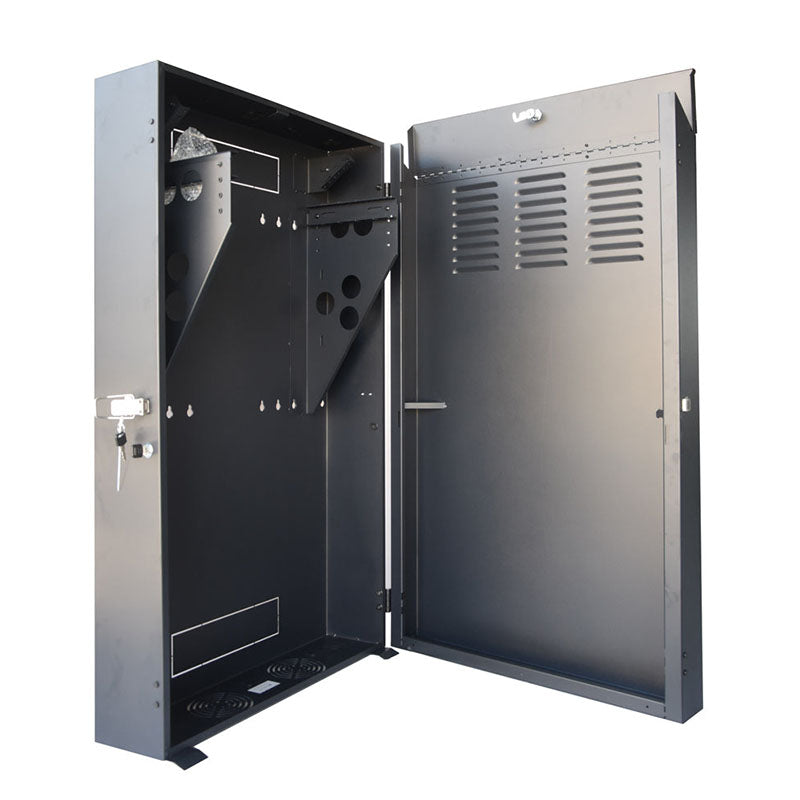

4Cabling 5U Vertical Wall Mount Cabinet Rack H1090mm x D250mm

4Cabling 's 5U Vertical Wall Mount Cabinet is designed to save you space. Perfect for small network equipment and limited space networking environments, the low profile of the cabinet allows your equipment to be mounted vertically anywhere from comms rooms to retail stores, classrooms, and offices. Anywhere that requires a smaller footprint and security.

The cabinet sits 250mm from the wall when mounted and will house 19" networking equipment with a depth up to 940mm, UPS systems, battery packs, network switches, and patch panels. In addition to 5U of rack space in the primary mounting area, there is also an adjustable 2U mounting bracket at the top of the cabinet for patch panels.

FEATURES

Supplied fully assembled
940mm max. device depth
Equipment mounts facing upwards in the cabinet
Constructed of cold-rolled steel
Cable entry glands at the top and bottom of the cabinet
Static load capacity 60kg
Reversible vented front door
Patch panel mounting bracket
Flip down top door section for easy access to a patch panel
2-way Fan cut out on the base (Fans NOT included

SPECIFICATIONS

Houses 19" rack equipment in 5U of space
Rails adjust - unscrew them, slide them to the desired depth, and screw them back in
Threaded mounting holes support M6 mounting
Rack spaces marked for easy reference
Cable glands with removable covers allow cable routing through top and bottom
Push-out rectangular glands at back top and bottom
Adjustable 2U mounting bracket for patch panels up to 63.5mm deep

INCLUSIONS

12 Sets of M6 Screws
4 keys (2 x pairs)
WARRANTY 3-year limited warranty
