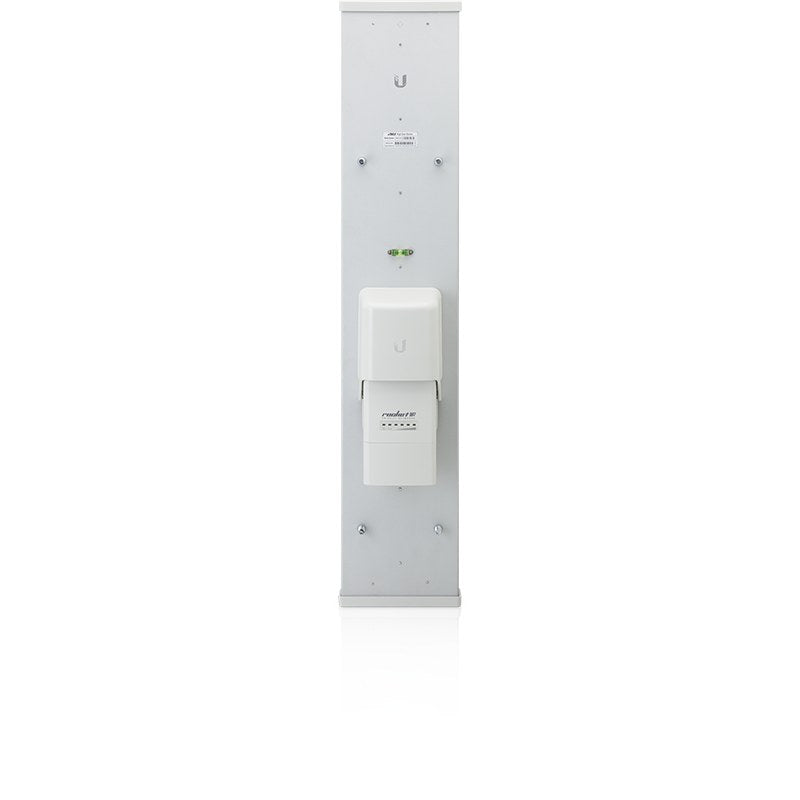

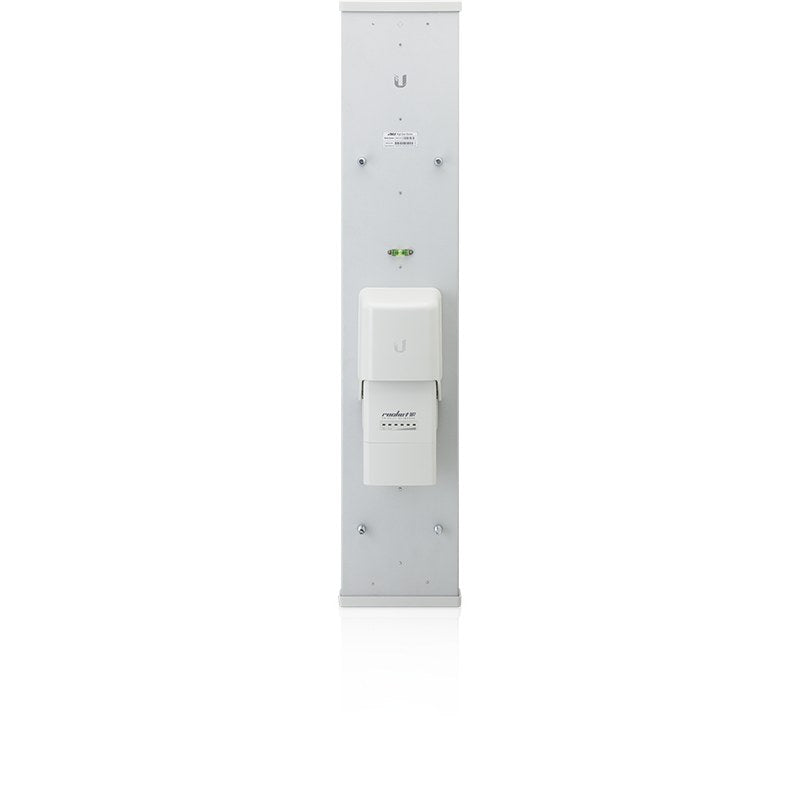

AM-2G16-90 - Ubiquiti airMAX 2.4 GHz, 16 dBi, 90º Sector Antenna
Description
Description
The Ubiquiti AM-2G16-90 is a high-performance 2.4 GHz sector antenna designed for reliable Point-to-MultiPoint (PtMP) networks. This airMAX 2x2 BaseStation sector antenna delivers exceptional 16-17 dBi gain with a precise 90-degree beamwidth, making it ideal for creating robust wireless infrastructure in demanding outdoor environments.
Engineered for professional wireless deployments, the AM-2G16-90 features dual-linear polarisation with excellent 28 dB cross-polarisation isolation, ensuring optimal signal quality and minimal interference. Operating across the 2.3-2.7 GHz frequency range, this antenna provides versatile deployment options whilst maintaining NDAA compliance for government and enterprise installations.
Built to withstand harsh conditions, this sector antenna offers impressive 200 km/h wind survivability and weighs just 3.9 kg. The 4-degree electrical downtilt and 9-degree electrical beamwidth optimise coverage patterns for efficient network design. With a maximum VSWR of 1.5:1, the antenna ensures excellent impedance matching for maximum power transfer.
Key Features
- 16-17 dBi antenna gain for extended range and coverage
- 90-degree (6 dB) VPOL beamwidth for sector coverage
- 2.3-2.7 GHz frequency range for flexible deployment
- Dual-linear polarisation with 28 dB minimum cross-pol isolation
- 4-degree electrical downtilt for optimised coverage
- 200 km/h wind survivability for extreme weather conditions
- All mounting accessories included: Universal Pole Mount, RocketM Bracket, and weatherproof RF jumpers
- NDAA compliant for government and enterprise use
- Compact dimensions: 700 x 145 x 79 mm
- EN 302 326 DN2 ETSI specification certified
Ideal for: Wireless Internet Service Providers (WISPs), enterprise campus networks, remote area connectivity, and outdoor Point-to-MultiPoint deployments requiring reliable 2.4 GHz sector coverage.
Compatible Products
RocketM2 BaseStation - Pairs perfectly with the AM-2G16-90 for complete 2.4 GHz sector coverage, supporting speeds up to 150+ Mbps real TCP/IP throughput with plug-and-play airMAX integration.
RocketM2 Titanium - Enhanced BaseStation option offering the same seamless integration with improved performance characteristics for demanding deployments.
The antenna includes everything needed for installation: universal pole mount hardware, dedicated RocketM bracket for direct radio attachment, and weatherproof RF jumper cables to ensure reliable connections in all conditions.
Click HERE to access the Datasheet
Specifications14 specifications · 2 sections
| Mechanical | |
|---|---|
| Dimensions | 700 x 145 x 79 mm / (27.6 x 5.7 x 3.1") |
| Weight | 3.9 kg (8.6 lb) |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 85 N at 160 km/h (19 lbf at 100 mph) |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
| Hardware | |
| Frequency Range | 2.3—2.7 GHz |
| Antenna Gain | 16—17 dBi |
| Electrical Downtilt | 4° |
| Electrical Beamwidth | 9° |
| VPOL Beamwidth | 90° (6 dB) |
| Max. VSWR | 1.5:1 |
| Polarization | Dual-Linear |
| Cross-Pol Isolation | 28 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
