JL809A Aruba Instant On 1960 Series 48-Port 1GbE Switch with 8 ports PoE++ (600W)




Chat 7am to 10pm - 7 days a week

We love what we do!

 Shipping Costs From

Standard - $15 or Express - $20

Want The Best Prices?

Request a quote

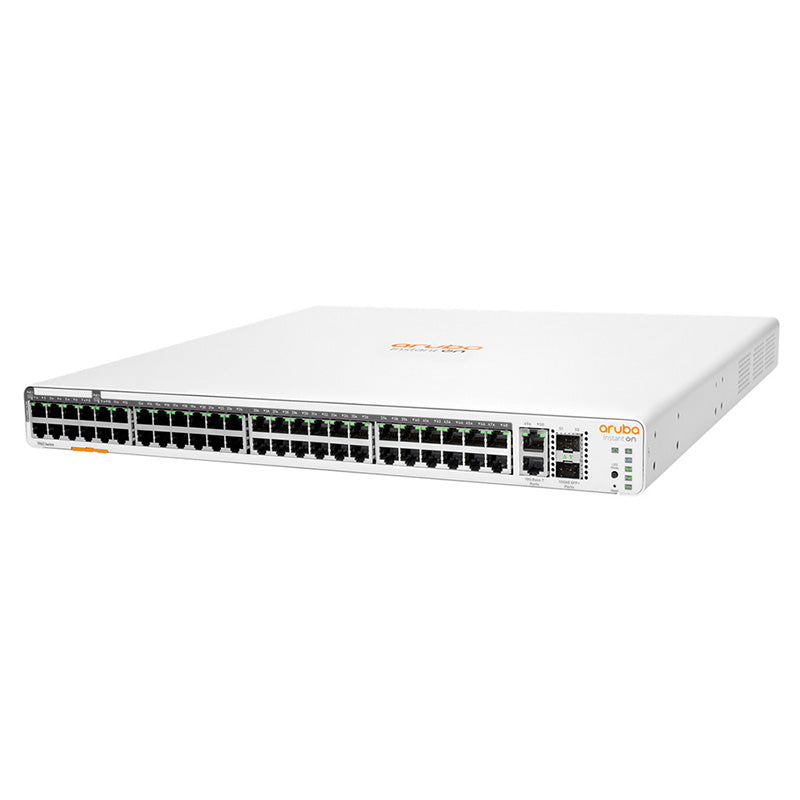

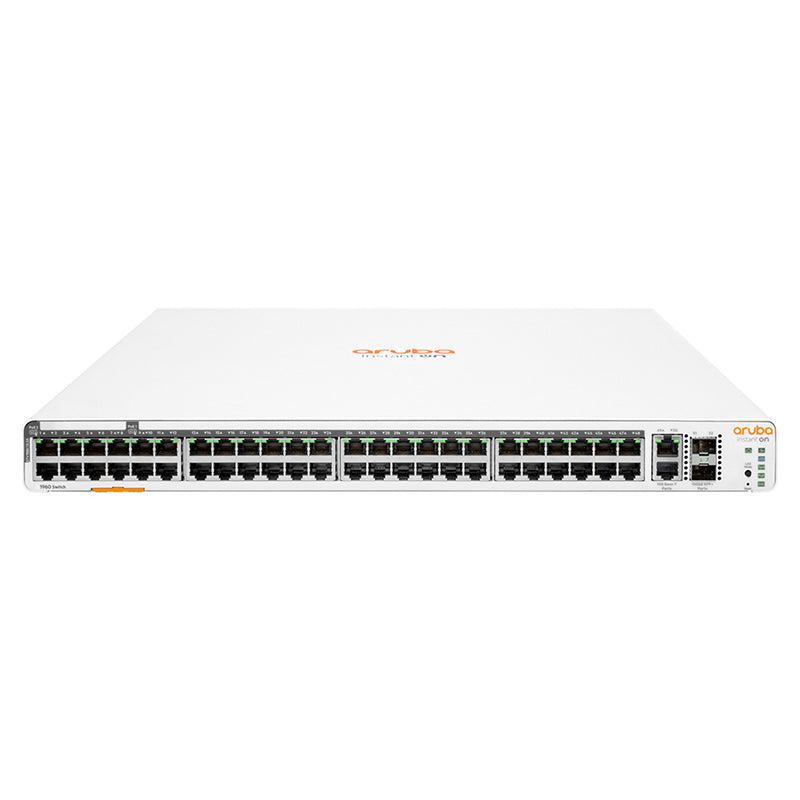

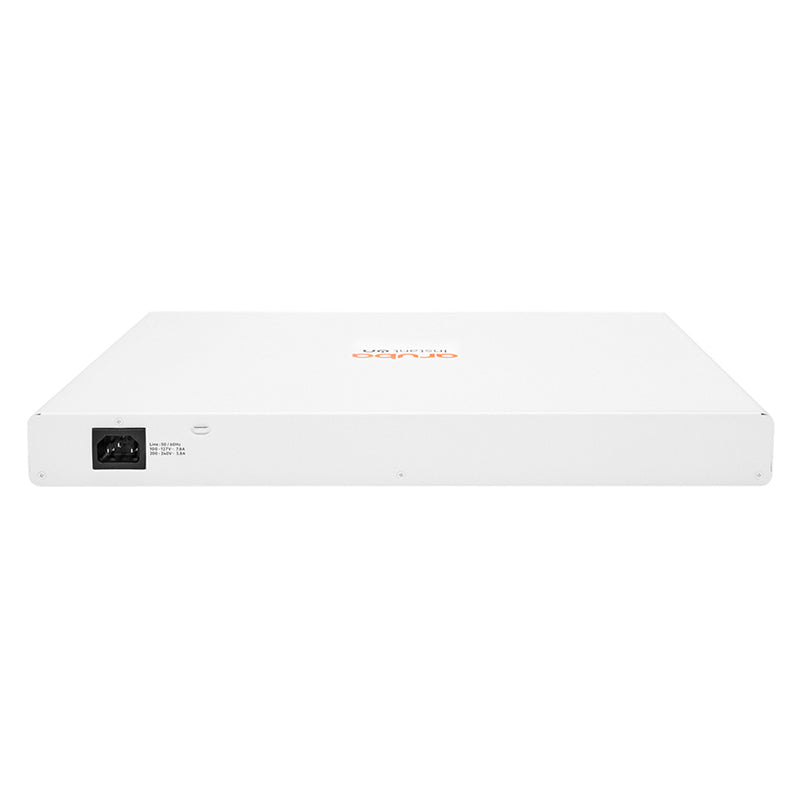

Aruba JL809A Instant On 2XGT 1960 Series 40-Port Smart Managed Rackmount Gigabit PoE+ Switch w/ 2 x 10GbE RJ45 Ports, 2 x 10GbE SFP+ Ports & 8 x PoE++ Ports (600W)


The Aruba JL809A Instant On 2XGT 1960 Series 48-Port Smart Managed Rackmount Gigabit PoE+ Switch is an advanced, smart managed, fixed configuration Gigabit stackable switch designed for small and growing businesses that is easy to deploy and affordable. This switch is designed to scale as businesses grow, making adding more employees, devices and applications simple.


The JL809A is made to handle today’s bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to improve user experience and application performance.



High-performance 10GbE connectivity: For environments with heavy bandwidth needs, 10GBase-T and SFP+ uplink ports deliver lightning-fast network speeds and eliminate traffic bottlenecks.
Gigabit and Uplink ports: 48-port Gigabit switch with two (2) 10GbE RJ45 and two (2) 10GbE SFP+ uplink ports that forms the foundation of a small business network.
Stack up to four (4) 1960 switches: Simplify network management by stacking up to (four) 4 1960 (access and aggregation) switches and managing them through a single management interface. You get up to 288 ports, including sixteen (16) 10G uplink ports, for high-density environments, as well as flexibility for future network expansion.
Easy to use cloud-managed stacking: In a few simple steps, set up and configure a stack with the Aruba Instant On mobile app. You can manage the stack and ports remotely, and you’ll minimise network downtime - if the master switch within 1960 Series stack fails, another switch takes over, keeping your network up and running.
Future-proof your network: Advanced switching capabilities like Layer 3 IPv4, IPV6 static routing, ACLs, and Spanning Tree Protocols support apps and devices you have today, as well as those you may add in the future. And True Stacking makes it easy to configure, manage, and troubleshoot physical switches as one single entity, helping scale the network as your business grows.
PoE Over Ethernet (PoE) support: Supports Class 4 and Class 6 PoE on selected ports. Up to 30 W PoE power delivery is available for Class 4 PoE devices like access points, surveillance cameras and VoIP phones, and up to 60 W PoE power delivery is available for Class 6 PoE devices like pan-tilt zoom cameras and video enabled IP-phones.
Robust security: Protect your business data and keep unauthorised users off the network with advanced security features like IEEE 802.1X, MAC authentication, VLANs, Network Access Control (ACL), Port Security, DHCP snooping, ARP attack prevention and RADIUS authentication.

  • Aruba 1960 Series
  • Datasheets and Guides

Click HERE to access the Datasheet

Click HERE to access the Installation Guide

Click HERE to access the Specification
