DIS-F200G-10PS-E - D-Link 10-Port Gigabit Industrial Smart Managed PoE Switch with 8 Long Reach PoE+ Ports (240W) and 2 SFP Ports
Ordering - What You Need To Know
Ordering - What You Need To Know
When you order a Sophos license from us please make sure you include the license number or current hardware appliance serial number. Licenses generally take around 24 - 36 working hours to be issued after order.
In some instances you may find we show out of stock for certain hardware models. This is fairly normal and reflects the fact, often that we have to place what is called a back to back order. When you order with us, we order with Sophos and the unit is shipped in to the country. Please allow around 10 working days where we show as out of stock.
Description
Description

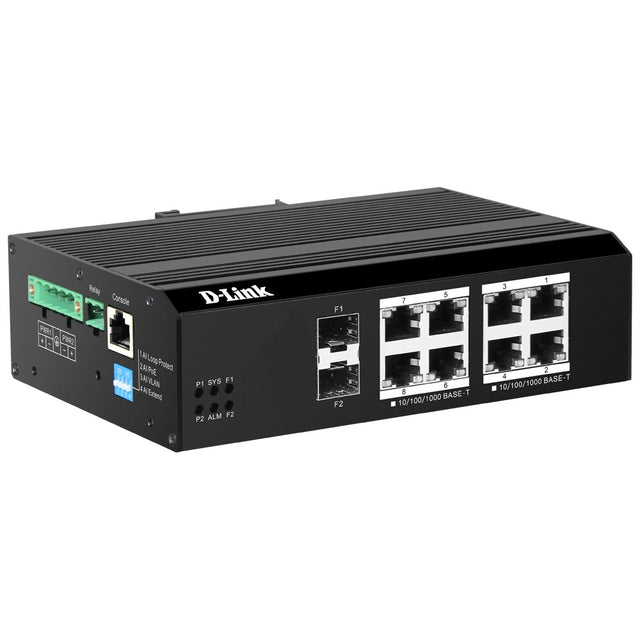

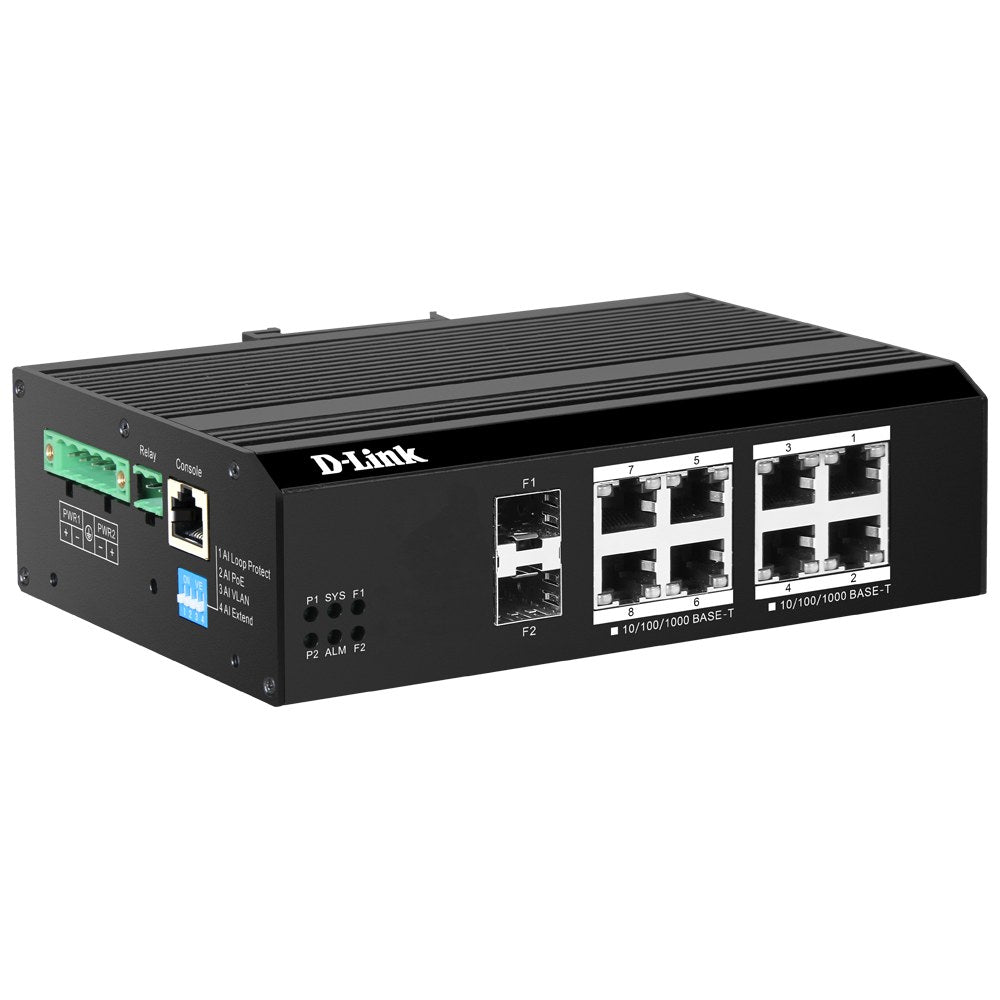

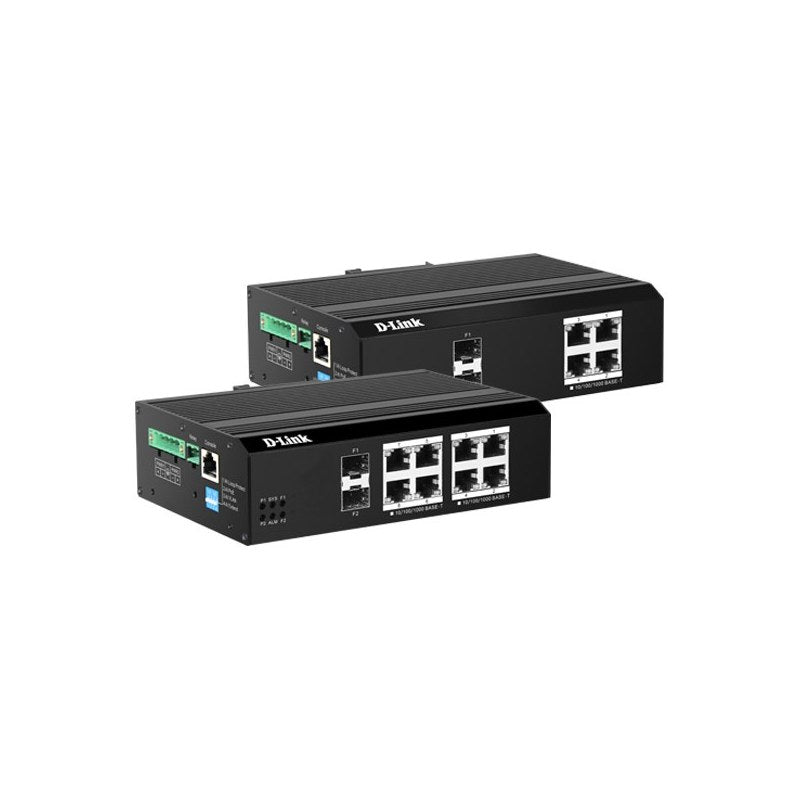

The D-Link DIS-F200G-10PS-E is a 10-port Gigabit industrial smart managed PoE+ switch with 8 1000BASE-T Long Reach PoE+ ports and 2 SFP ports. It has a 240W PoE budget, and a rugged, fanless metal design that is DIN rail mountable. It is built for demanding industrial and outdoor cabinet deployments such as surveillance, factory automation and intelligent transportation systems. Please note that a DC power supply is not included.
With Long Reach PoE support of up to 250m, the DIS-F200G-10PS-E lets you power and connect devices well beyond the usual 100m Ethernet limit. Dual power inputs, RUN-Ring fast ring recovery and 6 kV surge protection on the copper ports help keep your network running in harsh conditions.
Key Features
- 8 x 1000BASE-T PoE+ ports (IEEE 802.3af/at) plus 2 x SFP ports
- Total PoE budget of 240W, with up to 30W per port
- Long Reach PoE support up to 250m (ports run at 10Mbps when extended)
- Layer 2 smart managed switch with 20 Gbps switching capacity and 8K MAC address table
- RUN-Ring technology for rapid ring failover recovery (<10ms self-healing)
- 6 kV surge protection on all copper ports
- Dual power input (48 to 56V DC terminal block) for redundant power supplies
- Highly resistant metal housing with high EMC endurance
- Fanless, passive cooling design with no moving parts
- Wide operating temperature range of -40°C to 75°C
- DIN rail mountable and compact at 159 x 105 x 39 mm
- Loop detection and cable diagnostics for easier troubleshooting
- QoS and Auto Voice VLAN support to optimise traffic
Ideal for: system integrators, installers and IT teams deploying industrial PoE networks, outdoor cabinet CCTV and surveillance, factory automation, warehousing, car park systems and other harsh-environment sites.
Compatible Products
Compatible with IEEE 802.3af and 802.3at PoE and PoE+ powered devices such as IP cameras and wireless access points, and with MSA-compliant SFP modules for uplinks. Power should be supplied from a suitable 48 to 56V DC source.
FAQs
How many PoE ports does the DIS-F200G-10PS-E have?
It has 8 PoE+ capable 1000BASE-T ports, plus 2 SFP ports, with a total PoE budget of 240W.
Does it support Long Reach PoE?
Yes. Long Reach PoE supports cable runs of up to 250m, compared with the usual 100m limit. In this mode, ports 1 to 8 run at 10Mbps.
What temperatures can it operate in?
The operating temperature range is -40°C to 75°C, making it suitable for harsh industrial and outdoor cabinet environments.
Can it be mounted on a DIN rail?
Yes. It is DIN rail mountable and has a compact footprint of 159 x 105 x 39 mm.
Does it offer power redundancy?
Yes. It has a dual power input (48 to 56V DC terminal block) so the network can keep running if one power source fails.
