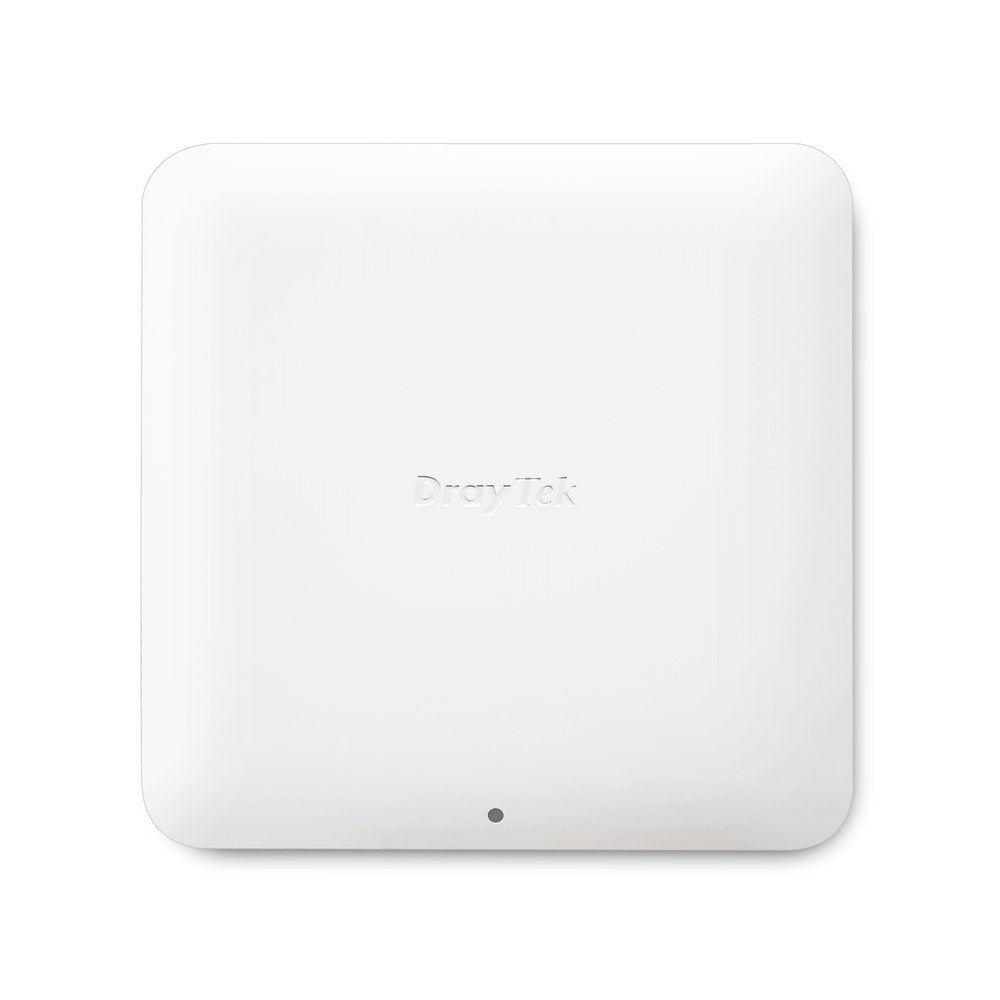

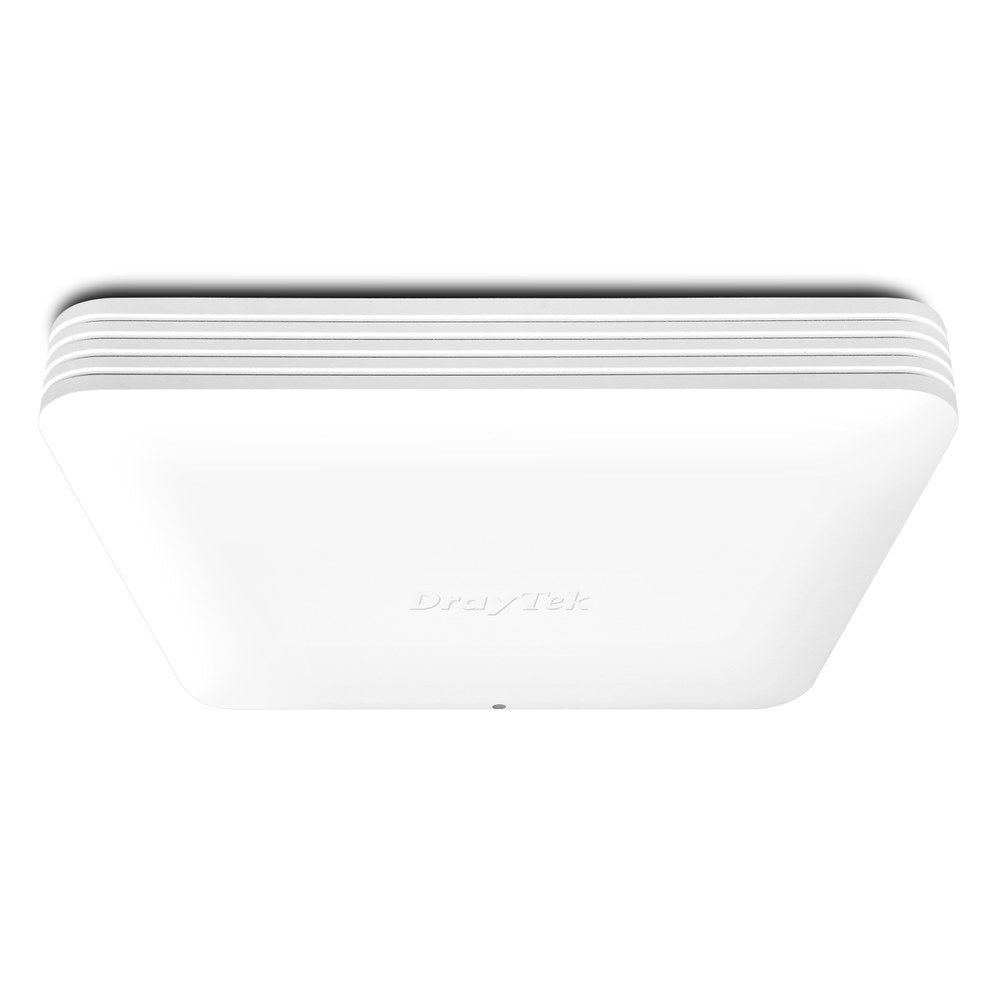

The DrayTek VigorAP 1070C (SKU: DAP1070C) is a high-performance tri-band Wi-Fi 7 access point designed for businesses requiring ultra-fast connectivity, exceptional capacity, and advanced network management. Delivering combined wireless speeds of up to 19 Gbps (BE19000) across 2.4 GHz, 5 GHz, and 6 GHz bands, this ceiling or wall-mounted access point brings the latest 802.11be Wi-Fi 7 technology to enterprise environments.

With link rates of up to 1376 Mbps on 2.4 GHz, 5765 Mbps on 5 GHz, and an impressive 11530 Mbps on 6 GHz, the VigorAP 1070C is built for high-density environments supporting up to 512 concurrent wireless clients. Advanced Wi-Fi 7 technologies including Multi-Link Operation (MLO), 4K-QAM, OFDMA, MU-MIMO, and 320 MHz channel support ensure ultra-low latency, higher capacity, and efficient multi-device connectivity ideal for cloud applications, video conferencing, and 4K/8K streaming.

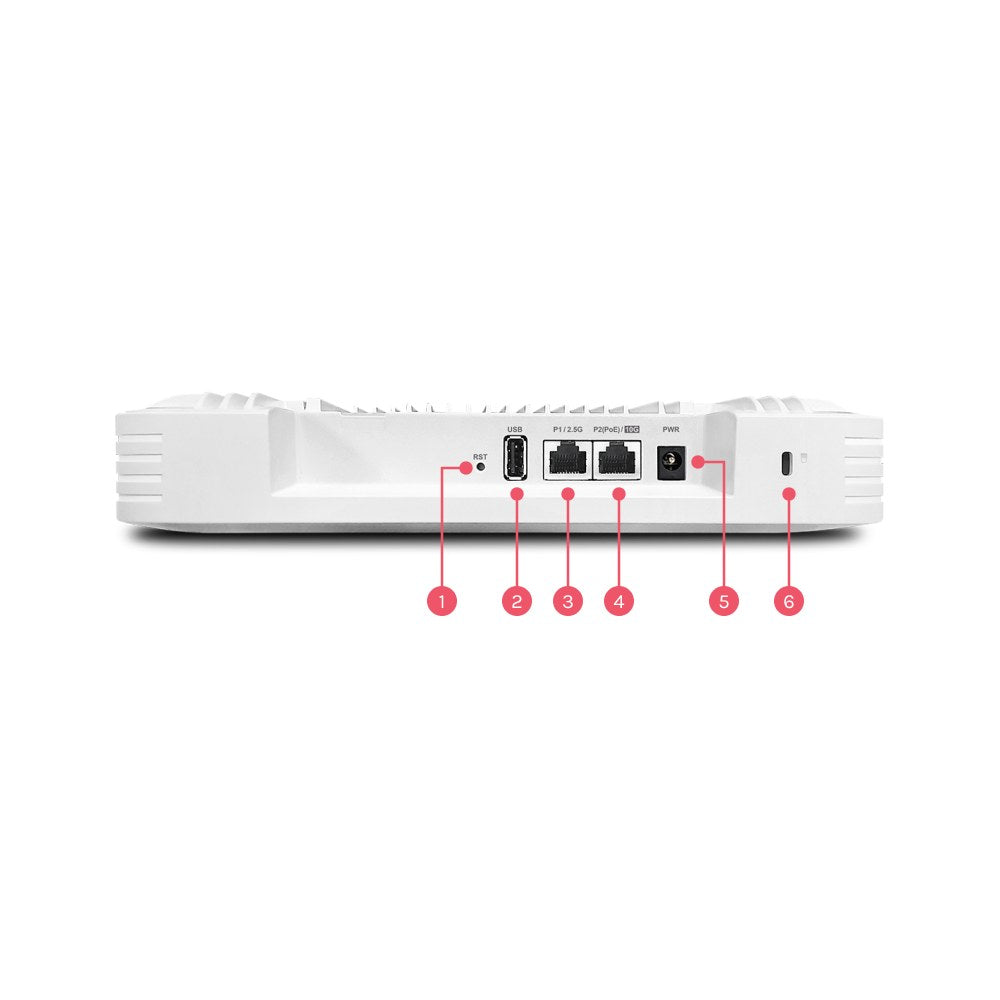

The DAP1070C features a 10 GbE Ethernet port with PoE support and a secondary 2.5 GbE port, providing high-speed wired connectivity that fully supports next-generation Wi-Fi 7 throughput. This powerful combination eliminates wired bottlenecks and ensures seamless integration with multi-gigabit network infrastructure. The access point also includes a dedicated 5 GHz antenna for Zero-Wait DFS, enabling instant channel switching when radar signals are detected without service interruption.

Key Features:

• Wi-Fi 7 (802.11be) tri-band access point with BE19000 combined speeds
• Supports up to 512 wireless clients for scalable business deployments
• Multi-Link Operation (MLO) for simultaneous multi-band transmission
• 4K-QAM technology delivers up to 20% higher throughput than Wi-Fi 6
• 10 GbE PoE port plus 2.5 GbE port for high-speed wired connectivity
• Up to 24 SSIDs (8 per band) with VLAN support for network segmentation
• Mesh networking – supports up to 8 access points in a wireless mesh group
• Zero-Wait DFS with dedicated 5 GHz antenna for uninterrupted service
• Advanced roaming protocols: 802.11r, 802.11v, 802.11k
• WPA3 security, WPA3/WPA2 mixed mode, and OWE protocols
• Built-in RADIUS server for 802.1x authentication
• Band steering and AirTime Fairness for optimised performance
• Centralized management via DrayTek routers or VigorACS 3 cloud platform
• DrayTek Wireless App with push notifications for network events
• Ceiling or wall mounting with simplified PoE installation

Ideal for: Corporate offices, educational institutions, hotels, conference centres, hospitality venues, and any high-density business environment requiring reliable, high-performance wireless networking with future-proof Wi-Fi 7 technology.

Compatible DrayTek Routers

The VigorAP 1070C integrates seamlessly with DrayTek's range of business routers including the Vigor2928be, Vigor2867be, Vigor1220be, Vigor2962, Vigor2952P, Vigor2927 Series, Vigor2767 Series, and Vigor2766 Series. These routers provide Virtual Controller functionality for centralized access point management, auto-discovery, provisioning, and monitoring.

Compatible DrayTek Switches

Pair the VigorAP 1070C with DrayTek managed switches such as the VigorSwitch PQ1070x and VigorSwitch Q60x Series for complete network infrastructure. These PoE-capable switches deliver power and high-speed data connectivity while supporting VLAN configuration and centralized management.

Compatible Access Points for Mesh Deployment

Extend wireless coverage by creating mesh networks with other DrayTek VigorAP models including the VigorAP 1062C, VigorAP 1060C, VigorAP 905, VigorAP 805, VigorAP 962C, VigorAP 912C, and other compatible VigorAP access points for seamless roaming across your business premises.
