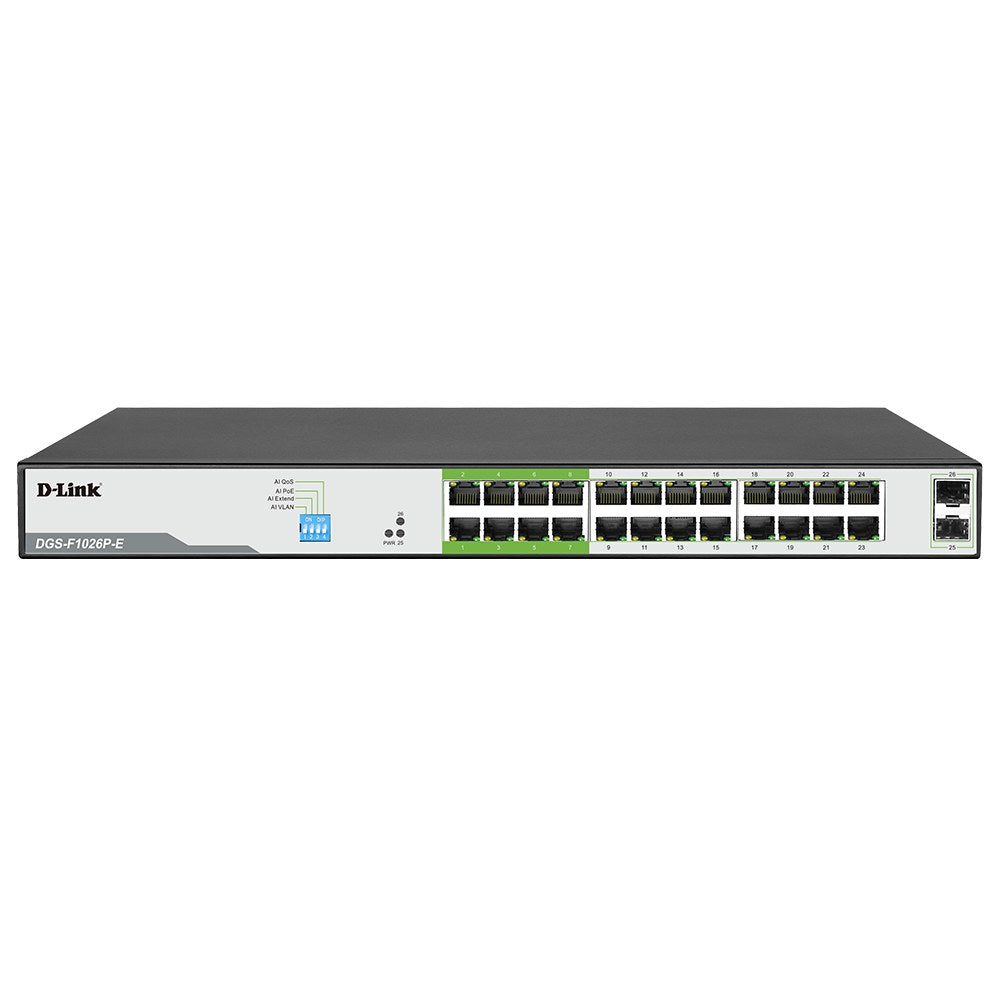

DES-F1026P-E+Q - D-Link 26-Port Long Range PoE Switch with 24 PoE Ports and 2 Gigabit Uplink Ports
Ordering - What You Need To Know
Ordering - What You Need To Know
When you order a Sophos license from us please make sure you include the license number or current hardware appliance serial number. Licenses generally take around 24 - 36 working hours to be issued after order.
In some instances you may find we show out of stock for certain hardware models. This is fairly normal and reflects the fact, often that we have to place what is called a back to back order. When you order with us, we order with Sophos and the unit is shipped in to the country. Please allow around 10 working days where we show as out of stock.
Description
Description
The D-Link DES-F1026P-E (SKU: DES-F1026P-E+Q) is a robust, cost-effective 26-port long range PoE switch designed to power and connect devices such as IP cameras, CCTV, VoIP phones and Wi-Fi access points. With 24 Fast Ethernet PoE+ ports and 2 Gigabit uplink ports, it delivers data and power over a single cable, reducing the need for separate power supplies at each device.
Equipped with PoE Extend technology, eight of the PoE ports can supply 802.3af/at PoE and data connectivity over cable runs of up to 250 metres, which is ideal where the standard 100-metre limit is a constraint. Built-in 6KV surge protection helps guard the switch against electrical surges caused by events such as lightning strikes or unstable current, helping to reduce the risk of equipment damage and costly repairs.
Despite being an unmanaged switch, the DES-F1026P-E offers smart features not usually associated with entry-level models, including Extend, VLAN, QoS and PoE Reset. Setup is quick and simple thanks to plug-and-play installation, and the durable metal housing is rackmountable for tidy deployment.
Key Features
- 24 x 10/100 Mbps Fast Ethernet PoE+ ports
- 2 x Gigabit uplink ports with 1 combo SFP for copper or fibre connectivity
- PoE+ support with up to 30W per port
- 8 x long reach PoE ports supporting up to 250m
- 250W PoE budget
- Smart features: Extend, VLAN, QoS and PoE Reset
- Built-in 6KV lightning and surge protection
- Plug-and-play installation with no configuration required
- Metal housing, rackmountable design, internal power supply
- Dimensions: 440 x 180 x 44 mm
- 3-year limited warranty
Ideal for: surveillance and CCTV installers, system integrators, small and medium businesses, and anyone deploying IP cameras, VoIP phones or Wi-Fi access points at distant locations where long cable runs and reliable PoE power are required.
Compatible Products
Compatible with IEEE 802.3af/at PoE-powered devices, including IP cameras, CCTV equipment, VoIP phones and Wi-Fi access points. It can also connect other network devices such as computers, printers and NAS devices.
FAQs
How far can the DES-F1026P-E deliver power and data?
Eight of the PoE ports are long reach ports, supporting PoE and data transmission on cables up to 250 metres when Extend mode is used.
What is the total PoE budget?
The switch provides a 250W PoE budget, with up to 30W available per PoE port.
Does the switch include surge protection?
Yes. It has built-in 6KV surge protection to help protect against electrical surges such as lightning strikes.
What uplink options are available?
There are two Gigabit uplink ports, one of which is a combo SFP port, so you can uplink using copper or fibre.
Is any configuration required?
No. The switch supports plug-and-play installation, and smart features such as Extend, VLAN, QoS and PoE Reset are available.
