Description
Description

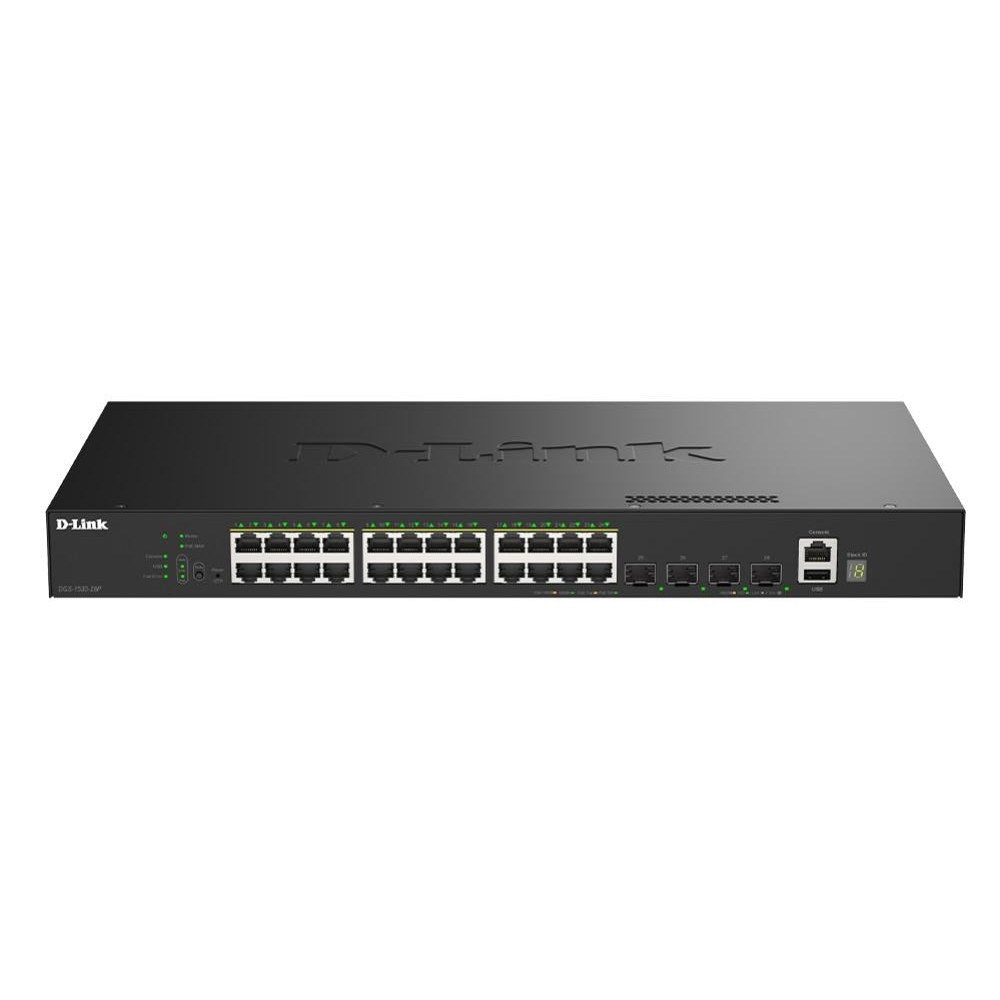

The D-Link DGS-1530-28P is a 28-port Gigabit Smart Managed Stackable PoE+ switch that combines 24 Gigabit PoE+ ports with four 10G SFP+ uplink ports and a 370 W PoE budget. It is designed to power and connect IP cameras, wireless access points and VoIP phones over standard Ethernet, cutting down on separate power cabling and simplifying deployment.
The DGS-1530-28P supports IEEE 802.3af/at PoE, delivering up to 30 W per port with Perpetual PoE and Fast PoE. With a switching capacity of 128 Gbps and a maximum packet forwarding rate of 95.24 Mpps, it provides the performance needed for busy business and campus networks. Physical stacking of up to nine switches over the 10G ports lets you grow the network as your requirements change.
Key Features
- 24 x 10/100/1000 Mbps PoE+ ports for downlink connections
- 4 x 10G SFP+ ports for high-speed uplinks
- IEEE 802.3af/at PoE with a 370 W power budget, up to 30 W per port
- Physical stacking of up to 9 switches
- 128 Gbps switching capacity and 95.24 Mpps forwarding rate
- 6 kV surge protection (IEC61000-4-5) on all Ethernet RJ-45 ports
- Zero-Touch Provisioning (ZTP) for simpler setup
- Ethernet Ring Protection Switching (ERPS) for network resilience
- IEEE 802.1ag Connectivity Fault Management and ITU-T Y.1731 delay measurement
- Security tools including ACLs, D-Link Safeguard Engine, BPDU attack protection, DoS attack prevention and IEEE 802.1X access control
- Manageable through the Nuclias Network Controller
- Desktop or 1U rack-mount installation (440 x 250 x 44 mm, 3.75 kg), with 3 smart fans and an RJ-45 console port
Ideal for: small and medium businesses, offices, campus and Metro Ethernet deployments, and IT teams that need a scalable, PoE-powered managed switch for IP cameras, wireless access points and VoIP phones.
Compatible Products
Powers and connects IEEE 802.3af/at PoE devices such as IP cameras, wireless access points and VoIP phones. Uses SFP+ transceivers in its four 10G uplink ports, and stacks with other DGS-1530 Series switches.
FAQs
How many PoE ports does the DGS-1530-28P have?
It has 24 Gigabit PoE+ ports (ports 1 to 24), plus 4 x 10G SFP+ ports for uplinks.
What is the PoE budget?
The switch provides a total PoE budget of 370 W, with up to 30 W available per port under IEEE 802.3af/at.
How many switches can be stacked?
Up to nine switches can be physically stacked using the 10G ports.
Does it include surge protection?
Yes. All Ethernet RJ-45 ports support IEC61000-4-5 6 kV surge protection.
Can it be managed through the cloud?
Yes. It can be managed through the Nuclias Network Controller.
