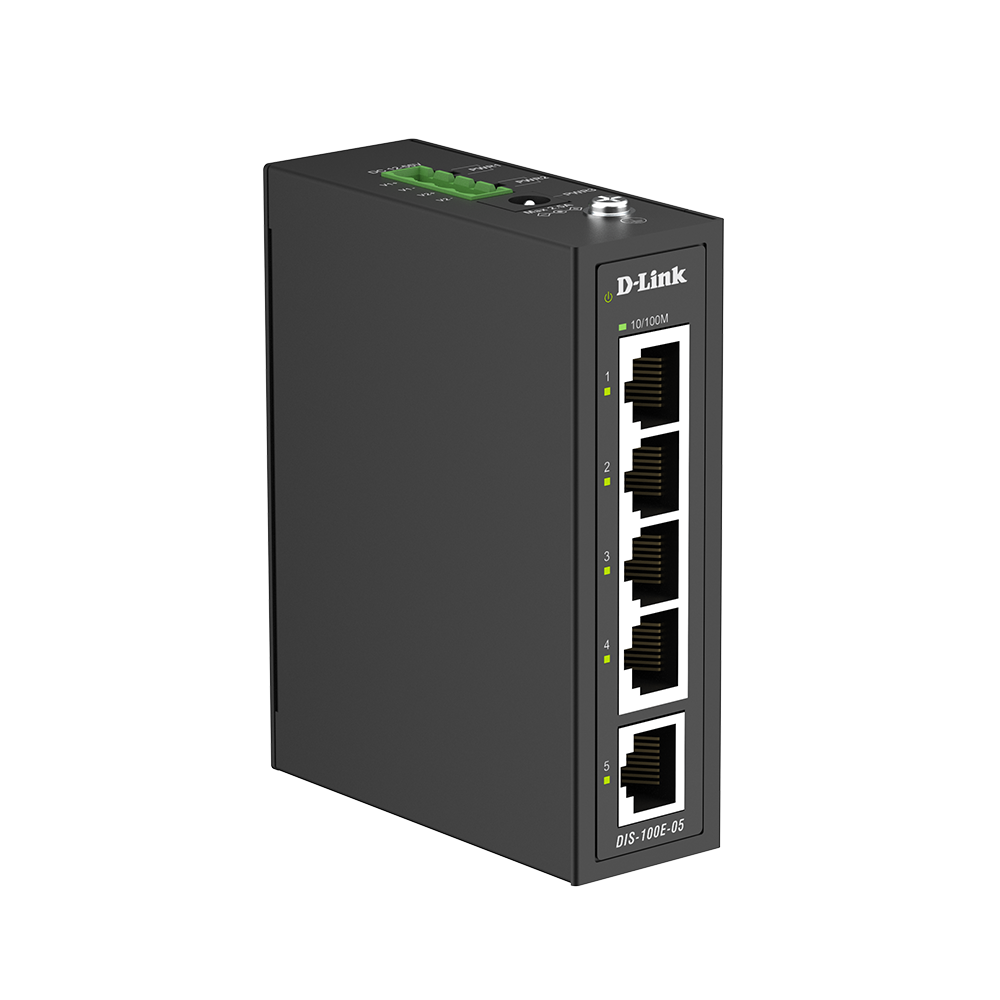

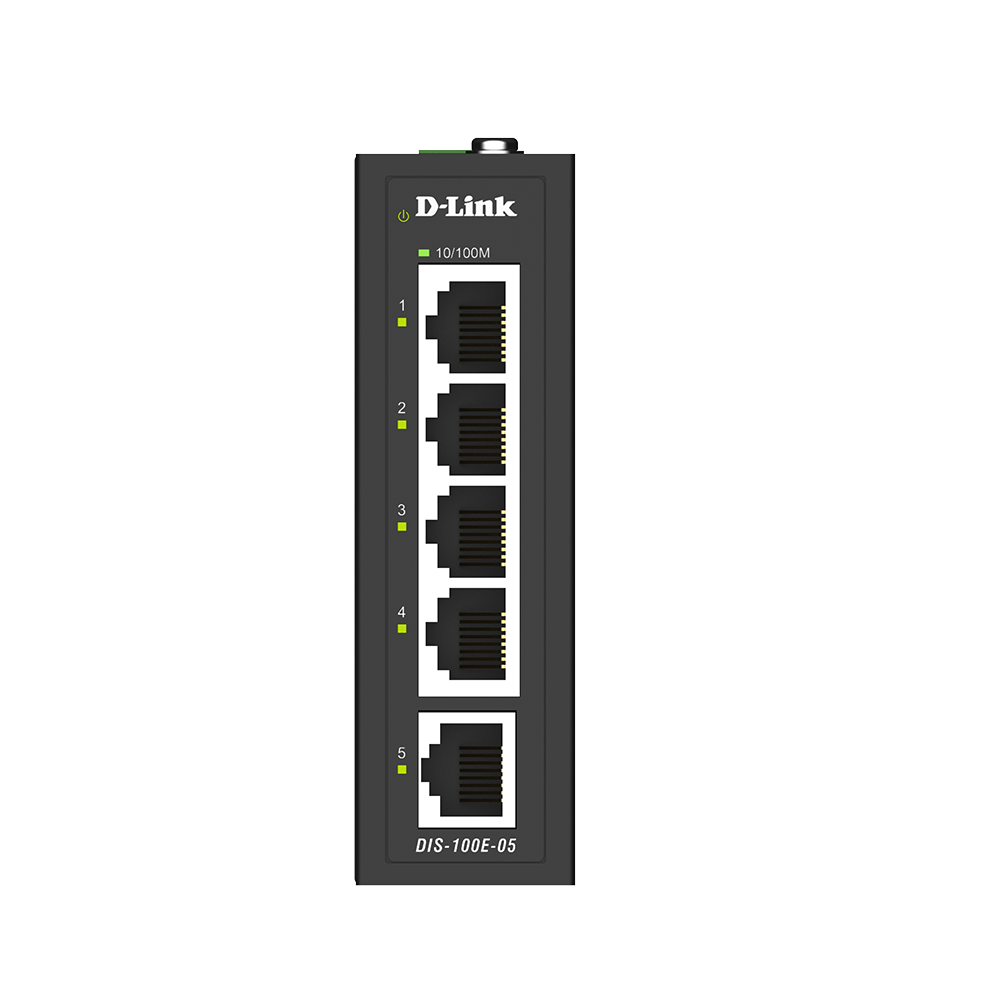

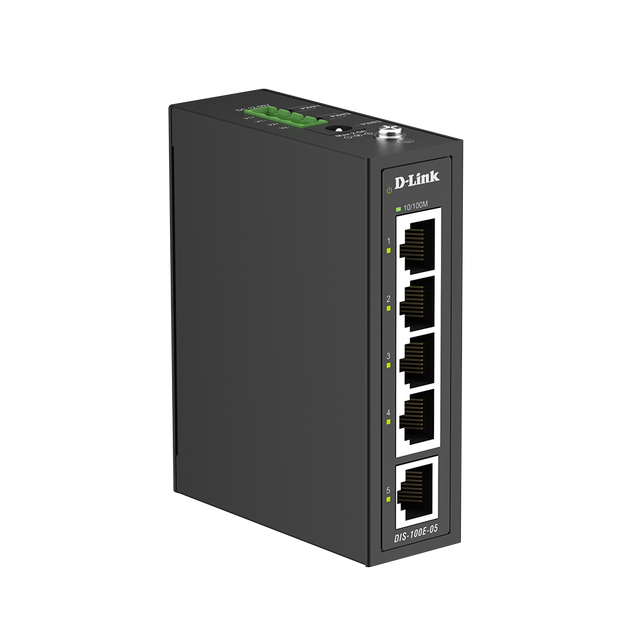

The D-Link DIS-100E-05 is a compact 5-port industrial unmanaged switch designed to deliver cost-effective, plug-and-play Fast Ethernet connectivity in demanding environments. Equipped with five 10/100BASE-T ports, this DIN rail mountable industrial switch (SKU: DIS-100E-05) needs no configuration, so you can connect your devices and get on with the job.

Built with a durable IP40-rated metal housing, the DIS-100E-05 is made for harsh conditions such as unconditioned factory floors, outdoor cabinet installations and remote sites. A wide operating temperature range of -40°C to 75°C, high electromagnetic susceptibility (EMS) endurance and a fanless, passive cooling design help keep your network stable, silent and low-maintenance.

Dual power inputs provide power redundancy. Each input can independently power the switch, so operation continues even if one power source fails. The wide 12 to 55V DC terminal block input suits a variety of power sources, while built-in 6kV surge protection on the Ethernet ports helps reduce the risk of downtime.

Key Features

• 5 x 10/100BASE-T Fast Ethernet ports
• Unmanaged, plug-and-play installation with no configuration required
• DIN rail mountable for flexible, efficient installation
• Dual power inputs for redundant power supply (12 to 55V DC terminal block)
• Industrial-grade operating temperature range of -40°C to 75°C
• Built-in 6kV surge protection on Ethernet ports
• Durable IP40-rated metal housing
• Fanless design for silent operation and reduced maintenance
• High EMS endurance for electrically noisy environments
• IEEE 802.3az Energy-Efficient Ethernet (EEE) and power saving by link status
• 1.5K jumbo frame support
• Compact size: 100 x 76.5 x 30 mm, weighing 0.27 kg

Ideal for: system integrators, factory and industrial automation teams, outdoor cabinet surveillance deployments, and kiosk, digital signage and LED display installations that need a rugged, simple and reliable Fast Ethernet switch.

Compatible Products

Works with standard Ethernet devices over UTP or STP cabling, including PCs, IP cameras, kiosks, digital signage players and other 10/100 Mbps network equipment. No PoE is provided by this model.

FAQs

Is the DIS-100E-05 a managed switch?
No. It is an unmanaged switch, so there is nothing to configure. Simply connect your devices and it works.

How is the switch mounted?
It is DIN rail mountable, allowing quick and flexible installation inside industrial cabinets.

What power input does it use?
It uses a 12 to 55V DC terminal block with dual inputs for redundancy. Each input can power the switch independently.

What temperatures can it operate in?
It is rated for operation from -40°C to 75°C, making it suitable for harsh environments.

Does it provide PoE?
No. The DIS-100E-05 does not provide Power over Ethernet and requires no PoE type.
