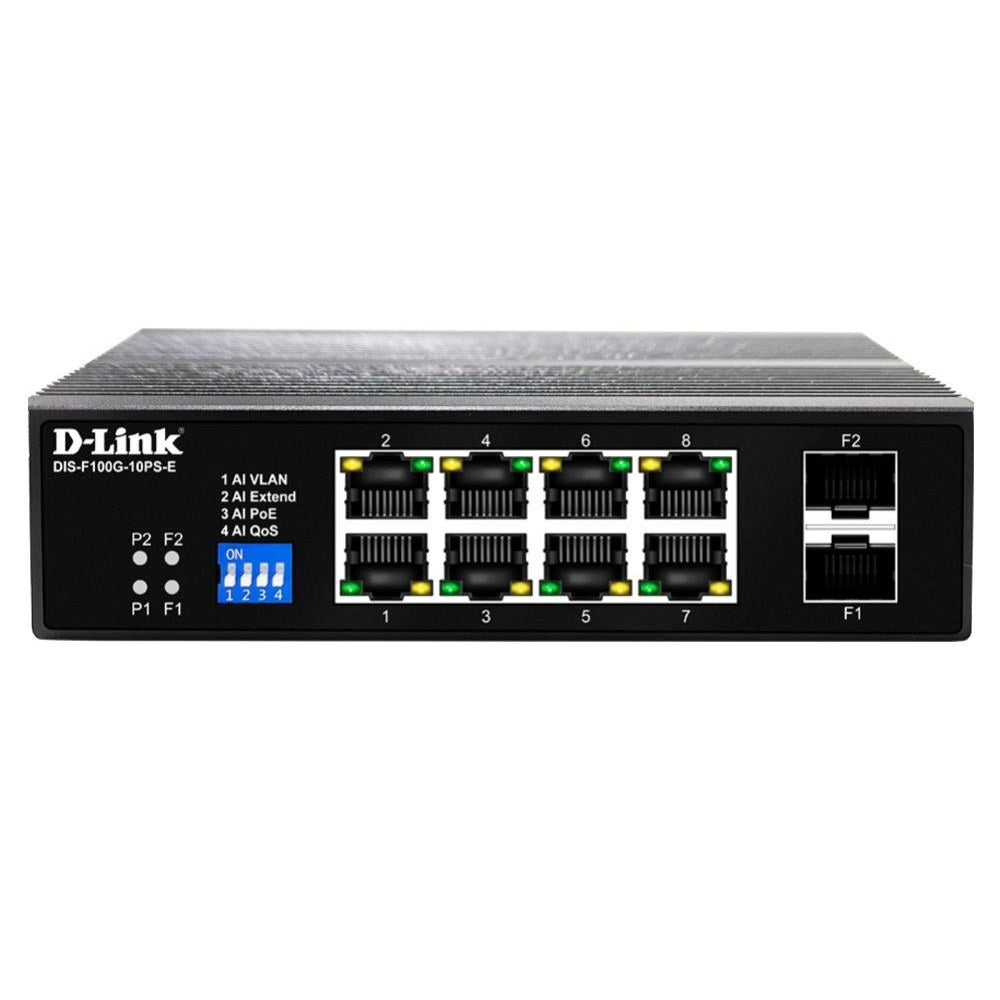

DIS-F100G-10PS-E - D-Link 10 Port Gigabit Industrial PoE+ Switch with 8 PoE Ports and 2 SFP Ports (240W)
Ordering - What You Need To Know
Ordering - What You Need To Know
When you order a Sophos license from us please make sure you include the license number or current hardware appliance serial number. Licenses generally take around 24 - 36 working hours to be issued after order.
In some instances you may find we show out of stock for certain hardware models. This is fairly normal and reflects the fact, often that we have to place what is called a back to back order. When you order with us, we order with Sophos and the unit is shipped in to the country. Please allow around 10 working days where we show as out of stock.
Description
Description
The D-Link DIS-F100G-10PS-E is a 10-port Gigabit industrial PoE+ switch with 8 x 1000BASE-T Long Reach PoE+ ports and 2 x SFP ports, backed by a generous 240W PoE budget. Built for tough environments, this unmanaged industrial switch is DIN-rail mountable, fanless and designed to keep your network running in factory, outdoor cabinet and surveillance deployments.
Each PoE port can supply up to 30W to connected PoE-enabled devices over existing Ethernet cabling, and Long Reach PoE supports cable runs of up to 250m, well beyond the usual 100m limit. This reduces deployment time and cable clutter, and removes the need for dedicated power supplies at remote device locations.
Housed in a robust IP40-rated metal casing with high EMC endurance, the DIS-F100G-10PS-E operates in temperatures from -40°C to +75°C. The fanless, passive cooling design has no moving parts, helping to reduce downtime and maintenance call-outs. Dual power input allows a redundant power supply configuration so the switch keeps operating if the primary supply fails.
Key Features
- 8 x 1000BASE-T PoE+ ports (IEEE 802.3at) plus 2 x SFP ports
- 240W total PoE budget, up to 30W per port
- Long Reach PoE support up to 250m
- Unmanaged plug-and-play operation
- Quick configuration via DIP switches: VLAN, Long Reach PoE, Watchdog and QoS
- IP40-rated metal housing with high EMC endurance
- 6 kV surge protection on copper ports
- Wide operating temperature range of -40°C to +75°C
- Fanless, passive cooling design
- Dual power input for redundant power supplies
- DIN-rail mountable with snap-to-rail clip for instant installation
- Compact dimensions of 238 x 197 x 59 mm
Ideal for: system integrators, installers and IT teams deploying PoE cameras, access points and other PoE devices in factory automation, warehousing, intelligent transportation systems, automated car parks and outdoor cabinet surveillance installations.
Compatible Products
Works with any IEEE 802.3at PoE+ powered device, including PoE surveillance cameras and wireless access points, over standard Ethernet cabling. The two SFP ports accept SFP transceivers for fibre uplinks.
FAQs
How many PoE ports does the DIS-F100G-10PS-E have?
It has 8 x 1000BASE-T PoE+ ports and 2 SFP ports, with a total PoE budget of 240W.
How far can Long Reach PoE extend?
Long Reach PoE supports cable runs of up to 250m, compared with the usual 100m limit.
What temperatures can it operate in?
It operates in temperatures from -40°C to +75°C.
Is it managed or unmanaged?
It is an unmanaged, plug-and-play switch. DIP switches provide quick configuration of VLAN, Long Reach PoE, Watchdog and QoS.
Does it support redundant power?
Yes. The DIS-F100G Series supports dual power input for a redundant power supply configuration.
