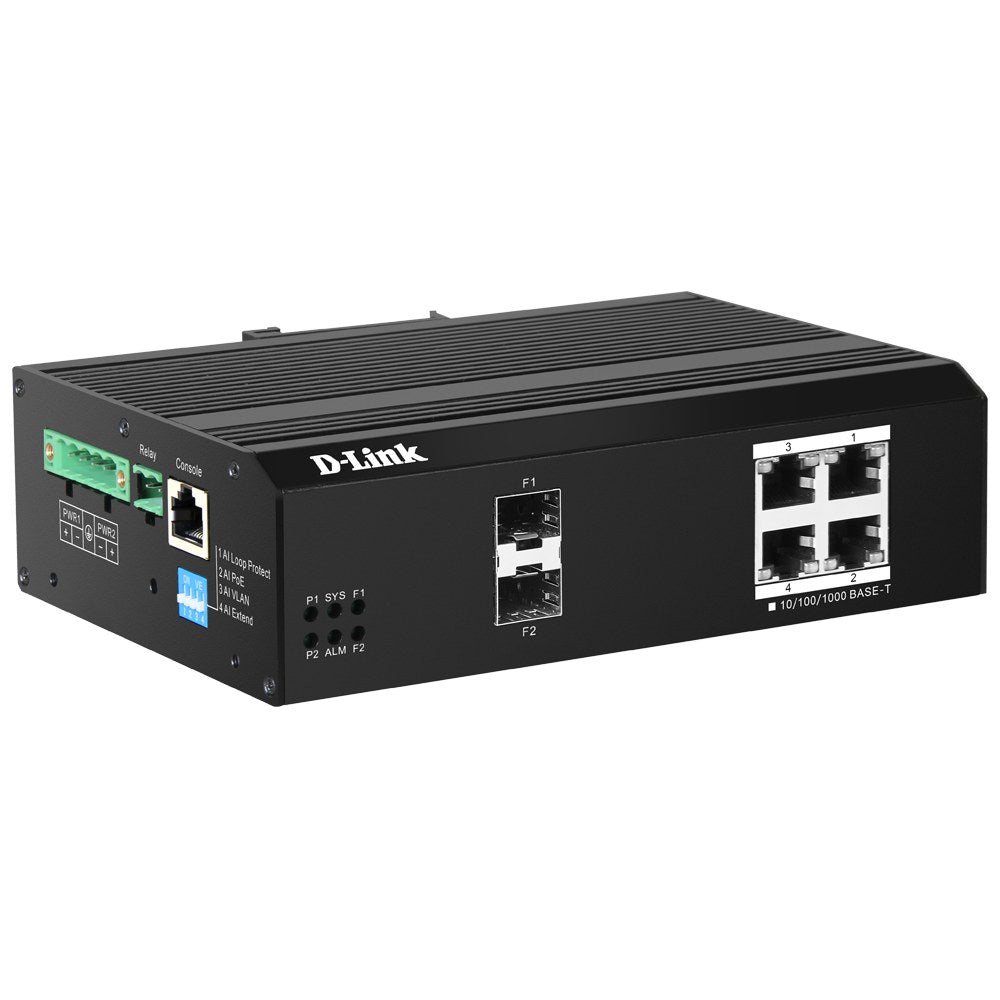

The D-Link DIS-F200G-6PS-E is a 6-port Gigabit industrial smart managed PoE+ switch with 4 x 1000BASE-T Long Reach PoE+ ports and 2 x SFP ports. Built for demanding indoor and outdoor deployments, SKU DIS-F200G-6PS-E combines a rugged, fanless metal design with a 120 W PoE budget, advanced management and ring-resilience features, making it a dependable choice for factory automation, warehousing, intelligent transportation systems and outdoor cabinet surveillance.

This DIN-rail mountable industrial switch is certified for harsh environments with an operating temperature range of -40°C to 75°C. High-capacity 6 kV surge protection on all copper ports and high EMC endurance help protect the switch and connected devices from power surges, lightning strikes and electromagnetic interference. The fanless, passive cooling design has no moving parts, which reduces downtime and maintenance call-outs.

Power delivery is flexible: the four PoE+ ports can supply up to 30 W per port to connected devices, within a total 120 W budget. With Long Reach PoE enabled, power and data can reach up to 250 m over the PoE ports, well beyond the usual 100 m cable limit (port speed drops to 10 Mbps in this mode).

Key Features

• 4 x 1000BASE-T PoE+ ports (IEEE 802.3af/802.3at) and 2 x SFP ports
• Long Reach PoE support for runs of up to 250 m
• 120 W total PoE budget, up to 30 W per port
• Layer 2 smart managed with web-based management and CLI
• 12 Gbps switching capacity and 8K MAC address table
• RUN-Ring technology with rapid ring failover recovery of under 10 ms
• Dual DC power input (48 to 56 V DC terminal block) for redundant power supplies
• 6 kV surge protection on copper ports and high EMC endurance
• Fanless, passive cooling design in a robust metal housing
• Snap-to-DIN-rail clip for fast installation; compact at 159 x 105 x 39 mm
• Loop detection and cable diagnostics for quick troubleshooting
• QoS and Auto Voice VLAN support

Ideal for

System integrators, industrial network engineers, CCTV and surveillance installers, transport and carpark operators, and facilities needing a hardened, managed PoE+ switch for factory floors, warehouses and outdoor cabinets.

Compatible Products

IEEE 802.3af/802.3at PoE and PoE+ powered devices such as IP cameras, wireless access points and other PoE-enabled endpoints, plus SFP modules for the two SFP uplink ports. A 48 to 56 V DC power supply is required for the terminal block input.

FAQs

How many PoE ports does the DIS-F200G-6PS-E have?
It has four 1000BASE-T PoE+ ports, with a total PoE budget of 120 W and up to 30 W per port.

How far can Long Reach PoE extend?
Long Reach PoE supports cable runs of up to 250 m. When extended mode is used, the port speed changes to 10 Mbps.

What temperatures can the switch operate in?
It is designed for an operating temperature range of -40°C to 75°C.

How is the switch powered?
It is powered through a built-in terminal block with dual power inputs, accepting 48 to 56 V DC, which allows for redundant power supplies.

How is the switch managed?
It can be managed through a user-friendly web-based interface or the command line interface (CLI).
