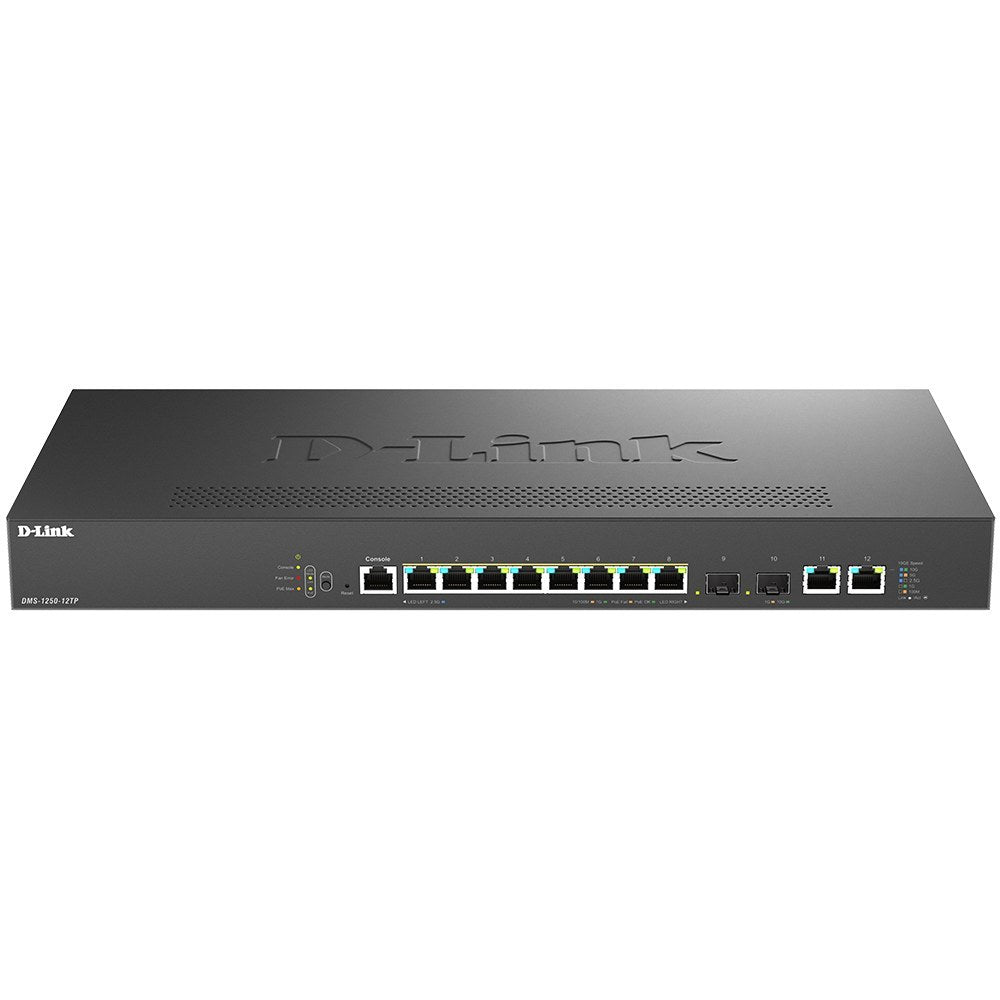

The D-Link DMS-1250-12TP is a 12-port Multi-Gigabit Smart Managed PoE+ switch built for modern Wi-Fi 6 and Wi-Fi 6E networks. It combines eight 2.5G PoE+ ports for downlinks with two 10GBASE-T ports and two 10G SFP+ ports for uplinks, all backed by a generous 240W PoE budget. The 2.5Gbps ports let you make full use of existing cabling and remove bottlenecks for high-performance access points, IP cameras and IoT devices.

Part number DMS-1250-12TP delivers power and data over a single cable, simplifying deployment while leaving room for future growth. With a 120Gbps switching capacity and a feature-rich Layer 2+ software suite, it is a versatile choice for small and medium-sized networks.

Key Features

• 8 x 2.5GBASE-T PoE+ ports (100/1000/2.5G) for high-speed downlinks
• 2 x 10GBASE-T multi-gigabit ports (100/1000/2.5G/5G/10G) plus 2 x 10G SFP+ ports for uplinks
• 240W PoE budget with IEEE 802.3af/at support
• Fast and Perpetual PoE support
• 120Gbps switching capacity and 89.29Mpps maximum packet forwarding rate

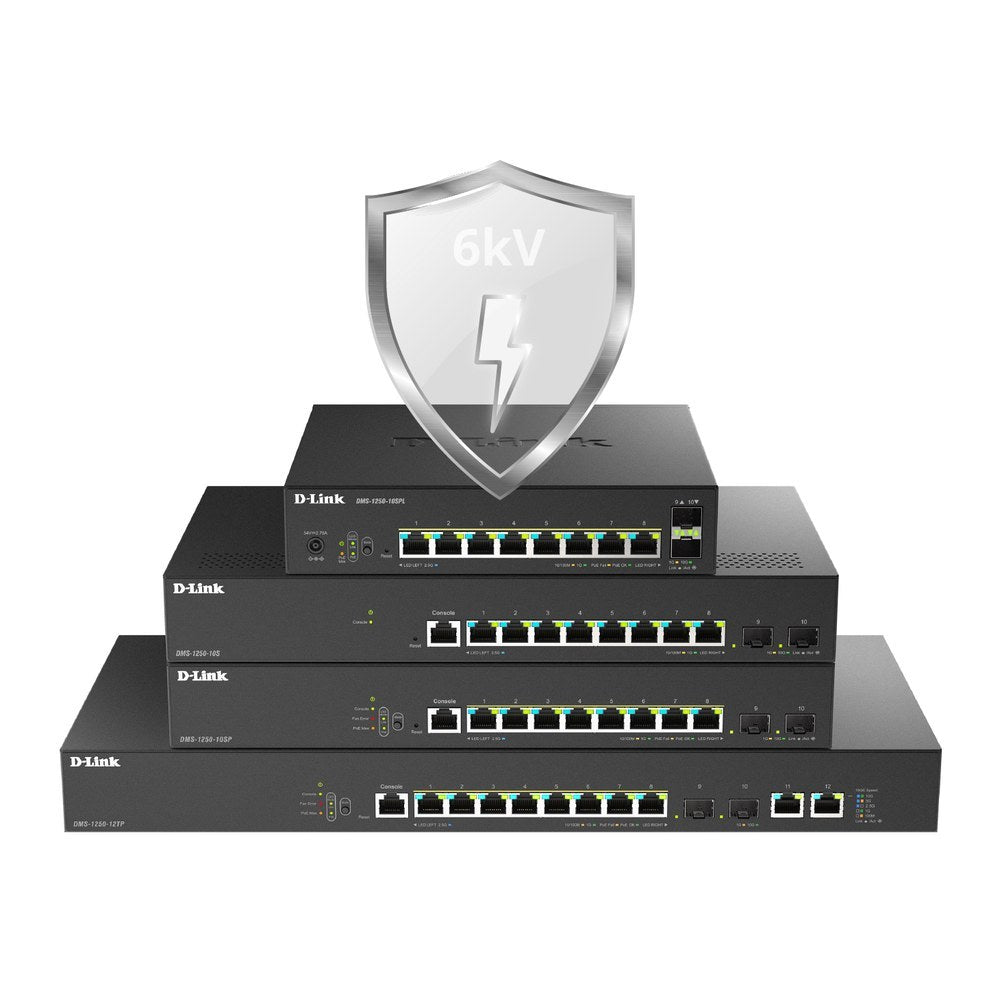

• 6kV surge protection on all 2.5-Gigabit Ethernet ports
• Layer 2+ features including LACP link aggregation, static routing, loopback detection, STP/RSTP/MSTP, IGMP and MLD snooping, Q-in-Q and VLAN translation (R2 hardware or later)
• Auto Voice and Surveillance VLANs
• Security features including ACLs, RADIUS/TACACS+ AAA support and the D-Link Safeguard Engine
• 5-speed smart fans with Quiet Mode, or fans can be set to Off
• Dual software images, dual configuration files and a console port for easy maintenance
• Management via the multi-lingual Web UI, CLI, D-Link Nuclias Connect and D-View 8 (SNMP)

Ideal for: SOHO, SMB and MDU environments, as well as education and office deployments that need to power Wi-Fi 6/6E access points, IP cameras and IoT devices while providing 10G uplinks to servers, NAS or the network core.

Technical Highlights

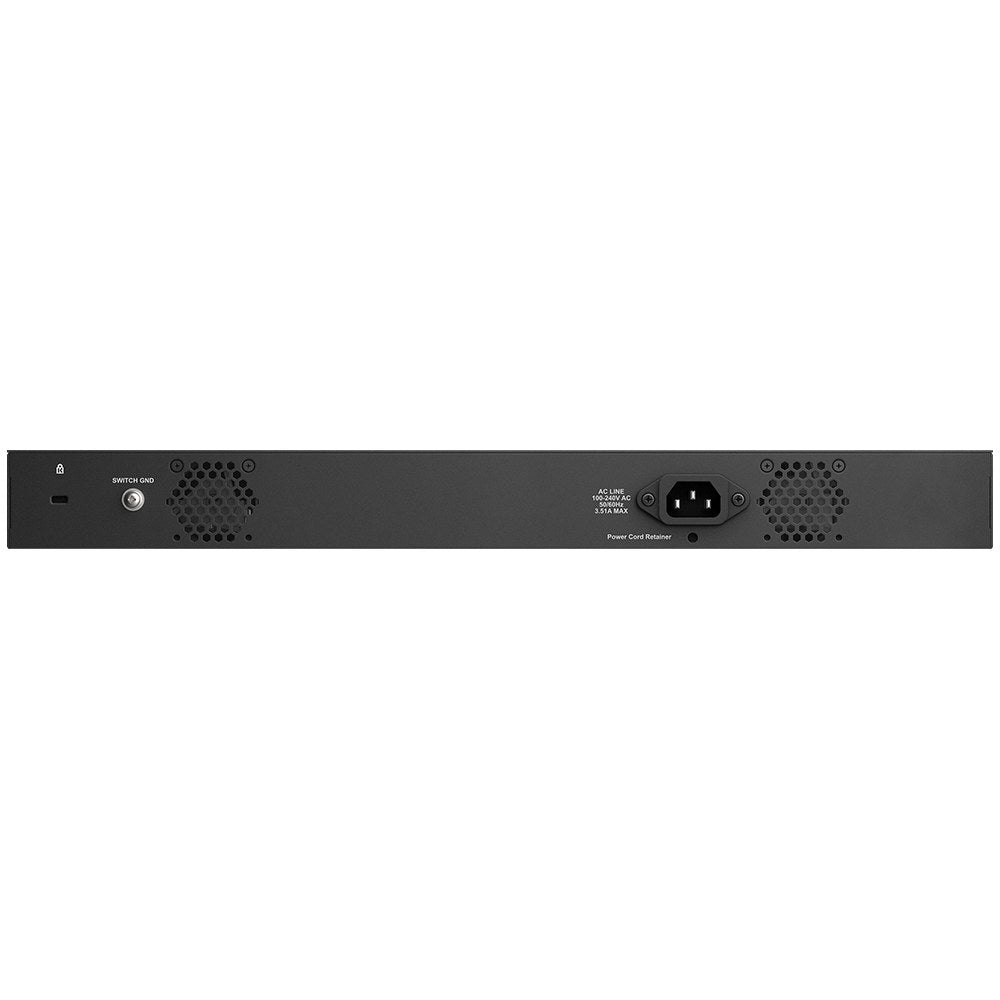

The switch measures 440 x 210 x 44 mm, weighs 3.24 kg and uses an internal power supply with two internal fans. Maximum power consumption is 289.74W with PoE on, and the operating temperature range is -5 to 50°C.

Compatible Products

SFP+ Transceivers and Cables

The SFP+ ports support a wide range of SFP/SFP+ transceivers, including the D-Link DEM-410T 10GBASE-T copper SFP+ transceiver (up to two modules on this model) and DEM-CB100S (1 m) and DEM-CB300S (3 m) 10G SFP+ direct attach cables.

Wireless Access Points

Suited to PoE-powered Wi-Fi 6 access points such as the D-Link DAP-X3060 and the outdoor DAP-X3060OU.

Network Management

Works with D-Link Nuclias Connect and D-View 8 for centralised management.

FAQs

How many PoE ports does the DMS-1250-12TP have, and what is the PoE budget?
It has eight 2.5G PoE+ ports (IEEE 802.3af/at) sharing a total PoE budget of 240W.

What uplink options are available?
Two 10GBASE-T ports (supporting 100/1000/2.5G/5G/10G speeds) and two 10G SFP+ ports are provided for uplinks.

How can the switch be managed?
Through the multi-lingual Web UI, the command line via the console port, D-Link Nuclias Connect, or SNMP with D-View 8.

Is the switch quiet enough for an office?
Yes. The 5-speed smart fans adjust automatically to temperature, and can be set to Quiet Mode or turned off.

Does it protect connected equipment from power surges?
Yes. All 2.5-Gigabit Ethernet ports have 6kV surge protection.
