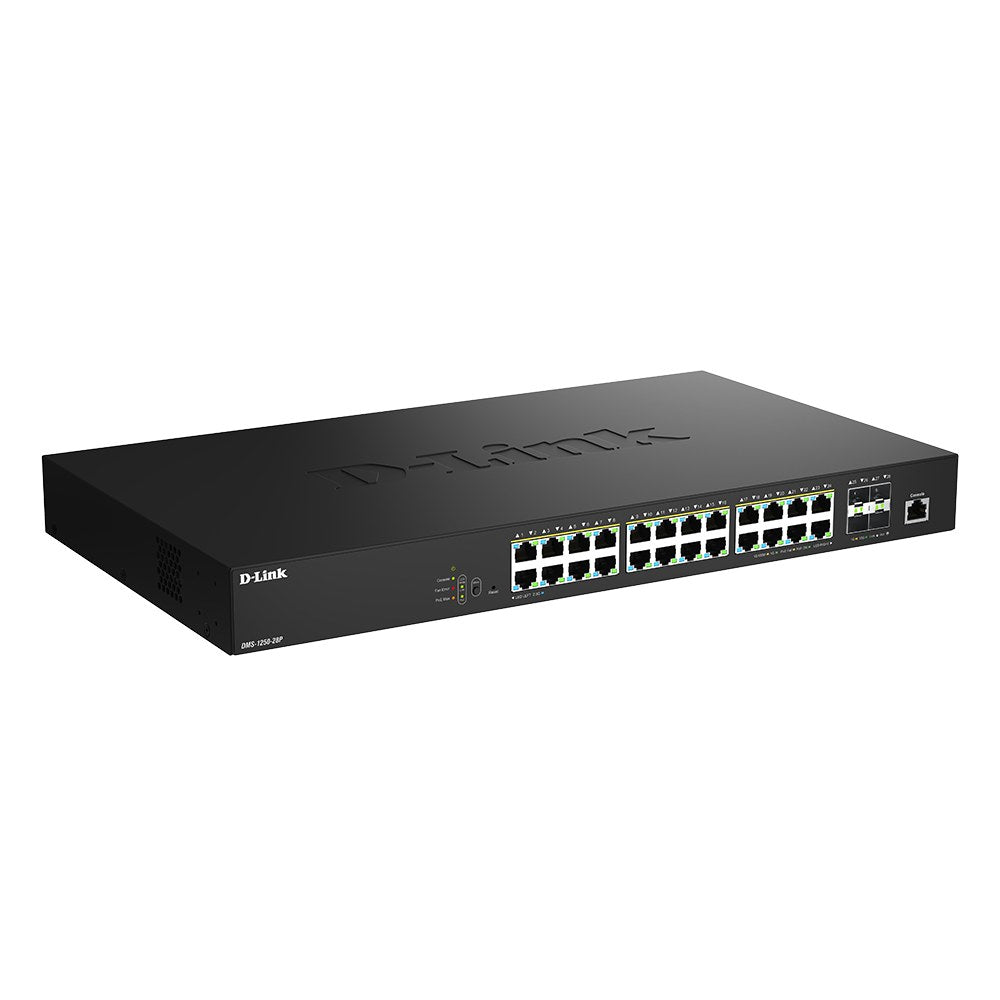

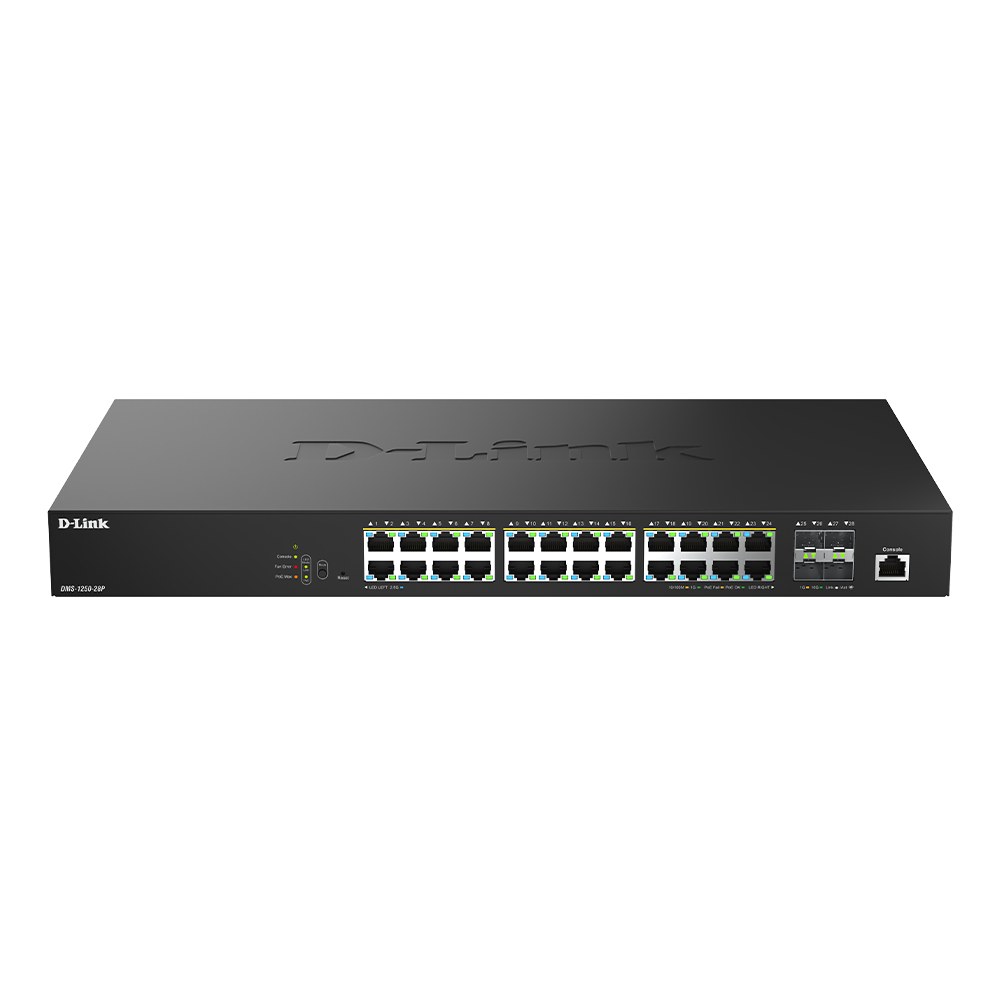

The D-Link DMS-1250-28P is a 28-port multi-gigabit smart managed PoE++ switch built for modern business networks. It combines 24 x 2.5G PoE++ ports for downlinks with 4 x 10G SFP+ uplink ports, and provides a total 475W PoE budget to power Wi-Fi access points, IP cameras, VoIP phones and other PoE devices through a single cable. With 2.5GbE access ports, the DMS-1250-28P removes bottlenecks for Wi-Fi 6 access points and bandwidth-hungry devices, without the need to re-cable.

Key Features

• 24 x 2.5GE PoE++ ports (100/1000/2.5GBASE-T) for downlink, supporting up to 90W of PoE power per port
• 4 x 10G SFP+ ports for high-speed uplinks to servers, storage or core switches
• 475W PoE budget with IEEE 802.3af/at/bt support across ports 1 to 24
• 200 Gbps switching capacity and a maximum packet forwarding rate of 148.91 Mpps
• 6kV surge protection on all 2.5-Gigabit Ethernet ports, helping to shield your network and devices from electrical surges
• Layer 2+ features including static routing, loopback detection, LACP (802.3ad) link aggregation and Spanning Tree Protocol (STP/RSTP/MSTP)
• AAA support for RADIUS/TACACS+, plus the D-Link Safeguard Engine for added security
• Flexible management via Web UI, CLI, SNMP, Nuclias Connect and D-View 8
• Smart cooling with internal fans that adjust speed across five levels, depending on temperature
• Console port and internal power supply; 440 x 250 x 44 mm form factor

Power and Data over One Cable

The 2.5G PoE++ ports deliver high-speed data and power together, simplifying deployment and cutting cabling costs. This makes the DMS-1250-28P an excellent match for Wi-Fi 6/6E access points, IP cameras and IoT devices, while leaving headroom for future growth.

Ideal for: small and medium businesses, offices, schools, retail environments, multi-dwelling units (MDUs) and surveillance deployments that need a scalable, centrally manageable multi-gigabit PoE++ access switch (SKU: DMS-1250-28P).

Compatible Products

The DMS-1250-28P can be paired with other D-Link business networking products, including the DNH-1000 Nuclias Connect network controller, DAP-X3060 and DAP-X3060OU Wi-Fi 6 access points, and DXS-series aggregation and core switches such as the DXS-3410-32SY and DXS-3610-54S.

FAQs

How much PoE power does the DMS-1250-28P provide?
It has a total PoE budget of 475W across its 24 PoE++ ports, with support for IEEE 802.3af/at/bt and up to 90W per port.

What speeds do the ports support?
The 24 access ports support 100/1000/2.5GBASE-T, and the 4 SFP+ ports support 10G uplinks.

How can the switch be managed?
You can manage it through the Web UI, CLI, SNMP, Nuclias Connect or D-View 8.

Does it include surge protection?
Yes. All 2.5-Gigabit Ethernet ports feature 6kV surge protection.
