DrayTek VigorSwitch G2282x

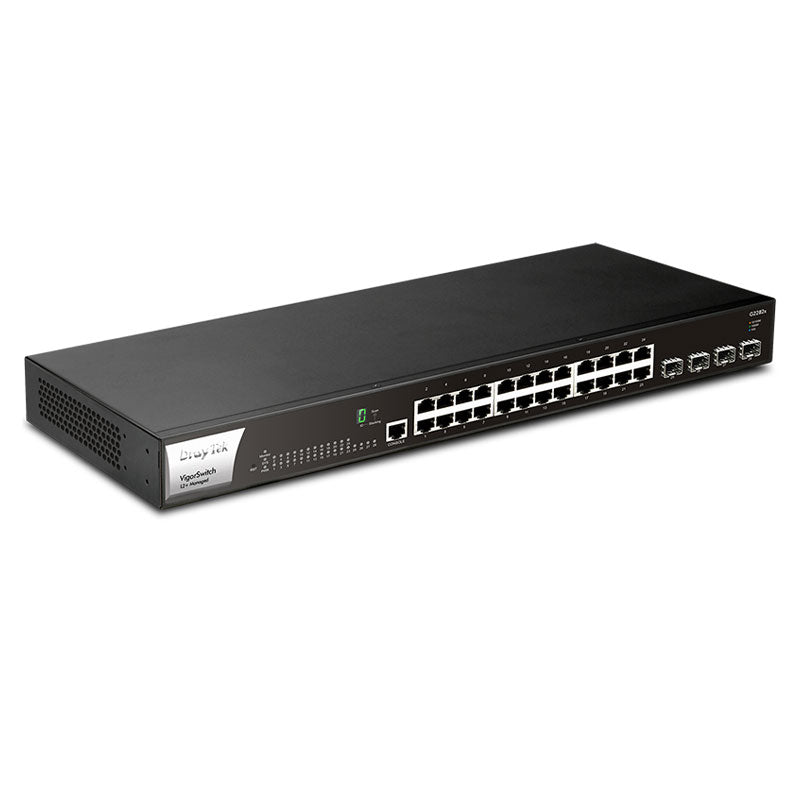

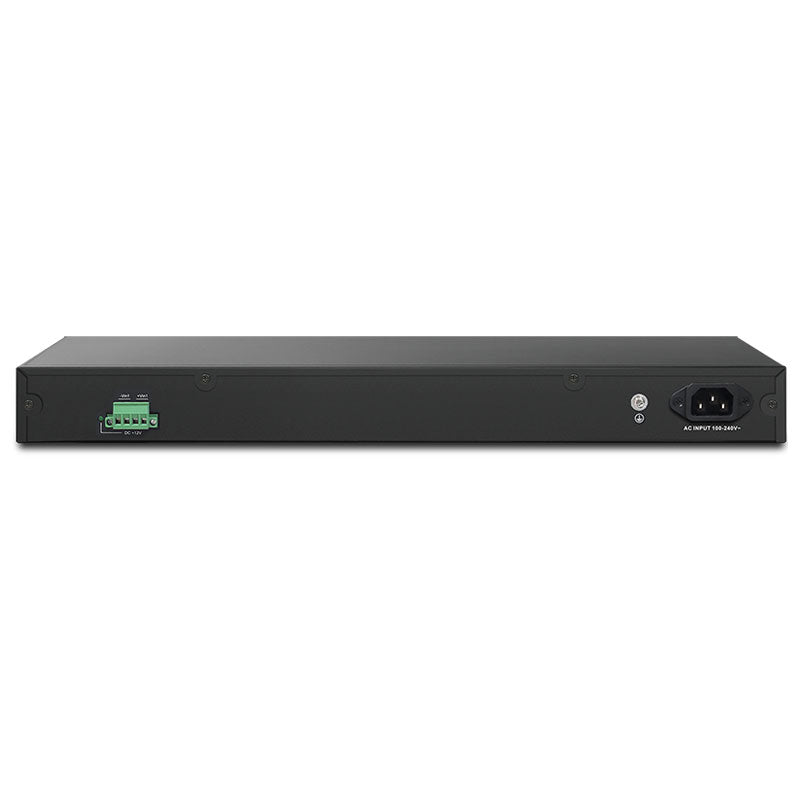

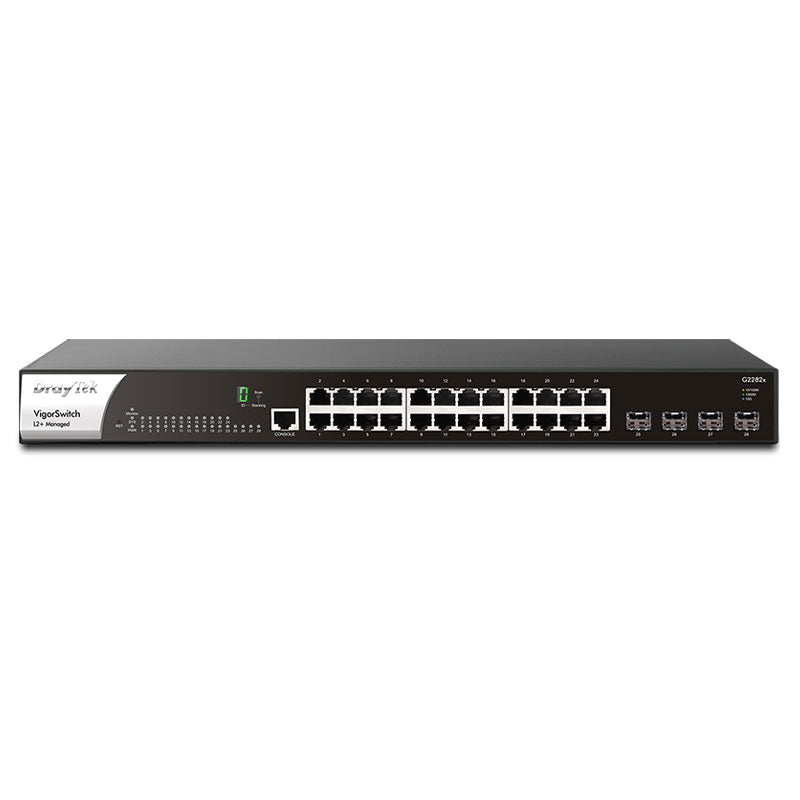

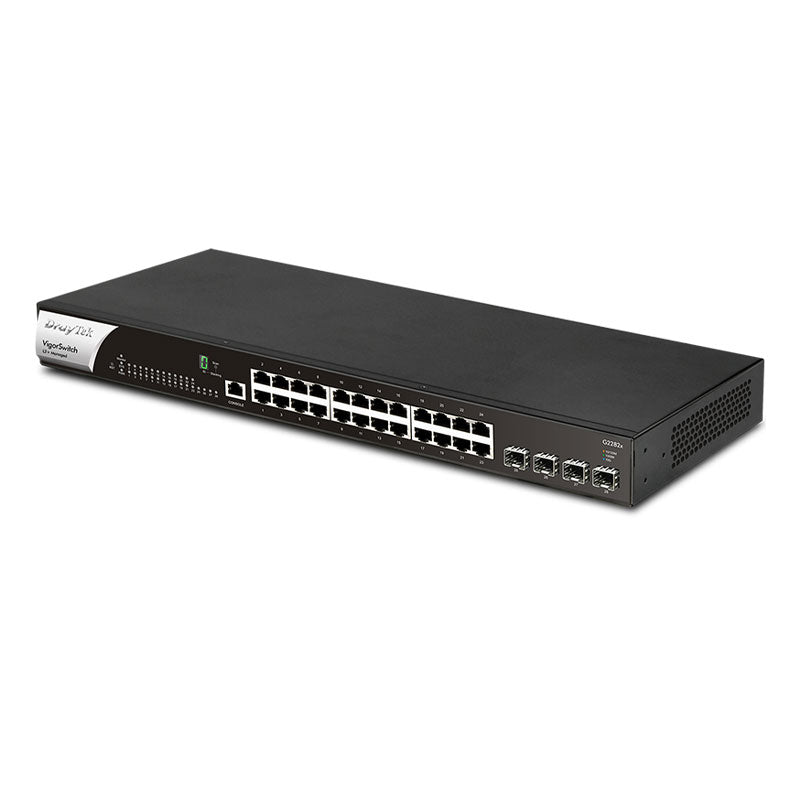

The VigorSwitch G2282x is a Layer 2+ managed 10Gbps switch featuring 24 × Gigabit Ethernet ports and 4 × 10G SFP+ fibre uplinks. It includes both AC power and a DC power input for redundancy, ensuring uninterrupted operation if the main power source fails. With advanced Layer 3 features such as DHCP Server and VLAN Routing, the switch improves network efficiency and keeps LAN services running even when the gateway is offline. It is designed for networks with growing traffic demands and is suitable for SME and SMB environments.

Key Features
•     Wire‑Speed VLAN Routing – Routes inter‑VLAN traffic directly on the switch to offload the router.
•     Stacking – Allows up to four switches to operate as one, improving scalability, resilience, and centralised management.
•     ONVIF‑Friendly – Detects ONVIF devices, displays surveillance topology, and supports video streaming and remote maintenance.
•     Auto Surveillance & Voice VLAN – Automatically identifies IP cameras and IP phones and applies QoS tags.
•     IPv6 Ready – Supports IPv6 features including MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.
•     IP Conflict Prevention – Detects and blocks misconfigured or malicious hosts.
•     Web‑Based GUI – Provides an intuitive interface for monitoring ports and hardware status.
•     Access Control – Supports IP/MAC ACLs and 802.1x port access control with RADIUS.
•     Multiple Admin Accounts – Two levels of administrator privileges.
•     QoS (Quality of Service) – Prioritises critical traffic using CoS, DSCP, and IP Precedence.
•     Central Switch Management – Enables VLAN setup and centralised monitoring from a Vigor router.
•     10G SFP+ – Provides high‑speed fibre uplinks for aggregation or connection to core switches.
•     Energy‑Efficient Ethernet – Reduces power consumption via IEEE 802.3az compliance.
•     LLDP‑MED – Detects VoIP devices, simplifies VLAN assignment, and prioritises voice traffic.

Further Details

Advanced Layer 2+ Features
The switch includes a DHCP Server supporting up to eight VLANs and VLAN Routing supporting up to 512 routes. These features reduce router workload and keep LAN services operating even when the gateway is offline.

Bind IP to MAC
As a DHCP server, the switch can reserve IP addresses for important devices, ensuring consistent access for frequently used endpoints.

Stacking — Build a Resilient & Flexible Network
Up to four G2282x units can be stacked to form a single logical switch. Stacking provides centralised management, unified configuration, firmware synchronisation, failover protection, and integrated security features such as DHCP Snooping, ARP Inspection, and Port Security.

ONVIF‑Friendly
The switch detects ONVIF devices across VLANs, displays camera topology, and enables remote maintenance such as rebooting or resetting devices. It can also take periodic snapshots and send alerts when cameras stop responding.

IP Conflict Detection & Prevention
The switch monitors for IP conflicts and alerts administrators when issues arise. It can also block problematic hosts to maintain a stable network environment.

LAN Management
DrayTek’s LAN management platform provides automatic device discovery, remote provisioning, centralised monitoring, and system maintenance such as configuration backup and remote reboot, all managed through a Vigor router.

Software Management
VigorACS 3
Supports provisioning, monitoring, hierarchical views, alarms, remote maintenance, and scheduled reporting.
VigorConnect
Provides local discovery, auto‑provisioning, monitoring, hierarchical views, alarms, and scheduled maintenance for APs and switches.

In the Box
•     VigorSwitch G2282x
•     Rack mount kit
•     Console cable
•     Power cord
•     Quick start guide
