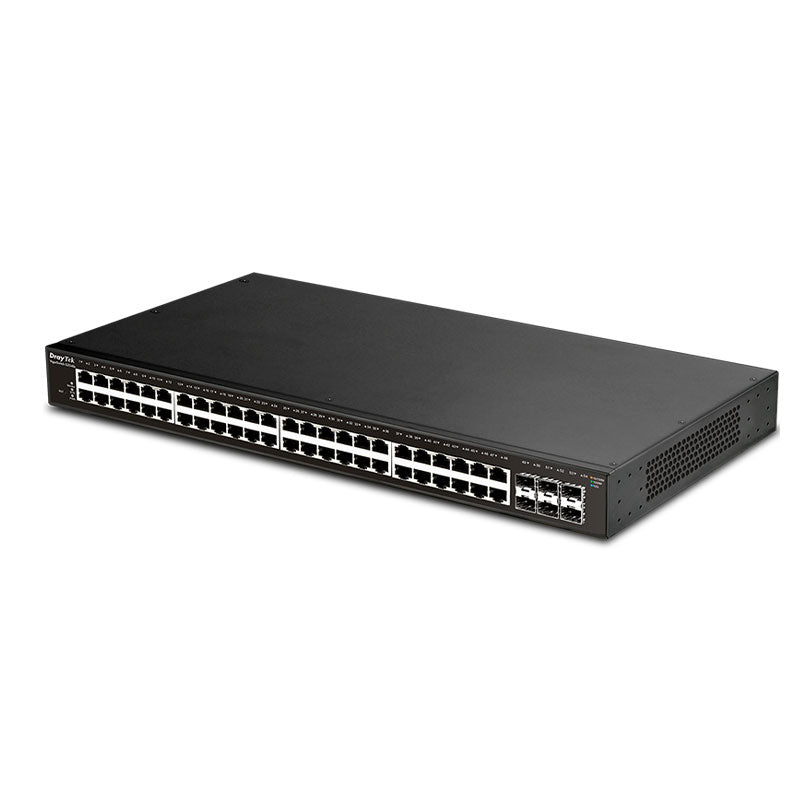

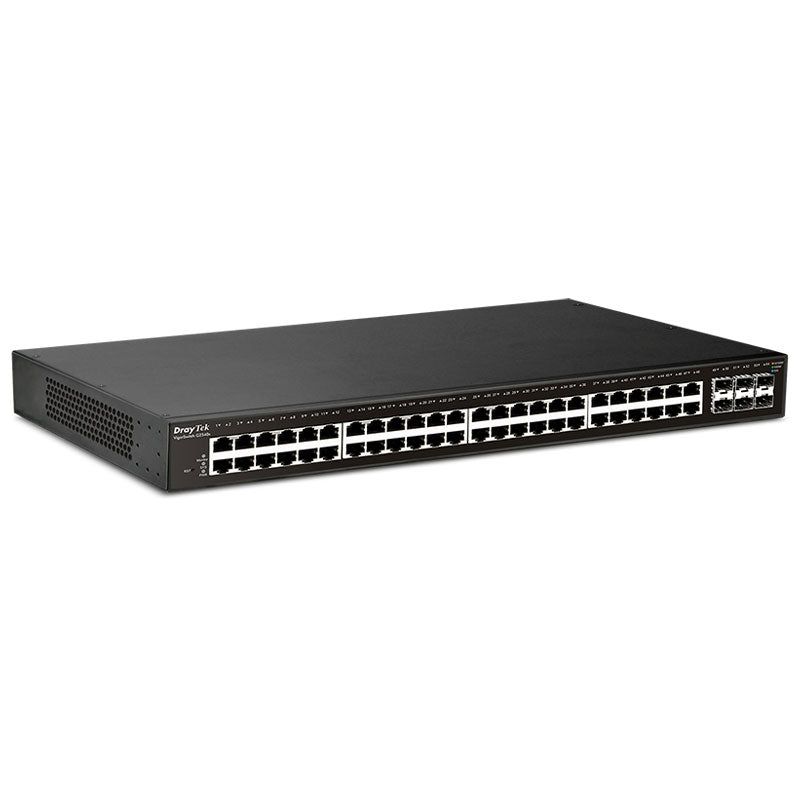

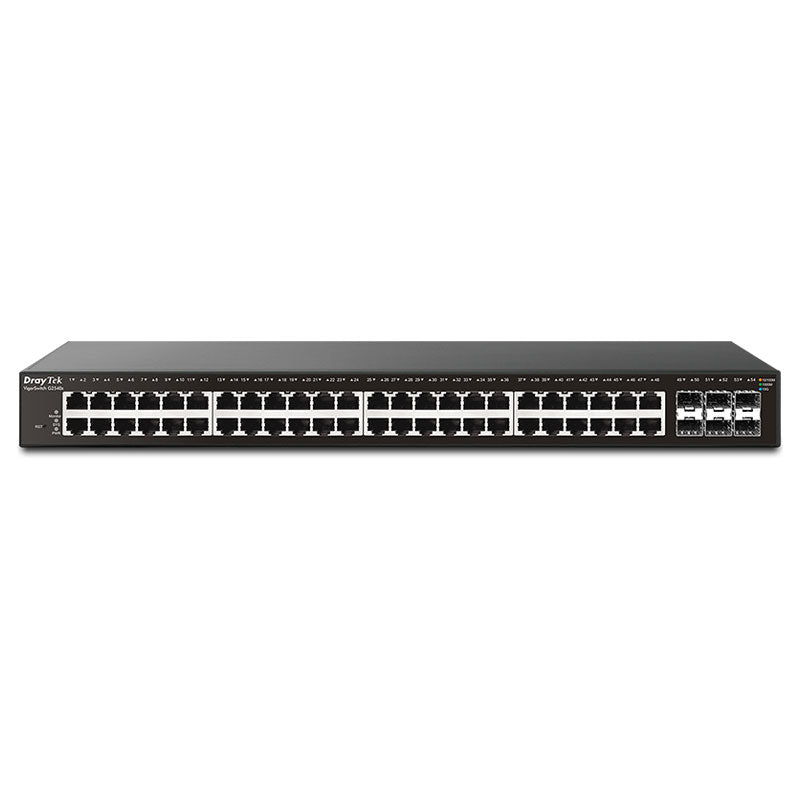

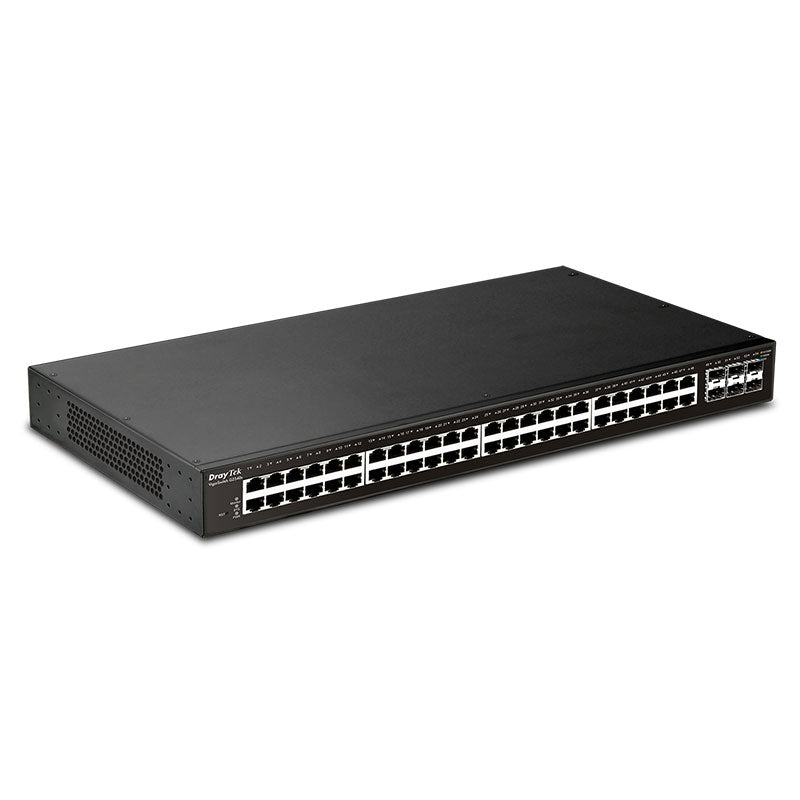

DrayTek VigorSwitch G2540x

The VigorSwitch G2540xs is a Layer 2+ managed 10Gbps switch featuring 48 × Gigabit Ethernet ports and 6 × 10G SFP+ fibre uplinks. With advanced Layer 3 features such as DHCP Server and VLAN Routing, it enhances network efficiency and ensures LAN services continue even if the router is offline. Designed for SME and SMB environments, it offers 216Gbps switching capacity, robust security, ONVIF surveillance support, and a comprehensive web‑based management interface.

Key Features
•     Auto Surveillance & Voice VLAN – Automatically identifies IP cameras and IP phones and applies QoS tags.
•     10G SFP+ – Provides high‑speed fibre uplinks for aggregation or core‑switch connectivity.
•     ONVIF‑Friendly – Detects ONVIF devices, displays surveillance topology, and supports video streaming and remote maintenance.
•     IPv6 Ready – Supports IPv6 features including MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.
•     Wire‑Speed VLAN Routing – Routes inter‑VLAN traffic directly on the switch to offload the router.
•     Web‑Based GUI – Offers an intuitive interface for monitoring ports and hardware status.
•     IP Conflict Prevention – Detects and blocks misconfigured or malicious hosts.
•     Multiple Admin Accounts – Supports two levels of administrator privileges.
•     Access Control – Includes IP/MAC ACLs and 802.1x port access control with RADIUS.
•     Central Switch Management – Enables VLAN setup and centralised monitoring from a Vigor router.
•     QoS (Quality of Service) – Prioritises critical traffic using CoS, DSCP, and IP Precedence.
•     Energy‑Efficient Ethernet – Reduces power consumption via IEEE 802.3az compliance.
•     LLDP‑MED – Detects VoIP devices, simplifies VLAN assignment, and prioritises voice traffic.

Further Details

Advanced Layer 2+ Features
The switch includes a DHCP Server supporting up to eight VLANs and VLAN Routing supporting up to 512 routes. These features reduce router workload and keep LAN services operating even when the gateway is offline.

Bind IP to MAC
As a DHCP server, the switch can reserve IP addresses for important devices, ensuring consistent access for frequently used endpoints.

ONVIF‑Friendly
The switch detects ONVIF devices across VLANs, displays camera topology, and enables remote maintenance such as rebooting, resetting, or adjusting network settings. It can also take periodic snapshots and send alerts when cameras stop responding.

IP Conflict Detection & Prevention
The switch monitors for IP conflicts and alerts administrators when issues arise. It can also block problematic hosts to maintain a stable network environment.

Device Check
The switch continuously pings LAN devices and sends alerts if they stop responding, helping administrators quickly identify issues.

LAN Management
DrayTek’s LAN management platform provides automatic device discovery, remote provisioning, centralised monitoring, and system maintenance such as configuration backup and remote reboot, all managed through a Vigor router.

Software Management
VigorACS 3
Supports provisioning, monitoring, hierarchical views, alarms, remote maintenance, and scheduled reporting.
VigorConnect
Provides local discovery, auto‑provisioning, monitoring, hierarchical views, alarms, and scheduled maintenance for APs and switches.

In the Box
•     VigorSwitch G2540xs
•     Rack mount kit
•     Console cable
•     Power cord
•     Quick start guide
