DrayTek VigorSwitch P2282x

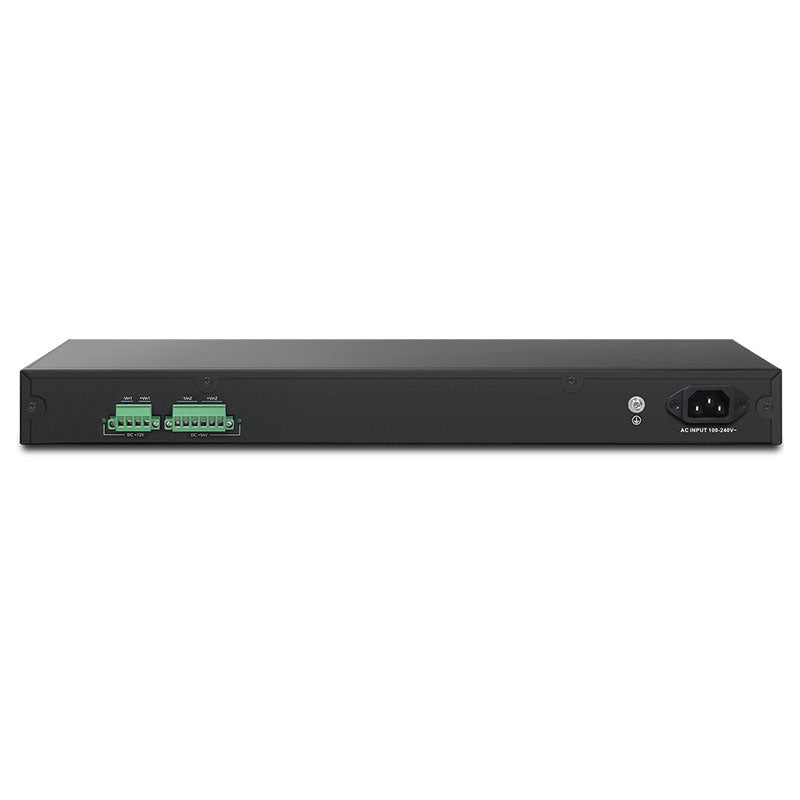

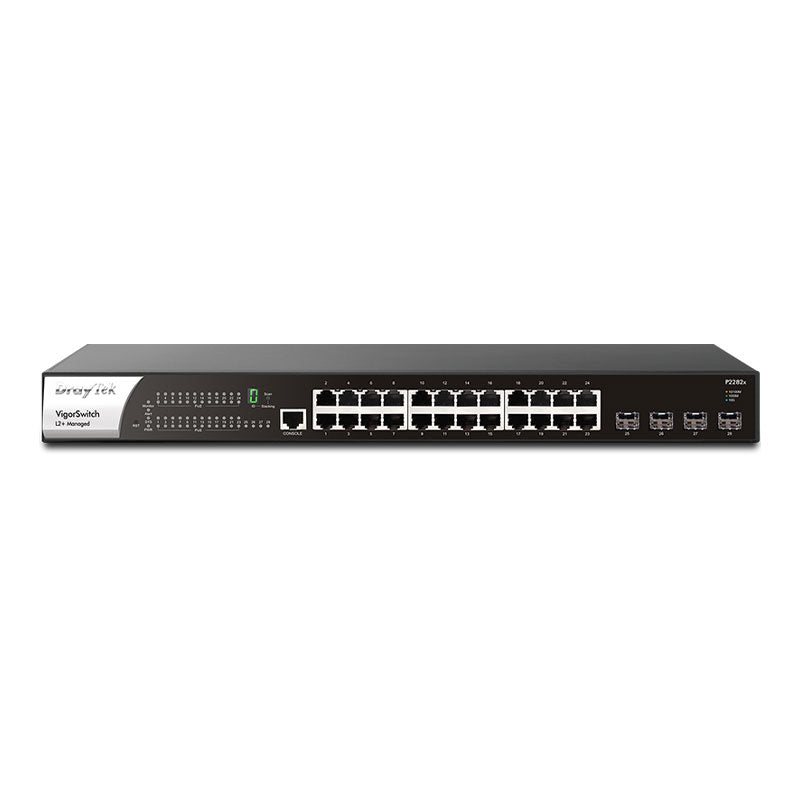

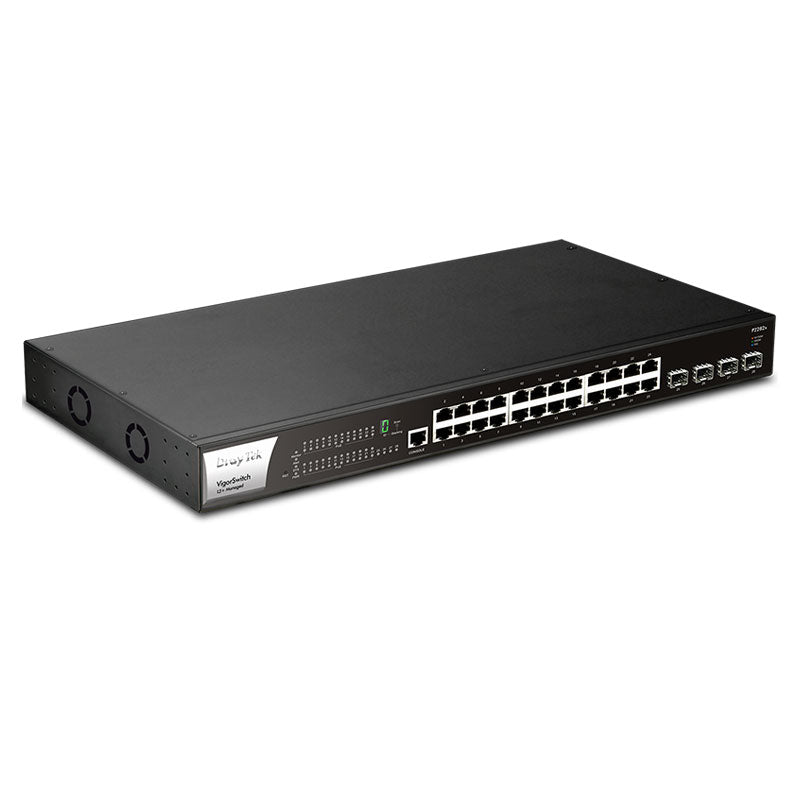

The VigorSwitch P2282x is a Layer 2+ managed 10Gbps switch featuring 24 × Gigabit PoE/PoE+ ports and 4 × 10G SFP+ fibre uplinks. It includes both AC power and dual DC power inputs for redundancy, ensuring uninterrupted operation. With a 400W PoE budget, it supports a wide range of IoT devices such as LED lighting, POS systems, sensors, and IP cameras. Advanced Layer 3 features, including DHCP Server and VLAN Routing, enhance network efficiency and maintain LAN connectivity even if the gateway is offline.

Key Features
•     PoE (Power over Ethernet) – Supplies power and data over one Ethernet cable, with PoE scheduling for automated control.
•     10G SFP+ – Provides high‑speed fibre uplinks for aggregation or core‑switch connectivity.
•     Ping Device Check – Monitors device status and can power‑cycle PoE ports or send alerts if a device stops responding.
•     Wire‑Speed VLAN Routing – Routes inter‑VLAN traffic directly on the switch to offload the router.
•     Stacking – Allows multiple switches to operate as one unit for scalability, resilience, and centralised management.
•     ONVIF‑Friendly – Detects ONVIF devices, displays surveillance topology, and supports video streaming and remote maintenance.
•     Auto Surveillance & Voice VLAN – Automatically identifies IP cameras and IP phones and applies QoS tags.
•     IPv6 Ready – Supports IPv6 features including MLD Snooping, IPv6 ACL, and DNS Resolver.
•     IP Conflict Prevention – Detects and blocks misconfigured or malicious hosts.
•     Web‑Based GUI – Provides an intuitive interface for monitoring ports and hardware status.
•     QoS (Quality of Service) – Prioritises critical traffic using CoS, DSCP, and IP Precedence.
•     Multiple Admin Accounts – Supports multiple administrators with two privilege levels.
•     Central Switch Management – Enables VLAN setup and centralised monitoring from a Vigor router.
•     LLDP‑MED – Automatically detects VoIP devices and prioritises voice traffic.

Further Details:

Advanced Layer 2+ Features
The switch includes a DHCP Server supporting up to eight VLANs and VLAN Routing supporting up to 512 routes. These features reduce router workload and keep LAN services running even if the gateway is offline.

Bind IP to MAC
As a DHCP server, the switch can reserve IP addresses for important devices, ensuring consistent access for frequently used endpoints.

Stacking — Build a Resilient & Flexible Network
Up to four P2282x units can be stacked to form a single logical switch, enabling centralised management, unified configuration, automatic firmware synchronisation, and seamless failover. Stacking also integrates security features such as DHCP Snooping, ARP Inspection, and Port Security.

ONVIF‑Friendly
The switch detects ONVIF devices across VLANs, displays camera topology, and enables remote maintenance such as rebooting or resetting devices. It can also take periodic snapshots and send alerts when cameras stop responding, with PoE models able to power‑cycle affected ports automatically.

IP Conflict Detection & Prevention
The switch monitors for IP conflicts and alerts administrators when issues arise. It can also block problematic hosts to maintain a stable network environment.

Device Check
Continuously pings LAN devices and sends alerts if they stop responding. On PoE models, it can automatically power‑cycle the affected port.

LAN Management
DrayTek’s management platform enables automatic device discovery, remote provisioning, centralised monitoring, and system maintenance (such as configuration backup or remote reboot) directly from a Vigor router.

Software Management
VigorACS 3
Provides provisioning, monitoring, hierarchical views, alarms, remote maintenance, and scheduled reporting.
VigorConnect
Offers local network discovery, auto‑provisioning, monitoring, hierarchical views, alarms, and scheduled maintenance for APs and switches.

In the Box
•     VigorSwitch P2282x
•     Rack mount kit
•     Console cable
•     Power cord
•     Quick start guide
