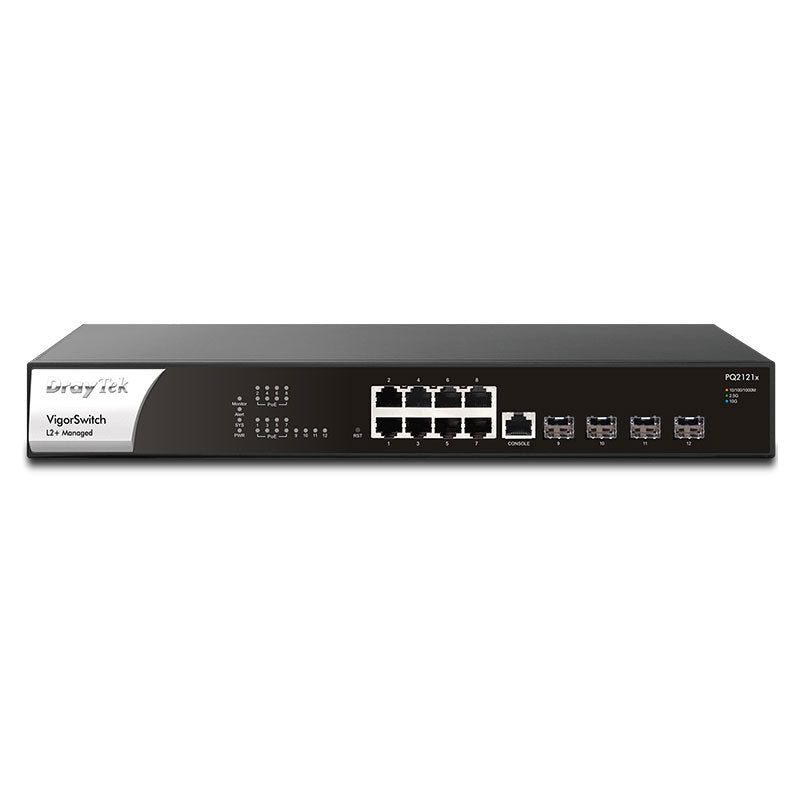

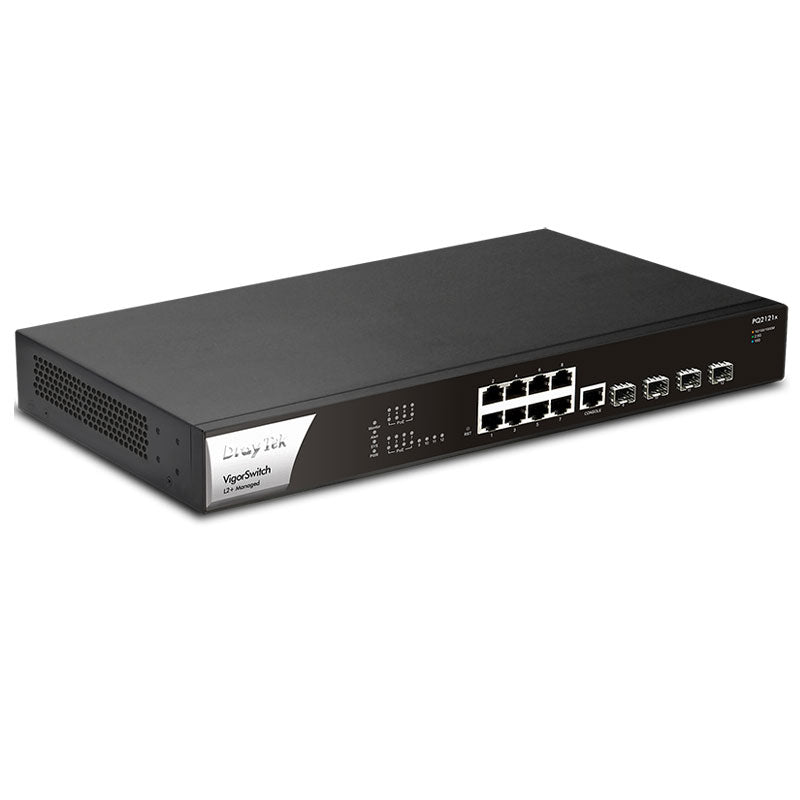

The VigorSwitch PQ2121x is a Layer 2+ managed switch designed to deliver high‑performance networking for modern LAN environments. It features 8 × 2.5GbE PoE/PoE+ ports with a 140W power budget, plus 4 × 10G SFP+ uplink/downlink ports, making it ideal for supporting Wi‑Fi 6 access points and other high‑bandwidth devices. Advanced Layer 3 features, VLAN routing, and DHCP capabilities help improve network efficiency and ensure continuous operation.

Key Features
PoE (Power over Ethernet): Provides power and data over a single Ethernet cable, with scheduling options to control - PoE device power cycles.
QoS (Quality of Service): Prioritises critical traffic using CoS, DSCP, and IP Precedence tagging to enhance performance.
Ping Device Check: Monitors selected devices and can reboot PoE ports or send email alerts if a device stops responding.
ONVIF-Friendly: Automatically detects ONVIF-compliant surveillance devices, displays camera topology, and offers tools for video streaming and maintenance.
2.5GbE: Delivers higher throughput for Wi‑Fi 6 access points and other bandwidth‑intensive devices.
IPv6 Ready: Supports IPv6 features including MLD Snooping, IPv6 ACL, and DNS Resolver.
10G SFP+ Provides high‑speed fibre uplinks for aggregation or connection to core switches.
Web-Based GUI: Offers an intuitive graphical interface for monitoring ports and hardware status.
Wire-Speed VLAN Routing: Routes inter‑VLAN traffic directly on the switch to offload the router and improve overall performance.
Multiple Admin Accounts: Supports multiple administrators with two privilege levels.
Auto Surveillance & Voice VLAN: Automatically identifies IP cameras and IP phones, applying QoS tags for prioritisation.
Central Switch Management: Allows VLAN setup and centralised monitoring from a compatible Vigor router.
IP Conflict Prevention: Detects and blocks misconfigured or malicious hosts to maintain network stability.
LLDP-MED: Automatically detects VoIP devices, simplifies VLAN assignment, and prioritises voice traffic.

Further Details:

ONVIF-Friendly
The switch identifies ONVIF devices across VLANs, displays a hierarchical camera topology, and enables remote maintenance such as rebooting or resetting devices. It can also capture snapshots and send alerts when cameras stop responding, with PoE models able to automatically power‑cycle affected ports.

IP Conflict Detection & Prevention
The switch monitors for IP conflicts and alerts administrators when issues arise. It can also block problematic hosts to maintain a stable network environment.

Device Check
Continuously pings LAN devices and sends alerts if they stop responding, helping administrators quickly identify issues.

LAN Management
DrayTek’s management platform enables automatic device discovery, remote provisioning, centralised monitoring, and system maintenance (such as configuration backup or remote reboot) directly from a Vigor router.

Software Management
VigorACS 3
Provides provisioning, monitoring, hierarchical views, alarms, remote maintenance, and scheduled reporting.
VigorConnect
Offers local network discovery, auto‑provisioning, monitoring, hierarchical views, alarms, and scheduled maintenance for APs and switches.

In the Box
•     VigorSwitch PQ2121x
•     Rack mount kit
•     Console cable
•     Power cord
•     Quick start guide and rubber pads
