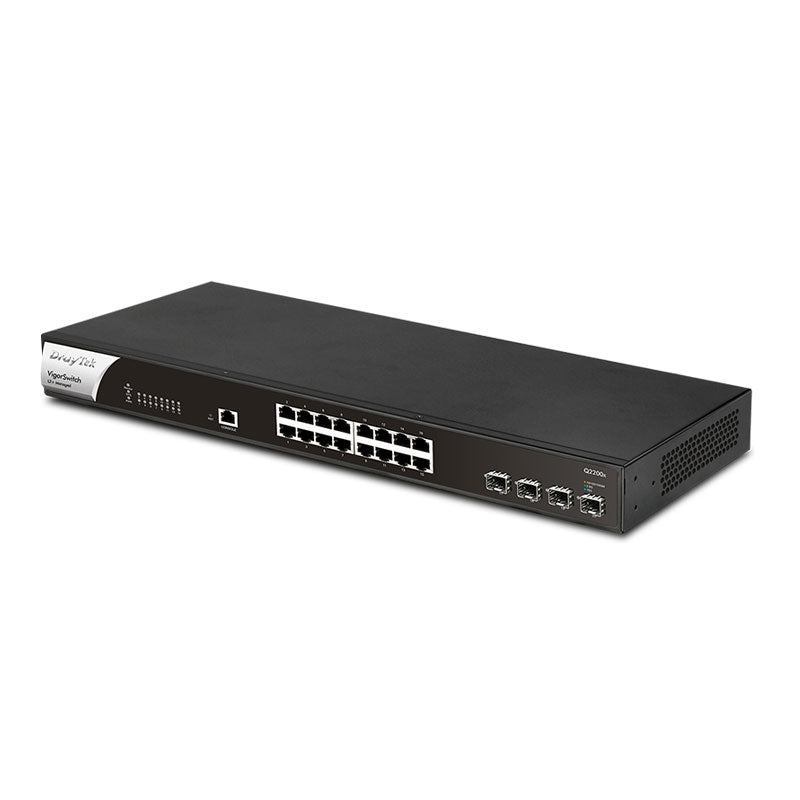

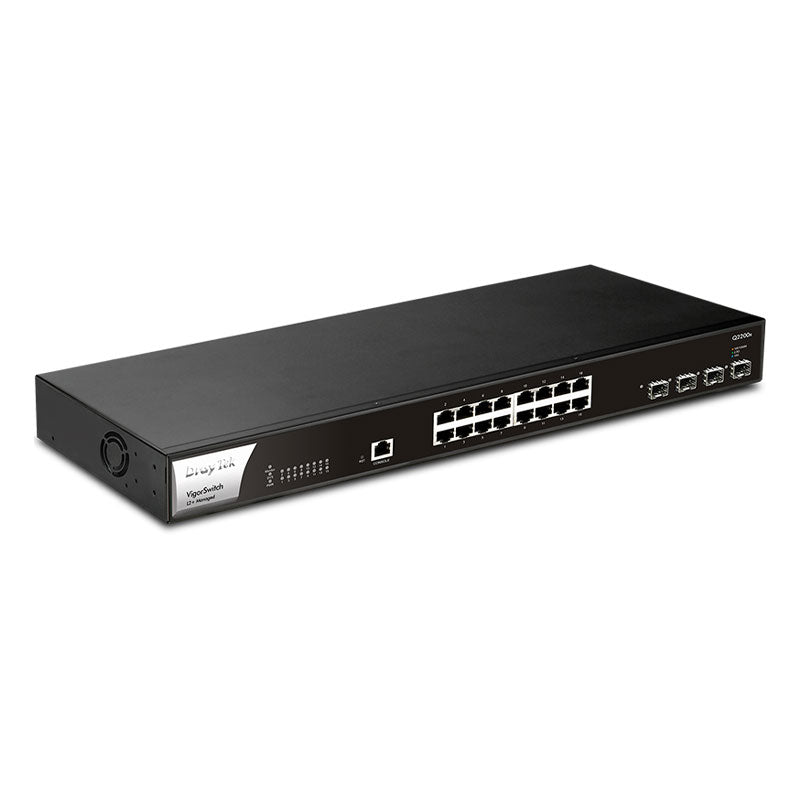

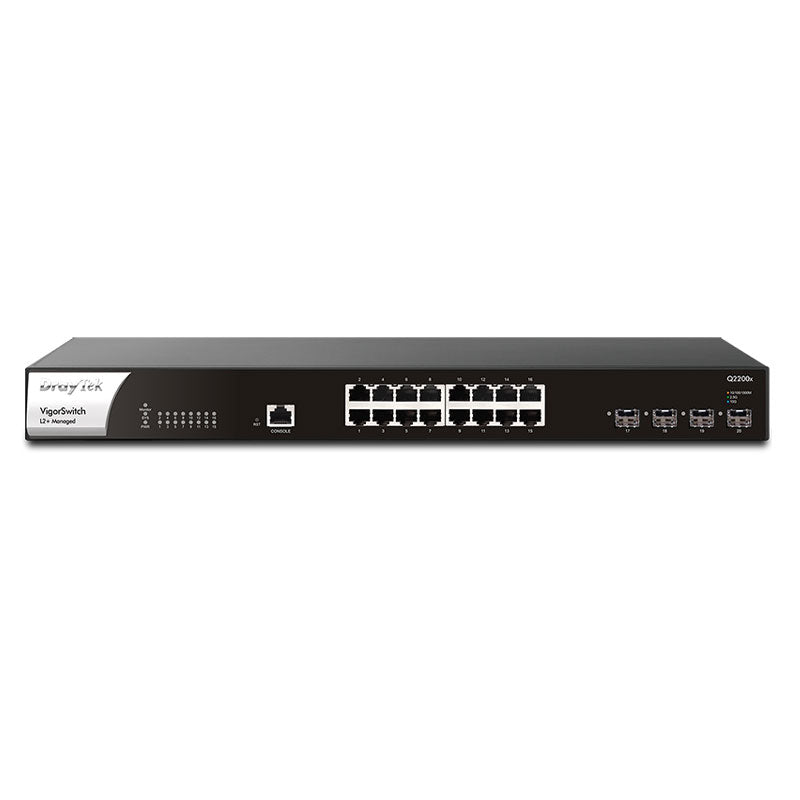

DrayTek VigorSwitch Q2200x

The VigorSwitch Q2200x is a full 2.5GbE Layer 2+ managed switch designed to deliver maximum Wi‑Fi 6 performance to LAN clients. It provides 16 × 2.5GbE ports and 4 × 10G SFP+ uplink/downlink ports, making it ideal as a core switch for SME/SMB networks. With advanced Layer 3 features such as DHCP Server and VLAN Routing, it enhances network efficiency and ensures LAN services continue even when the gateway is offline. The switch offers 160Gbps switching capacity, link aggregation, ONVIF surveillance support, and comprehensive management tools.

Key Features
•     2.5GbE – High‑performance ports ideal for Wi‑Fi 6 access points and modern Ethernet devices.
•     Ping Device Check – Monitors selected devices and sends email alerts if they stop responding.
•     10G SFP+ – High‑speed fibre uplinks for aggregation or connection to core switches.
•     ONVIF‑Friendly – Detects ONVIF devices, displays surveillance topology, and supports video streaming and remote maintenance.
•     Wire‑Speed VLAN Routing – Routes inter‑VLAN traffic directly on the switch to offload the router.
•     IPv6 Ready – Supports IPv6 features including MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.
•     Auto Surveillance & Voice VLAN – Automatically identifies IP cameras and IP phones and applies QoS tags.
•     Web‑Based GUI – Provides an intuitive interface for monitoring ports and hardware status.
•     IP Conflict Prevention – Detects and blocks misconfigured or malicious hosts.
•     Multiple Admin Accounts – Supports two levels of administrator privileges.
•     QoS (Quality of Service) – Prioritises critical traffic using CoS, DSCP, and IP Precedence.
•     Central Switch Management – Enables VLAN setup and centralised monitoring from a Vigor router.
•     LLDP‑MED – Detects VoIP devices, simplifies VLAN assignment, and prioritises voice traffic.

Further Details

ONVIF‑Friendly
The switch automatically detects ONVIF‑compliant devices across VLANs, displays a hierarchical camera topology, and provides tools for video streaming and device maintenance. It can take periodic snapshots and send alerts when cameras stop responding.

IP Conflict Detection & Prevention
The switch monitors for IP conflicts and alerts administrators when issues arise. It can also block misconfigured or malicious hosts to maintain a stable network environment.

Device Check
The switch continuously pings LAN devices and sends alerts if they stop responding, helping administrators quickly identify issues.

LAN Management
DrayTek’s LAN management platform provides automatic device discovery, remote provisioning, centralised monitoring, and system maintenance such as configuration backup and remote reboot, all managed through a Vigor router.

Software Management
VigorACS 3
Supports provisioning, monitoring, hierarchical views, alarms, remote maintenance, and scheduled reporting.
VigorConnect
Provides local discovery, auto‑provisioning, monitoring, hierarchical views, alarms, and scheduled maintenance for APs and switches.

In the Box
•     VigorSwitch Q2200x
•     Rack mount kit
•     Console cable
•     Power cord
•     Quick start guide
