Description
Description
Vigor2136ax-4G 2.5G WAN Ultra-High-Speed Router with Cellular 4G
Vigor2136ax-4G delivers reliable and high-speed connectivity with built-in 4G Cellular, and embedded dual SIM slots (one active at a time) provide enhanced redundancy to maintain continuous cellular network access. The equipped 2.5G WAN port delivers fast wired performance. With 802.11ax (Wi-Fi 6) capability, it ensures efficient and stable wireless connections even in high-dentisy environments. In addition to the primary 4G WAN, the router supports Ethernet WAN or Wi-Fi WAN as backup options to ensure uninterrupted internet connectivity.
The Vigor2136ax-4G also integrates a comprehensive suite of enterprise-grade features, including Route Policy, App-based QoS, IP/URL Filtering, SPI Firewall, Port Knocking, up to 16 VPN tunnels, Tag-based VLAN, and advanced traffic management. These capabilities make it a secure and robust networking solution for offices, retail locations, and remote sites.
Key Features
- Ready to connect to NTD (Network Termination Device) of NBN (Aust) and UFB (NZ)
- Cat.6 4G LTE modem with dual nano SIM slots (SIM slot 2 for Failover) for FDD & TDD 4G LTE WAN
- Support 4G LTE bands: B1/B3/B7/B8/B20/B28/B32/B38/B40; great coverage in Australia and New Zealand, Cat.6 4G LTE with 300Mbps download and 50Mbps upload speeds

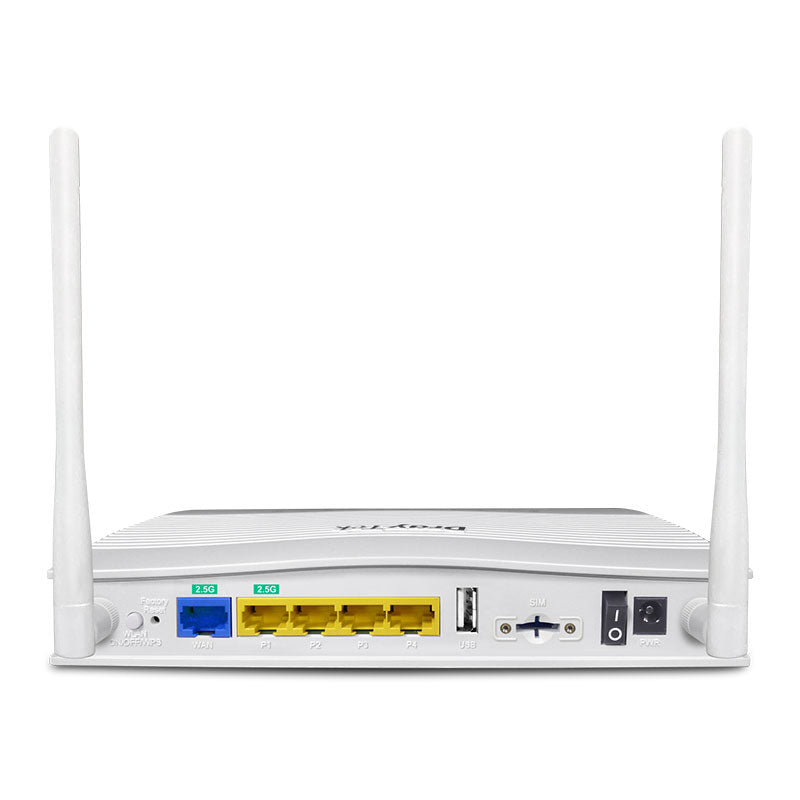

- 1 x 2.5 Gigabit WAN port, Wi-Fi WAN and 2 x USB ports for 4G Mobile Fail-Over
- 1 x configurable 2.5 GbE WAN/LAN port (P1)
- 3 x Gigabit LAN ports with 50,000 NAT sessions
- NAT throughput with Hardware Acceleration over 2.3 Gbps
- IPsec VPN throughput up to 390 Mbps (AES 256 bits)
- Object-based SPI Firewall, Content Security Management (CSM), URL/IP Reputation and Port Knocking
- IAM (Identity and Access Management) to enhance security management and user experience
- IPv6 & IPv4
- 802.11ax (Wi-Fi 6, AX3000) Wi-Fi up to 574 + 2402Mbps speed
- 16 x VPN tunnels, including IPsec, OpenVPN, and WireGuard, with EasyVPN features that simplify VPN setup for effortless connectivity
- 1 x USB ports for 4G Backup, FTP server, network printer or thermometer
- Virtual AP Controller for the deployment of up to 20 wireless VigorAPs
- Wireless Mesh up to 7 VigorAPs
- Virtual Switch Controller to manage up to 5 VigorSwitches
Multi-Gig Routers
Faster Wired Connections
- 4K video streaming
- online gaming
- large file transfers
- network-attached storage (NAS) devices etc
4G Router with High Speed Mobile Connectivity
- Equipped with an integrated 4G LTE Cat.6 modem, the router supports carrier aggregation to deliver high-speed mobile broadband connectivity for reliable internet access and VPN services.
- The dual-SIM slot design allows the use of two mobile network providers. If the primary mobile network becomes unavailable, the router can automatically switch to the secondary SIM to maintain continuous cellular connectivity.
- With two external 4G cellular antennas, users can flexibly position the antennas to achieve optimal signal reception, even in challenging installation environments.
Setting up a VPN can often be complex, involving protocol selection, manual configurations, and troubleshooting, especially for non-technical users. While Vigor routers support advanced VPN protocols such as IPsec, WireGuard, and OpenVPN, traditional setup methods can be time-consuming and daunting.
EasyVPN simplifies this process by offering a streamlined, hassle-free solution for secure remote connectivity. With EasyVPN, users can quickly establish encrypted connections without the need to:
- Manually generate WireGuard keys
- Import OpenVPN configuration files
- Upload certificates
By automating these steps, EasyVPN delivers a fast, secure, and intuitive VPN experience—perfect for businesses and users who want robust protection without the technical complexity.
URL Reputation
URL Reputation is a cloud-based threat intelligence service that adds an extra layer of security to protect LAN clients during their online activities.
With a total of 82 content categories, including 10 security-focused ones, it provides comprehensive and up-to-date protection for both home and business networks.
These categories cover a wide range of areas—from malware, spyware, and adware, to parental controls, business productivity, and social networking—helping to create a safer online environment, enhance employee productivity, and support efficient bandwidth management.
IP Reputation
Every internet communication involves source and destination IP addresses. Cybercriminals often exploit known malicious IPs to launch attacks using various techniques, including:
- Botnets
- TOR nodes and anonymous proxies
- Command-and-Control (C2) servers
- Phishing servers
- Distributed Denial of Service (DDoS) attacks
Seamless Wi-Fi Roaming
Vigor2136ax-4G is a 2×2 dual-band Wi-Fi router that provides 160 MHz bandwidth and 1024-QAM modulation to greatly increase wireless data speed. The theoretical speed is up to 3,000 Mbps, of which 574 Mbps is in the 2.4 GHz band and 2,402 Mbps in the 5 GHz band—about 2.5× faster than an 802.11ac 2×2 dual-band router. Equipped with business-grade features including URL Reputation, Route Policy, App-based QoS, and more, Vigor2136ax-4G is perfect for professional smart homes/SOHO users who want full control of their network.
Mesh
Vigor2316ax-4G supports up to 7 APs, which can form one or more Wireless Groups. Each group can form Mesh links automatically based on the optimum signal level among the APs and devices.
On-Device Network Management with DrayTek Virtual Controller
The DrayTek Virtual Controller is a built-in management platform available on supported routers and firewalls.
It delivers centralised network control without cloud dependency, helping reduce data exposure risks while enhancing security and privacy.
Wireless Management
- Mesh Controller – Easily build and manage wireless mesh networks with auto-routing and self-healing capabilities.
- AP Management (APM) – Automatically discover, configure, and monitor connected VigorAPs, making it simple to deploy multiple APs with unified settings.
Switch Management
- Central Switch Manager (SWM) – Detect and manage supported VigorSwitches, push configurations, monitor device status, and apply VLAN or QoS policies, all from a single local interface.
Software Management with VigorACS 3
- Zero Touch Deployment & Provisioning
- Auto VPN
- Interface Quality & SLA
- VoIP Optimization & Monitoring
- Application Visibility
- Application Based SD-WAN Policy
- Customized Hotspot Page with Multilingual
- Hotspot Clients Analytics
- ACS Server Load Balancing / Failover
