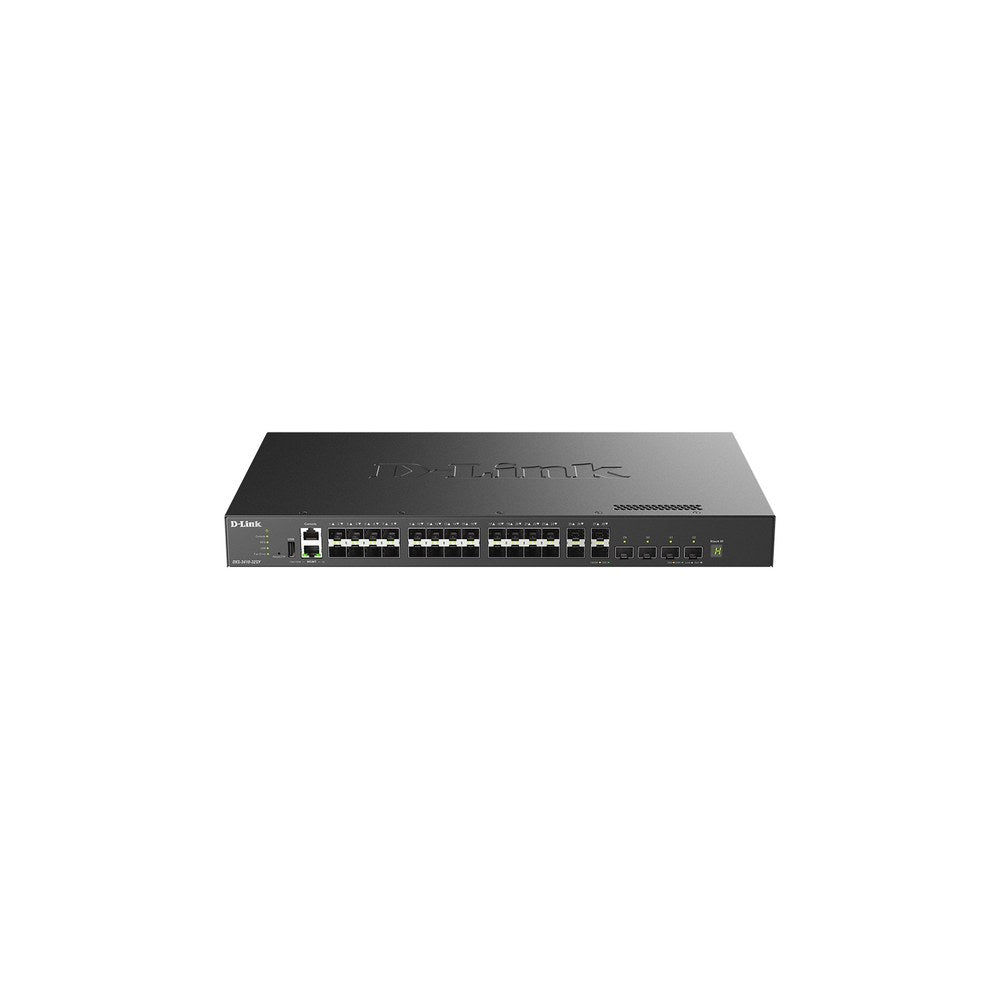

The D-Link DXS-3410-32SY is a high-performance 10 Gigabit Layer 3 stackable managed switch engineered to deliver exceptional connectivity for demanding enterprise and campus networks. With 28x 10G SFP+ ports and 4x 10/25G SFP28 ports, this versatile switch provides the speed and scalability required for modern business infrastructures.

Designed specifically for SMB/SME core network infrastructure, the DXS-3410-32SY combines advanced Layer 2 and Layer 3 functionalities to meet the exponential growth of business network demands. The switch delivers a powerful 760 Gbps switching capacity and 565.44 Mpps forwarding rate, ensuring smooth data transmission even under heavy loads.

Key Features

• 28x 10G SFP+ ports for high-speed fibre connectivity
• 4x 10/25G SFP28 ports for uplink connection and physical stacking
• Physical stacking up to 9 units with 200 Gbps stacking bandwidth, or virtual stacking up to 32 units
• 760 Gbps switching capacity with 565.44 Mpps packet forwarding rate
• Advanced Layer 3 routing protocols including OSPF, RIP/RIPng, VRRP
• Multicast support: IGMP v1/v2/v3, MLD v1/v2
• IEEE 802.1Qbb Priority-based Flow Control (PFC) for intelligent lossless network and data centre bridging
• Zero Touch Provisioning for effortless deployment
• QinQ VLAN support for metro Ethernet networks
• G.8032 Ethernet Ring Protection Switching (ERPS) with 50 ms recovery time
• OAM protocols: 802.3ah, 802.1ag CFM, Y.1731
• RJ-45 console port and 10/100/1000BASE-T management port for out-of-band management
• USB 2.0 Type A port for configuration file management and firmware updates
• Optional redundant power supplies: DPS-500A (AC) or DPS-500DC (DC)

Robust Security and Access Control

The DXS-3410-32SY incorporates comprehensive security features including Multi-layer and Packet Content Access Control Lists (ACL), Storm Control, and the exclusive D-Link Safeguard Engine to prevent traffic flooding from malicious attacks. Multiple authentication mechanisms such as 802.1X, Web-based Access Control (WAC), and MAC-based Access Control provide strict access control. Advanced features include IP-MAC-Port Binding (IMPB) with DHCP Snooping, allowing administrators to bind source IP addresses with associated MAC addresses for enhanced user access control. Individual VLAN membership, Quality of Service (QoS) policies, and ACL rules can be assigned to each authenticated host.

Scalability and High Availability

The switch supports physical stacking of up to 9 units using the SFP28 ports, delivering up to 200 Gbps stacking bandwidth for maximum performance. Virtual stacking extends scalability to 32 units. The entire stack can be controlled with a single IP address, simplifying network management and enhancing redundancy. The DXS-3410-32SY features advanced Layer 2 functionalities including flow control, Link Aggregation, Spanning Tree Protocols, Loopback Detection, Flow Mirroring, and IGMP/MLD Snooping.

Flexible Management Options

Management is simple and flexible with support for 802.3ah OAM, 802.1ag CFM, and industry-standard CLI. The switch supports multiple images and configurations for risk-free firmware testing. Out-of-band management is available via dedicated RJ-45 console and Gigabit Ethernet management ports.

Ideal for: Medium to large businesses, campuses, enterprise core and aggregation networks, data centres, shopping malls, and communities requiring high levels of security protection, maximum uptime, and scalable high-speed connectivity.

Compatible Products

Direct Attach Cables (DAC): DEM-CB100S (1m 10G SFP+), DEM-CB300S (3m 10G SFP+), DEM-CB700S (7m 10G SFP+), DEM-CB100S28 (1m 25G SFP28), DEM-CB100Q28-4S28 (1m 100G QSFP28 to 4x 25G SFP28 breakout cable)

Redundant Power Supplies: DPS-500A (AC Redundant Power Supply), DPS-500DC (DC Redundant Power Supply)
