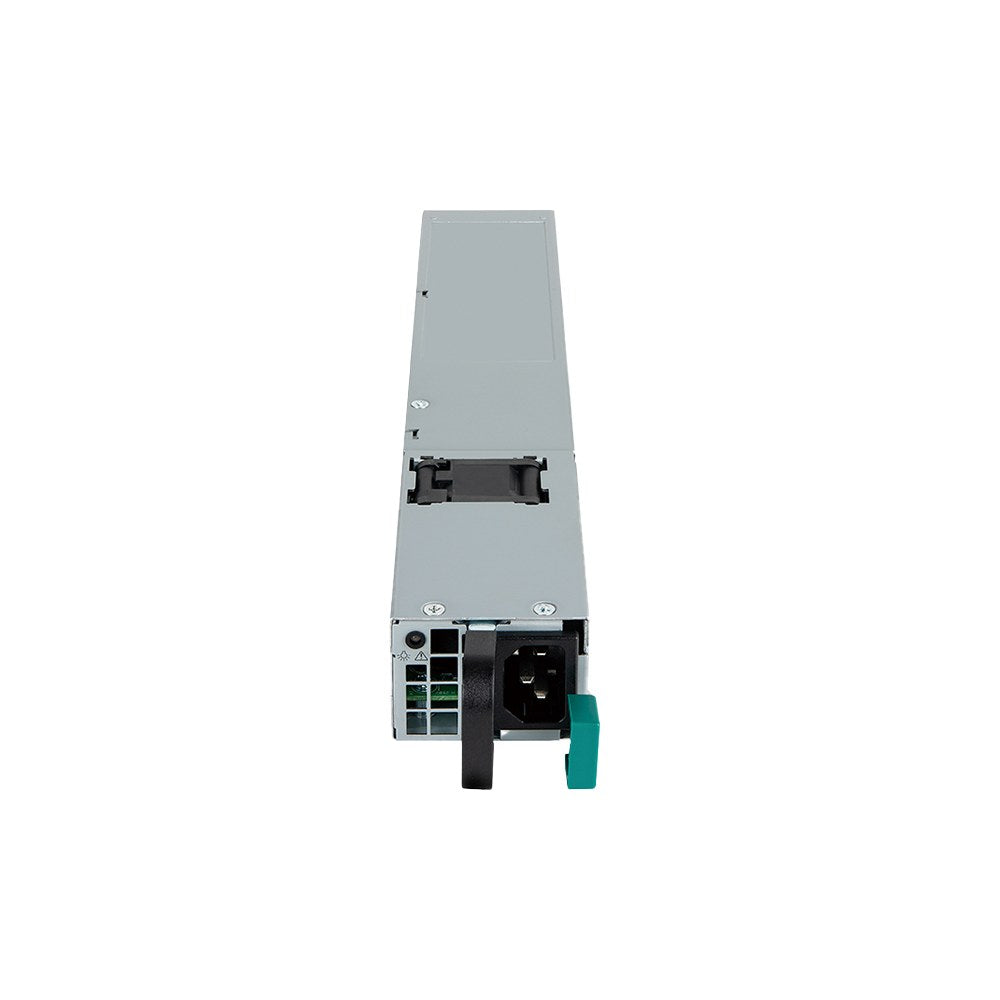

DXS-PWR700AC - D-Link 770W AC Hot-Swappable Internal Redundant Power Supply for DXS-3610 Series Switches
Ordering - What You Need To Know
Ordering - What You Need To Know
When you order a Sophos license from us please make sure you include the license number or current hardware appliance serial number. Licenses generally take around 24 - 36 working hours to be issued after order.
In some instances you may find we show out of stock for certain hardware models. This is fairly normal and reflects the fact, often that we have to place what is called a back to back order. When you order with us, we order with Sophos and the unit is shipped in to the country. Please allow around 10 working days where we show as out of stock.
Description
Description
The D-Link DXS-PWR700AC is a 770W AC modular power supply designed specifically for the DXS-3610 Series of Layer 3 Stackable 10G/100G Managed Switches. This hot-swappable internal redundant power supply features front-to-back airflow design, making it ideal for demanding data centre and enterprise network environments where reliability and minimal downtime are critical.
Built to support 1+1 power redundancy and load sharing configurations, the DXS-PWR700AC ensures continuous operation even in the event of a single power supply failure. The hot-swappable design allows for power supply replacement without shutting down the switch, helping to maintain network uptime and eliminating the need for network reconfiguration during maintenance.
The front-to-back airflow design unifies airflow direction within the data centre, enabling efficient hot and cold aisle configurations that minimise power consumption and maximise cooling efficiency. This is particularly beneficial in high-density rack environments where thermal management is essential.
Key Features
- 770W output power with 12V DC and 5V DC outputs
- Hot-swappable design for zero-downtime maintenance
- Front-to-back airflow for optimised data centre cooling
- Load sharing capability to distribute power load and extend module lifetime
- 1+1 redundancy support to minimise downtime in case of PSU failure
- Wide input voltage range: 100-240V AC at 50-60Hz
- Internal modular design for the DXS-3610 Series switches
- Maximum input current: 10A @ 100-127V AC, 5A @ 200-240V AC
- Maximum output current: 63.4A @ 12V DC, 2A @ 5V DC
Ideal for: Enterprise networks, campus aggregation environments, data centres, and top-of-rack deployments requiring high availability and redundant power solutions for 10G/100G switching infrastructure.
Compatible Products
DXS-3610-54S: 48-port 10G SFP+ Layer 3 Stackable Managed Switch with 6x 100G QSFP28 ports
DXS-3610-54T: 48-port 10GBase-T Layer 3 Stackable Managed Switch with 6x 100G QSFP28 ports
