Description
Description

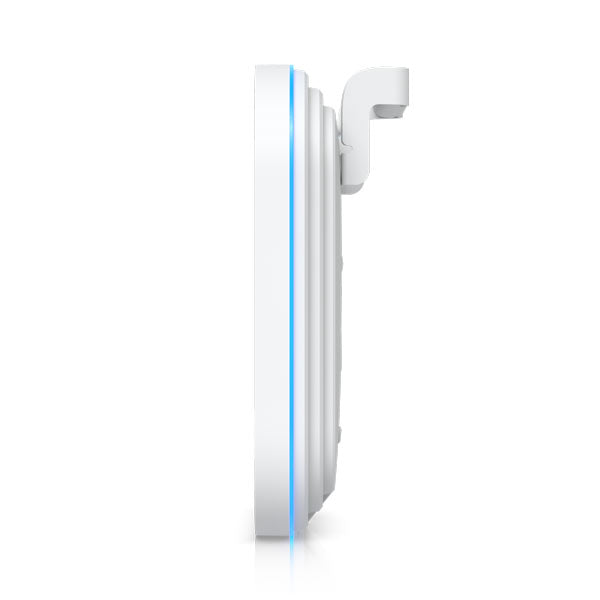

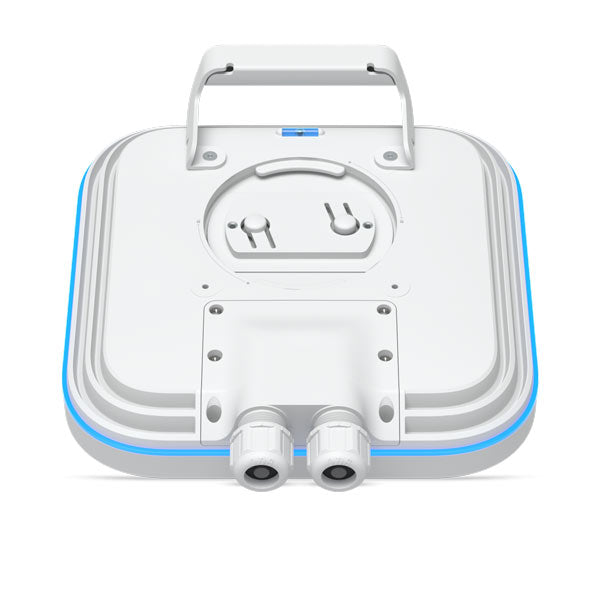

The Ubiquiti E7 Campus (model E7-Campus) is an enterprise-grade indoor/outdoor access point designed to deliver exceptional WiFi 7 performance for demanding campus environments. Featuring 10-stream tri-band connectivity and revolutionary PRISM™ active RF filtering technology, this premium access point is built for campuses, educational institutions, and large-scale outdoor deployments requiring superior wireless coverage and reliability.
Key Features
- WiFi 7 Technology: 10 spatial streams with tri-band operation (2.4 GHz, 5 GHz, 6 GHz) for maximum throughput
- High-Speed Connectivity: Maximum data rates up to 11.5 Gbps on 6 GHz, 8.6 Gbps on 5 GHz, and 688 Mbps on 2.4 GHz
- PRISM™ Active RF Filtering: High-selectivity technology with dedicated spectral analyser radio for enhanced channel selection and interference-free performance
- Integrated Directional Antennas: 12 dBi directional internal antennas (6 GHz: 90° x 50°, 5 GHz: 100° x 55°) for targeted coverage
- Extensive Coverage: Up to 465 m² (5,000 ft²) coverage area, supporting 1,000+ connected devices simultaneously
- 4x4 MU-MIMO: Downlink/uplink multi-user MIMO on 6 GHz and 5 GHz bands, 2x2 on 2.4 GHz

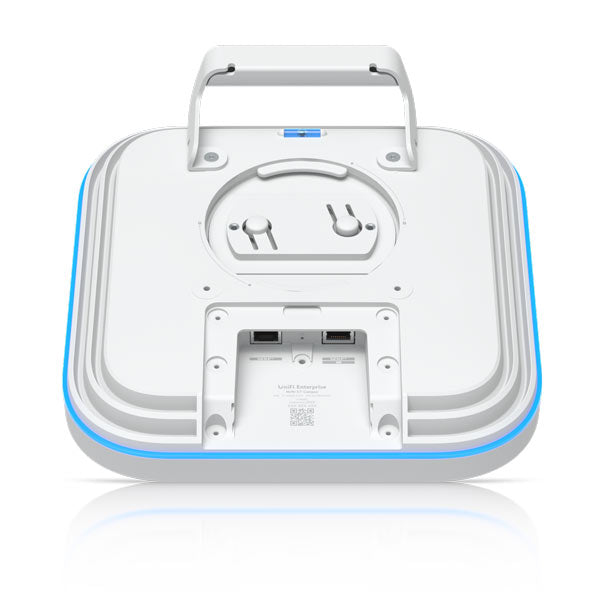

- 10 GbE Uplink: Ultra-fast 10 Gigabit Ethernet RJ45 port for high-capacity backhaul
- High Availability: Redundant 1 GbE RJ45 port for power and data redundancy
- Weatherproof Design: IPX6 rated, IP67 with included waterproof door kit for reliable outdoor operation
- PoE++ Powered: Efficient power delivery via PoE++ (IEEE 802.3bt)

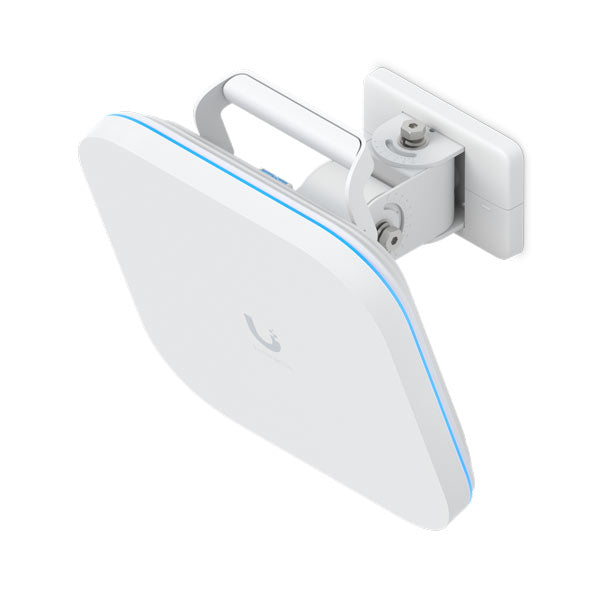

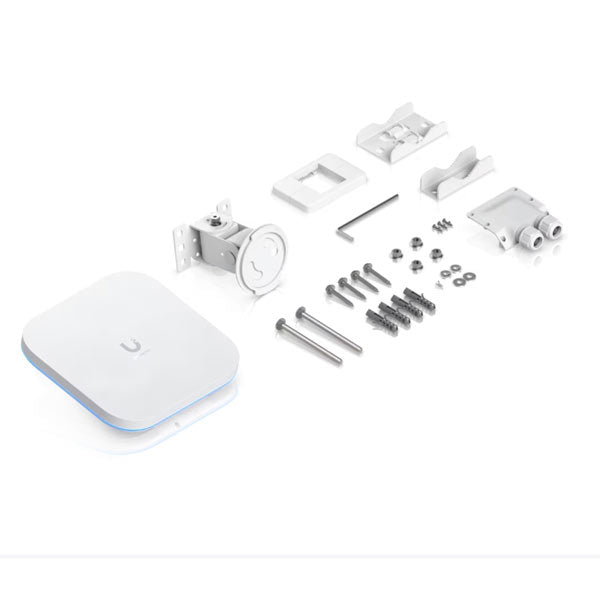

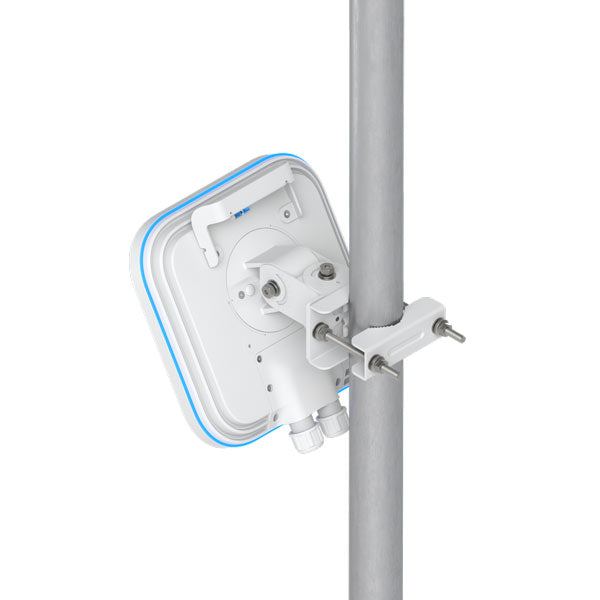

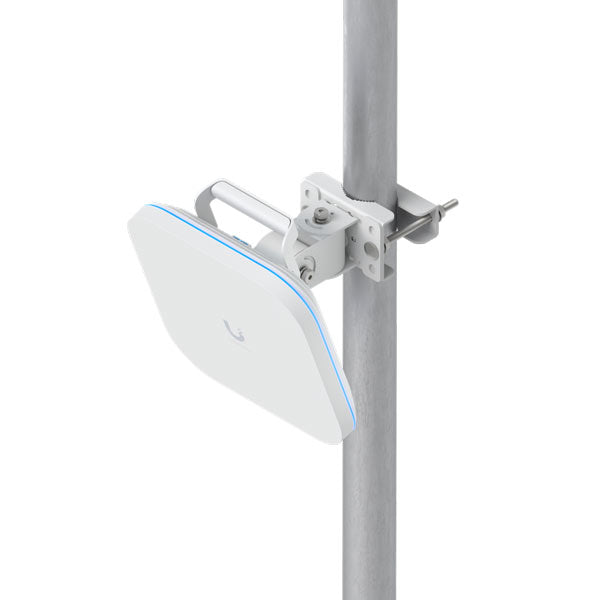

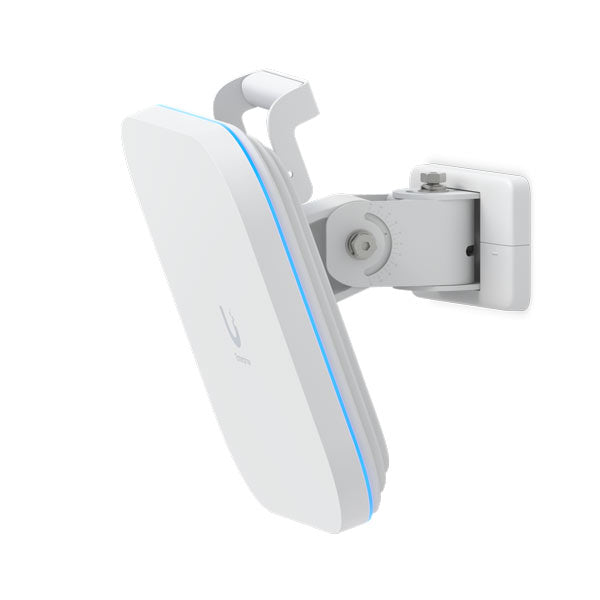

- Versatile Mounting: Includes articulating wall/pole mount for precise positioning, VESA 100x100 compatible

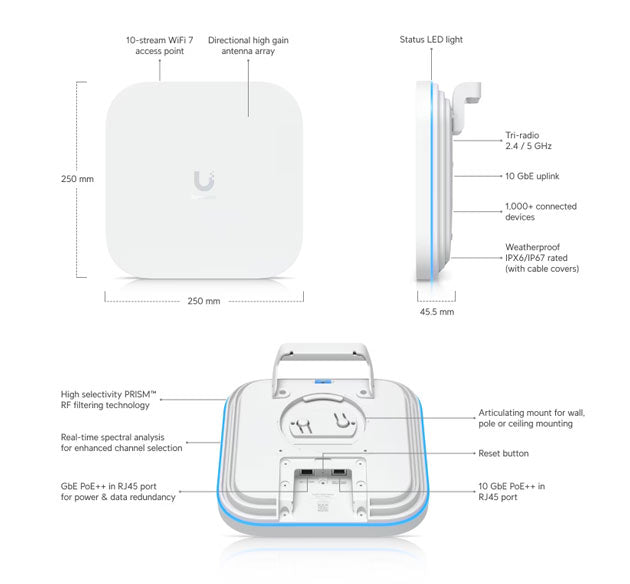

- Compact Dimensions: Device 250 x 250 x 45.5 mm, articulating mount Ø104 x 149.4 mm
Ideal for: Universities, schools, enterprise campuses, outdoor venues, and large organisations requiring robust, high-performance outdoor WiFi 7 coverage with enterprise-grade reliability and advanced interference mitigation.
Compatible Products
The E7-Campus access point requires a UniFi Network application for management and configuration. Compatible with UniFi Cloud Gateways (such as Dream Machine Pro, UCG-Ultra, UDM-SE, or Enterprise Fortress Gateway) or UniFi Network Server running on compatible hardware. For optimal performance with PoE++ requirements, pair with UniFi Enterprise Campus switches or use the optional 10G PoE++ Adapter (60W) for deployments without PoE++ switching infrastructure. The Ethernet Surge Protection Outdoor accessory provides additional protection for outdoor installations.
Specifications40 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 250 x 250 x 43.5 mm / (9.8 x 9.8 x 1.7") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 10 |
| Coverage Area | 185 m² (2,000 ft²) |
| Max. Client Count | 1000+ |
| Uplink | 10 GbE / 1 GbE |
| Mounting | Ceiling, Wall, VESA / (Pro Mount Included) |
| Power Method | PoE++ |
| Performance | |
| MIMO · 6 GHz | 4 x 4 (DL/UL MU-MIMO) |
| MIMO · 5 GHz | 4 x 4 (DL/UL MU-MIMO) |
| MIMO · 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate · 6 GHz | 11.4 Gbps (BW320) |
| Max. Data Rate · 5 GHz | 8.6 Gbps (BW240) |
| Max. Data Rate · 2.4 GHz | 688 Mbps (BW40) |
| Antenna Gain · 6 GHz | 6 dBi |
| Antenna Gain · 5 GHz | 6 dBi |
| Antenna Gain · 2.4 GHz | 5 dBi |
| Max. TX Power · 6 GHz | 24 dBm / 30 dBm |
| Max. TX Power · 5 GHz | 30 dBm |
| Max. TX Power · 2.4 GHz | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates · 802.11be (WiFi 7) | 7.3 Mbps to 11.4 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320) |
| Supported Data Rates · 802.11ax (WiFi 6) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| Supported Data Rates · 802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| Supported Data Rates · 802.11n | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| Hardware | |
| Max. Power Consumption | 43W |
| Supported Voltage Range | 42.5–57V DC |
| Networking Interface | (1) 10 GbE RJ45 port / (1) 1 GbE RJ45 port |
| Weight | 1.8 kg (4 lb) |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Stainless steel (SUS304), galvanized steel (SGCC) |
| LEDs · System | R/G/B |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| Operating Frequency | US/CA: / 2400 - 2472 MHz / U-NII-1: 5150 - 5250 MHz / U-NII-2A: 5250 - 5350 MHz / U-NII-2C: 5470 - 5725 MHz / U-NII-3: 5725 - 5850 MHz / U-NII-5 to U-NII-8: 5925 - 7125 MHz / / Worldwide: / 2400 - 2483.5 MHz / 5150 - 5850 MHz / 5925 - 7125 MHz |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 06372-24-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 9.2.87 and later |
| Application Requirements · Mobile App | iOS™ version 10.24.1 and later / Android™ version 10.25.2 and later |
