SKU: EAH-8

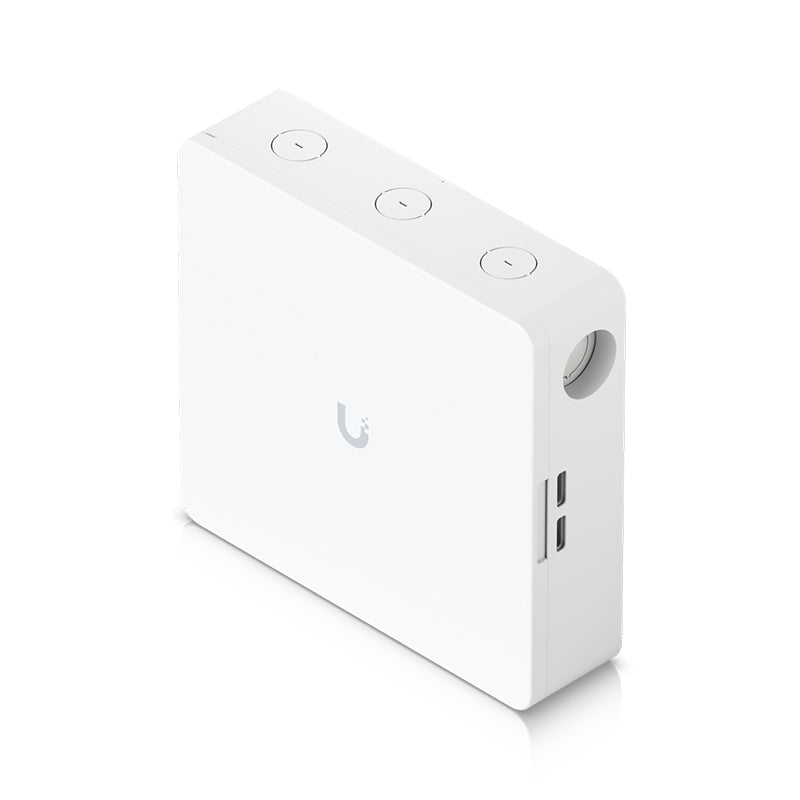

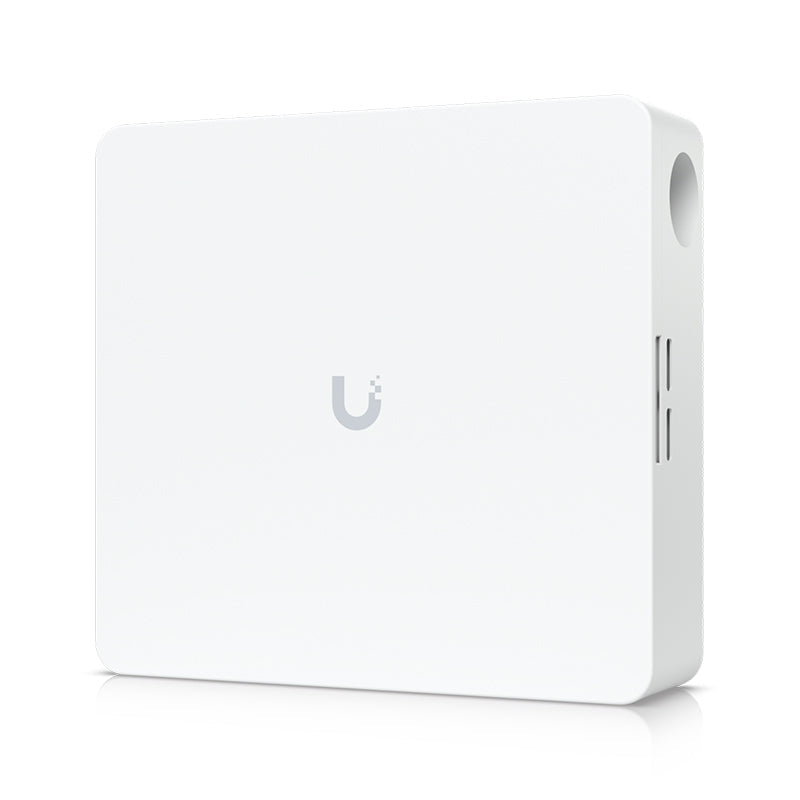

EAH-8 Ubiquiti UniFi Enterprise Access Hub

Name: EAH-8 Ubiquiti UniFi Enterprise Access Hub
Brand: Ubiquiti
SKU: EAH-8
Price: 1971.79 AUD
Availability: InStock

$1,971.79 AUD

Add to cart, then request a quote for our best price.

Description

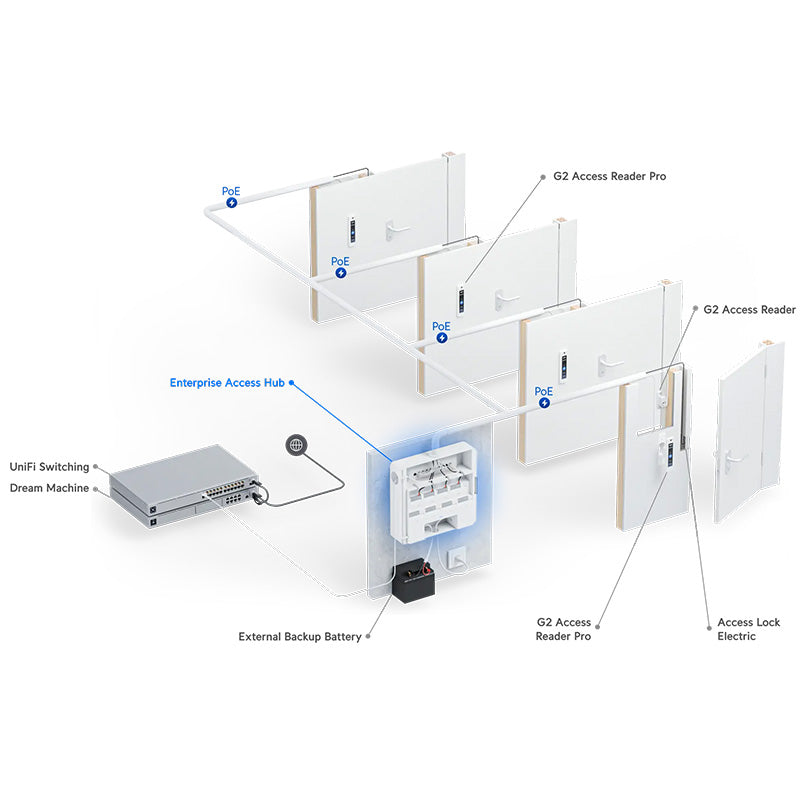

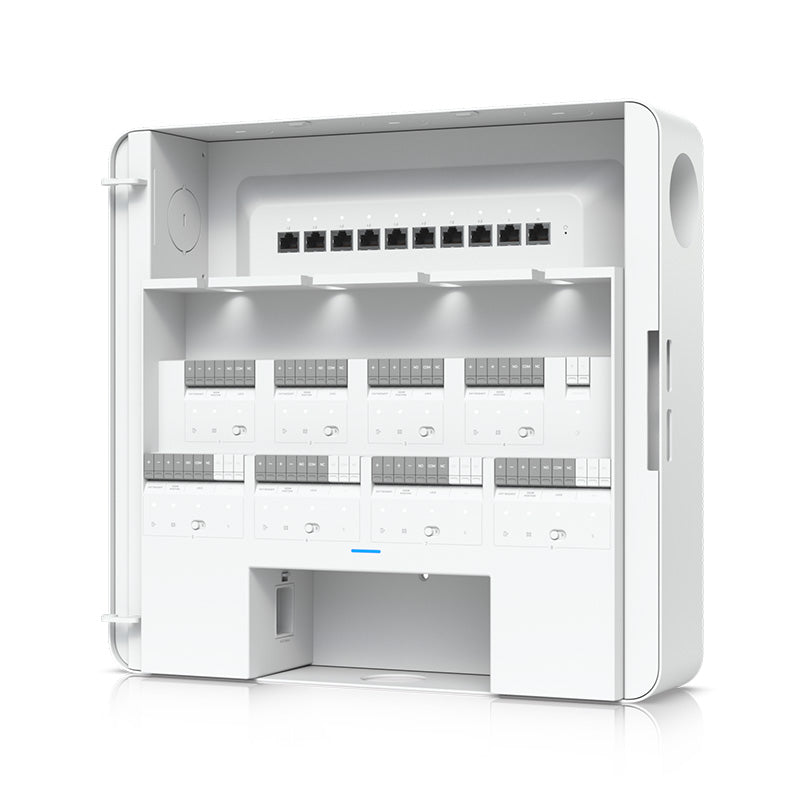

Enterprise-grade access hub with entry and exit control to eight doors and battery backup support.

Features:

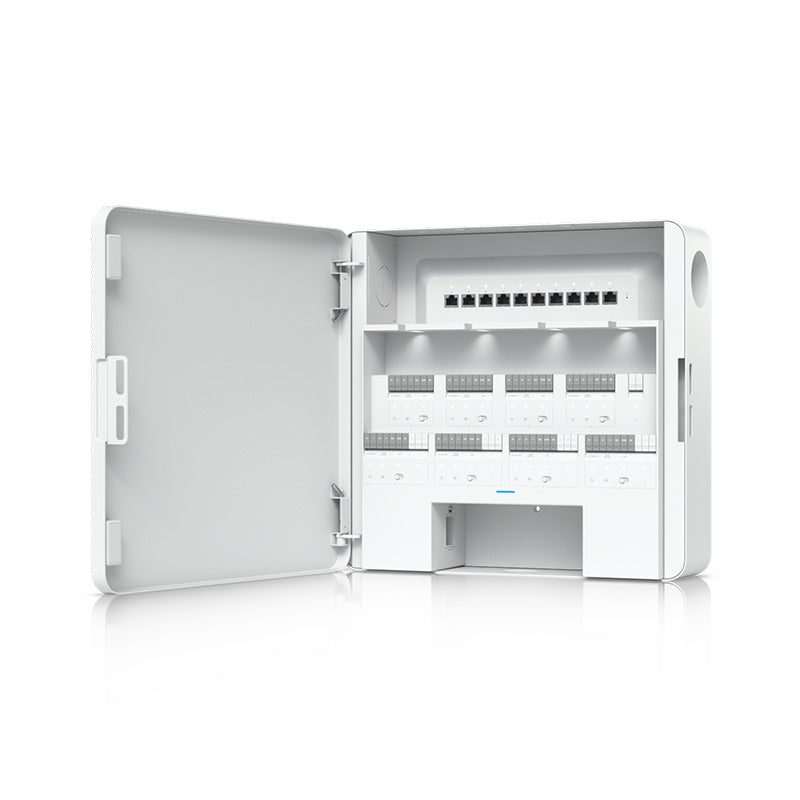

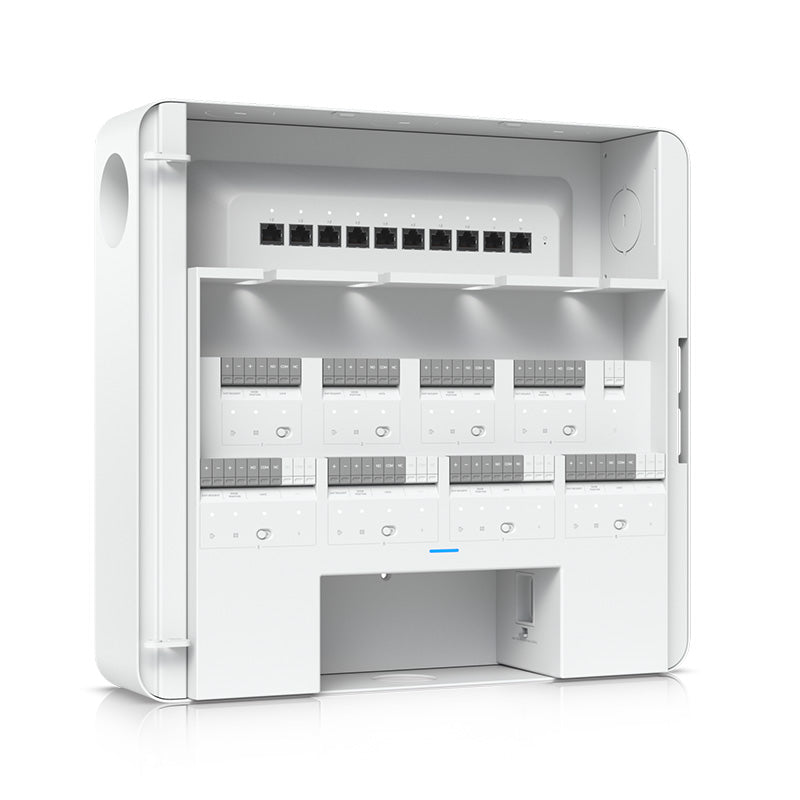

(8) Lock terminals (12V or Dry)

(8+8) Inputs for request-to-exit devices and door position sensors

(8) PoE ports for Access Readers

(4) AUX terminals for chimes, sirens, or door openers

(1) Battery backup input (32–48V)

Click HERE to access the Datasheet

Click HERE to access the Installation Guide

Specifications34 specifications · 4 sections

Overview

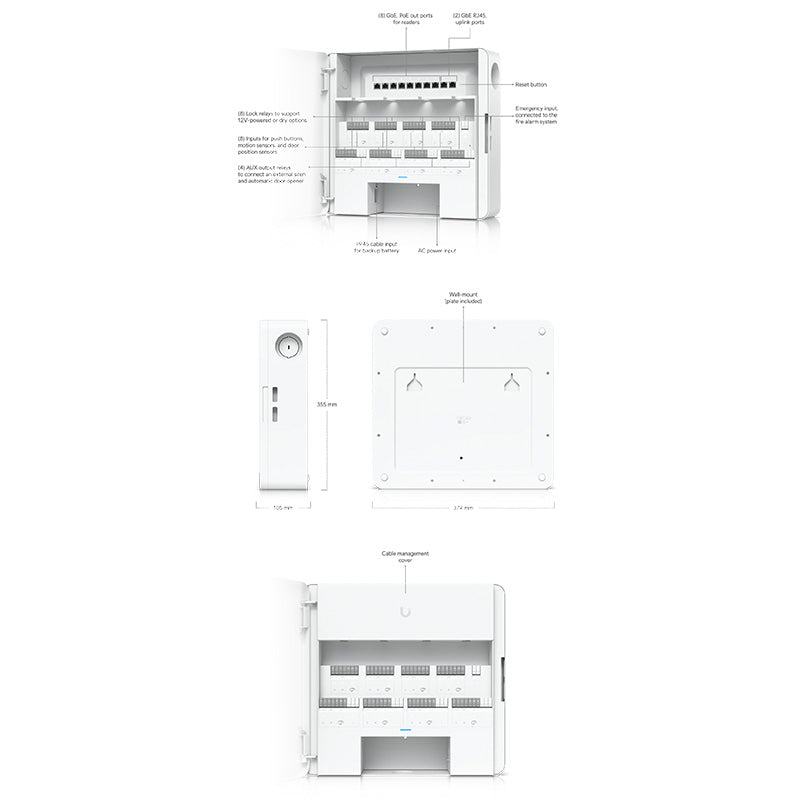

Dimensions	379 x 355 x 105 mm / (15 x 14 x 4.1")
Supported Doors	8
Maximum User Count	10,000
Input Terminals	(8) Door exit request / (8) Door position / (1) Emergency
Power Method	Universal input, 100–240V AC, Max. 4.4A, 50/60 Hz / 32–48V DC Lead Acid Battery, Max. 7.5A @32V
UL 294 Level	Destructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I
Mechanical
Weight	Device: 9.1 kg (20 lb) / Mount: 624 g (1.4 lb)
Enclosure Material	SGCC steel housing with polycarbonate cover

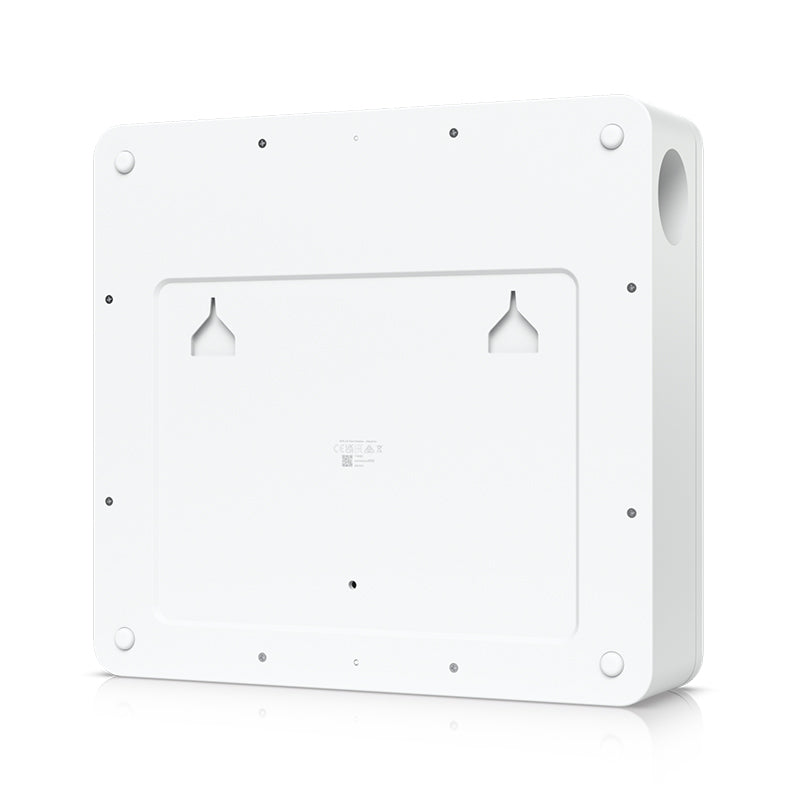

Mount Material	SGCC steel

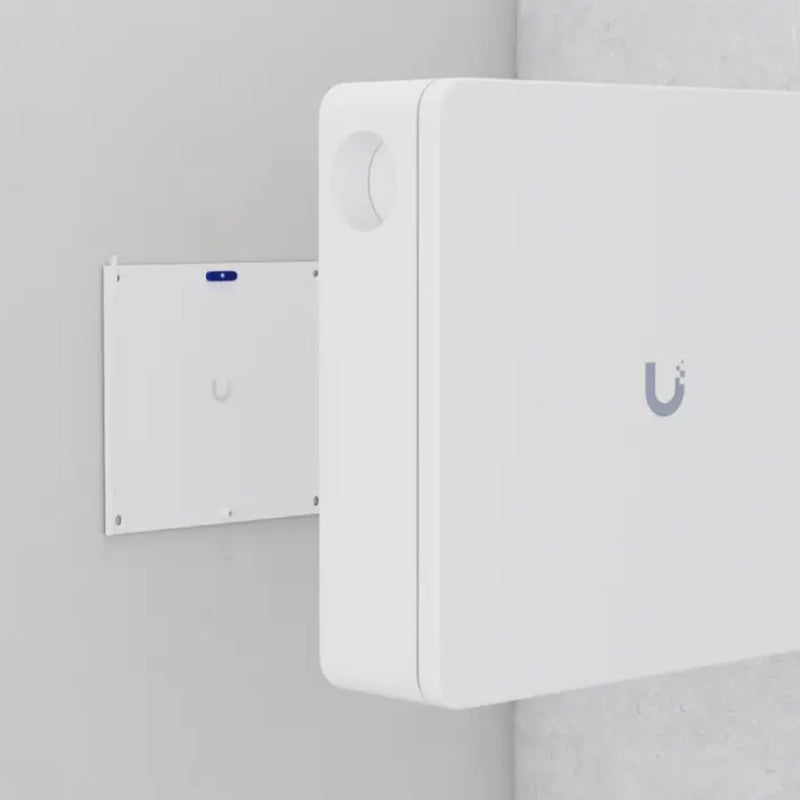

Mounting	Wall
Hardware
Digital Input	(8) Inputs for request-to-exit devices / (8) Inputs for door position sensors / (1) Emergency
Dry Output Relay	(8) Lock terminals (12V or Dry) / (4) AUX terminals for advanced setup (Chime/Siren/Door opener)
Powered Output Relay	Lock: 12V DC, 1A/ Dry / Aux: Dry only
Indoor and Outdoor Use	Indoor only
Ambient Operating Temperature	0 to 40° C (32 to 104° F)
Ambient Operating Humidity	5 to 95% noncondensing
Networking Interface	(10) 10/100/1000 Base-T
PoE Interface	(8) PoE+ outputs, 50V DC, 30W per port / (Max 190W aggregated)
Power Supply	AC/DC, internal
Max. Power Consumption	240W
Max. PoE Wattage per Port	30W
LEDs	W/B <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a>
Buttons	(1) Factory reset
Recommend Max. Cable Length · UA-Lock-Electric (400mA)	24 AWG length: 25 m (82 ft) / 22 AWG length: 42 m (138 ft) / 20 AWG length: 66 m (217 ft) / 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
Recommend Max. Cable Length · UA-Lock-Magnetic-540kg (500mA)	24 AWG length: 20 m (66 ft) / 22 AWG length: 32 m (105 ft) / 20 AWG length: 51 m (167 ft) / 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)
Recommend Max. Cable Length · UA-Lock-Magnetic-270kg (800mA)	24 AWG length: 12 m (39 ft) / 22 AWG length: 20 m (66 ft) / 20 AWG length: 30 m (98 ft) / 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
Recommend Max. Cable Length · Other locks (1A)	24 AWG length: 9 m (30 ft) / 22 AWG length: 15 m (49 ft) / 20 AWG length: 24 m (79 ft) / 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
PoE Cabling Requirements	Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement	Compliance with IEEE 802.3 specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade	Grade assignment: I
Certifications	CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level	EAH-8, Ver 01
Software
Management Application	Access
Software Information	The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a>
