EAP680 - TP-Link Omada AX6000 Ceiling Mount Wi-Fi 6 Access Point
Description
Description

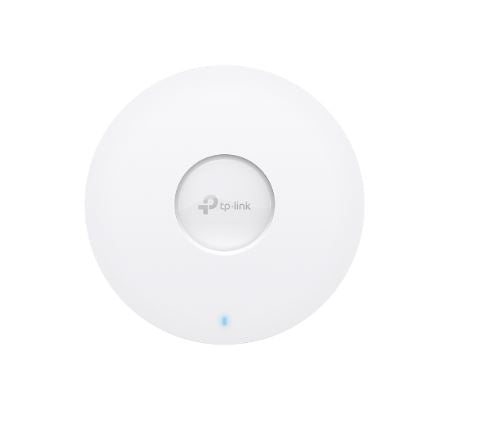

The TP-Link EAP680 (SKU: EAP680) is an AX6000 ceiling mount Wi-Fi 6 access point from the Omada SDN range. It is designed for business environments that need high performance, such as offices, campuses, retail premises, hotels and meeting rooms.
The EAP680 delivers dual-band Wi-Fi 6 speeds of 1148 Mbps on 2.4 GHz and 4804 Mbps on 5 GHz, a combined 5952 Mbps. OFDMA and MU-MIMO raise network capacity by up to 4× versus Wi-Fi 5 in high-density environments, so more devices can connect at once. A 2.5 Gigabit PoE+ port boosts wired throughput, and the unit can be powered by 802.3at PoE+ or by the included DC power adapter, so installation is flexible.
As part of Omada SDN, the access point can be managed locally or from the cloud via a web UI or the Omada app. It supports hardware, software and cloud-based controllers for centralised management. Ceiling and wall mounting kits are included.
Key Features
- AX6000 Wi-Fi 6: 4804 Mbps on 5 GHz plus 1148 Mbps on 2.4 GHz (up to 5952 Mbps combined)
- 160 MHz channel (HE160) and 1024-QAM for higher data rates (requires client support)
- OFDMA and MU-MIMO for high-density connectivity
- 1× 2.5 Gigabit PoE+ port with 802.3at PoE or 12 V / 2 A DC power (adapter included)
- Omada Mesh for wireless connectivity between access points (controller required)
- Seamless roaming for uninterrupted video streams and voice calls as users move between locations
- Auto channel selection and power adjustment to reduce Wi-Fi interference (Omada Cloud-Based Controller required)
- Up to 16 SSIDs (8 per band) for secure guest networks and flexible access management
- Captive portal (including SMS and voucher), 802.1X and WPA3 security
- Band steering, load balancing and airtime fairness for efficient performance in busy networks
- Up to 512 concurrent clients
- Internal omni antennas: 4× 4 dBi (2.4 GHz) and 4× 5 dBi (5 GHz)
- Zero-Touch Provisioning (Omada Cloud-Based Controller required)
Ideal for: IT managers, system integrators and businesses deploying scalable Wi-Fi 6 in offices, schools and campuses, retail, hospitality venues and meeting rooms.
Technical Highlights
- Wireless standards: IEEE 802.11ax/ac/n/g/b/a
- Dimensions: 220 × 220 × 32.5 mm
- Power consumption: 20.43 W
- Operating temperature: 0–40 °C
- Package contents: EAP680, power adapter, ceiling/wall mounting kits and installation guide
Compatible Products
Omada Controllers
Works with the Omada Hardware Controllers (OC300 and OC200), the Omada Software Controller and the Omada Cloud-Based Controller.
Omada SDN Ecosystem
Integrates with Omada PoE switches, Omada VPN routers and other Omada access points (wall plate and outdoor) within the same Omada SDN platform.
FAQs
Can I connect an EAP directly to my modem?
No. An EAP is an access point, not a Wi-Fi router, so a router is still needed in your network. It can be connected to any router, including non-TP-Link models, to improve wireless coverage.
Can I use an EAP with a Deco unit?
Yes, if you connect the EAP to the Deco unit via an Ethernet cable. EAP Mesh cannot work wirelessly with Deco Mesh because the two mesh mechanisms are different.
Does an EAP provide DHCP service?
No. A DHCP server must be present in your network for clients to connect successfully.
How can I reduce wireless interference between access points?
Use different channels on adjacent access points, and consider lowering transmit power where access points are placed close together (less than about 12 metres apart).
How do I set up an EAP without a controller?
You can set up an Omada EAP in standalone mode using either the Omada app or a web browser.
