Description
Description

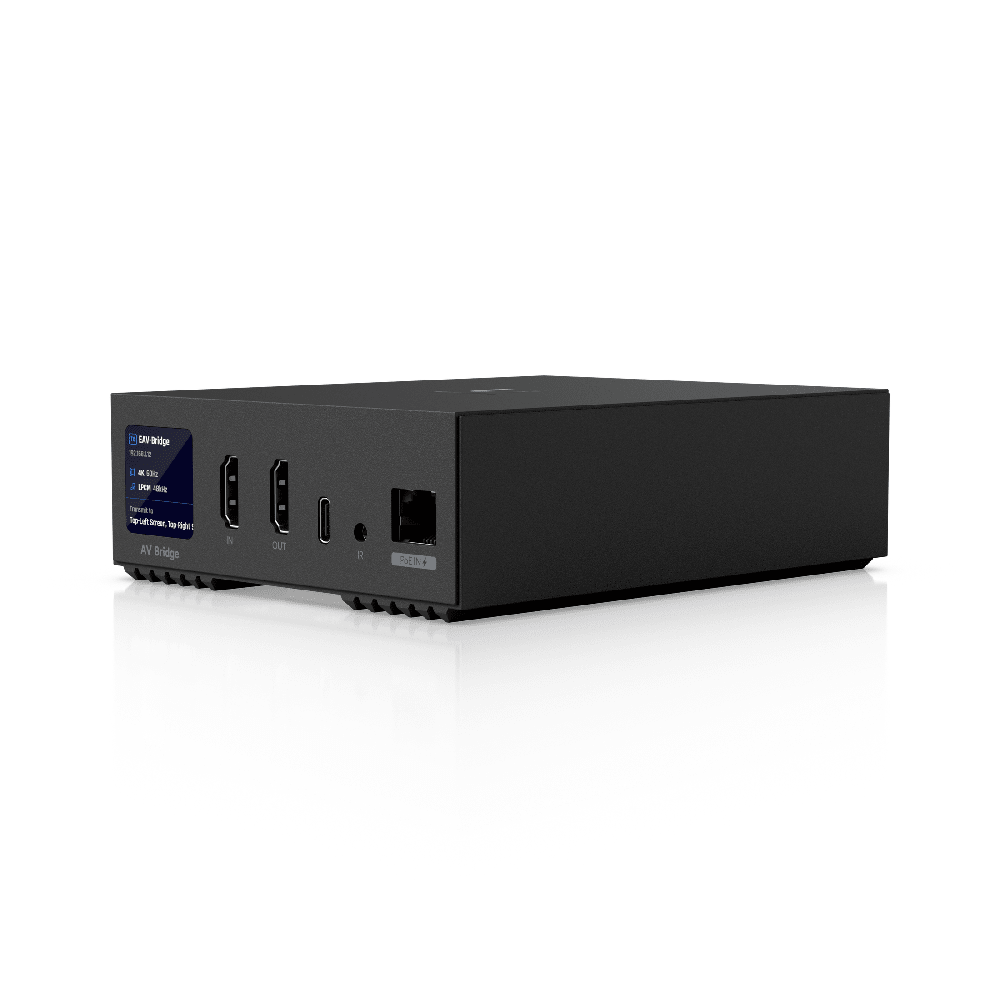

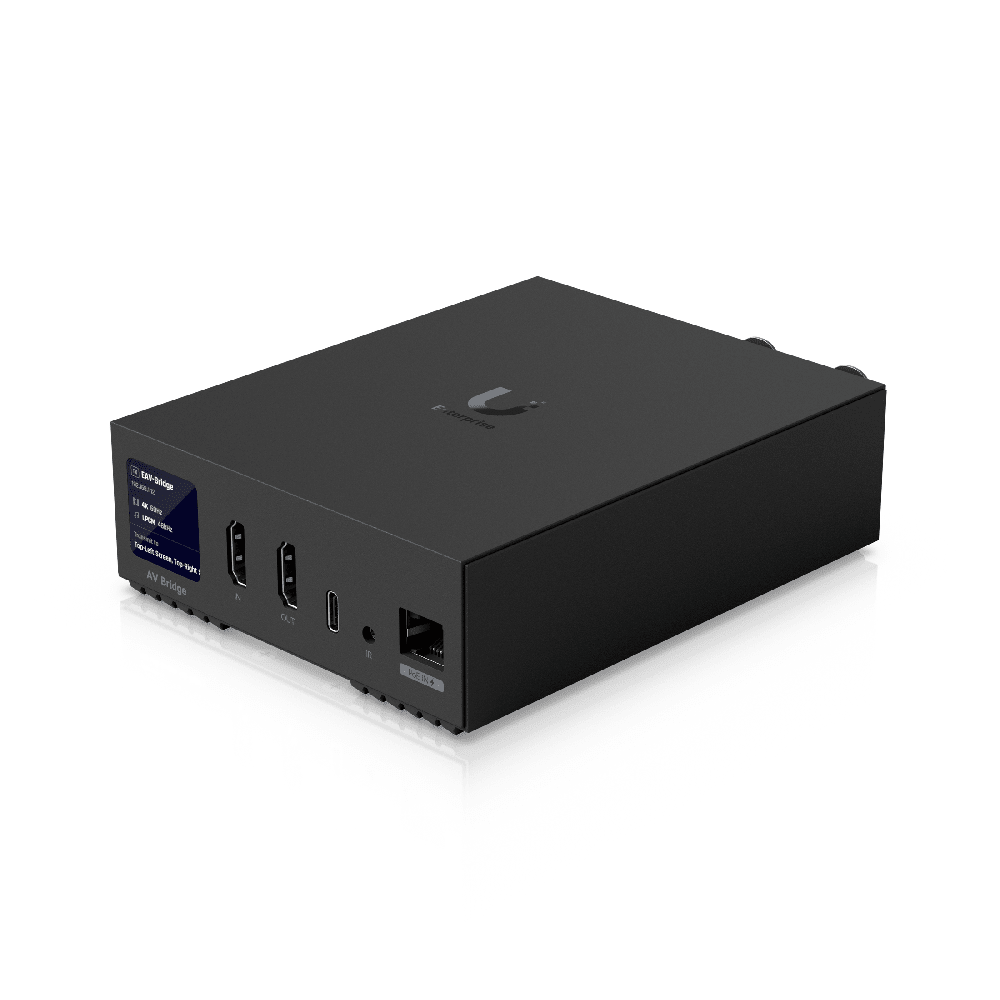

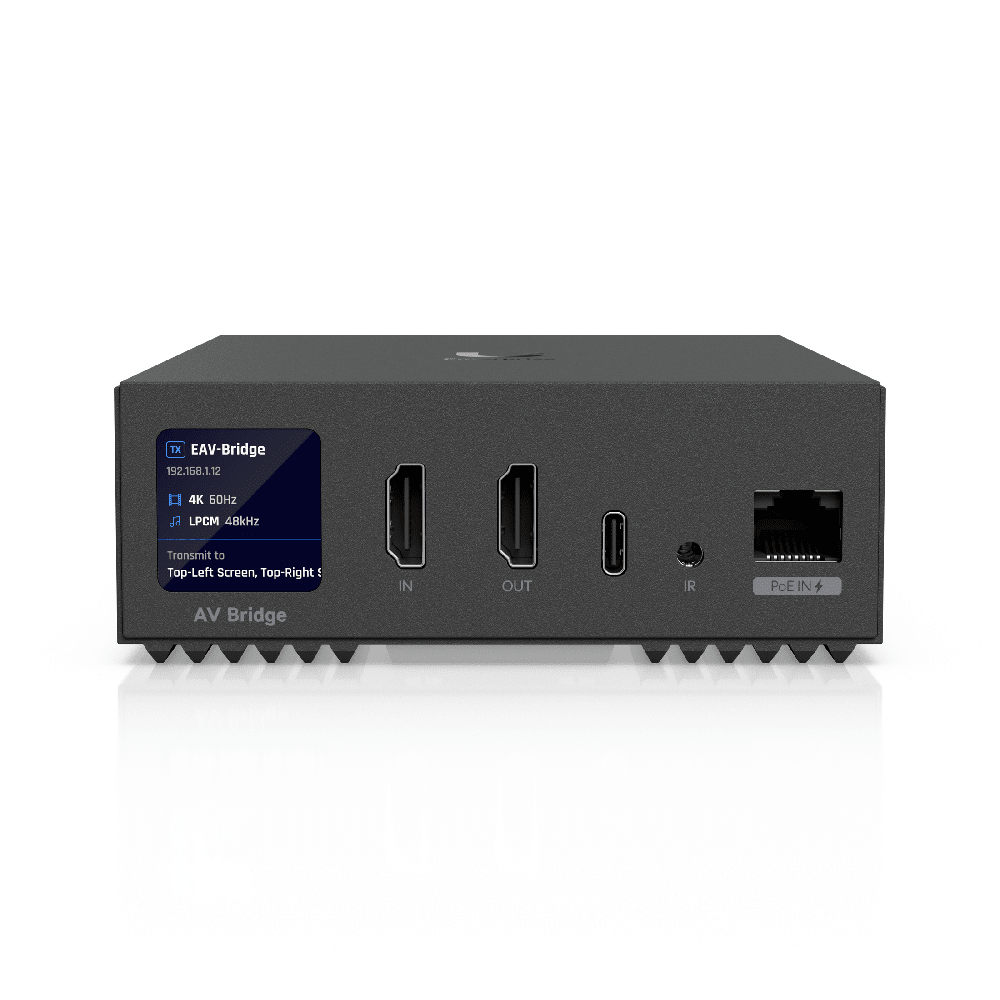

The Ubiquiti EAV-Bridge is a professional-grade AV-over-IP bridge designed to seamlessly transport 4K60 HDMI video and broadcast-quality audio across a standard Ethernet network. Built for enterprise and commercial environments, the EAV-Bridge enables flexible audio and video distribution while maintaining low latency and precise synchronisation.
Powered via PoE+, the EAV-Bridge requires just a single network cable for power and data, simplifying installation and reducing infrastructure costs. It can be configured as either a source or destination device, making it ideal for scalable AV deployments including digital signage, presentation systems, and video walls. Support for professional XLR audio with phantom power ensures compatibility with studio-grade microphones and audio equipment.
Key Features:
- 4K60 HDMI AV-over-IP transmission with ultra-low latency
- HDMI 2.0 input and output for high-resolution video
- XLR analogue audio inputs and outputs with 48V phantom power
- PoE+ powered for simple single-cable deployment
- Configurable as AV source or receiver
- Gigabit Ethernet with Etherlighting™ support
- Compact aluminium enclosure with integrated touchscreen display
Ideal for:
- Corporate AV and meeting rooms
- Education and lecture theatres
- Hospitality and digital signage
- Broadcast, live events, and video walls
Compatible Products:
UniFi Enterprise Audio/Video Switches
UniFi Network Controllers
HDMI displays, cameras, and professional audio equipment
FAQs:
Can the EAV-Bridge operate as both a transmitter and receiver?
Yes, the EAV-Bridge can be configured as either a source or a destination depending on your deployment needs.
Does the EAV-Bridge support professional microphones?
Yes, it features XLR inputs with 48V phantom power, making it suitable for professional audio equipment.
Is an external power supply required?
No, the EAV-Bridge is powered entirely via PoE+, reducing cabling and installation complexity.
Specifications24 specifications · 4 sections
| Mechanical | |
|---|---|
| Dimensions | 109 x 134.4 x 40.4 mm / (4.3 x 5.3 x 1.6") |
| Weight | 560 g (1.2 lb) |
| Enclosure Material | Aluminum |

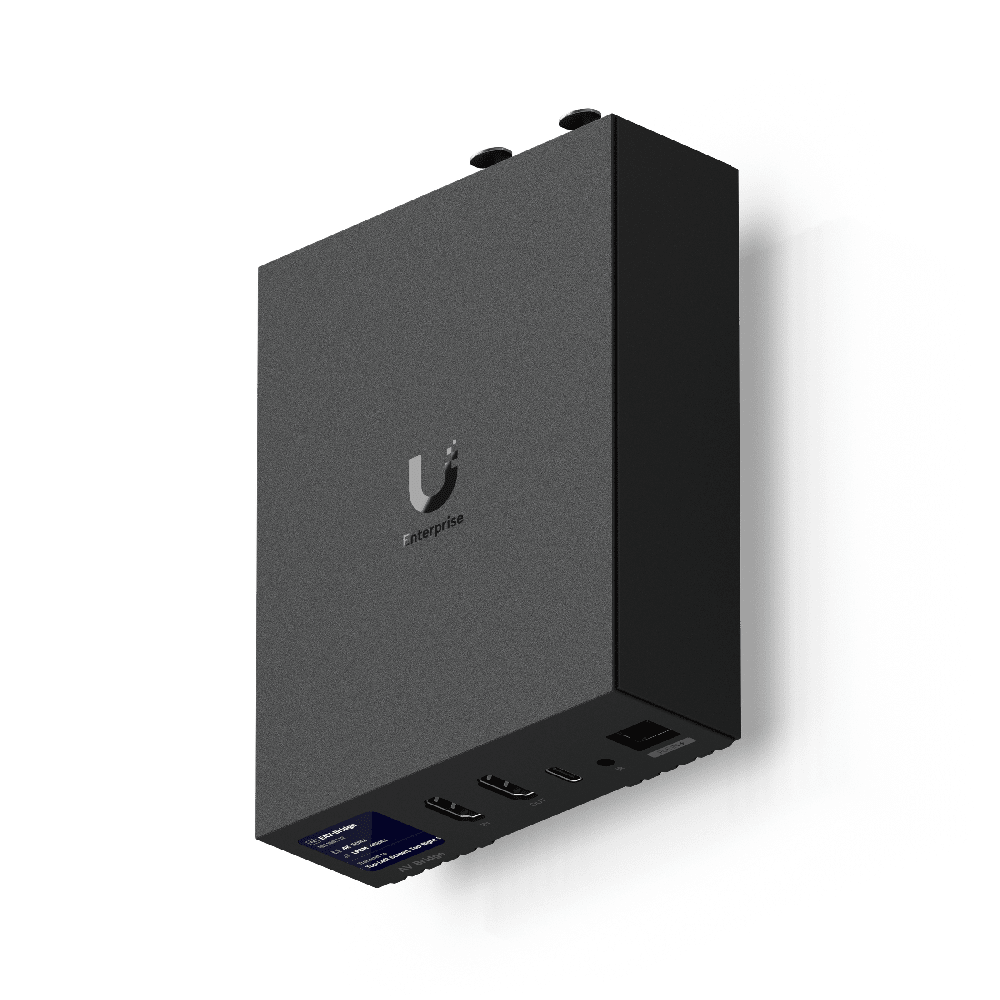

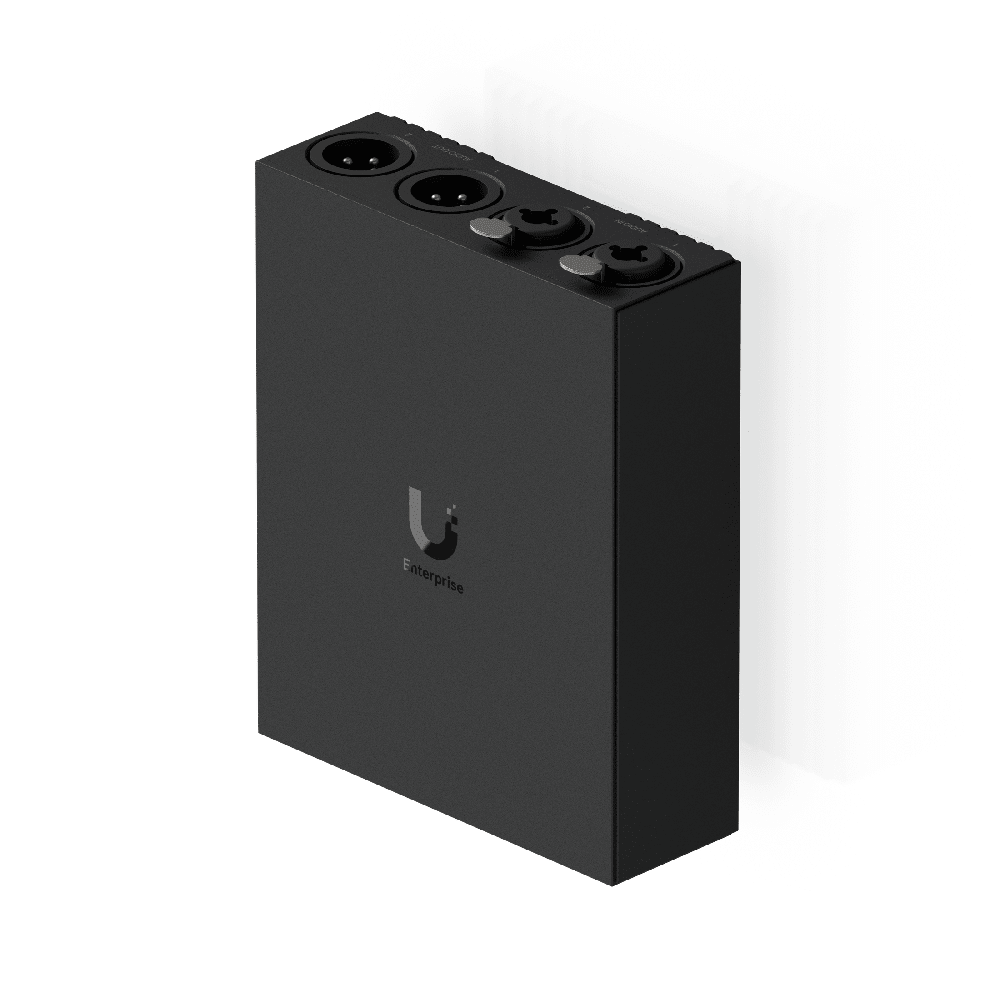

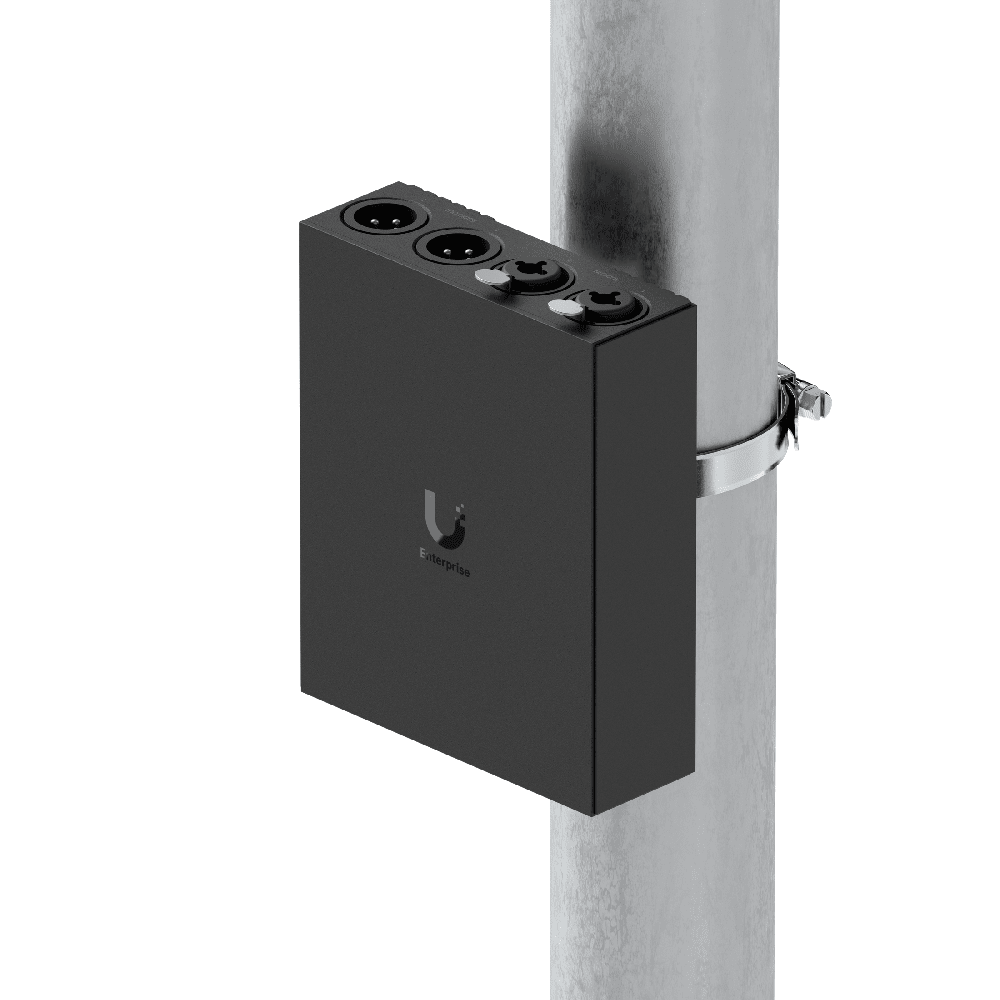

| Mounting | DIN rail, Wall, Pole (Included) |

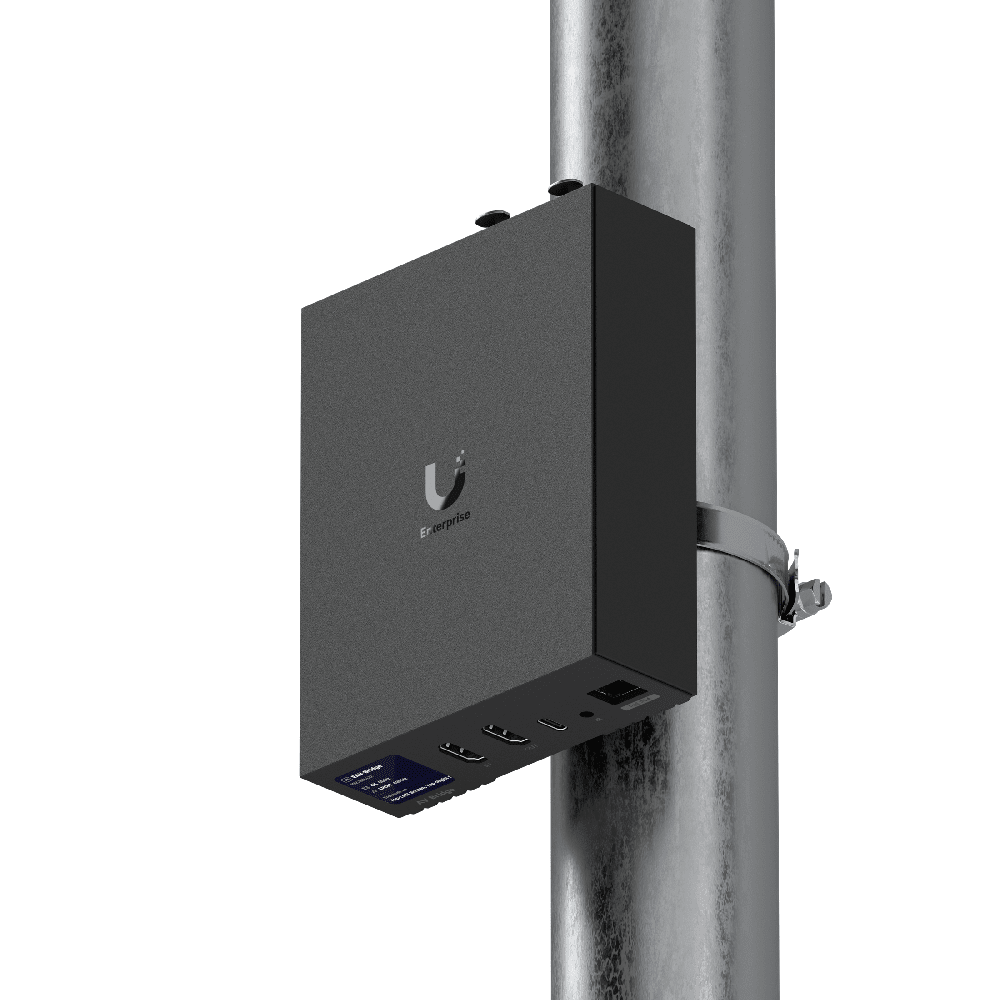

| Pole Mount Diameter | 1.5–2" (38–50 mm) |
| Audio | |
| Output | Mono / Stereo sound |
| Surround Format | PCM |

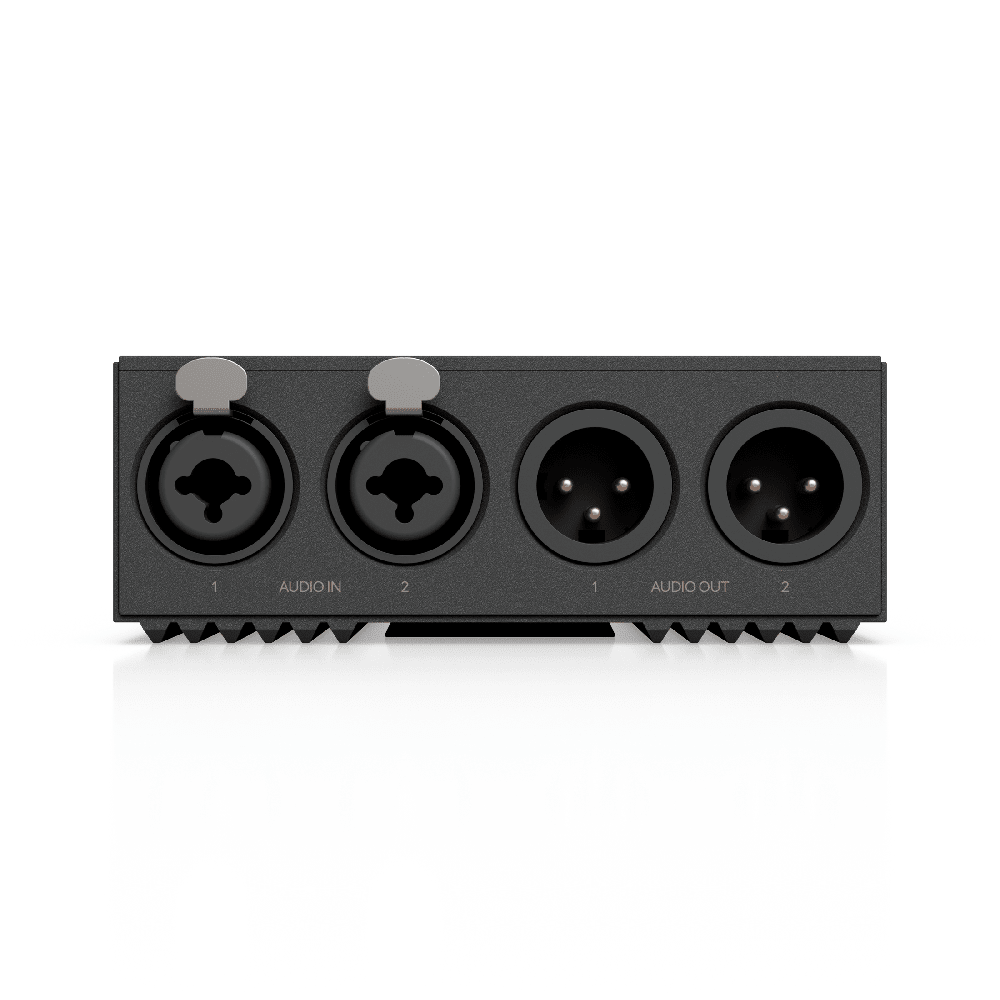

| Audio Input | (1) HDMI in / (2) XLR female analog with 6.35 mm analog combo input, phantom power: 48V DC supported |
| Audio Output | (1) HDMI out / (2) XLR male analog output |
| Frequency | 20 Hz – 20k Hz ±0.5dB |
| Video | |
| Video Input | (1) HDMI 2.0, 4K at 60 Hz (60 FPS) |
| Video Output | (1) HDMI 2.0, 4K at 60 Hz (60 FPS) |
| Video Content Support | 480p / 720p / 1080p / 4K |
| Signal Distribution | 1-to-1, 1-to-N streaming / 1 to 8x8 TV wall configuration |
| Hardware | |

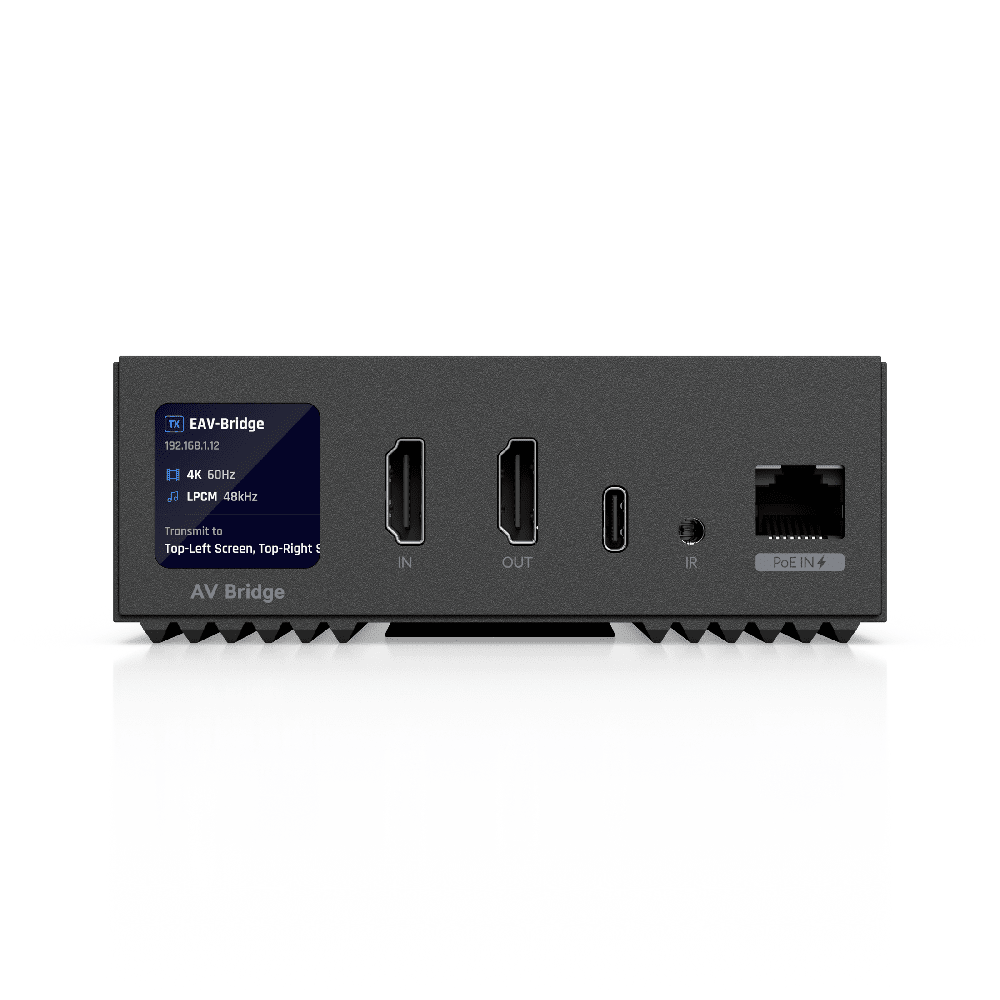

| Networking Interface | (1) GbE RJ45 PoE+ In Etherlighting™ port |
| Versatile Port | (1) USB Type-C 5V, 1A |
| IR Connection | (1) 3.5 mm Input or Output |
| Power Method | PoE+ |
| Max. Power Consumption | 14W |
| LCM Display | (1) 1.3” touchscreen |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Certifications | FCC, IC, CE |
