Description
Description

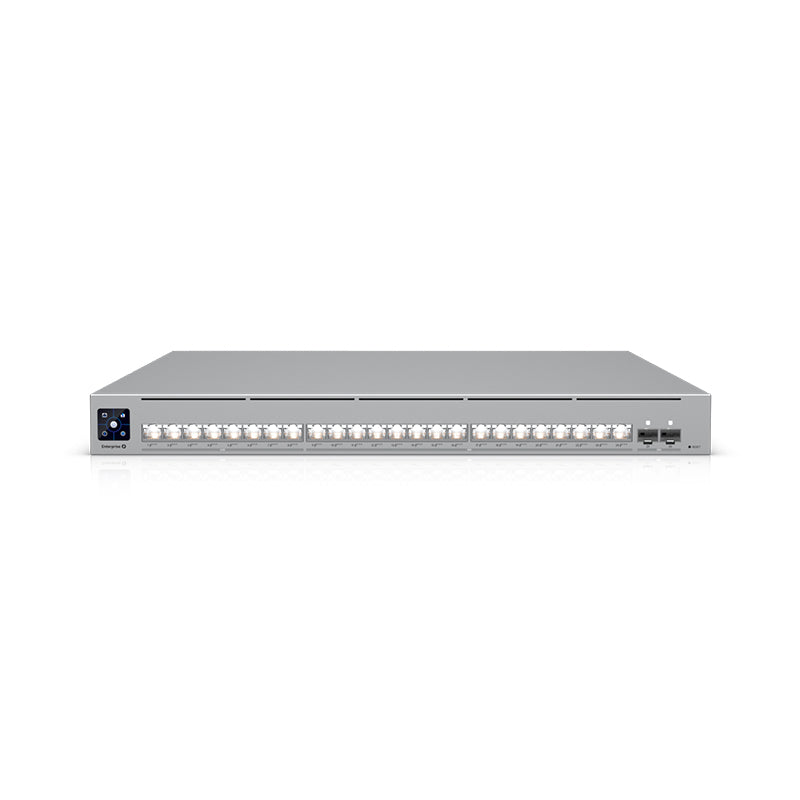

Enterprise-grade, Layer 3 Etherlighting™ PoE switch with (8) 2.5 GbE PoE+++, (16) 10 GbE PoE+++, and (2) 25G SFP28 ports for high availability system design.
Features:

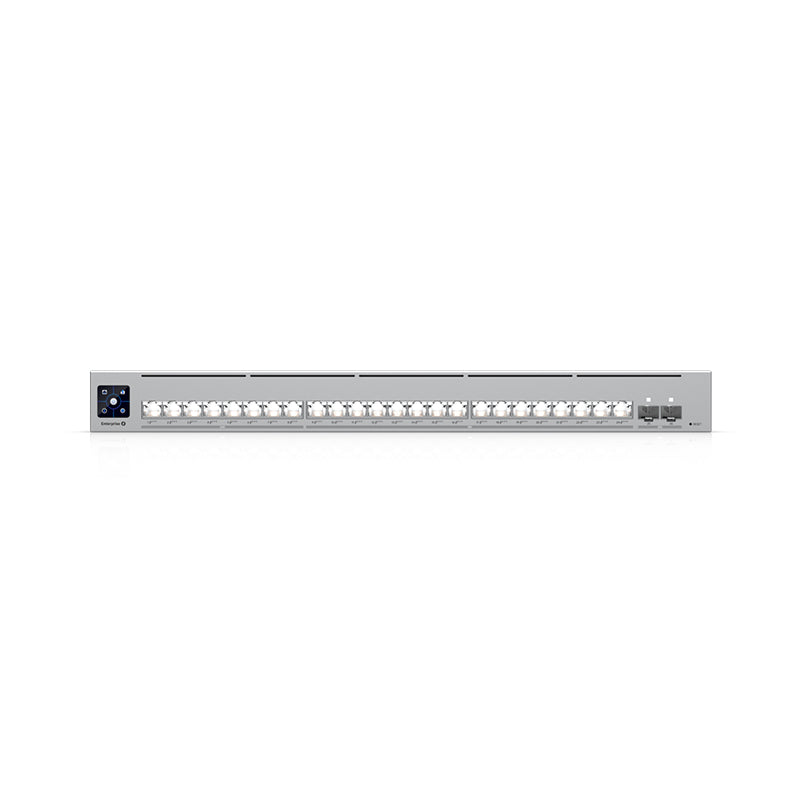

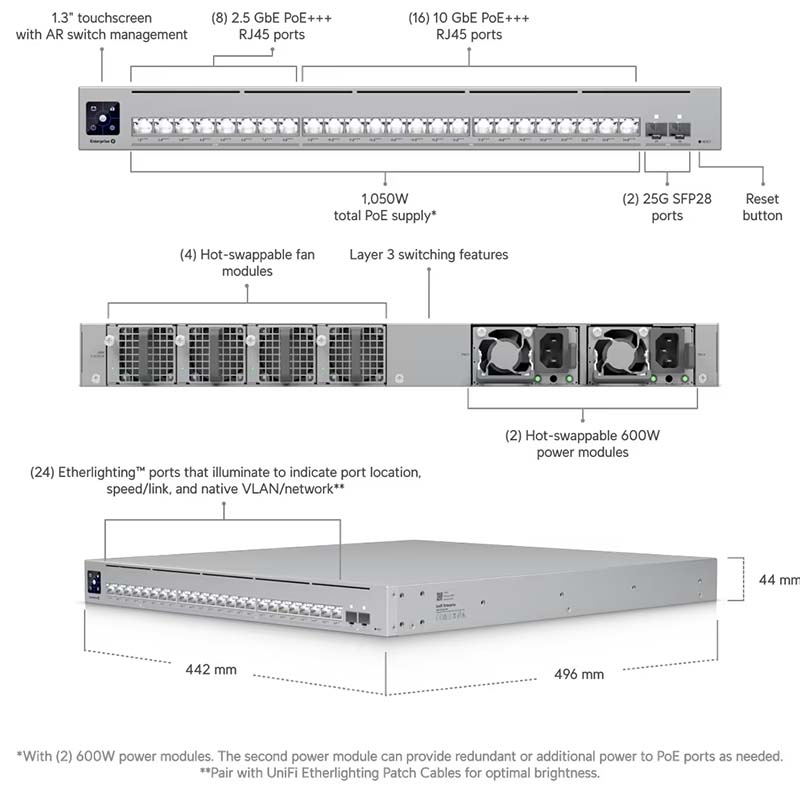

(8) 2.5 GbE PoE+++, (16) 10 GbE PoE+++ ports
(2) 25G SFP28 ports

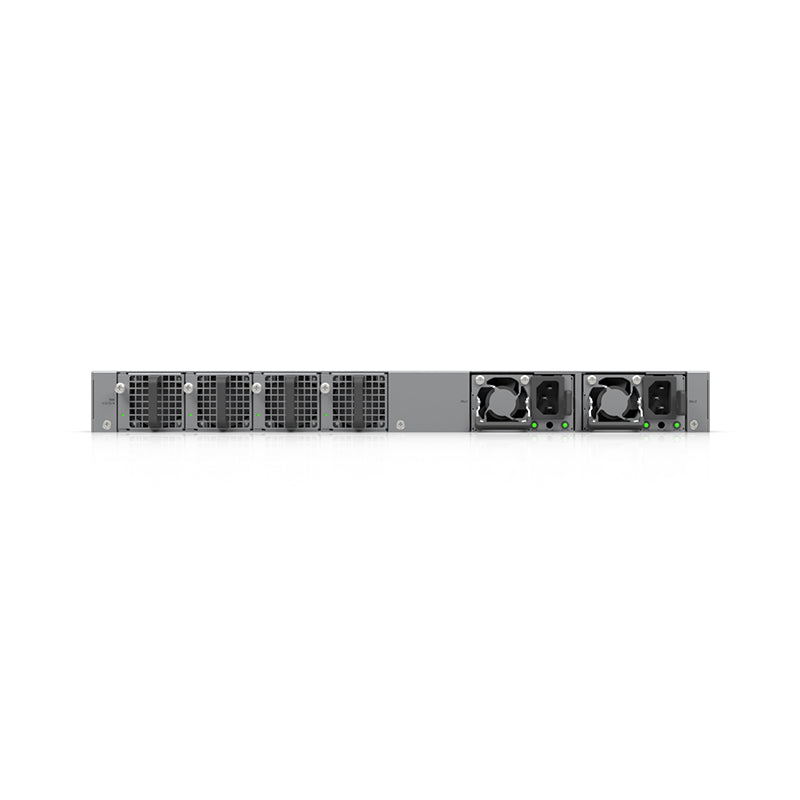

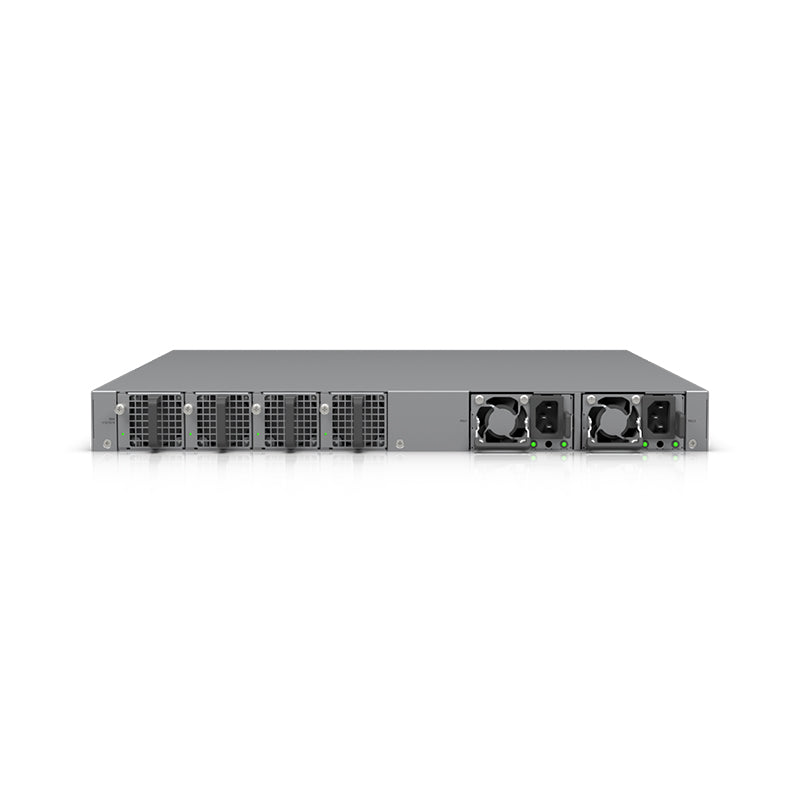

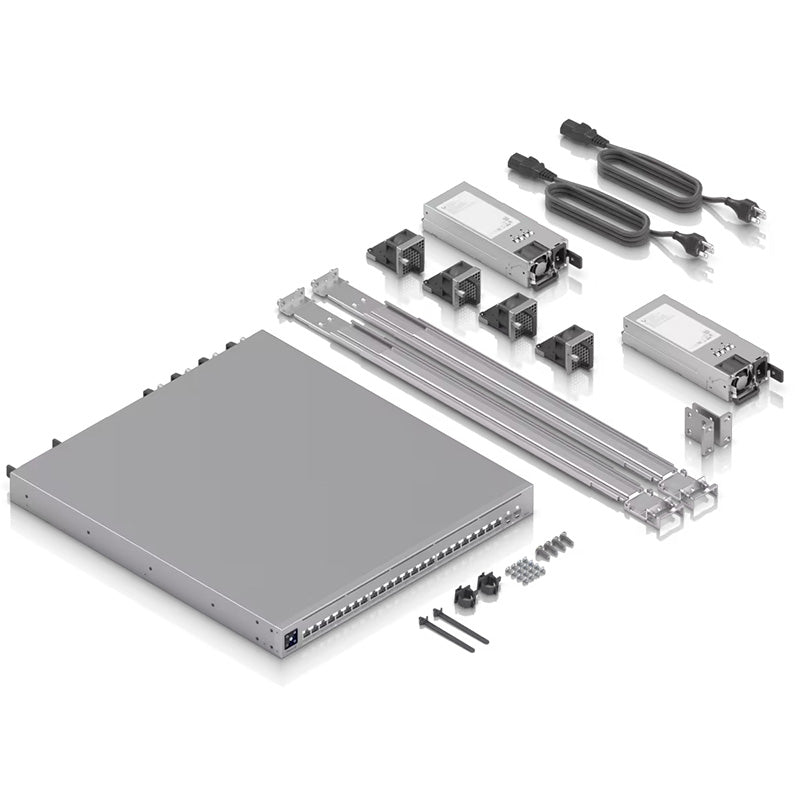

(2) included hot-swappable power modules, with power sharing to expand total PoE availability, or 1+1 redundancy
(4) included hot-swappable fan modules, with 3+1 redundancy

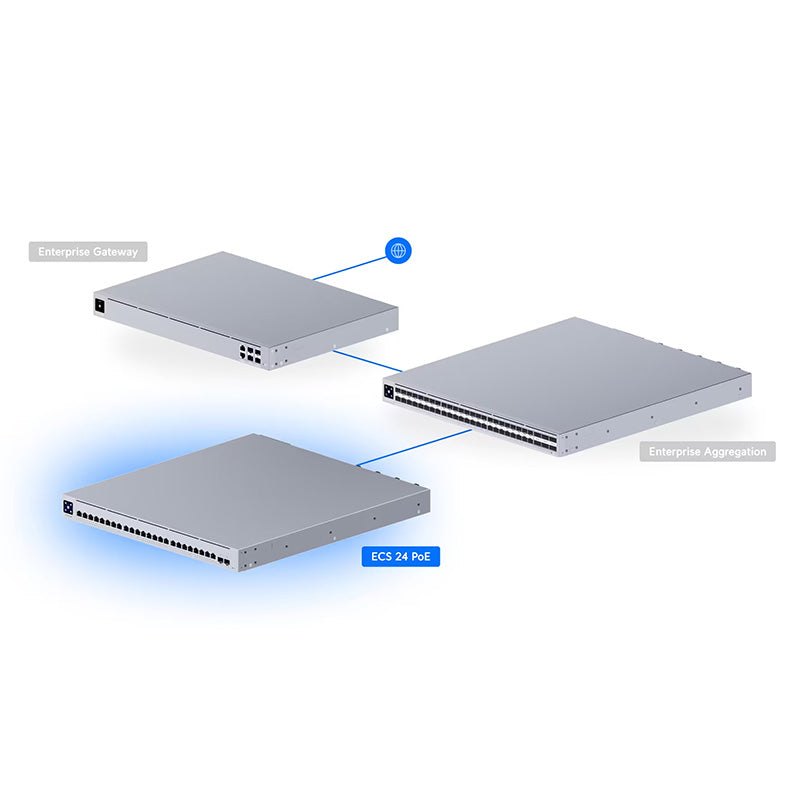

*Recommend pairing it with Enterprise Campus Aggregation.
Specifications39 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 442.4 x 43.7 x 496 mm / (17.4 x 1.7 x 19.5") |
| Port Layout · 2.5 GbE RJ45 | 8 (All PoE+++) / (2.5G/1G/100M/10M) |
| Port Layout · 10 GbE RJ45 | 16 (All PoE+++) / (10G/5G/2.5G/1G/100M/10M) |
| Port Layout · 25G SFP28 | 2 / (25G/10G/1G) |
| Max. PoE Output | Up to PoE+++ |
| Total PoE Availability | 100-240V AC Shared Mode: 1,050W with (2) 600W modules / 100-240V AC Redundant Mode: 450W with (2) 600W modules / / 200-240V AC Shared Mode: 2,250W with (2) 1,200W modules / 100-120V AC Shared Mode: 1,850W with (2) 1,200W modules / 200-240V AC Redundant Mode: 1,050W with (2) 1,200W modules / 100-120V AC Redundant Mode: 850W with (2) 1,200W modules |
| Redundancy | (2) Hot-Swappable PSUs / (4) Hot-Swappable Fans |

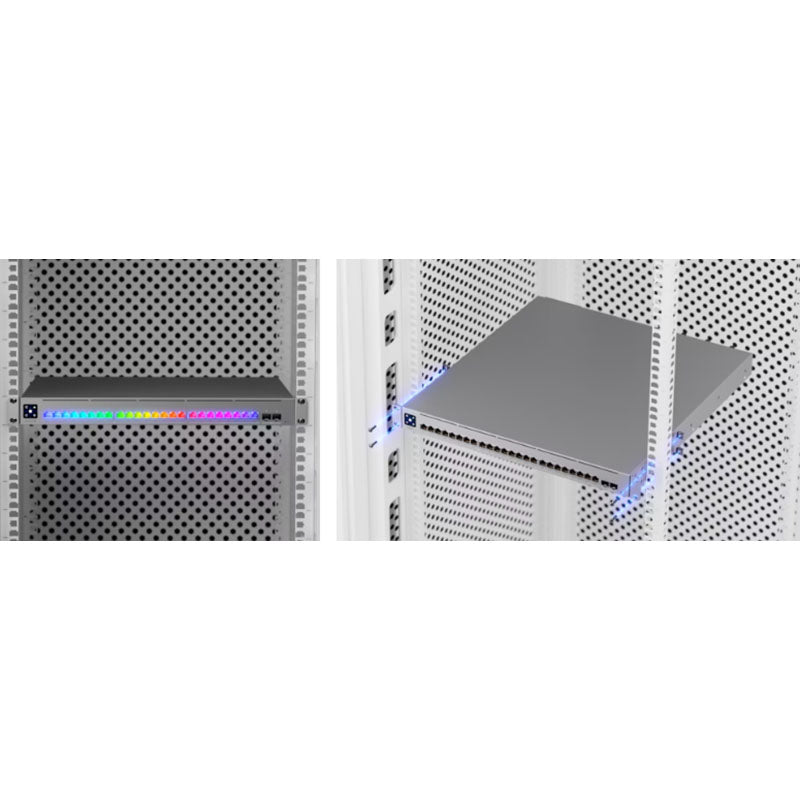

| Form Factor | Rack Mount (1U, Full-Depth) |
| Performance | |
| Switching Capacity | 460 Gbps |
| Total Non-Blocking Throughput | 230 Gbps |
| Forwarding Rate | 342 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| IPv4 Static Routes | 512 |
| Packet Buffer Size | 8 MB |
| Access Lists · IPv4 | 256 |
| Access Lists · MAC | 256 |
| Hardware | |
| PoE Ports · PoE+++ | 24 |
| Max. PoE Wattage per Port by PSE · PoE | 15.4W |
| Max. PoE Wattage per Port by PSE · PoE+ | 30W |
| Max. PoE Wattage per Port by PSE · PoE++ | 60W |
| Max. PoE Wattage per Port by PSE · PoE+++ | 90W |
| Max. Power Consumption | 150W (Excluding PoE Output) / 2,400W (Including PoE Output) |
| Power Method | (2) Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | (2) AC input, Hot-swappable power modules |
| Power Supply | (2) Hot-swappable AC/DC 600W power modules |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet / AR |
| Heat Dissipation | 512 BTU/hr (Excluding PoE Output) |
| Weight | Without mounting brackets: 9.46 kg (20.9 lb) / With mounting brackets: 9.56 kg (21.1 lb) |
| Enclosure Material | SGCC steel |

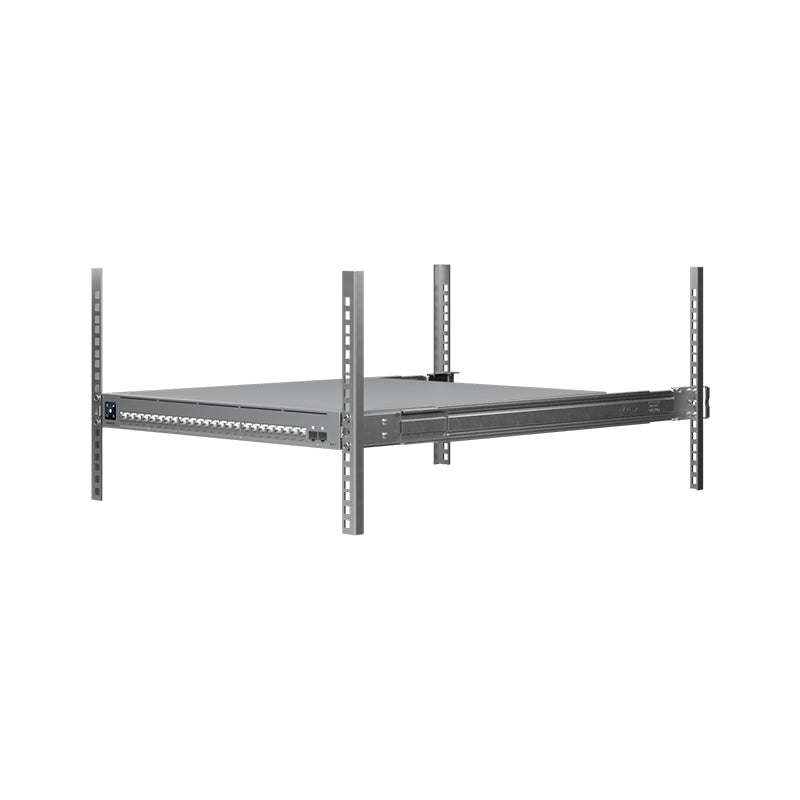

| Supported Rack Depth | 482.6 mm (19") four-post racks / Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) |
| LCM Display | 1.3" touchscreen |
| Fan Method | (4) hot-swappable fan modules |
| ESD Protection | Air: ± 30kV, contact: ± 30kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 06181-25-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 9.0.114 and later |
