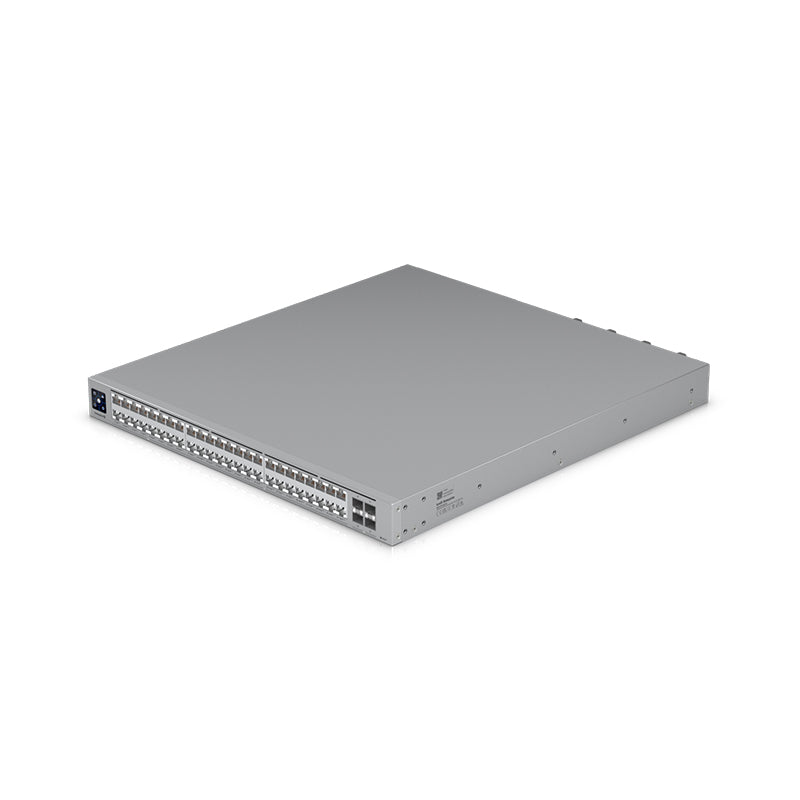

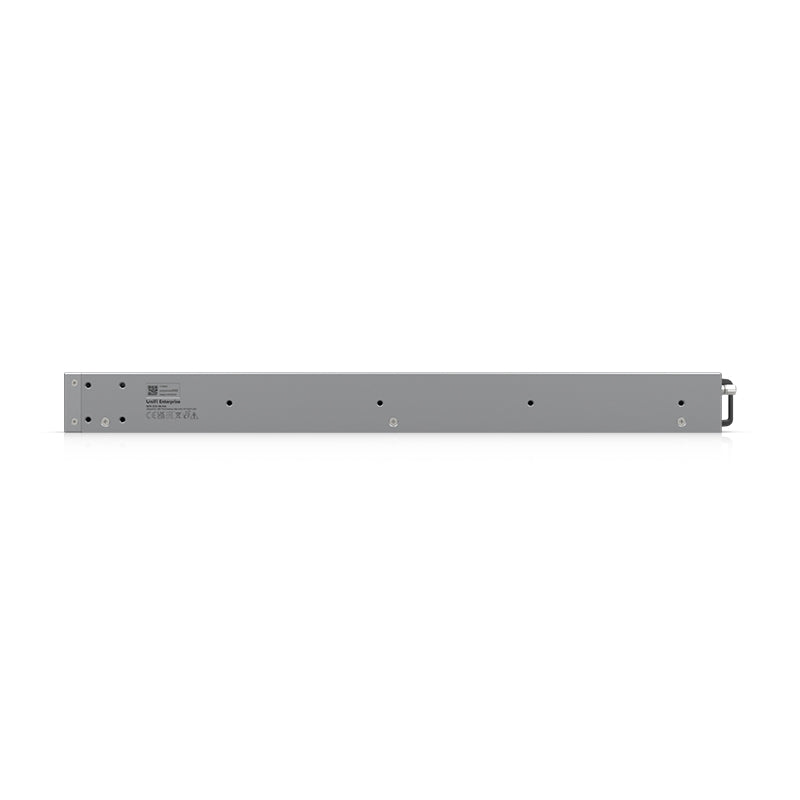

Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
ECS-48-PoE (2150W) Ubiquiti Enterprise Campus 48 PoE Switch
- Ask for pricing · todayTell us the quantity and site
- Price and ETA confirmedUsually within 1–3 business days
- DeliveredFrom distributor stock once you approve
Request a quote puts it in your cart and opens our quote form, nothing is charged until you approve the price. Stock levels on enterprise lines cannot be shown online; we check them for you and confirm with your quote.
How enterprise orders work
How enterprise orders work
We are just not quite the same as many of the other online stores. I know it is easy to say that, but we just aren't.
The Tech Geeks, under their parent company Twelve Times (Worldwide) Pty Ltd trade in Australia, New Zealand and the United Kingdom.
This allows us to purchase stock from suppliers from locations where they have it available. We are then able to import those products directly, along with providing localised Warranty and Replacement as required.
We only list items that we know have been, or are about to be released to us and since we purchase only in small batches these are often flown in on short time frames.
We list on each product our expected shipments and ones that we have already sent out to customers. Please use these dates as a guideline as we always suggest 14-21 days just to allow for air freight or customs hold ups.
Want to know when new product stock is released? why not sign up here to our alerts.
Description
Description

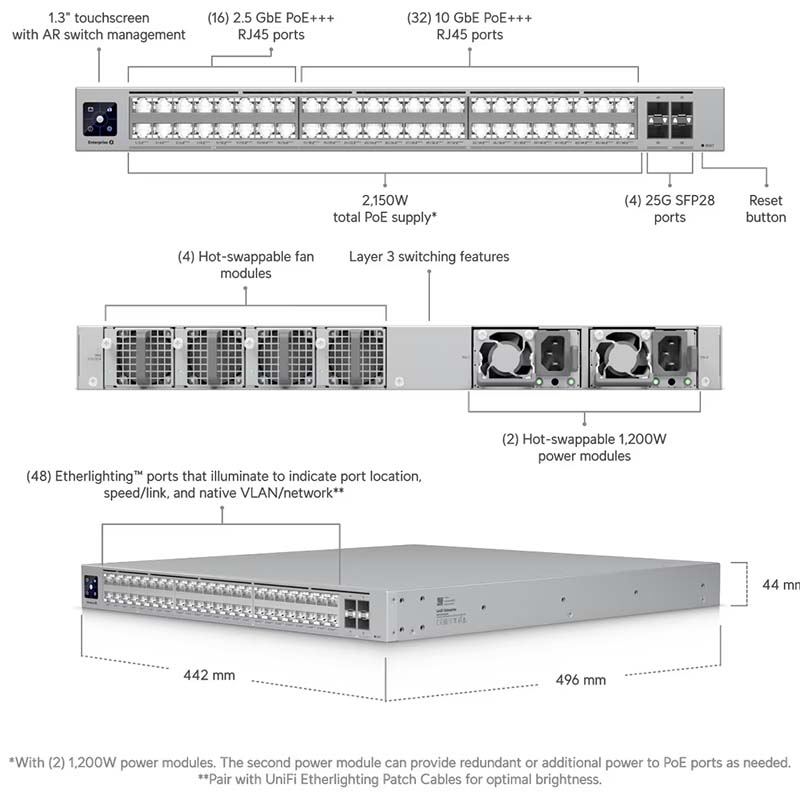

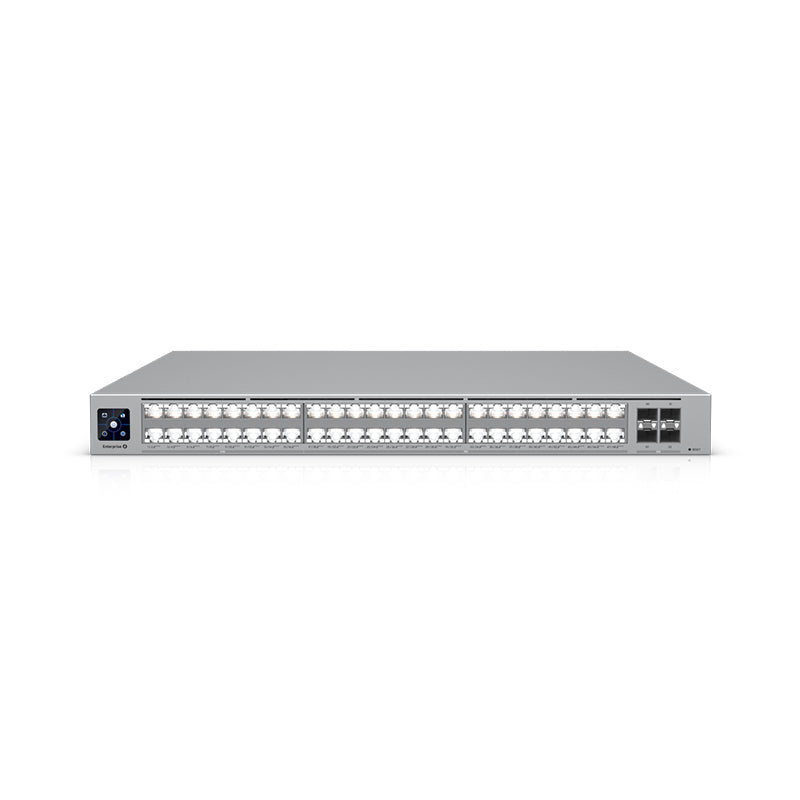

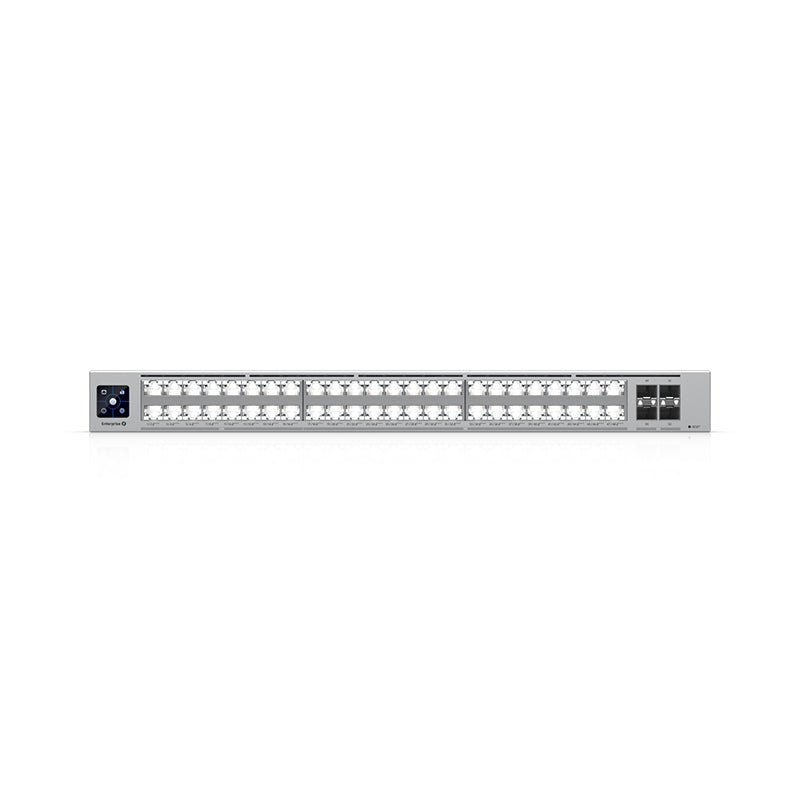

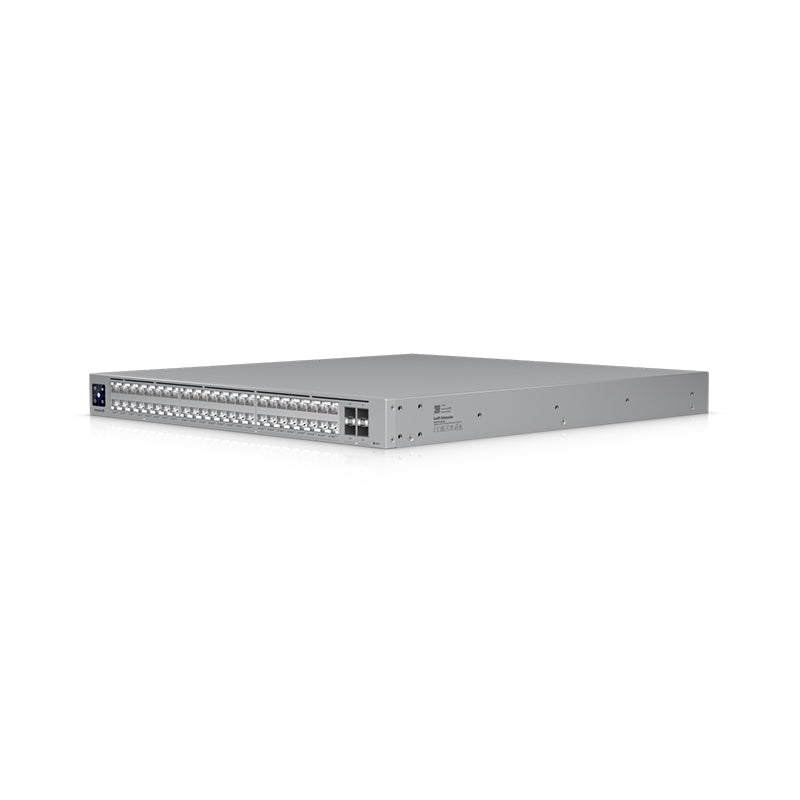

Enterprise-grade, Layer 3 Etherlighting™ PoE switch with (16) 2.5 GbE PoE+++, (32) 10 GbE PoE+++, and (4) 25G SFP28 ports for high availability system design.
Features:
(16) 2.5 GbE PoE+++, (32) 10 GbE PoE+++ ports
(4) 25G SFP28 ports

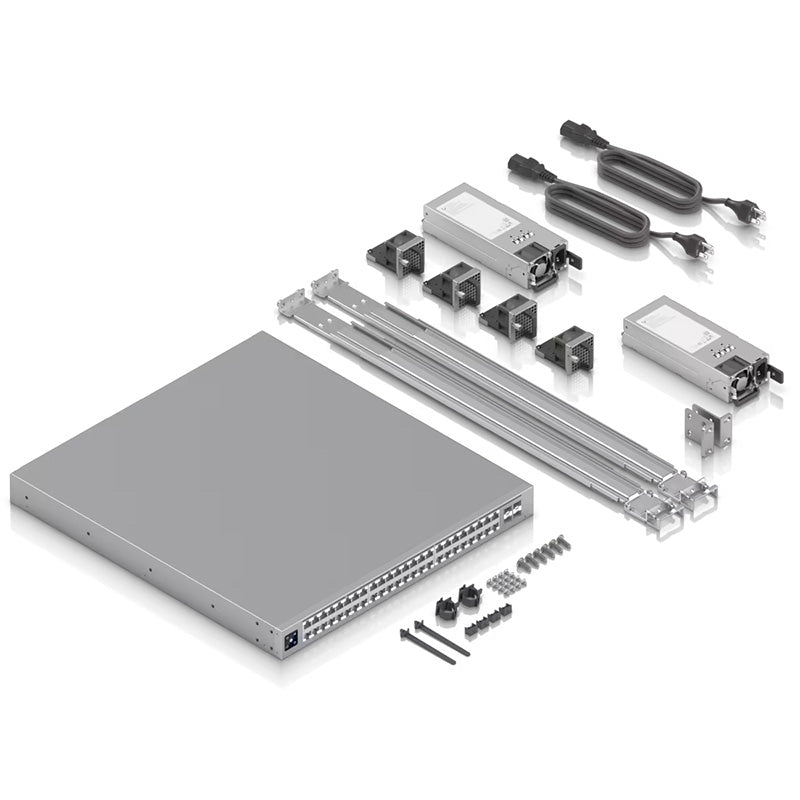

(2) included hot-swappable power modules, with power sharing to expand total PoE availability, or 1+1 redundancy
(4) included hot-swappable fan modules, with 3+1 redundancy

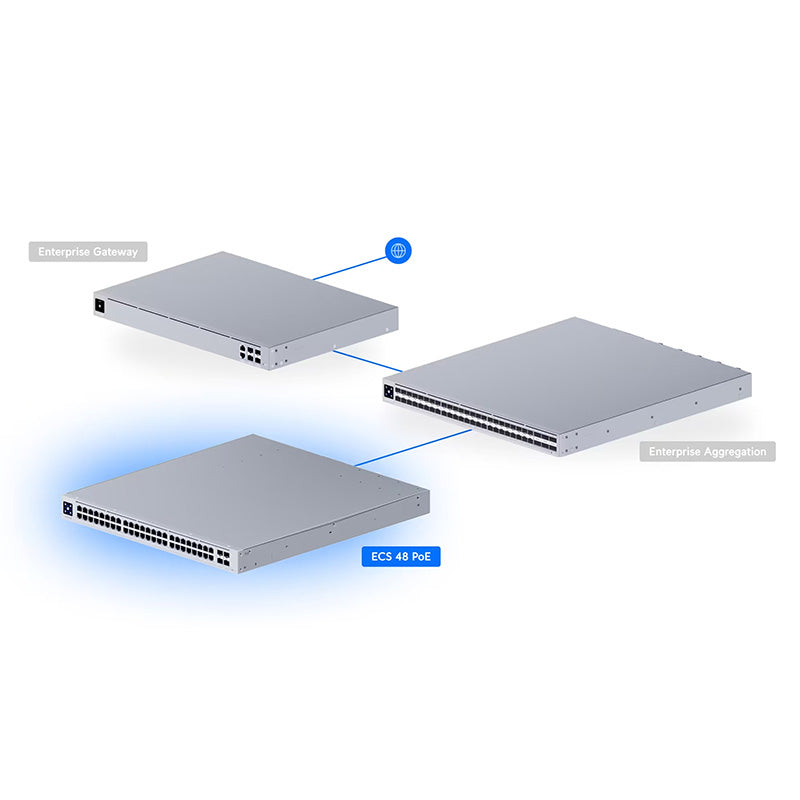

*Recommend being paired with Enterprise Campus Aggregation.
Frequently asked questions5 questions
What ports does the ECS-48-PoE have?
How much PoE power is available in total?
Does the switch have power and cooling redundancy?
What is the maximum PoE output per port?
What are the rack mounting requirements?
Specifications40 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 442.4 x 43.7 x 496 mm / (17.4 x 1.7 x 19.5") |
| Port Layout · 2.5 GbE RJ45 | 16 (All PoE+++) / (2.5G/1G/100M/10M) |
| Port Layout · 10 GbE RJ45 | 32 (All PoE+++) / (10G/5G/2.5G/1G/100M/10M) |
| Port Layout · 25G SFP28 | 4 / (25G/10G/1G) |
| Max. PoE Output | Up to PoE+++ |
| Total PoE Availability | 200-240V AC Shared Mode: 2,150W / 100-120V AC Shared Mode: 1,750W / 200-240V AC Redundant Mode: 950W / 100-120V AC Redundant Mode: 750W |

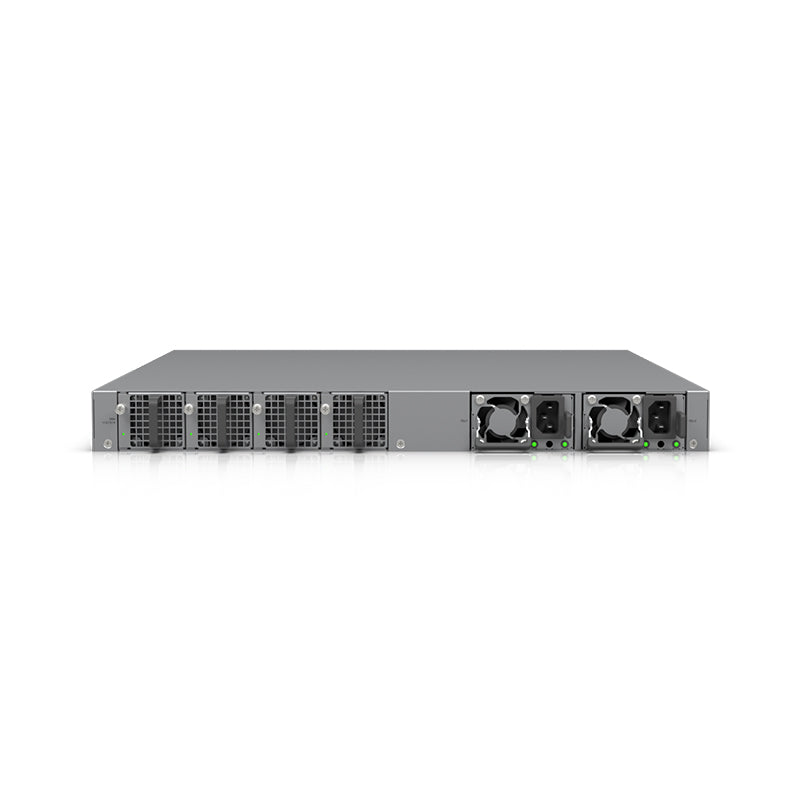

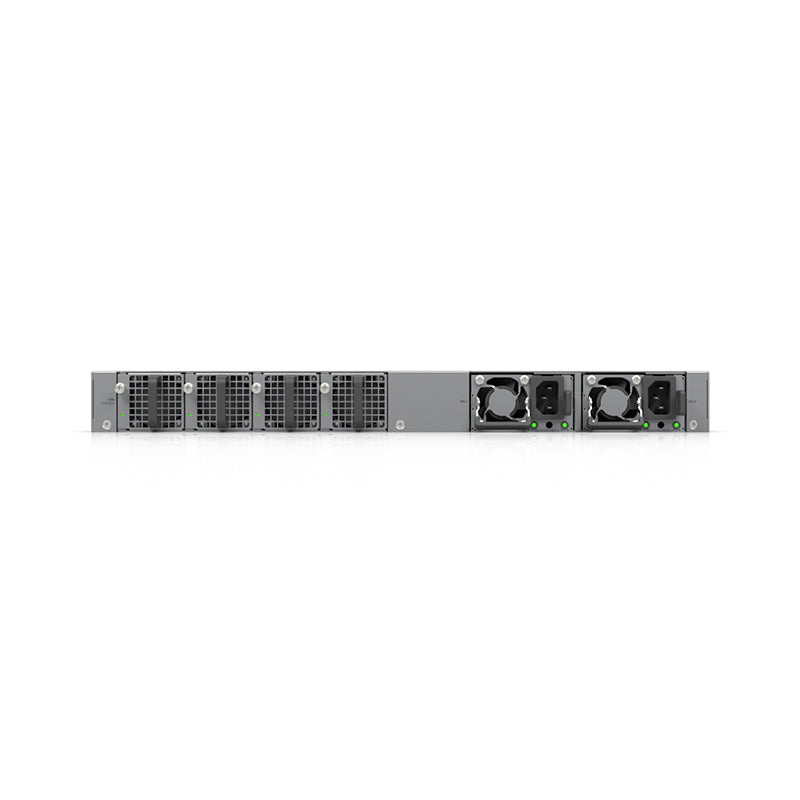

| Redundancy | (2) Hot-Swappable PSUs / (4) Hot-Swappable Fans |

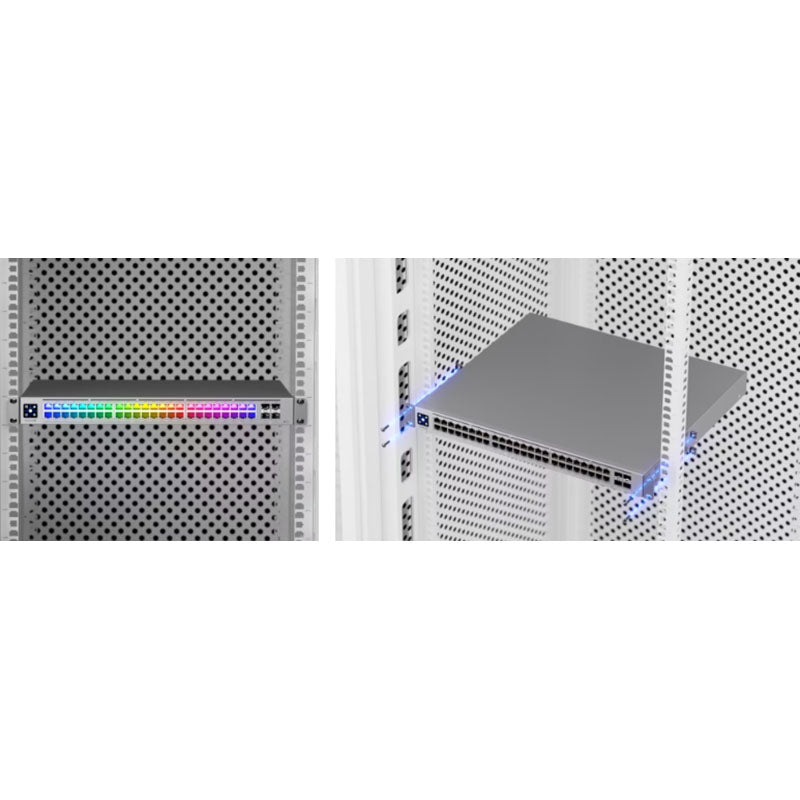

| Form Factor | Rack Mount (1U, Full-Depth) |
| Performance | |
| Switching Capacity | 920 Gbps |
| Total Non-Blocking Throughput | 460 Gbps |
| Forwarding Rate | 684 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| IPv4 Static Routes | 512 |
| Packet Buffer Size | 8 MB |
| Access Lists · IPv4 | 256 |
| Access Lists · MAC | 256 |
| Hardware | |
| PoE Ports · PoE+++ | 48 |
| Max. PoE Wattage per Port by PSE · PoE | 15.4W |
| Max. PoE Wattage per Port by PSE · PoE+ | 30W |
| Max. PoE Wattage per Port by PSE · PoE++ | 60W |
| Max. PoE Wattage per Port by PSE · PoE+++ | 90W |
| Max. Power Consumption | 250W (Excluding PoE Output) / 2,400W (Including PoE Output) |
| Power Method | (2) Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | (2) AC input, Hot-swappable power modules |
| Power Supply | (2) Hot-swappable AC/DC 1,200W power modules |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet / AR |
| Heat Dissipation | 785 BTU/hr (Excluding PoE Output) |
| Weight | Without mounting brackets: 9.46 kg (20.9 lb) / With mounting brackets: 9.56 kg (21.1 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |

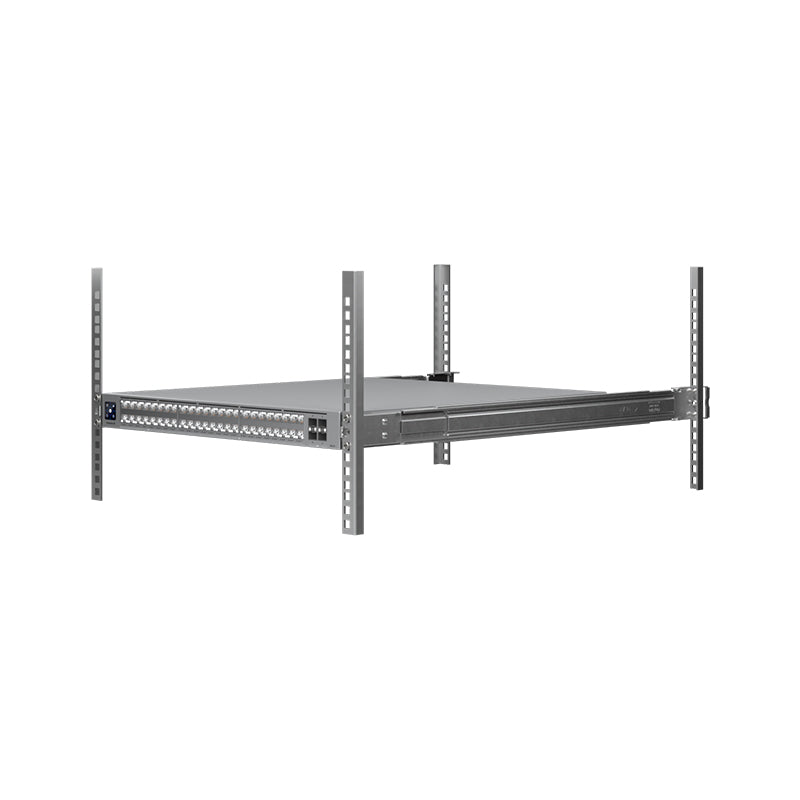

| Supported Rack Depth | 482.6 mm (19") four-post racks / Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) |
| LCM Display | 1.3" touchscreen |
| Fan Method | (4) hot-swappable fan modules |
| ESD Protection | Air: ± 30kV, contact: ± 19kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 06181-25-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 9.0.114 and later |
