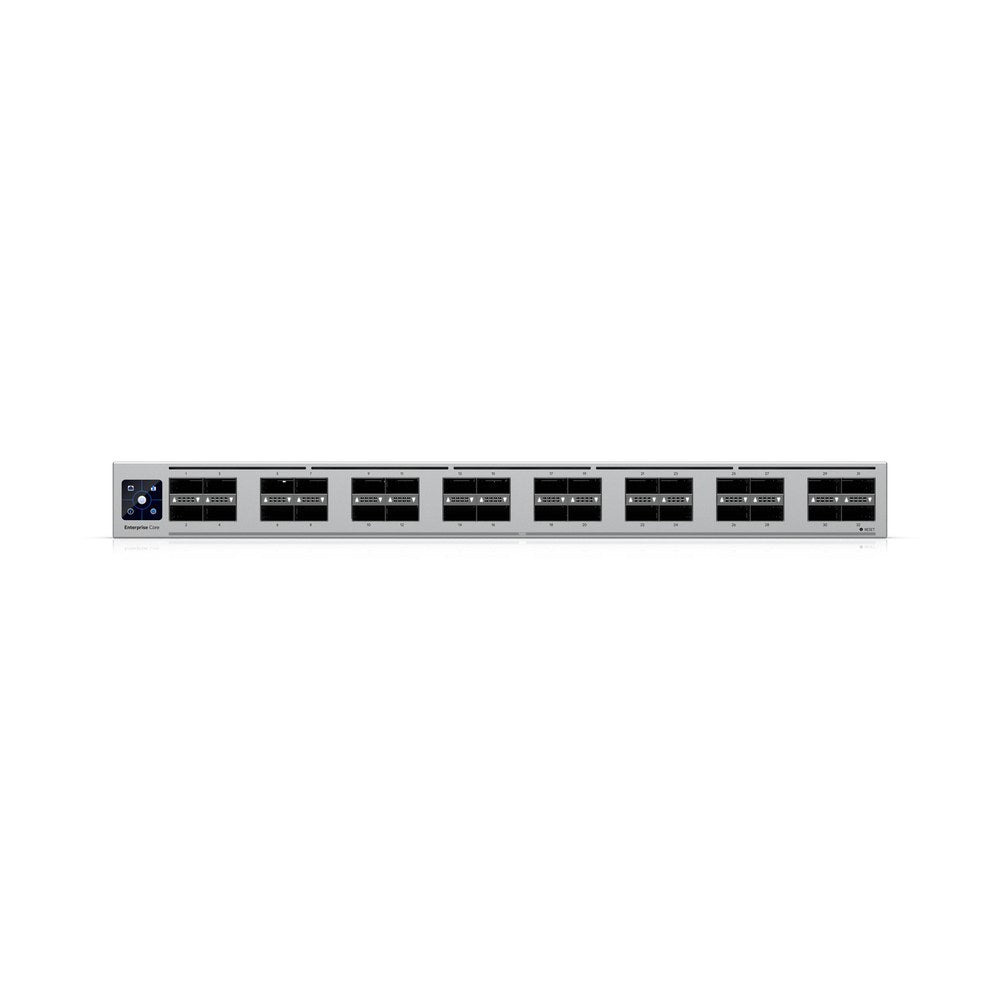

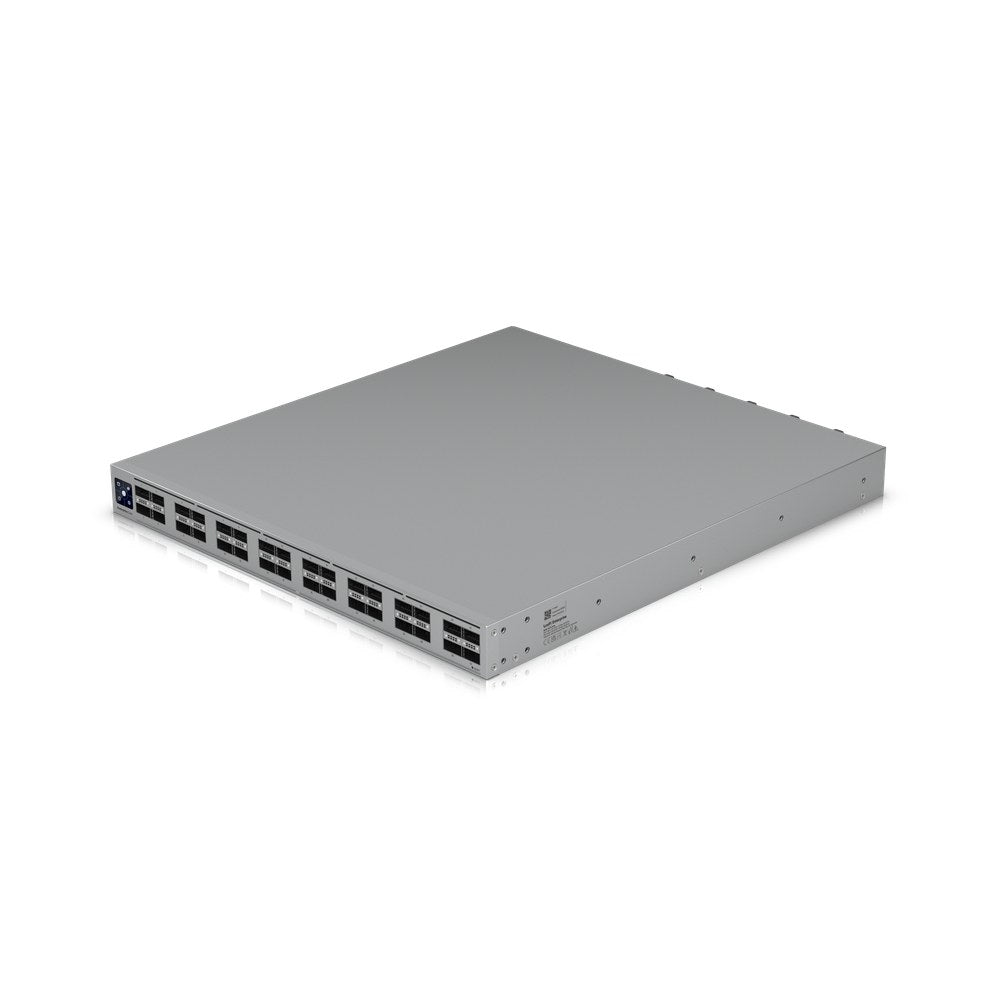

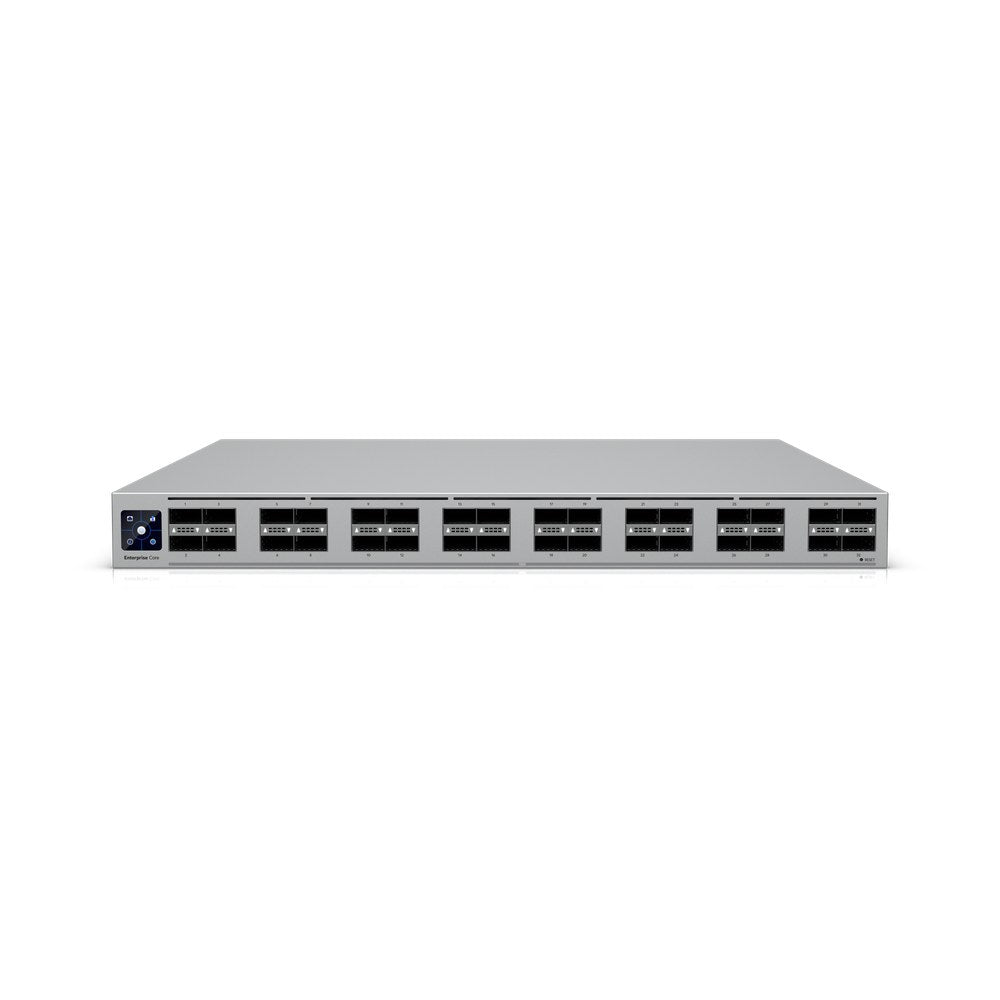

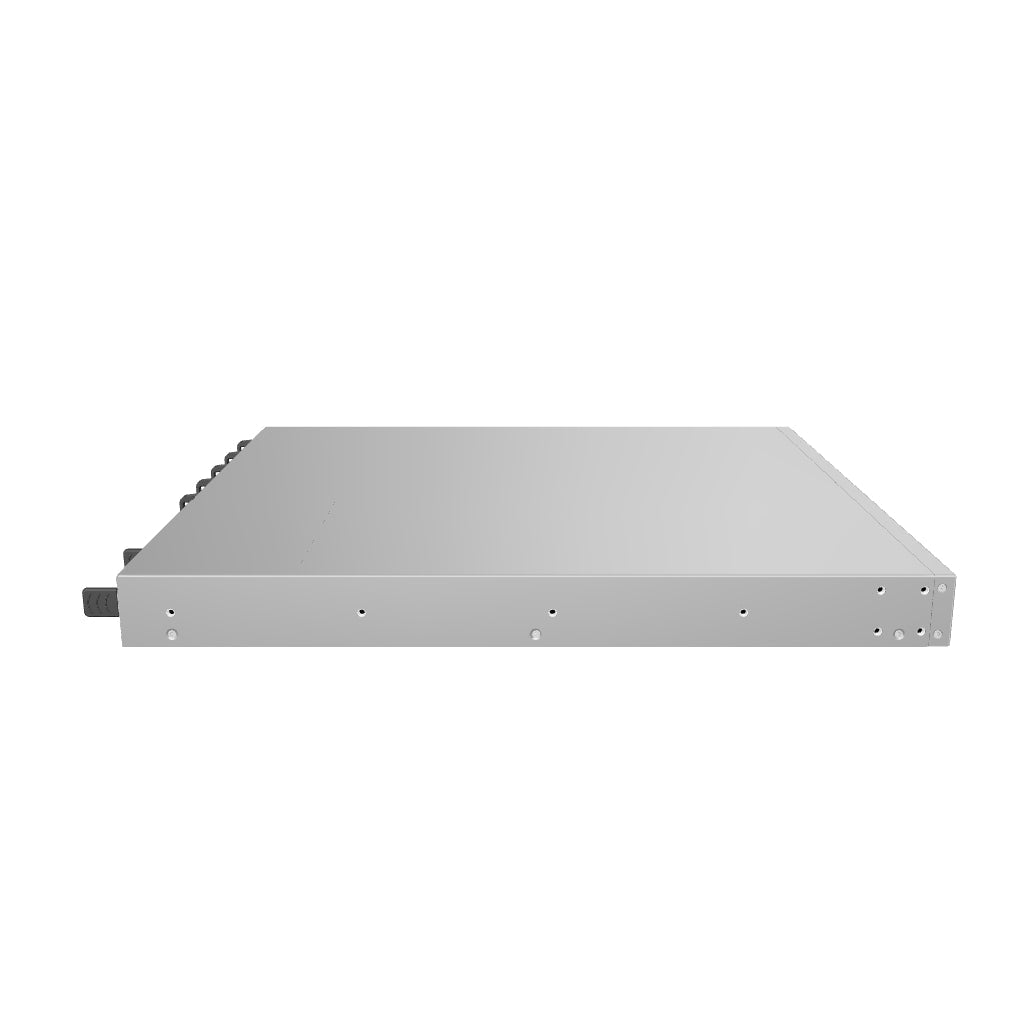

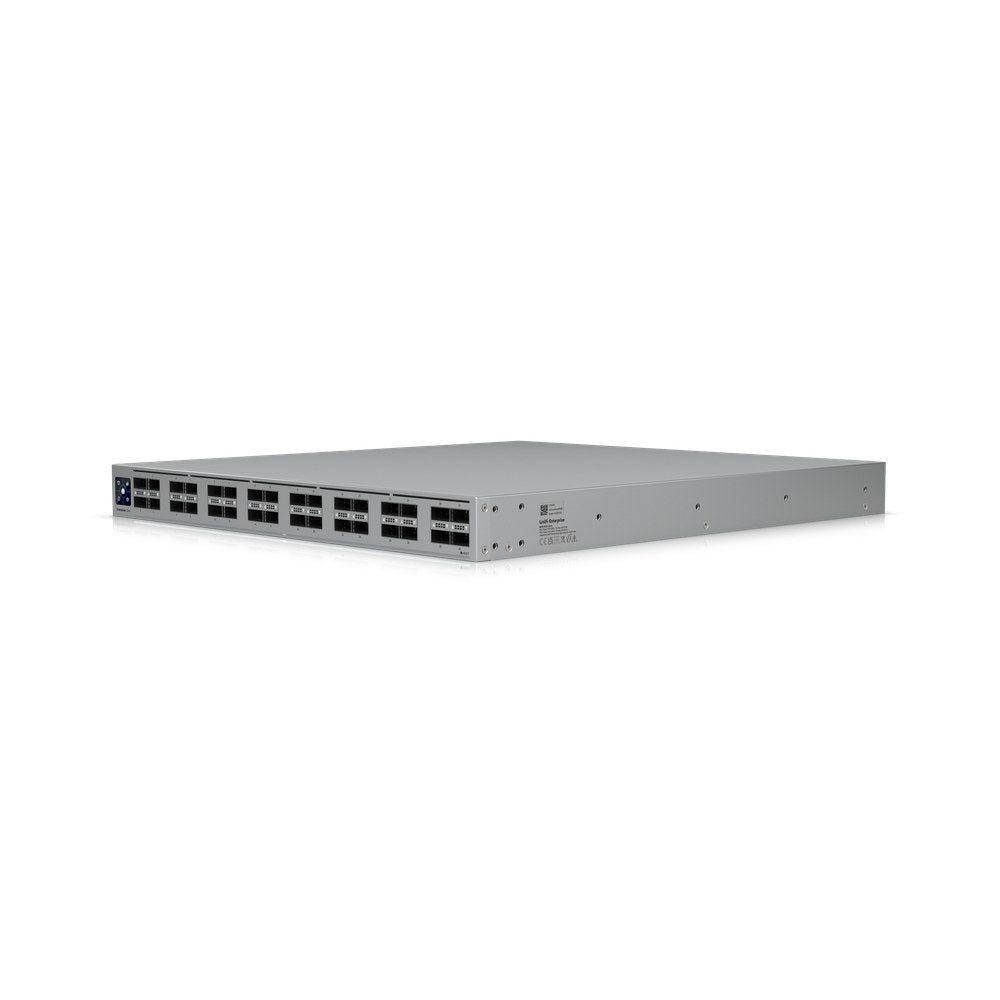

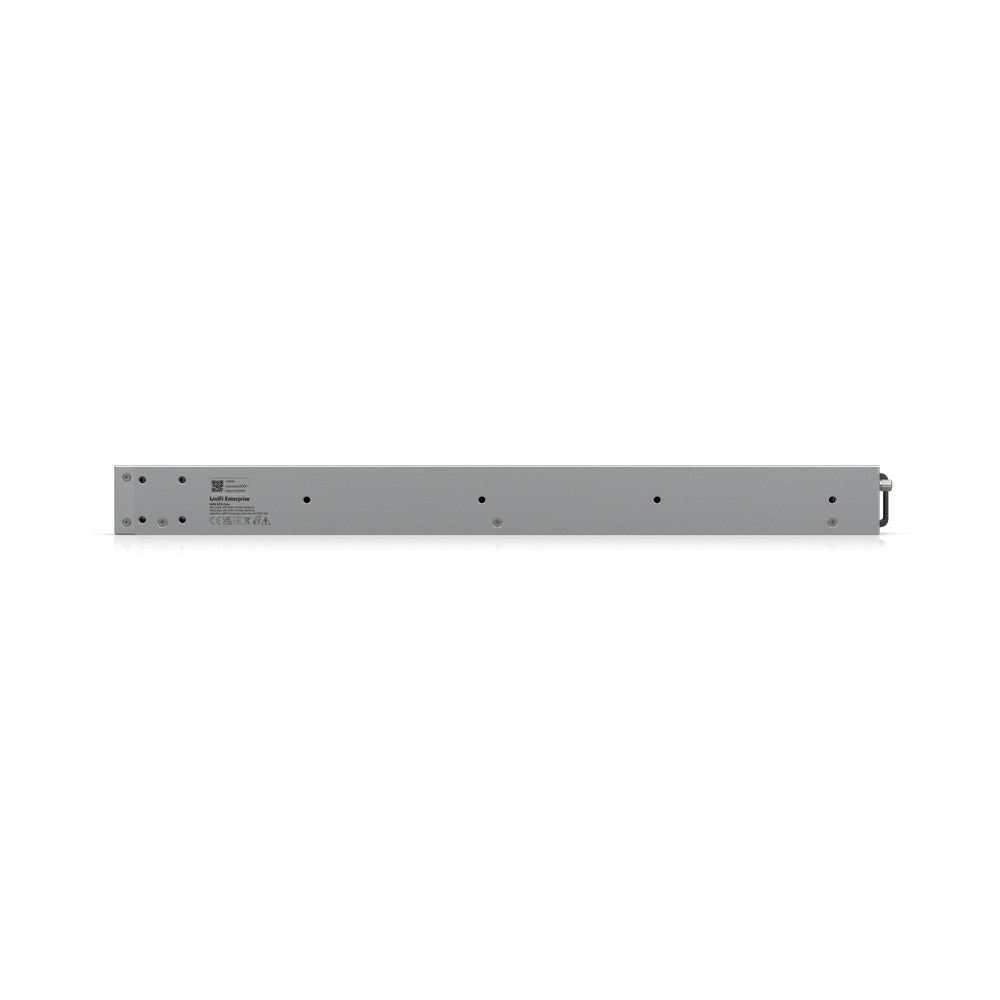

ECS-Core - Ubiquiti Enterprise Campus Switch Core

The Ubiquiti Enterprise Campus Switch Core (SKU: ECS-Core) is a high-density 100G Layer 3 network switch designed for demanding enterprise and campus environments. With an impressive 3.2 Tbps total non-blocking throughput and 32 x 100G QSFP28 ports, the ECS-Core-EU delivers unparalleled performance for core switching applications, making it the ideal backbone for large-scale, high-availability network infrastructures.

Engineered for resilience and scalability, this 1U rack-mountable switch features Multi-Chassis Link Aggregation (MC-LAG) support, enabling redundant, fault-tolerant network designs. Combined with hot-swappable dual power supplies and five hot-swappable fan modules, the ECS-Core-EU ensures maximum uptime even in mission-critical deployments.

Etherlighting™ technology provides intuitive visual port identification directly on the QSFP28 ports, streamlining installation, troubleshooting, and ongoing management. The built-in 1.3-inch touchscreen LCM display offers convenient local status monitoring and configuration.

Key Features:

• 3.2 Tbps total non-blocking throughput with 6.4 Tbps switching capacity
• 32 x 100G QSFP28 ports (supporting 100G/40G speeds)
• Layer 3 switching with DHCP server support for local networks
• Multi-Chassis Link Aggregation (MC-LAG) for high-availability system design
• Forwarding rate: 2.8 billion packets per second (Bpps)
• VLAN support: Up to 1,000 VLANs
• MAC address table: 128,000 entries
• IPv4 static routes: 256 routes
• 24 MB packet buffer for enhanced performance under load

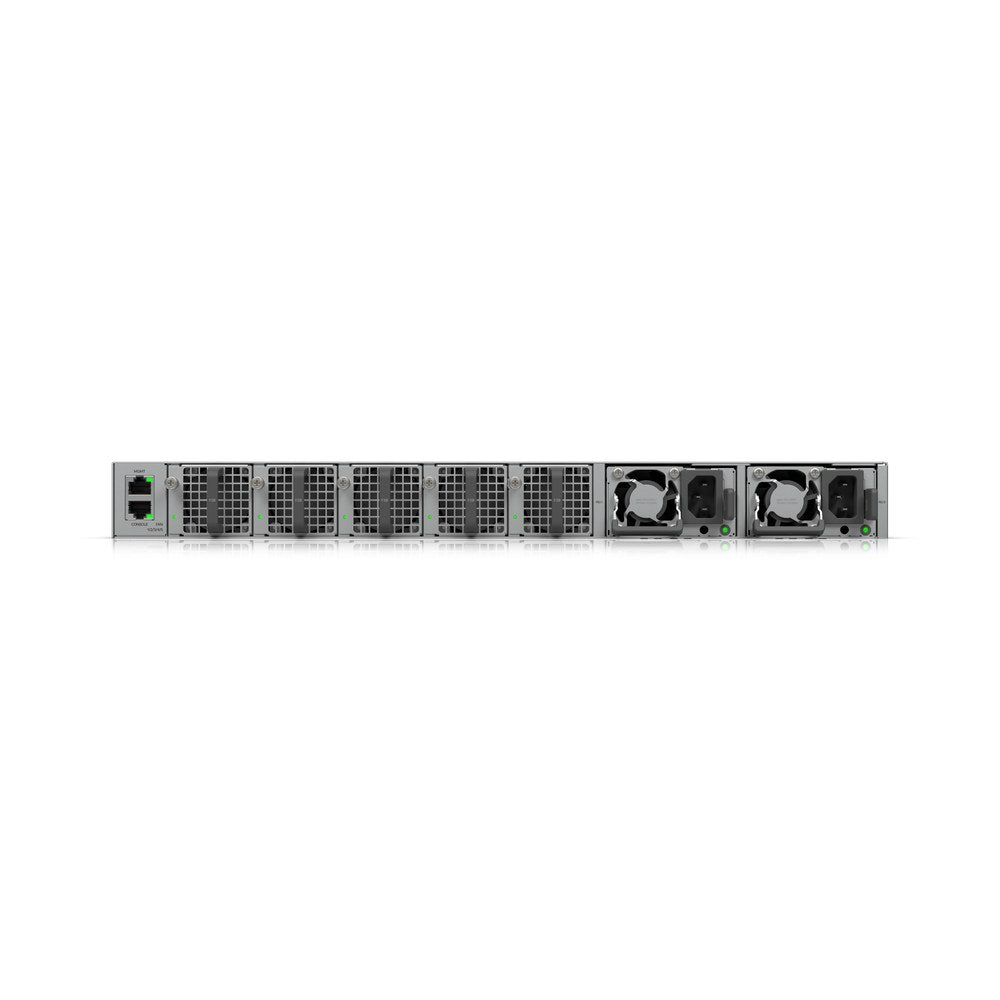

• Hot-swappable redundancy: Dual PSUs and five fan modules
• Etherlighting™ on QSFP28 ports for visual network management
• 1.3-inch touchscreen display for local monitoring and control
• 1 x GbE RJ45 management port (1G/100M/10M) and console port
• Operating temperature: -5 to 40°C (23 to 104°F)
• Dimensions: 442.4 x 43.7 x 480 mm (17.4 x 1.7 x 18.9")
• Weight: 9.7 kg (21.4 lb) without brackets; 9.8 kg (21.6 lb) with brackets
• ESD protection: Air ±12kV; contact ±8kV
• Certifications: CE, FCC, IC
• NDAA compliant

Ideal for: Large-scale enterprise campus cores, data centre aggregation layers, and high-availability network infrastructures requiring maximum throughput and redundancy.

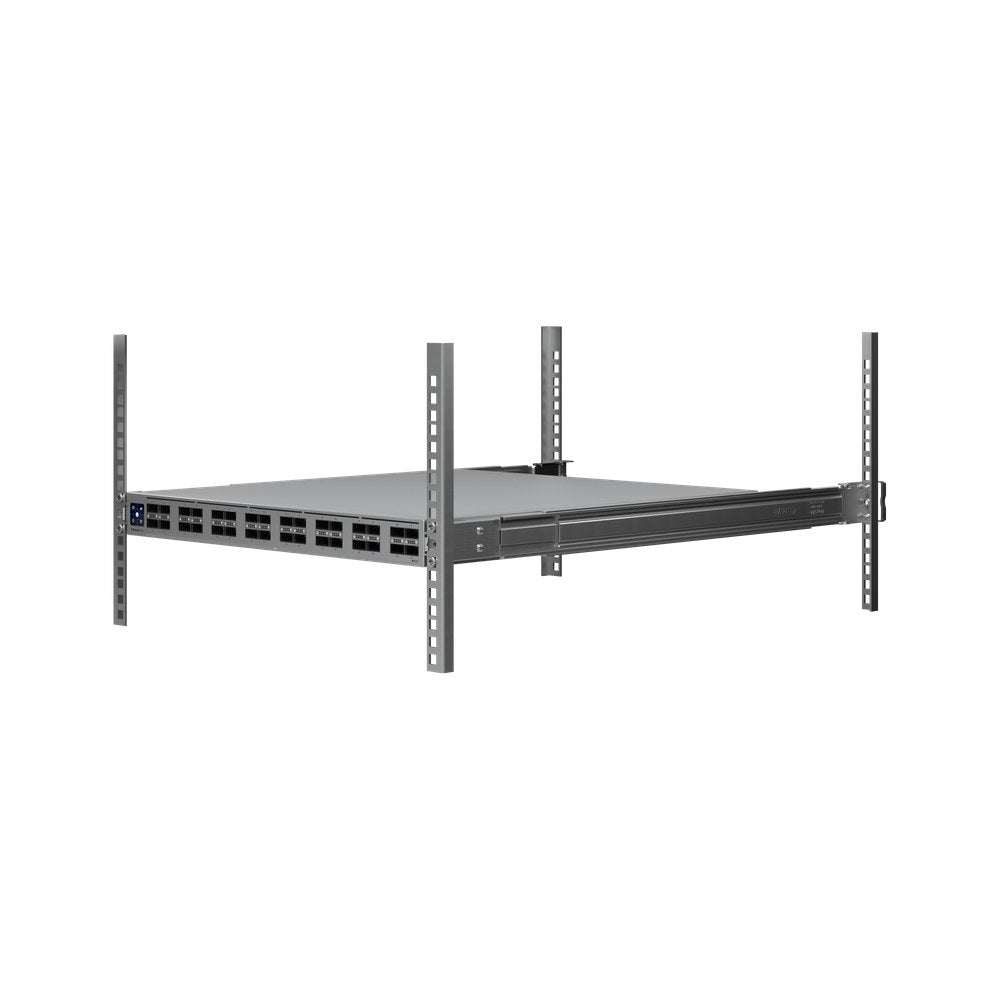

Installation Note: The ECS-Core-EU requires a four-post rack, or alternatively a centre-mount bracket or cantilever shelf when used with two-post racks for optimal support. Supported rack post depths range from 650 to 1,000 mm (25.6–39.4").

Compatible Products

Enterprise Campus Aggregation (ECS-Aggregation): Pair the ECS-Core with the Enterprise Campus Aggregation switch for a robust distribution layer featuring 1.8 Tbps throughput, 48 x 25G SFP28 ports, and 6 x 100G QSFP28 uplinks.

Enterprise Campus PoE Switches: Deploy alongside the Enterprise Campus 24 PoE or Enterprise Campus 48 PoE switches, which offer high-capacity PoE+++ output, 10 GbE RJ45 connectivity, and 25G SFP28 uplinks for seamless campus network integration.

Enterprise Campus Stackable Switches: Integrate with Enterprise Campus 24S PoE and Enterprise Campus 48S PoE stackable switches featuring 100G QSFP28 stacking ports for expandable, high-density campus deployments.

100G Direct Attach Cables and Optical Modules: Extend connectivity with QSFP28 direct attach cables (0.5 m, 1 m, 3 m lengths available) and 100G SR4 multi-mode optical modules supporting connections up to 100 m.

Managed via the UniFi Network Application, the Ubiquiti Enterprise Campus Switch Core integrates seamlessly into your existing UniFi ecosystem, delivering enterprise-grade performance, centralised management, and exceptional value for modern network infrastructures.
