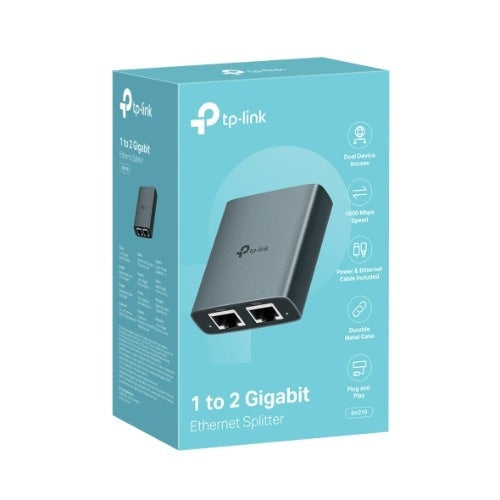

EH210 - TP-Link 1 to 2 Gigabit Ethernet Splitter, 1Gbps, 3 x RJ45 Ports, USB-C Power, Aluminium Alloy Case
Description
Description
The TP-Link EH210 1 to 2 Gigabit Ethernet Splitter (SKU: EH210) divides one Gigabit network connection into two, so you can connect two devices to the same Ethernet outlet at the same time. With three 10/100/1000 Mbps RJ45 ports, a compact aluminium alloy case and simple plug and play operation, it is a tidy way to expand your wired network without extra complexity.
Any port can be used as the input, so you can connect your router, switch or wall outlet to whichever port is most convenient. The EH210 supports speeds of up to 1000 Mbps and is backward compatible with 100 Mbps and 10 Mbps connections. It works with Cat 8, Cat 7, Cat 6, Cat 5e and Cat 5 Ethernet cables, although Cat 5e or higher is recommended for stable performance over longer distances.
The durable metal casing helps with heat dissipation for more stable performance, while the small footprint (58 × 53 × 18.4 mm) takes up very little space. LED indicators show power status and the connection status of each Ethernet port. A USB-C power cable and a Cat 5e Ethernet cable are included in the box. Please note that this product cannot be used without a power source.
Key Features
- 1 to 2 Ethernet splitter - connect two devices simultaneously from a single Gigabit connection
- 1000 Mbps Gigabit speeds with backward compatibility for 100/10 Mbps
- 3 × 10/100/1000 Mbps RJ45 ports with Auto-Negotiation, Auto MDI/MDIX, and half and full duplex
- USB-C power input (5 VDC / 0.3 A)
- Aluminium alloy case for robustness and efficient heat dissipation
- Plug and play setup with no configuration required
- Power LED and per-port link LED indicators
- Supports 802.3x Flow Control and 802.1p/DSCP QoS, with Green Technology
- Compatible with Cat 8/7/6/5e/5 Ethernet cables
- USB power cable and Cat 5e Ethernet cable included, plus a Quick Installation Guide
Ideal for
Home offices, living rooms, study areas and small workspaces where there is only one Ethernet wall outlet or router port available but two wired devices need to be connected, such as a computer, TV, printer or set-top box.
Compatible Products
Works with hubs, switches, routers, wireless devices, computers, laptops, TVs, printers and set-top boxes using standard RJ45 Ethernet cabling (Cat 5 or above).
Package Contents
1 × Ethernet Splitter (EH210), 1 × USB Power Cable, 1 × Cat 5e Ethernet Cable, Quick Installation Guide.
FAQs
Why is the Power LED not lit?
Make sure the splitter is plugged in properly with a USB-C charging cable, that the voltage of the power supply meets the splitter's input voltage requirements, and that the power source is switched on.
Why is the Ethernet Port LED not lit when a device is connected?
Make sure the cable connectors are firmly plugged into the splitter and the device, that the connected device is turned on and working normally, and try changing the connected device's transmission speed and duplex mode. The cable must also be less than 100 metres long.
