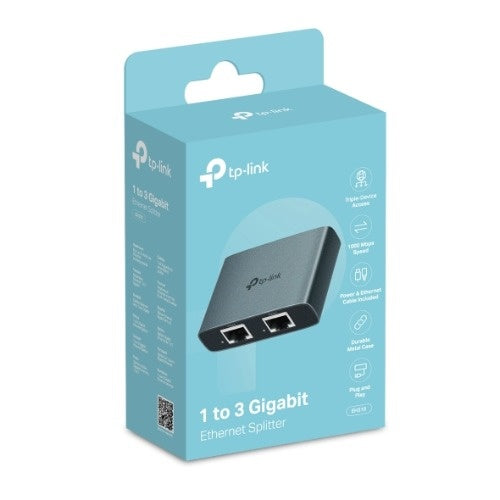

EH310 - TP-Link 1 to 3 Gigabit Ethernet Splitter
Description
Description
The TP-Link EH310 1 to 3 Gigabit Ethernet Splitter (SKU: EH310) gives multiple wired devices fast, stable internet from a single Ethernet connection. With 1000 Mbps transmission, plug and play setup and a compact aluminium alloy casing, it is a simple way to add extra Ethernet ports wherever you need them.
The EH310 has four Gigabit Ethernet ports. Any one of the four LAN ports can be used as the internet input, and the remaining three automatically function as output ports for your network devices. There is no configuration to carry out. Please note that the EH310 requires an active internet connection from your router, modem or network socket to function, and it needs a power source (USB-C) to operate.
Key Features
- 1 to 3 Ethernet splitter: one connection shared across multiple wired devices
- 1000 Mbps Gigabit transmission, with backward compatibility for 100 Mbps and 10 Mbps network speeds
- Plug and play: configuration is handled automatically, and any of the four LAN ports can be selected as the internet input
- Aluminium alloy casing for long-term reliability and enhanced heat dissipation
- Compact design: a two-Ethernet-ports-per-side layout creates a slimmer profile that saves space
- 4× 10/100/1000 Mbps RJ45 ports with Auto-Negotiation, Auto MDI/MDIX, and half and full duplex
- LED indicators: a power indicator plus port LEDs confirm active device connections at a glance
- USB-C powered (5 V DC / 0.3 A); a USB-C power cable and a Cat 5e Ethernet cable are included
- Supports Cat 8, Cat 7, Cat 6, Cat 5e and Cat 5 cables (Cat 5e or higher recommended)
- Supports 802.3x flow control and 802.1p/DSCP QoS
Ideal for: home users, home offices, small offices and gamers who want to connect more wired devices such as computers, TVs, game consoles, printers and cameras from a single network socket or router port.
Compatible Products
Works with common Ethernet devices including hubs, switches, routers, computers, laptops, TVs, printers, cameras and game consoles. Supported systems include Windows, macOS, iOS, iPadOS, Chrome OS, Linux and Android.
Specifications
- Ports: 4× 10/100/1000 Mbps RJ45
- Power: USB-C, 5 V DC / 0.3 A (the USB-C port does not support data transfer)
- Dimensions (W×D×H): 66.68 × 46.6 × 18.3 mm
- Operating temperature: 0°C to 40°C; operating humidity: 10% to 90% non-condensing
- Certification: CE, FCC, RoHS, BSMI
In the Box
- 1× EH310 Ethernet Splitter
- 1× USB power cable
- 1× Cat 5e Ethernet cable
- Quick Installation Guide
FAQs
Why is the Power LED not lit?
The Power LED should be lit when the power system is working normally. If it is not lit, make sure the splitter is plugged in properly with a USB-C charging cable, that the power supply's voltage meets the splitter's input voltage requirements, and that the power source is switched on.
Why is the Ethernet Port LED not lit when a device is connected to the corresponding port?
Make sure the cable connectors are firmly plugged into the splitter and the device, and that the connected device is turned on and working normally. You can also try changing the connected device's transmission speed and duplex mode. The cable must be less than 100 metres (328 feet) long.
