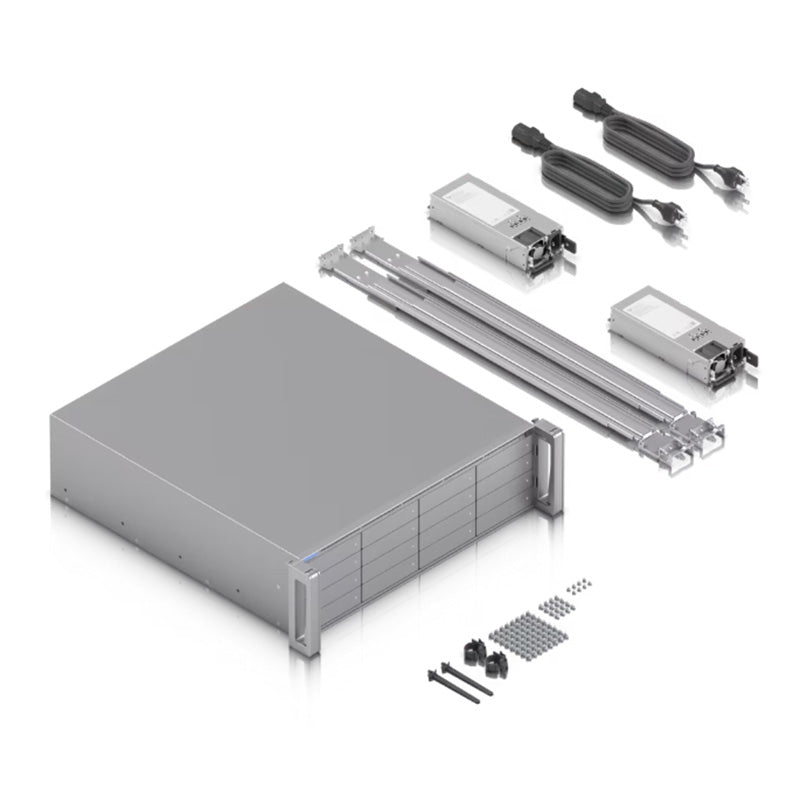

Manufacturer's photos. Where a power lead is pictured, an AU one is provided.

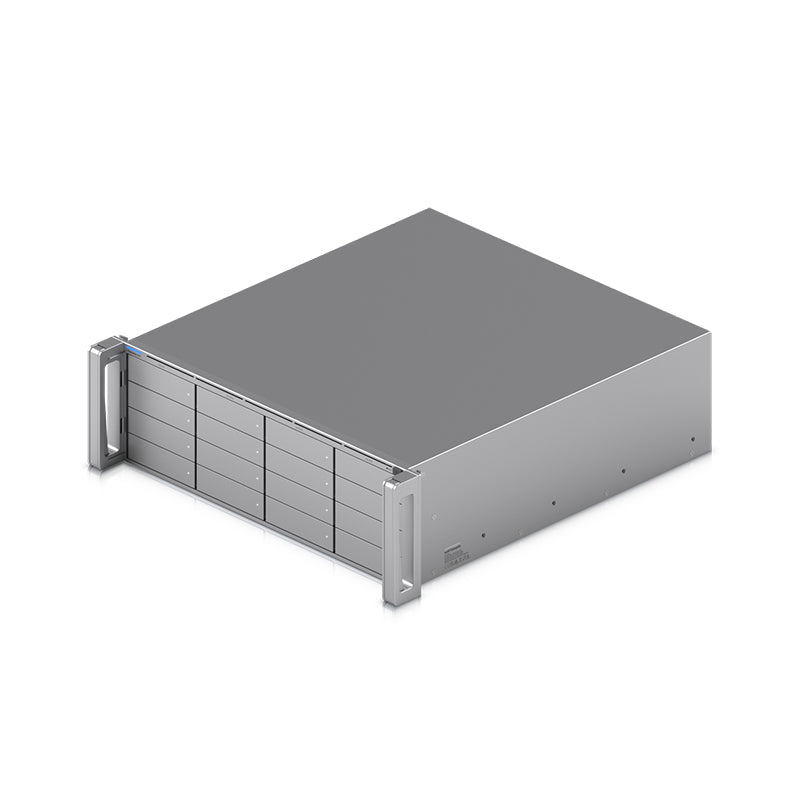

ENVR Ubiquiti UniFi Enterprise Network Video Recorder
- Ask for pricing · todayTell us the quantity and site
- Price and ETA confirmedUsually within 1–3 business days
- DeliveredFrom distributor stock once you approve
Request a quote puts it in your cart and opens our quote form, nothing is charged until you approve the price. Stock levels on enterprise lines cannot be shown online; we check them for you and confirm with your quote.
How enterprise orders work
How enterprise orders work
We are just not quite the same as many of the other online stores. I know it is easy to say that, but we just aren't.
The Tech Geeks, under their parent company Twelve Times (Worldwide) Pty Ltd trade in Australia, New Zealand and the United Kingdom.
This allows us to purchase stock from suppliers from locations where they have it available. We are then able to import those products directly, along with providing localised Warranty and Replacement as required.
We only list items that we know have been, or are about to be released to us and since we purchase only in small batches these are often flown in on short time frames.
We list on each product our expected shipments and ones that we have already sent out to customers. Please use these dates as a guideline as we always suggest 14-21 days just to allow for air freight or customs hold ups.
Want to know when new product stock is released? why not sign up here to our alerts.
Description
Description

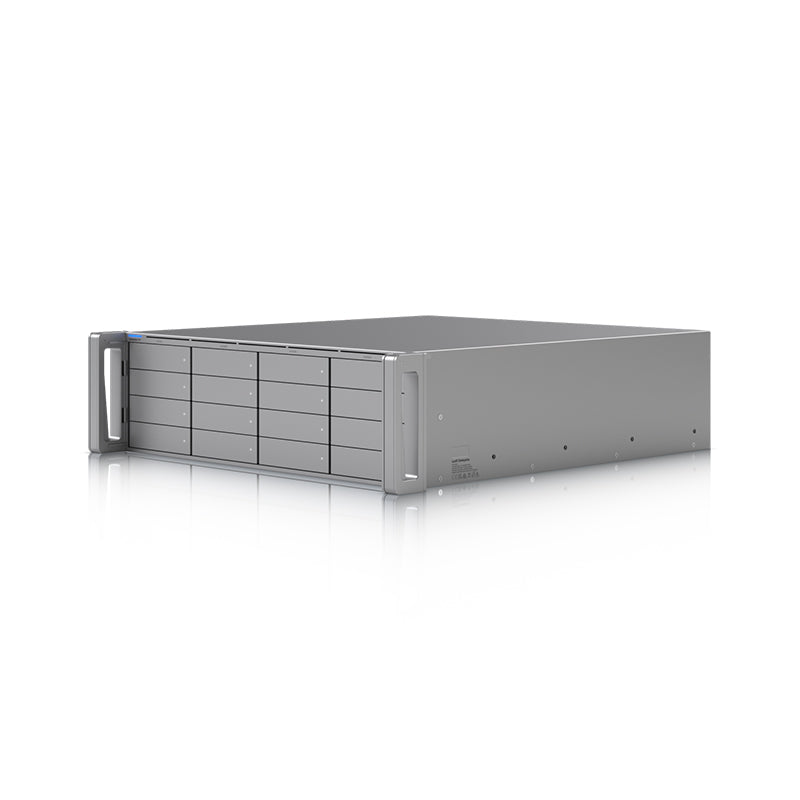

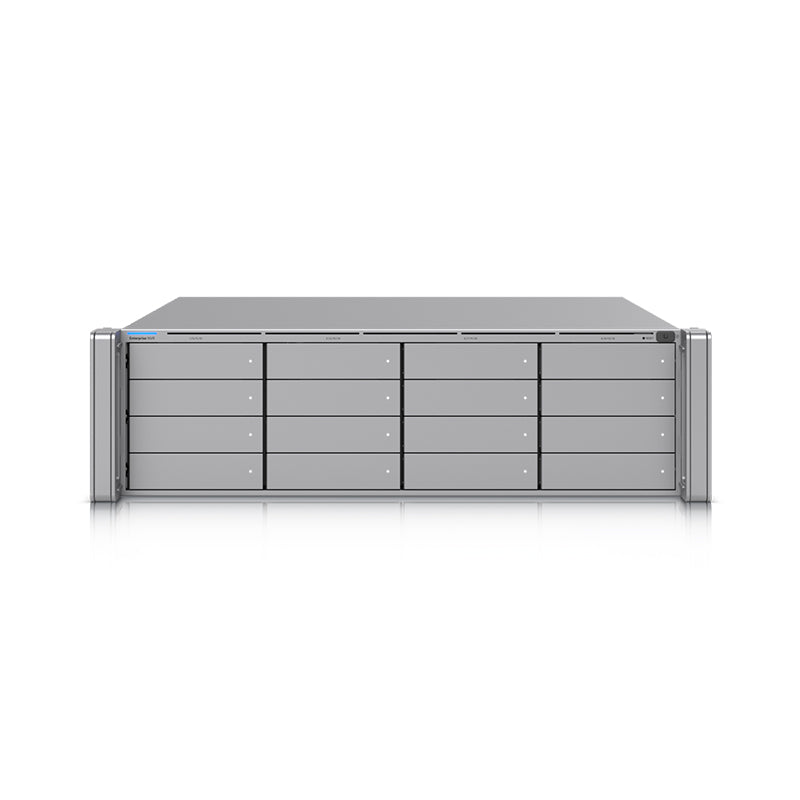

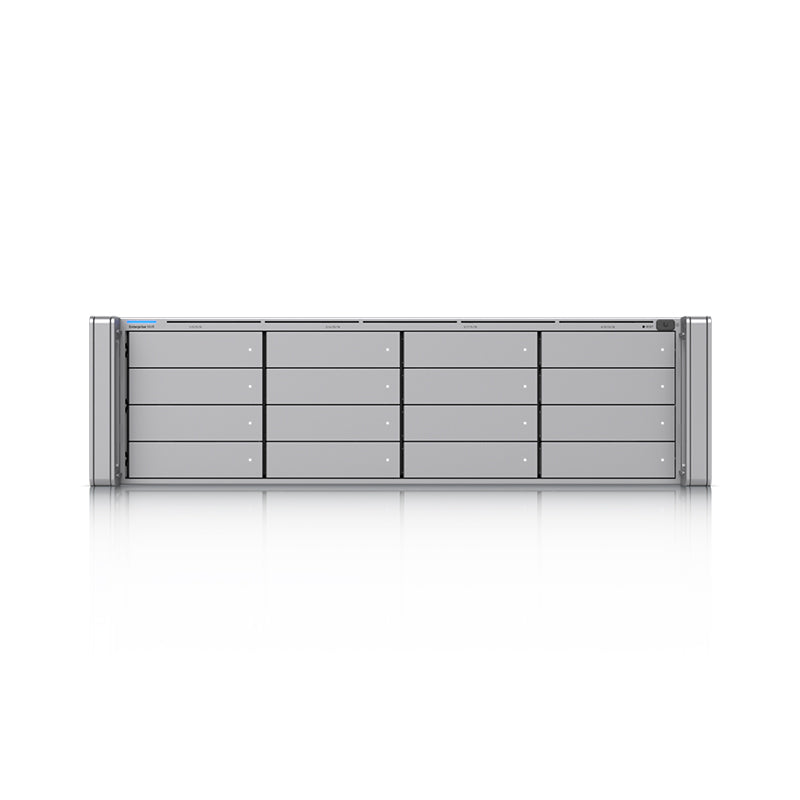

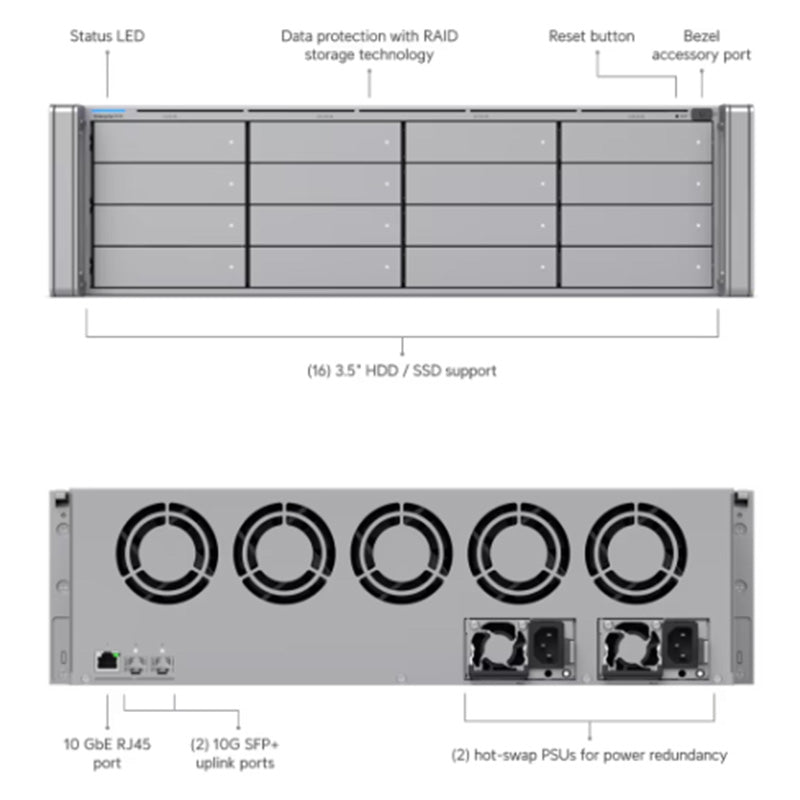

3U NVR with (16) 2.5/3.5” drive bays, supporting up to (70) 4K cameras or (210) Full HD cameras.
Features:
(16) 3.5" HDD / SSD support
(2) 10G SFP+ uplinks and (1) 10 GbE RJ45 port
Data protection with RAID storage technology
(2) included hot-swap PSUs for power redundancy
Frequently asked questions5 questions
How many cameras can the ENVR manage?
How much storage does the ENVR support?
What network ports does the ENVR have?
Does the ENVR have redundant power?
What are the rack mounting requirements for the ENVR?
Specifications24 specifications · 2 sections
| Overview | |
|---|---|

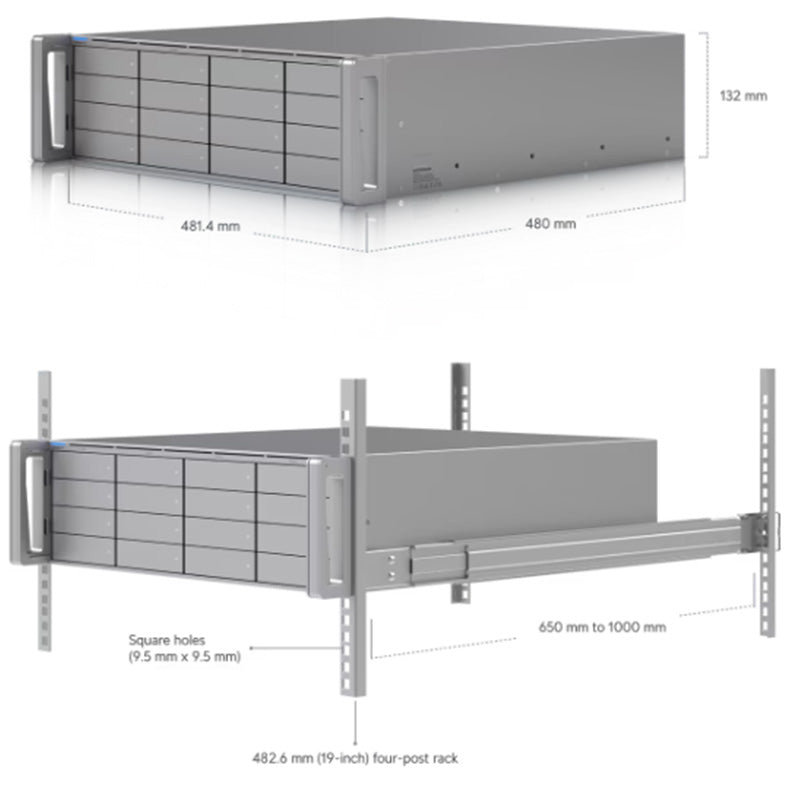

| Dimensions | 481.4 x 480 x 132 mm / (19 x 18.9 x 5.2") |
| Managed Cameras | (210) HD / (140) 2K / (70) 4K |
| Managed Access Hubs | 300 |
| Storage Capacity | (16) 2.5/3.5" drive bays |
| Networking Interface | (2) 10G SFP+ ports / (1) 10 GbE RJ45 port |
| Form Factor | Rack Mount (3U) |
| Management Application | UniFi Protect / UniFi Access / UniFi Connect |
| Hardware | |
| Hard Drive Capacity | (16) 2.5/3.5" HDD / SSD support |
| Max. Power Budget for Drives | 310W |
| Max. Power Consumption | 410W |

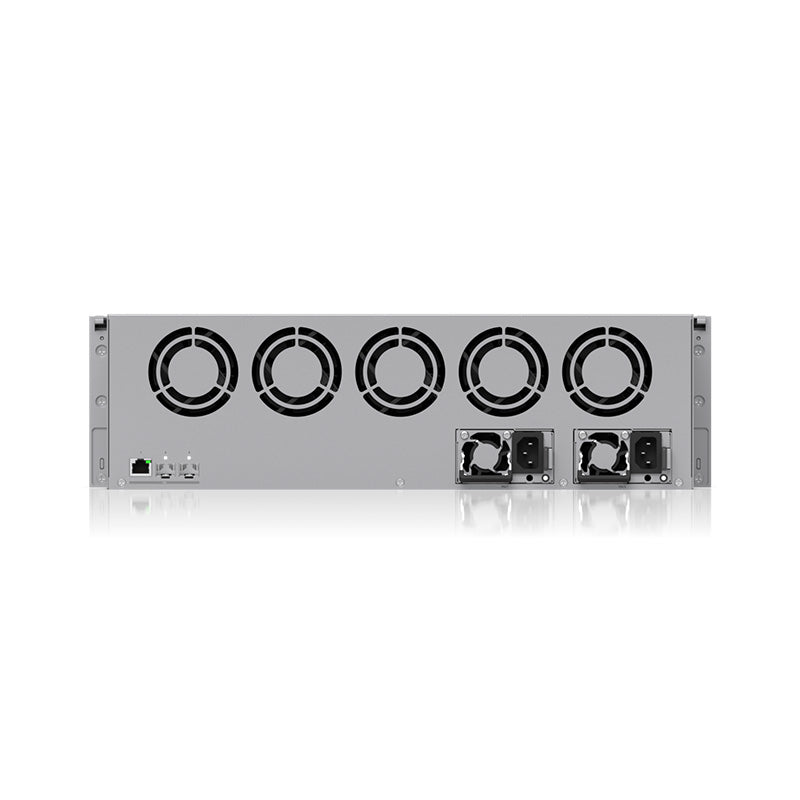

| Power Method | (2) AC input, 100–240V, 7A Max., 50/60Hz (Redundant, hot-swappable) |
| Power Supply | Hot-swappable 550W CRPS |
| Processor | 8-core ARM® at 2.5 GHz |
| Memory | 32 GB |
| Management | Ethernet |
| Display | Bezel (Optional) |
| Weight | Without rails: 16.6 kg (36.6 lb) / With rails: 19.5 kg (43.0 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | Aluminum |

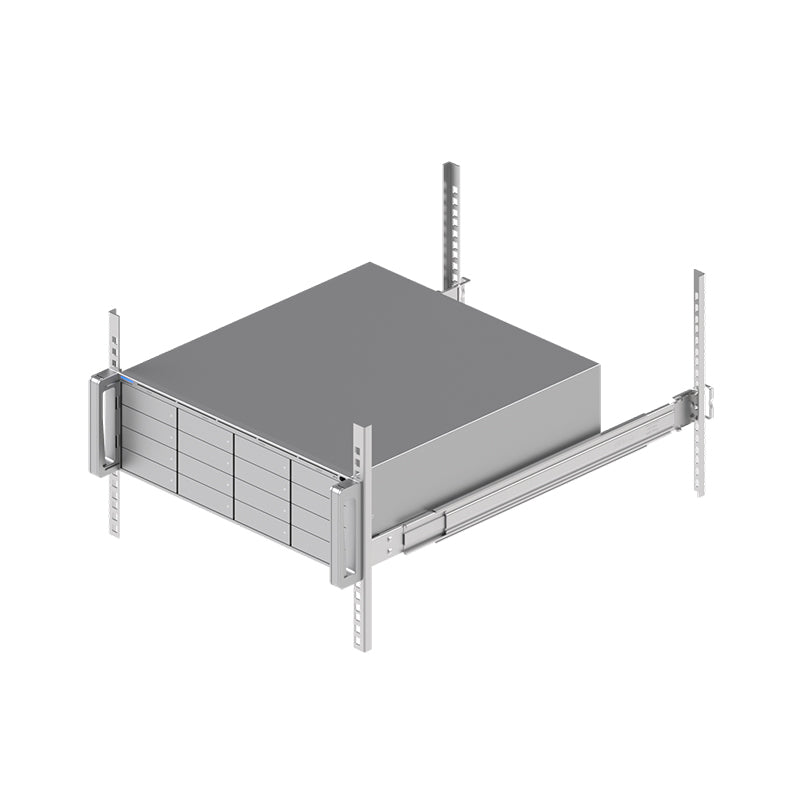

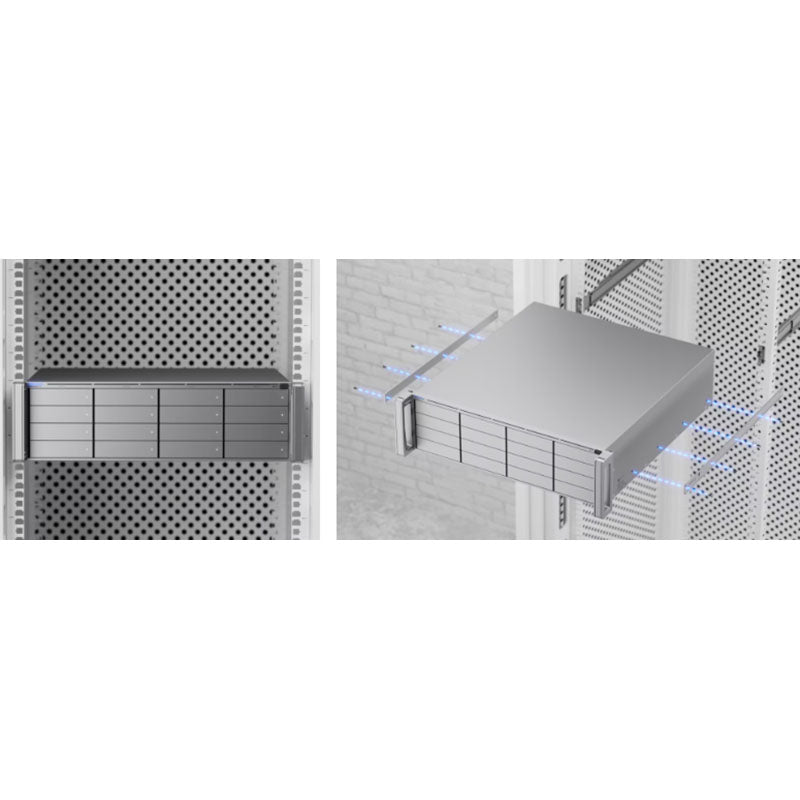

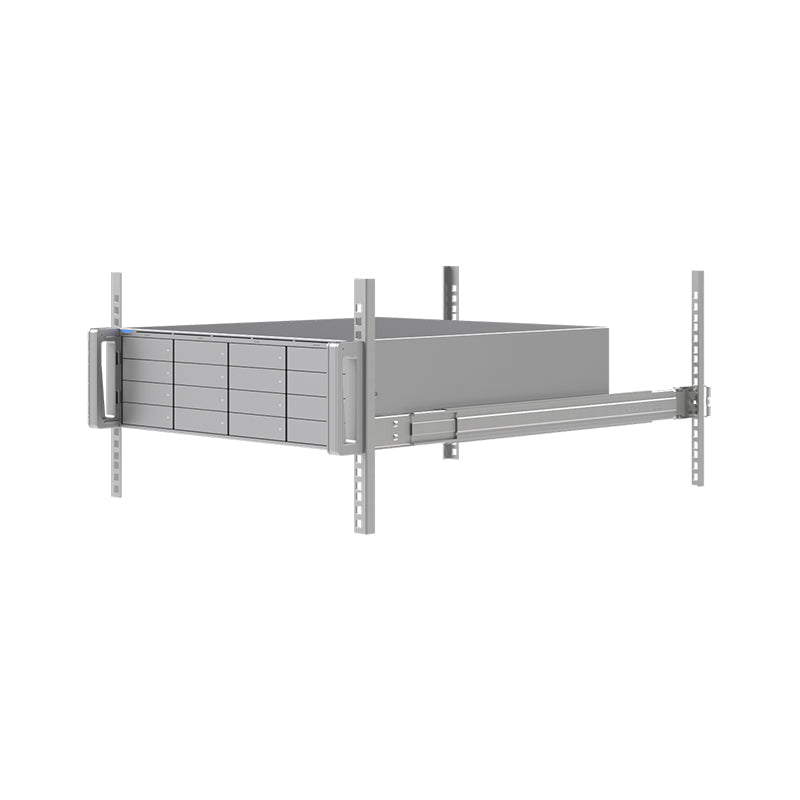

| Slide Rails | 482.6 mm (19") four-post racks / Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) |
| Faceplate | ENVR Bezel, 3U Bezel, 3U Bezel Lite (Optional) |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
