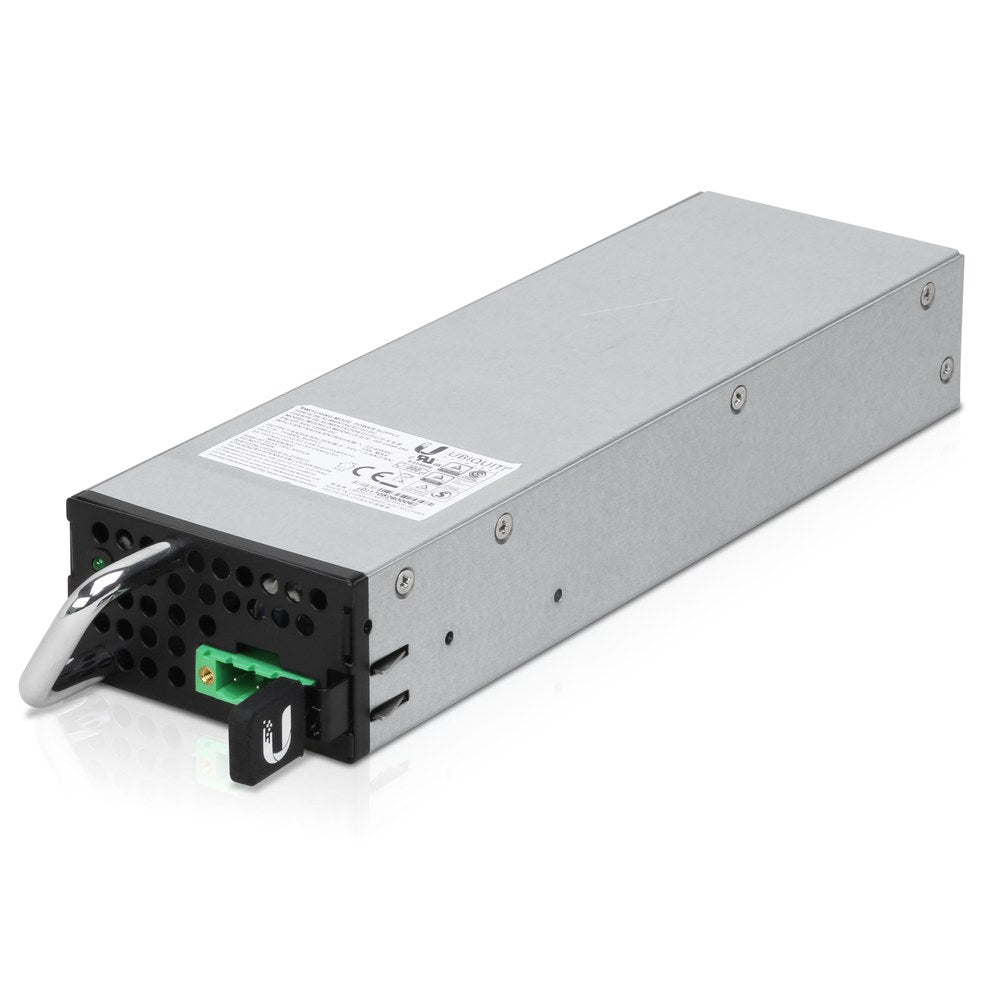

EP-54V-150W-DC - Ubiquiti EdgePower 54V 150W DC Rack Mount PSU for EdgePoint Routers and Switches

The Ubiquiti EdgePower EP-54V-150W-DC is a high-power, modular 54V DC power supply designed to connect to EdgePoint routers and switches and deliver reliable power to attached PoE devices. Housed in a 1U rack-mountable two-bay chassis, it includes one 54V 150W DC PSU module and can be expanded to 300W with an optional second module, making it a flexible foundation for WISP, tower and cabinet power deployments.

Its modular design lets you choose how to use the second PSU bay. Fit a second 150W module to double the available output, or configure it as a hot-swappable backup PSU. In backup mode the secondary PSU remains inactive and offline, then automatically activates to supply continuous power if a failure of the primary PSU is detected.

Key Features

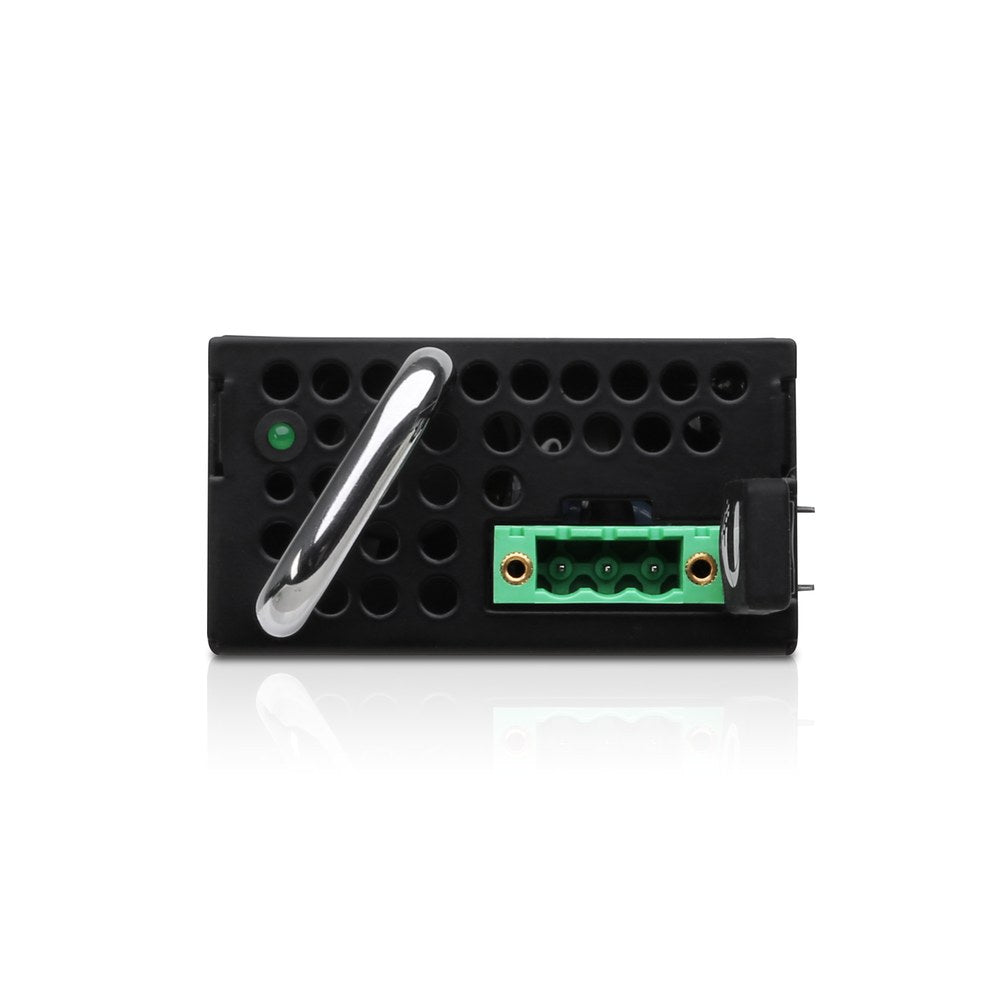

• 54V DC output via a DC terminal block, up to 150W with the included PSU module
• Scalable to 300W with a second 150W PSU module (sold separately)
• Automatic PSU backup option for continuous power if the primary PSU fails
• Two-bay rack-mountable housing, 1U high; also suitable for wall, shelf or horizontal surface mounting
• 10/100 RJ45 management port with web UI for monitoring status and power consumption and configuring PSU modules
• Status LEDs for power, Ethernet link and PSU state
• ESD/EMP protection: air ±24kV, contact ±24kV
• Auxiliary grounding bolt for added protection
• CE, FCC and IC certified

Technical Highlights

• Dimensions (without mount brackets): 299.8 x 286.9 x 42.55 mm
• Weight (without mount brackets): 2.7 kg
• Operating temperature: 0 to 40°C
• Operating humidity: 10 to 90% RH

What's in the Box

• EdgePower EP-54V-150W with preinstalled 54V 150W DC PSU module
• Power cord
• 4 x mount brackets with bracket screws
• Rack-mount screws and cage nuts
• Mounting screws and screw anchors for wall or shelf installation

Ideal for: WISPs, network installers and IT teams who need a dependable, expandable 54V DC power source for EdgePoint EP-R8 or EP-S16 installations, with optional redundancy or extra capacity.

Compatible Products

EdgePoint routers and switches: EdgePoint EP-R8 and EP-S16 (54VDC supported devices), or other 54VDC devices.

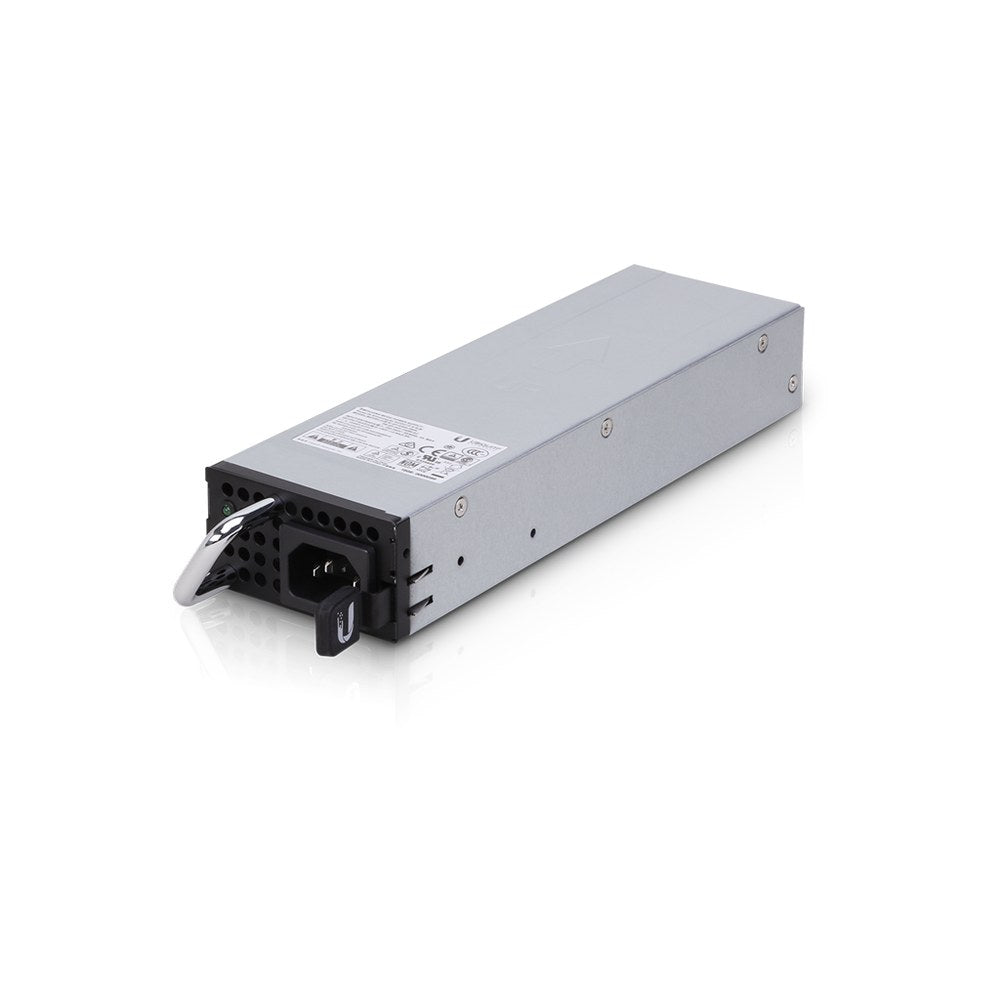

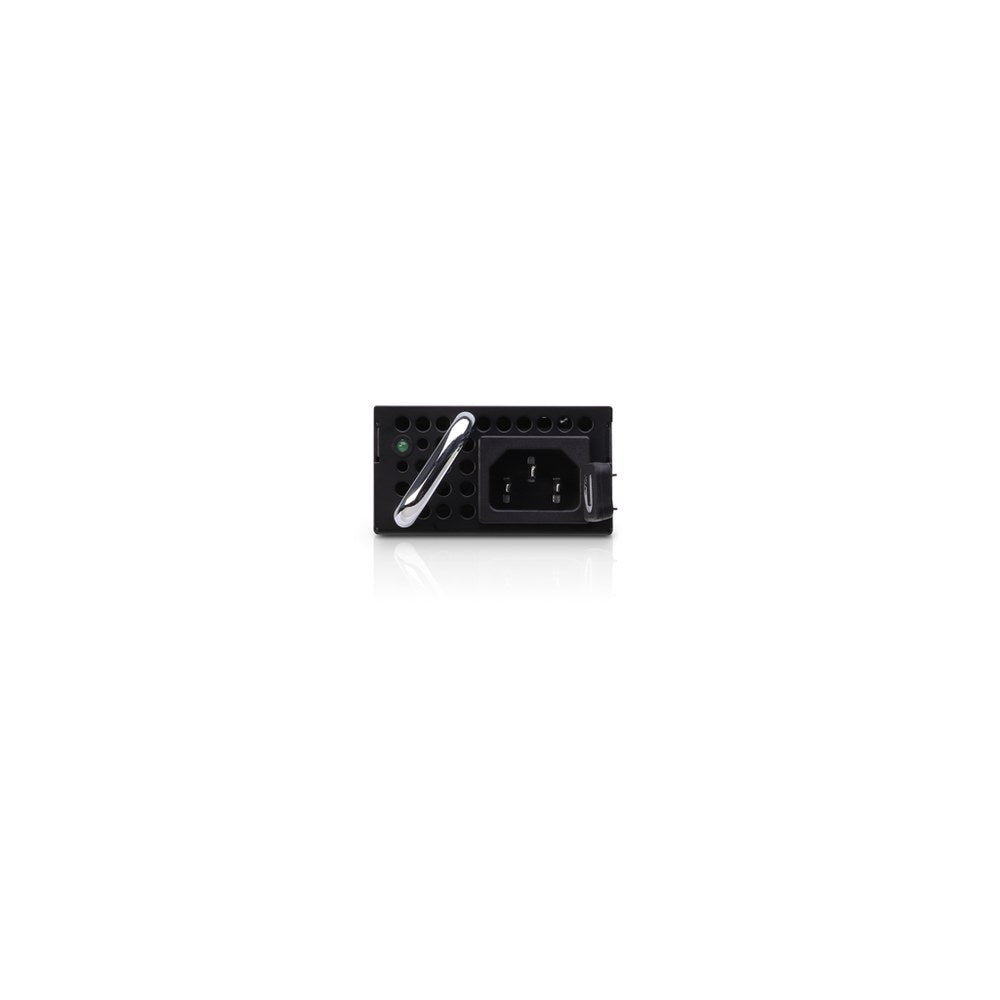

Optional second PSU modules (sold separately): EP-54V-150W-AC (AC/DC, 110-240V AC input) and EP-54V-150W-DC (DC/DC, 22-60V input).

Cabling: PowerCable or an equivalent outdoor-rated 12 AWG stranded DC power cable. Although the cabling can be located outdoors, the EdgePower unit itself should be housed inside a protective enclosure and kept away from rain or moisture.

FAQs

How much power does the EP-54V-150W deliver?
It provides up to 150W with the included PSU module, or up to 300W when a second 150W module is installed in the secondary bay.

Can I use the second bay as a backup?
Yes. The secondary PSU can be configured as a backup, remaining offline until a failure of the primary PSU is detected, when it automatically activates.

Which devices does it power?
It is designed for EdgePoint EP-R8 and EP-S16 routers/switches, or other 54VDC devices, connected via the DC terminal block.

Can I mount it on a wall or shelf?
Yes. Besides 1U rack mounting, it can be placed on a horizontal surface or mounted on a wall or shelf using the supplied brackets and hardware.

Is a second PSU module included?
No. One PSU module is included; a second module is sold separately.
