ES-24-250W Ubiquiti UISP EdgeSwitch 24 PoE (250W)

Q: How many ports does the ES-24-250W have?

It has twenty-four 10\/100\/1000 Gigabit Ethernet RJ45 ports and two SFP ports for Gigabit uplinks. There is also one serial console port for management.

$749.38 AUD

Not in stock locally

In stock inNew ZealandUnited Kingdom

We do not hold this locally right now, but it is in stock in New Zealand and the UK. Contact us and we will tell you what is possible.

Description

Build and expand your network with the Ubiquiti ES-24-250W UISP EdgeSwitch 24-Port Layer 2 Gigabit PoE+ Switch, part of the Ubiquiti EdgeMAX line of products for business.

This Ubiquiti ES-24-250W EdgeSwitch is a fully managed, 24 port PoE+ Gigabit switch that delivers robust performance and intelligent switching for growing networks.

This Ubiquiti ES-24-250W EdgeSwitch also offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Features:

Layer-2 features and protocols with layer-3 routing capability.

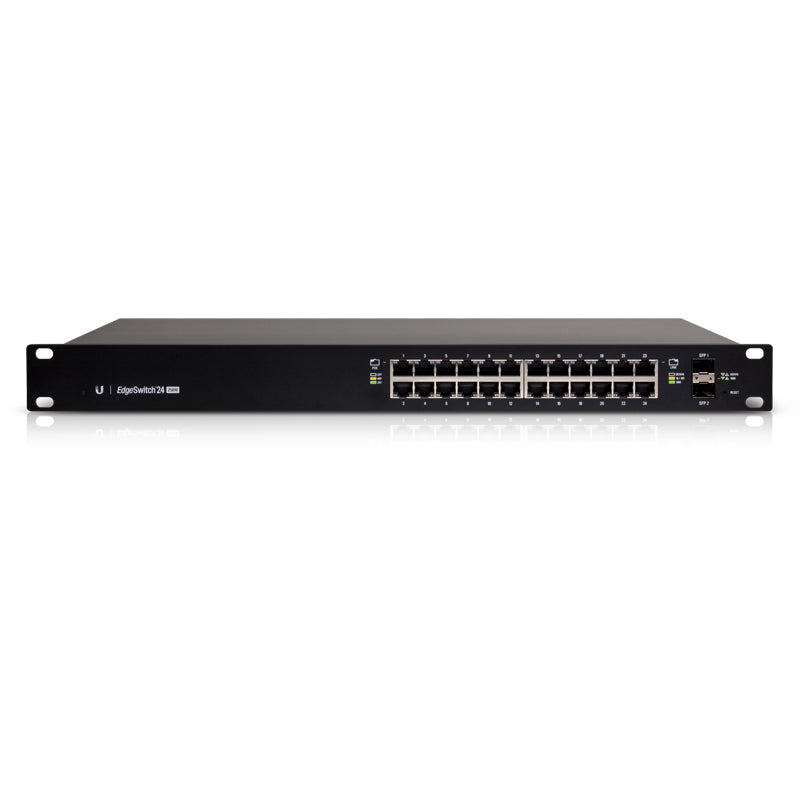

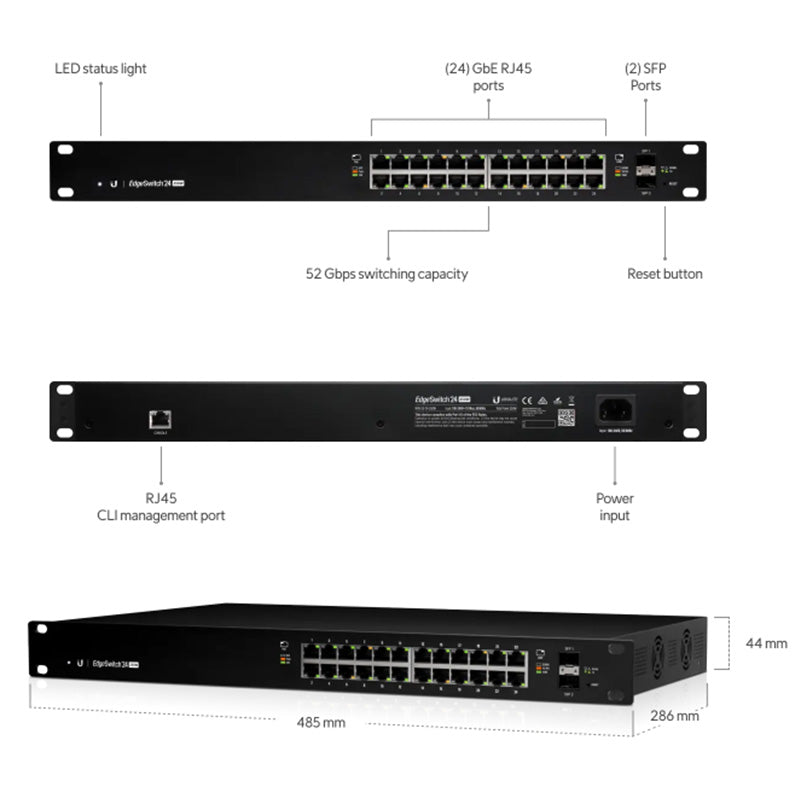

Twenty-four (24) 10/100/1000 Gigabit Ethernet RJ45 ports.
Two (2) Small form factor SFP ports for Gigabit uplinks.
One (1) Serial Console Port.
802.3at Power over Ethernet (PoE+) up to 30W per port.
Supports Passive Power over Ethernet (PoE) up to 24V.
Configure and monitor the switch in GUI or CLI interface.
Total Power over Ethernet budget of 250W.
Total non-blocking throughput: 26 Gbps.
Switching capacity: 52 Gbps.
Forwarding rate: 38.69 Mpps.

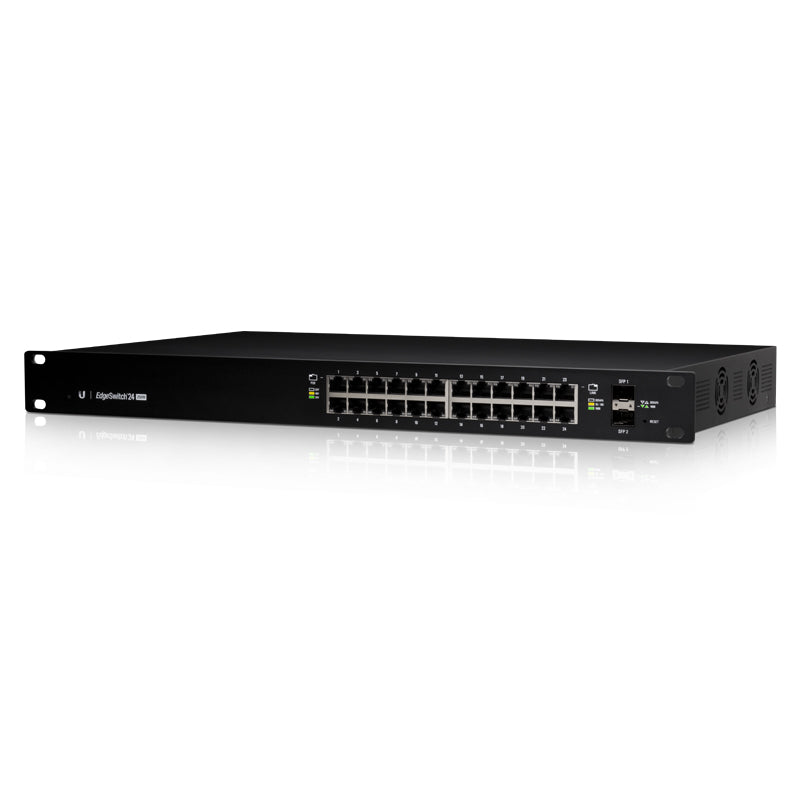

Rackmount form factor for data or server cabinets.

Frequently asked questions5 questions

How many ports does the ES-24-250W have?

It has twenty-four 10/100/1000 Gigabit Ethernet RJ45 ports and two SFP ports for Gigabit uplinks. There is also one serial console port for management.

How much Power over Ethernet can the ES-24-250W supply?

It supports 802.3at PoE+ at up to 30W per port, with a total PoE budget of 250W across the switch. It also supports passive PoE up to 24V.

Is the ES-24-250W a managed switch, and can it route?

Yes, it is a fully managed switch with an extensive suite of Layer-2 switching features and protocols. It also provides Layer-3 routing capability, and can be configured and monitored through a GUI or CLI interface.

What is the performance of the ES-24-250W?

It provides 26 Gbps of total non-blocking throughput and 52 Gbps of switching capacity. The forwarding rate is 38.69 Mpps.

Can the ES-24-250W be installed in a rack?

Yes, it has a rackmount form factor designed for data or server cabinets.
