IG1005P - Cudy 5-Port Gigabit Industrial PoE+ Switch
Description
Description

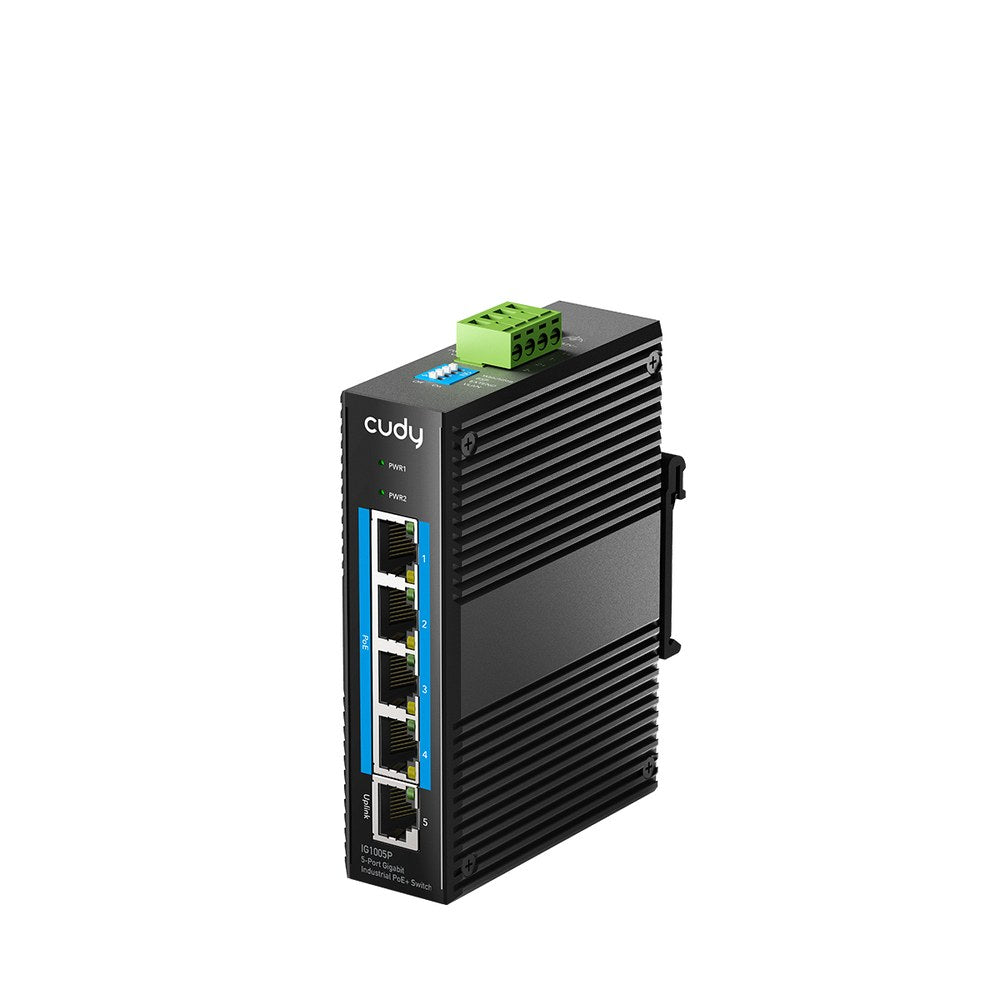

The Cudy IG1005P is a rugged 5-port Gigabit industrial PoE+ switch engineered for demanding environments including manufacturing, transportation, maritime, oil & gas, and mining applications. Designed to deliver reliable network connectivity and power in extreme conditions, the IG1005P combines industrial-grade construction with advanced protection features to ensure stable operation where standard switches cannot survive.
This industrial Ethernet switch features five shielded Gigabit Ethernet ports, with four ports supporting IEEE 802.3at/af PoE+ (Mode A) capable of delivering up to 30W per port with a total 120W power budget. The switch provides both data and power over a single cable, simplifying deployment of IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices in locations where electrical outlets are impractical or unavailable.
Built to withstand harsh industrial environments, the IG1005P operates reliably in extreme temperatures ranging from -40°C to 75°C (-40°F to 167°F). The rugged IP40-rated aluminium housing provides excellent heat dissipation whilst protecting internal components from dust and physical damage. An integrated DIN-rail bracket enables secure mounting in control cabinets, equipment racks, and industrial enclosures.
The switch incorporates Level 4 EMC protection with ±6kV surge resistance on both power and Ethernet ports, safeguarding connected equipment from electrical interference and voltage spikes common in industrial settings. Dual redundant DC power inputs (44-57V) with terminal block connections offer failover protection, ensuring continuous operation even if one power source fails. Additional safety features include polarity reverse protection and short circuit protection for stable operation in complex power environments.
The plug-and-play design requires no configuration, making deployment quick and straightforward. Optional features such as Watchdog On/Off, Broadcast Storm Prevention On/Off, Extend On/Off, and VLAN On/Off provide flexibility for more advanced network requirements. The fanless design ensures silent operation and enhanced reliability by eliminating moving parts that can fail in dusty or extreme environments.
Key Features- 5× Gigabit Ethernet Ports: Four PoE+ ports (802.3at/af) delivering up to 30W each, plus one uplink port
- 120W Total PoE Budget: Ample power for multiple high-demand devices simultaneously
- Industrial Temperature Range: Operates reliably from -40°C to 75°C (-40°F to 167°F)
- Rugged IP40 Aluminium Housing: Dust-resistant enclosure with excellent heat dissipation
- ±6kV Surge Protection: Level 4 EMC protection on power and Ethernet ports
- Dual Redundant DC Power: 44-57V DC inputs with polarity reverse and short circuit protection

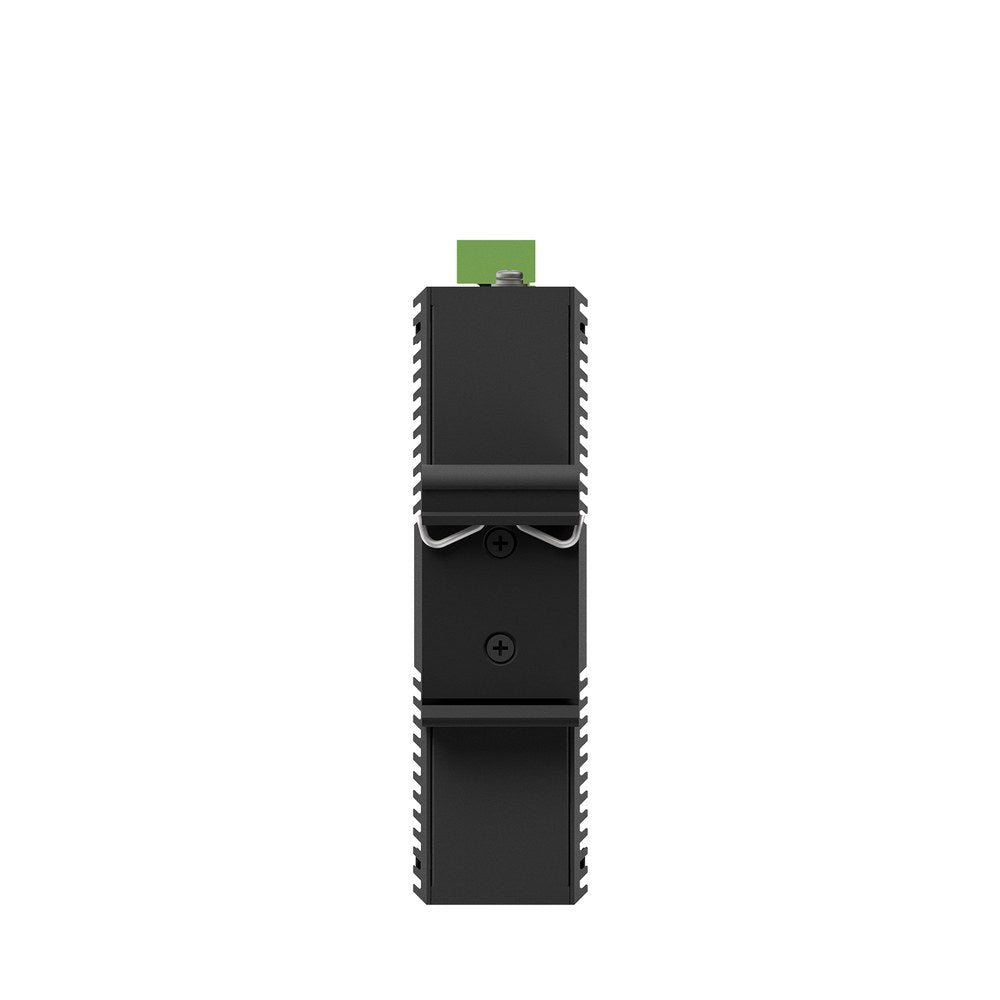

- DIN-Rail Mounting: Integrated bracket for secure installation in industrial environments
- Shielded Ports: Enhanced protection against electromagnetic interference
- Plug-and-Play: No configuration required for instant deployment
- Advanced Features: Watchdog, Broadcast Storm Prevention, Extend Mode, VLAN support (optional)
- Fanless Design: Silent, maintenance-free operation
Ideal for: Industrial automation systems, outdoor surveillance networks, transportation infrastructure, factory floor networking, remote site deployments, harsh environment applications, oil & gas facilities, maritime installations, mining operations, and any application requiring reliable PoE networking in extreme conditions.
Compatible Products
IP Cameras and Surveillance Equipment: Power and connect PoE-enabled IP cameras for industrial and outdoor surveillance systems without requiring separate power supplies at each camera location.
Wireless Access Points: Deploy industrial-grade wireless access points in warehouses, factories, and outdoor areas using a single cable for both data and power connectivity.
VoIP Phones and Intercoms: Support industrial communication systems with reliable PoE power delivery in manufacturing facilities and harsh environments.
Industrial Sensors and IoT Devices: Power and network industrial sensors, automation controllers, and IoT devices in extreme temperature environments.
Network Switches and Routers: Integrate with other Cudy industrial switches and routers to build scalable, resilient industrial network infrastructures.
-
