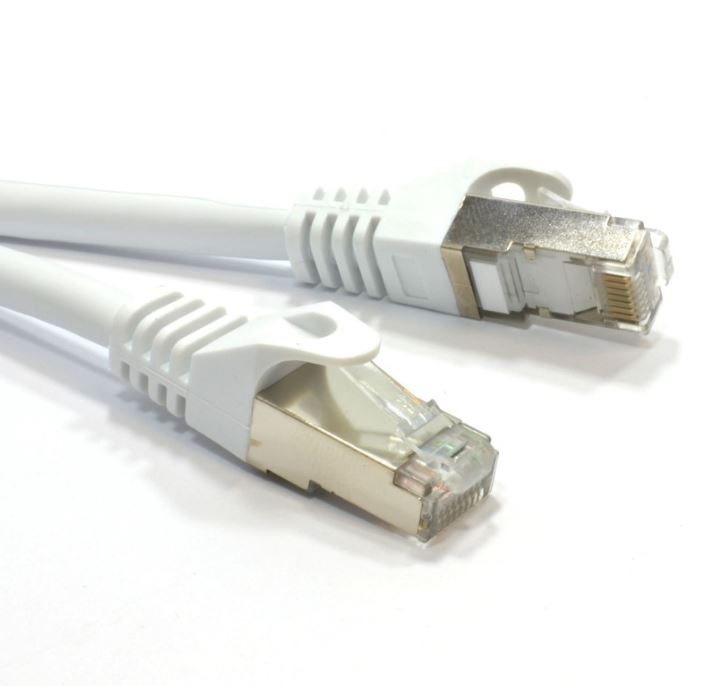

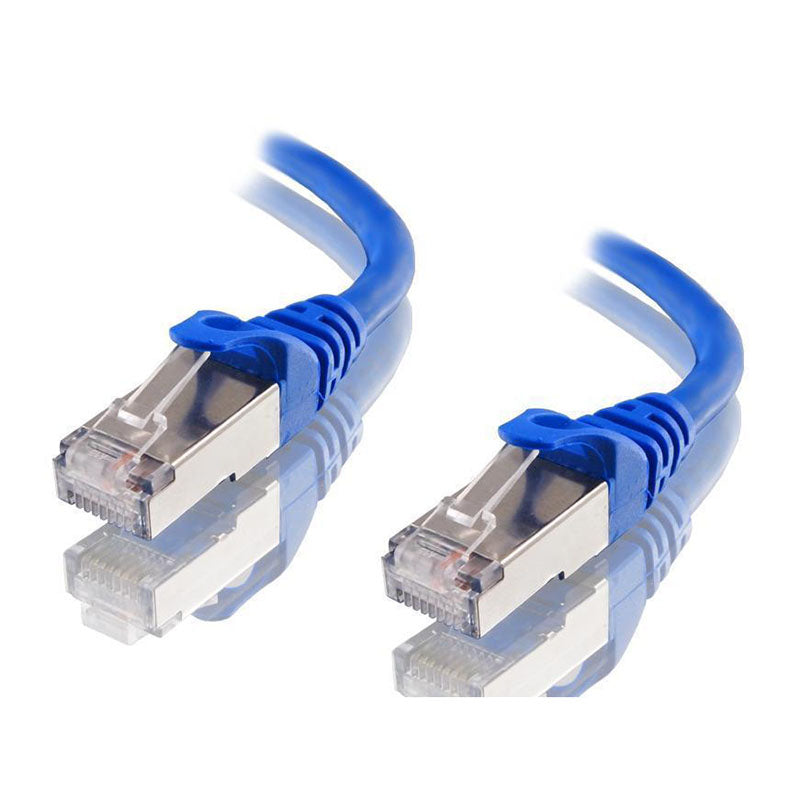

CAT6A is capable of supporting data transfer rates of up to 10Gbps at a maximum bandwidth of 500MHz. CAT6A has additional and tighter twists, with additional insulation to reduce crosstalk. CAT6A is also backwards compatible with CAT6 and CAT5E, however, speeds are always limited and will perform to the lowest category cable or connector that is installed in the link.
CAT6A is fast becoming the most cost-effective solution as it is seen as a future-proof cable system. One of the main arguments in favour of installing CAT6A infrastructure now is to future-proof the network. Therefore, if the planned lifetime of a new cabling system is five or more years, CAT6A should be considered as an option. If the planned lifetime of the network is ten years or more, CAT6A definitely appears to be the favoured solution.
Maximum Bandwidth: 500MHz
Maximum Distance: 100 metres
Maximum Data Rate: 10Gbps
Use: data centres and commercial
