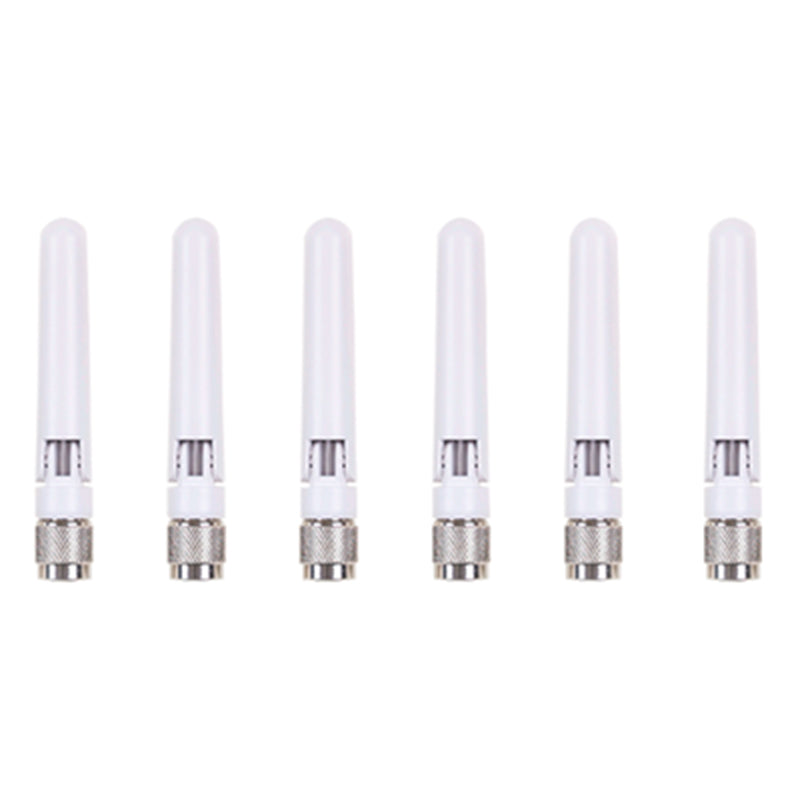

These Meraki MA-ANT-3-B6 antennas are designed to be angled at the hinge.
These Indoor Dual-Band 5.7dBi Dipole Antennas are ideal for low-ceiling installations where wall penetration or extended reach are important.
Some example use cases are low-density deployments like schools and hotels to provide basic connectivity. These types of best-effort deployments usually have access points installed on walls or uneven surfaces.
Features:
Antenna type: Dipole
Frequency range: 2.400 – 2.500 GHz, 5.150 – 5.875 GHz
Gain: 3 dBi (2.4) / 5.7 dBi (5)
Half-power bandwidth/horizontal: omni/vertical: 40°
For use with MR42E or MR53E
*MR42E Requires 5 antennas
*MR46E and MR53E Require 6 antennas
