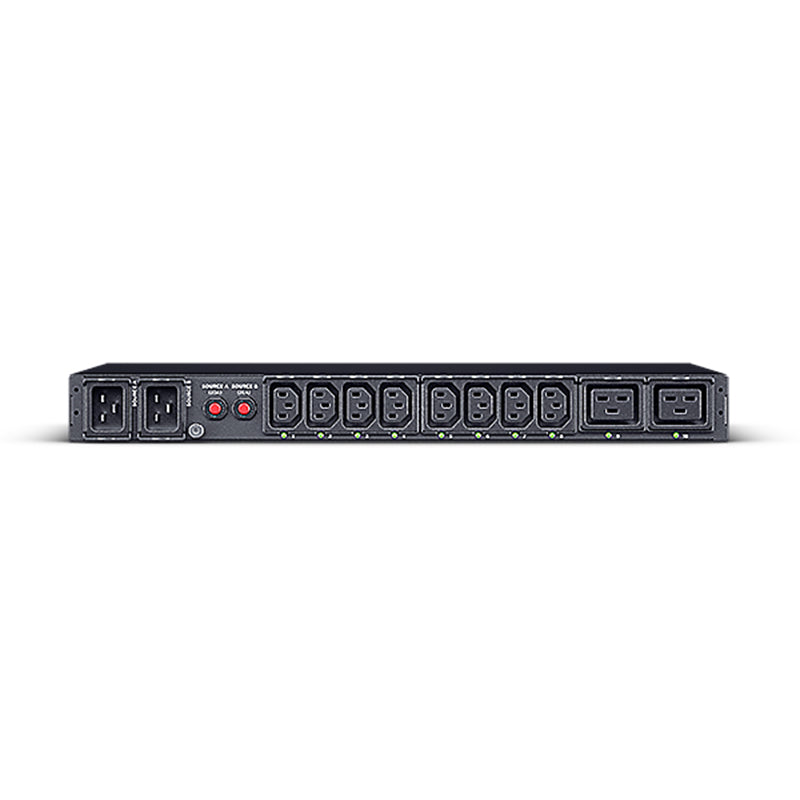

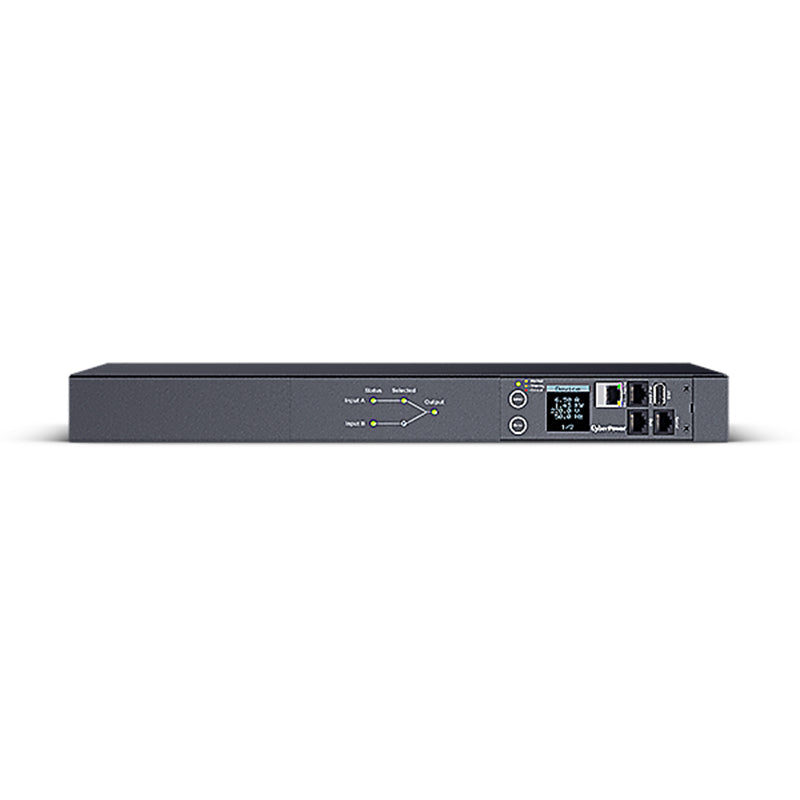

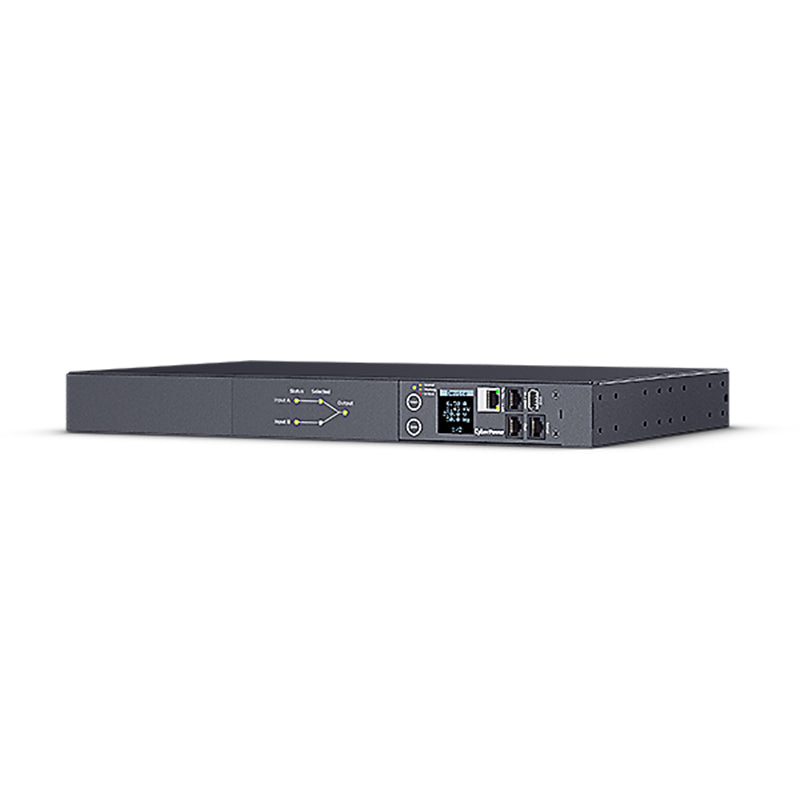

PDU44005 CyberPower 1U Switched ATS 16Amp



SKU: PDU44005

Chat 7am to 10pm - 7 days a week

We love what we do!

 Shipping Costs From

Standard - $20 or Express - $30

Want The Best Prices?

Request a quote

CyberPower PDU44005 provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If the selected power source exceeds the desired thresholds or fails, the ATS PDU will automatically switch to the other power source within 10 ms (Source Failure Detection Time: 2-3 ms. Power Source Transfer Time: 2-7 ms) to ensure continuous operation. The unit supports remote individual outlet control over the network, allowing administrators to turn on/off connected devices from any location.


The product is built-in with hot-swappable Ethernet module, which can work with PowerPanel Power Management Software and power management web interface for real-time remote monitoring and configuration. The digital LCD display is also color configurable, allowing users to easily maintain and monitor the ATS PDU. Users can change LCD’s colors to easily categorize devices between multiple machines in server room and IT environments. Event logging via a web browser or network connection allows users to review the history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The USB port also supports easy firmware upgrade. Moreover, the featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.



Real-time Local/Remote Monitoring and Switching
Dual Inputs
Industrial-grade Metal Housing
User Configurable Color LCD
LED Status Indicator
PowerPanel Management Software
Cord Retention Tray
Controllable Receptacles with Power Sequencing
Quick Transfer Time (Total < 10 ms)
Digital Real-time Load Display
Hot-swappable LCD Design
Firmware Upgrade via USB
User-upgradeable Firmware
Adjustable Mounting Brackets
IEC Receptacle Locking

  • Datasheets and Guides

Click HERE to access the Installation Guide
