SKU: DSPQ2300xb

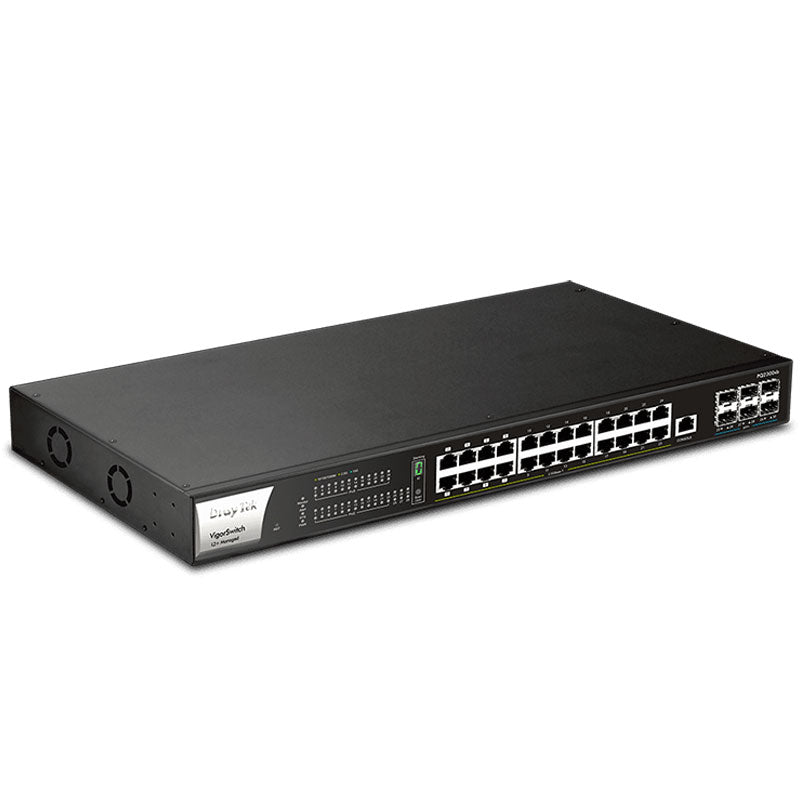

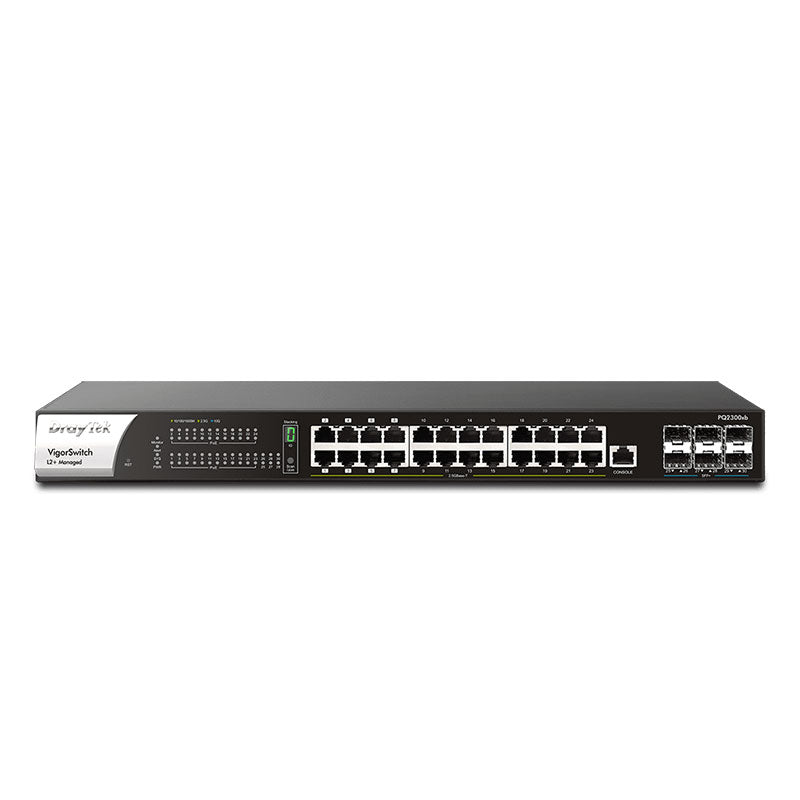

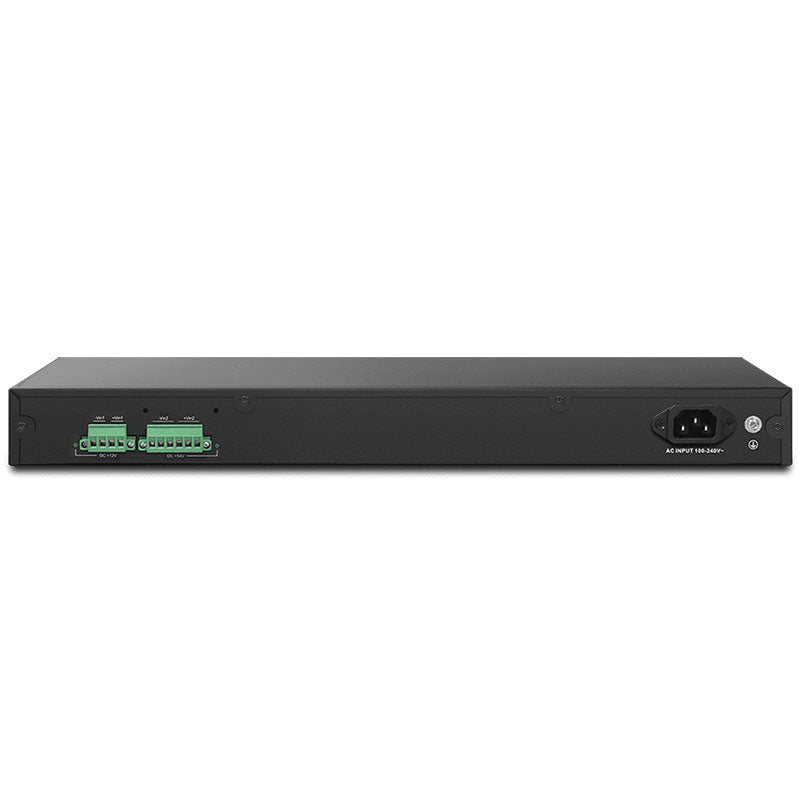

PQ2300xb DrayTek VigorSwitch PQ2300xb 30-Port PoE++ 2.5GbE L2+ Managed Switch

$1,110.64 AUD

What is Pre-Order / Special Order

We are just not quite the same as many of the other online stores.  I know it is easy to say that, but we just aren't.

The Tech Geeks, under their parent company Twelve Times (Worldwide) Pty Ltd trade in Australia, New Zealand and the United Kingdom.

This allows us to purchase stock from suppliers from locations where they have it available.    We are then able to import those products directly, along with providing localised Warranty and Replacement as required.

We only list items that we know have been, or are about to be released to us and since we purchase only in small batches these are often flown in on short time frames.

We list on each product our expected shipments and ones that we have already sent out to customers.   Please use these dates as a guideline as we always suggest 14-21 days just to allow for air freight or customs hold ups.

Want to know when new product stock is released? why not sign up here to our alerts.

Description

The VigorSwitch PQ2300xb is a Layer 2+ Managed Power over Ethernet switch with 6 x 10GbE SFP+ slots for connection of optic fibre modules or DAC cables. In addition, it has 8 x 2.5GbE ports with PoE++ PSE, 16 x 2.5GbE ports with PoE+ PSE and 1 x Console port.

With a total power budget of 400 Watts, the eight 802.3bt PoE++ ports provide up to 90 watts per port making it suitable to power devices such as point-of-sale equipment, LED lighting, digital signage and high-power wireless Access Points.

Each of the remaining 2.5 Gigabit Ethernet ports of VigorSwitch PQ2300xb supports the 802.3at and 802.3af PoE standards providing up to 30 Watts of power per port. This is useful in networks where power is required for devices such as wireless Access Points, IP phones, and IP cameras, removing the need for power cables and adapters.



Highlights:

  • 30-Port Layer 2+ Managed PoE++ Gigabit Switch
    • 6 x 10GbE SFP+ slots
    • 8 x 2.5 Gigabit Ethernet PoE++ ports (up to 90 Watts per port)
    • 16 x 2.5 Gigabit Ethernet PoE+ ports (up to 30 Watts per port)
  • PoE power budget of 400 watts
  • 240 Gbps switching capacity
  • 802.1q tagged VLANs (MAC address, and protocol)
  • Auto Voice and Surveillance VLANS providing improved call and video quality
  • QoS with 8 queues for traffic prioritisation
  • Enterprise-Level security features
    • 802.1x Port Security, ACL, IP Source Guard and DHCP Snooping
    • Access Control (IPv4, IPv6 and MAC address)
  • Support IPv6 with MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver
  • Authentication by local database, multiple RADIUS, and TACACS+ servers
  • IEEE 802.3az (Energy-Efficient Ethernet) Compliant
  • Support SNMP v1/v2c/v3, RMON and Syslog for network monitoring
  • Port Mirroring
  • 8 Link Aggregation Groups (LACP) with up to 8 Ports for each group
  • 1 x RJ-45 console port
  • Compliant with Central Switch Management features of DrayTek Vigor devices for simplified network management
  • Compliant with VigorConnect software for local network management
  • Support VigorACS 3 Central Management System for remote network management
  • Stackable up to four VigorSwitches (Line, Ring)
  • 2 years back-to-base warranty

Further Details:

Flexible VLAN Options

The VigorSwitch PQ2300xb supports both port-based and tagged-based VLANS, which can be used to add security to your network and create workgroups within an organisation. This allows the network administrator to control LAN access and also reduce unnecessary network traffic.

The VigorSwitch PQ2300xb supports up to 512 VLANS. In addition to 802.1q Tag-based VLANS, Auto Voice and Auto Surveillance VLANS are supported, so that traffic from an IP phone or an IP camera can be automatically identified without specifying each device’s MAC address. The appropriate QoS (Quality of Service) policy can be applied easily to ensure the best call and video quality.

Supported VLAN types include:
  • MAC-based VLAN
  • Protocol-based VLAN
  • Management VLAN
  • Voice VLAN
  • Surveillance VLAN
  • GVRP
  • QinQ


The VigorSwitch PQ2300xb features several security measures to prevent the local network from being overloaded by unnecessary traffic. This includes Storm Control to limit the amount of broadcast and multicast traffic on each port, and DoS Defense to protect the network from being flooded by malicious traffic. In addition, the VigorSwitch PQ2300xb also includes IP Source Guard, Dynamic ARP inspection, and DHCP Snooping.
Security can be enhanced by using 802.1x port access control to block unauthorised users from connecting to the network. Access control is also available through IPv4, IPv6 and MAC addresses filtering.

Improving Performance by QoS

Heavy LAN traffic can affect critical or time-sensitive applications such as VoIP or video streaming. The QoS feature of the VigorSwitch PQ2300xb can prioritise critical or time-sensitive data so that it will not be affected by other traffic.

The VigorSwitch PQ2300xb supports up to 8 traffic queues using Strict Priority Queuing or Weighted Round Robin to prioritise data for the selected Class of Service.

The Auto Voice VLAN and Auto Surveillance VLAN feature in the VigorSwitch PQ2300xb is ideal for networks deploying IP cameras and IP phones.

The VigorSwitch PQ2300xb supports link aggregation using both static configuration and LACP (Link Aggregation Control Protocol). With Link Aggregation, up to 8 LAN ports can be grouped to provide high throughput to cascaded switches. Up to 8 Link Aggregation Groups can be configured with each group having up to 8 port members.

Central Management

The VigorSwitch PQ2300xb can be run in standalone mode and can also be managed using the Central Switch Management feature of a connected Vigor Router. Functions that can be performed using Central Switch Management include provisioning, configuration, monitoring, and maintenance of the VigorSwitch.

Other central management platforms include DrayTek VigorACS 3 and VigorConnect.
  • Datasheets and Guides

Click HERE to access the Datasheet

Click HERE to access the Installation Guide
