RG-CS83-24GT4XS-PD - Ruijie 24-Port Layer 3 Managed PoE+ Switch with 4x 10GE SFP+ Uplinks (740W PoE)
Description
Description

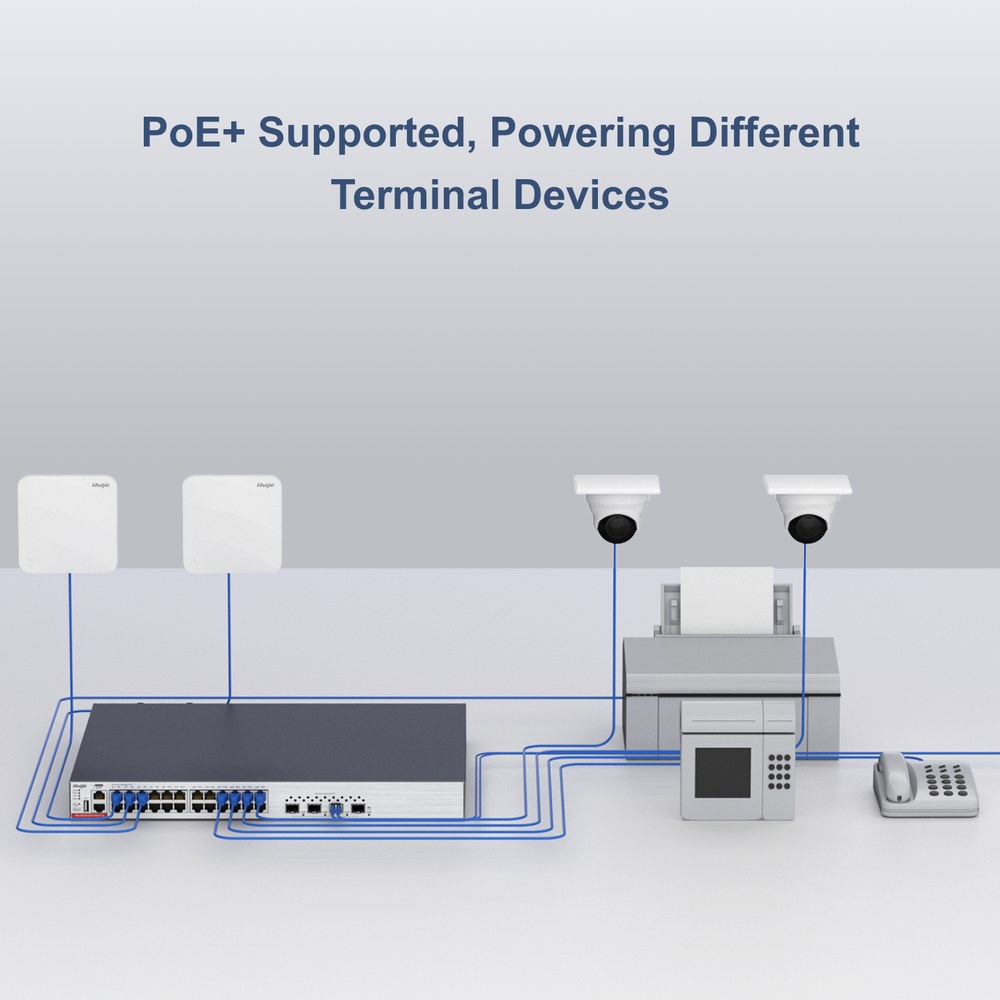

The Ruijie RG-CS83-24GT4XS-PD is a 24-port Layer 3 managed PoE+ switch built for large enterprise and campus LANs that need full gigabit access, flexible 10GE SFP+ uplinks and a generous PoE budget of up to 740 W. Part of Ruijie's RG-CS83-PD series, SKU RG-CS83-24GT4XS-PD combines high-density PoE/PoE+ (IEEE 802.3af/at) power delivery with advanced routing, security and reliability features, making it a dependable access switch for powering IP phones, wireless access points and IP cameras while keeping your network protected and resilient.
Each of the 24 RJ45 ports supports PoE/PoE+ and can deliver up to 30 W per port, with the total available power depending on the power modules installed. The four SFP+ ports support 1GE/10GE, giving you high-speed uplinks to your aggregation or core layer. With VSU (Virtual Switching Unit) virtualisation, up to four switches can be combined into a single logical device for simpler management and faster failover.
Key Features
- 24 x 10/100/1000BASE-T ports with PoE/PoE+ (IEEE 802.3af and 802.3at)
- 4 x 1GE/10GE SFP+ uplink ports for high-speed data transmission
- Up to 740 W PoE output, with up to 30 W per port (depends on installed power modules)

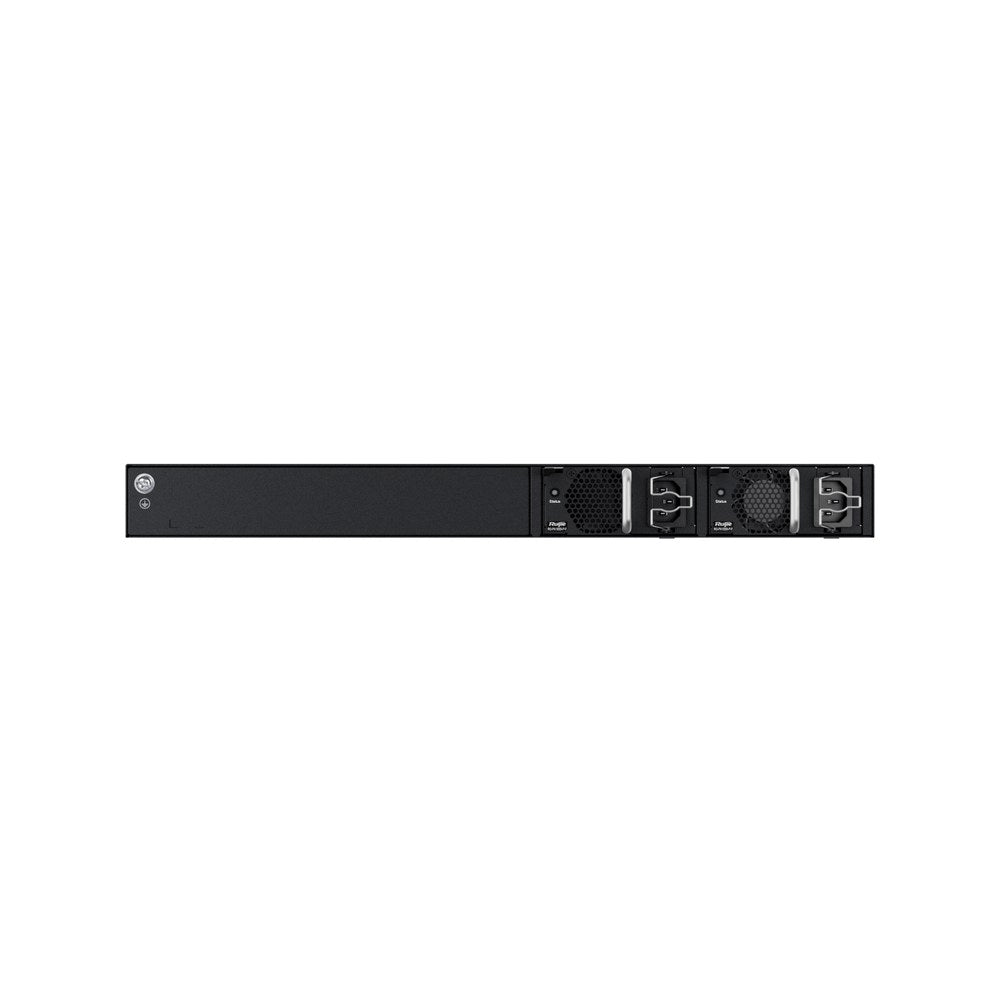

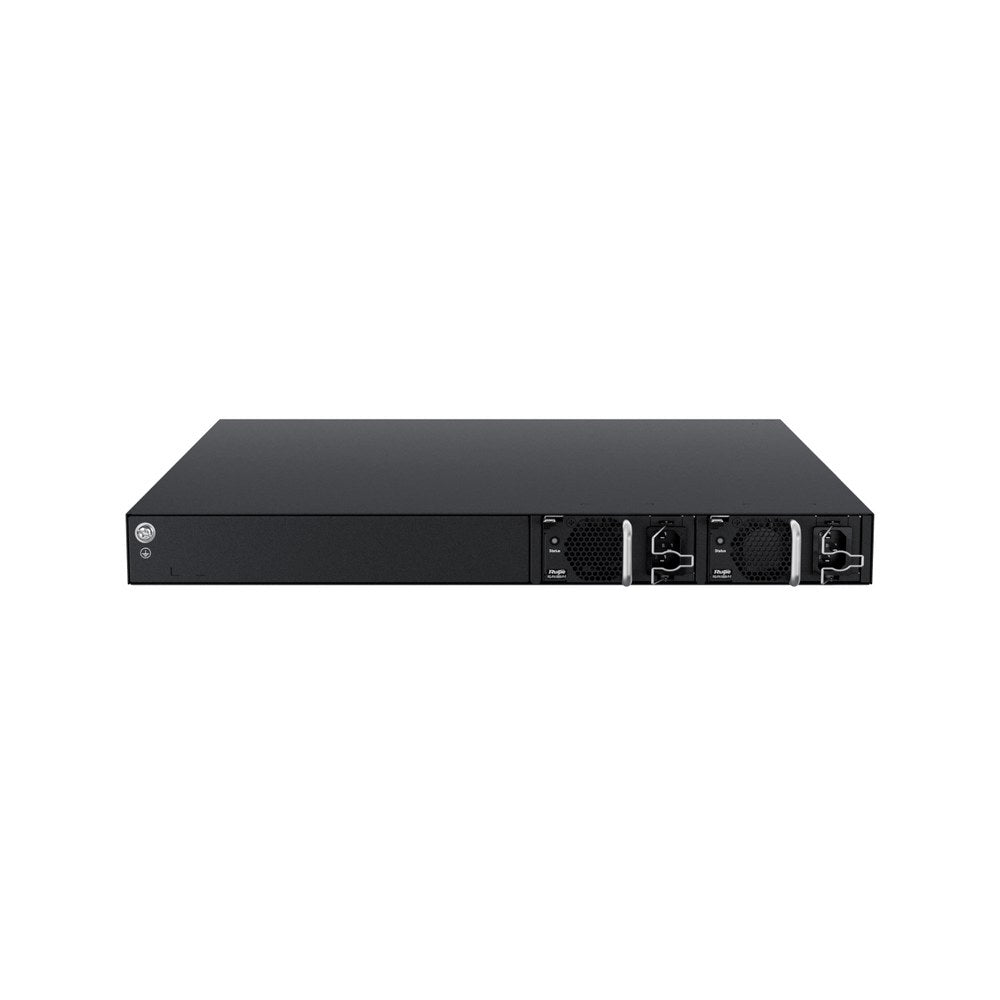

- 2 x hot-swappable power module slots for flexible capacity and redundancy
- 128 Gbps switching capacity and 96 Mpps packet forwarding rate
- Layer 3 routing with 8,000 IPv4 and 4,000 IPv6 unicast routes

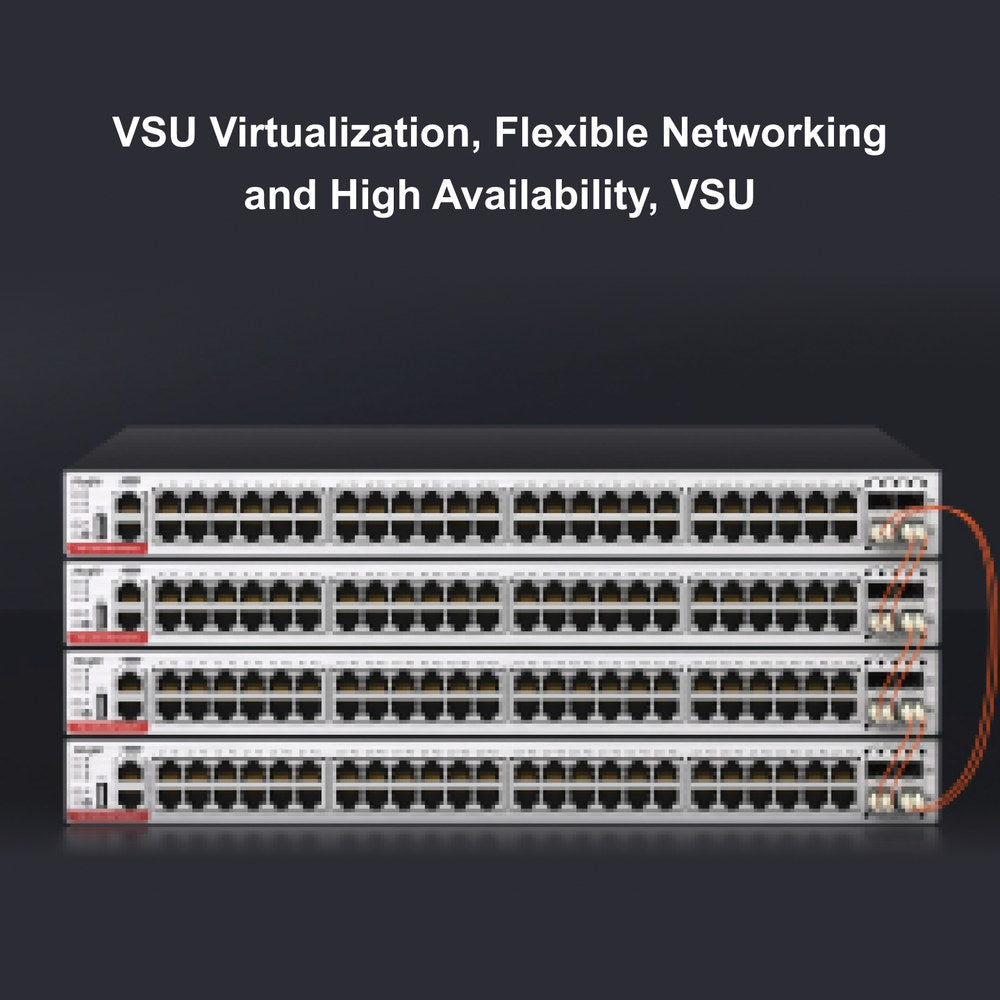

- VSU virtualisation supporting up to 4 members in one logical device

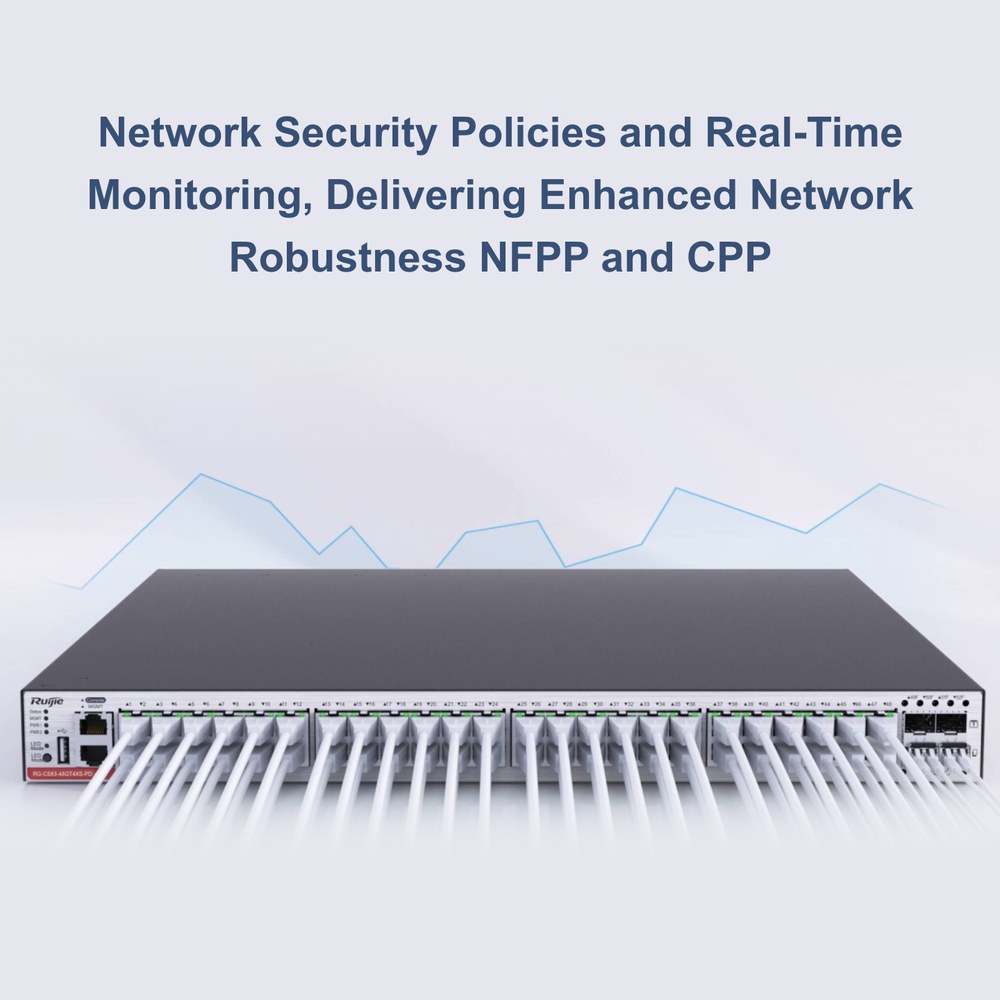

- Network security including CPU Protect Policy (CPP), Network Foundation Protection Policy (NFPP) and uRPF
- Reliability protocols including VRRP, BFD, REUP, RLDP and DLDP
- 32,000 MAC address entries, 4,000 ARP entries and 3 MB switch buffer
- Dual-core 1.2 GHz CPU, 1 GB memory and 2 GB flash

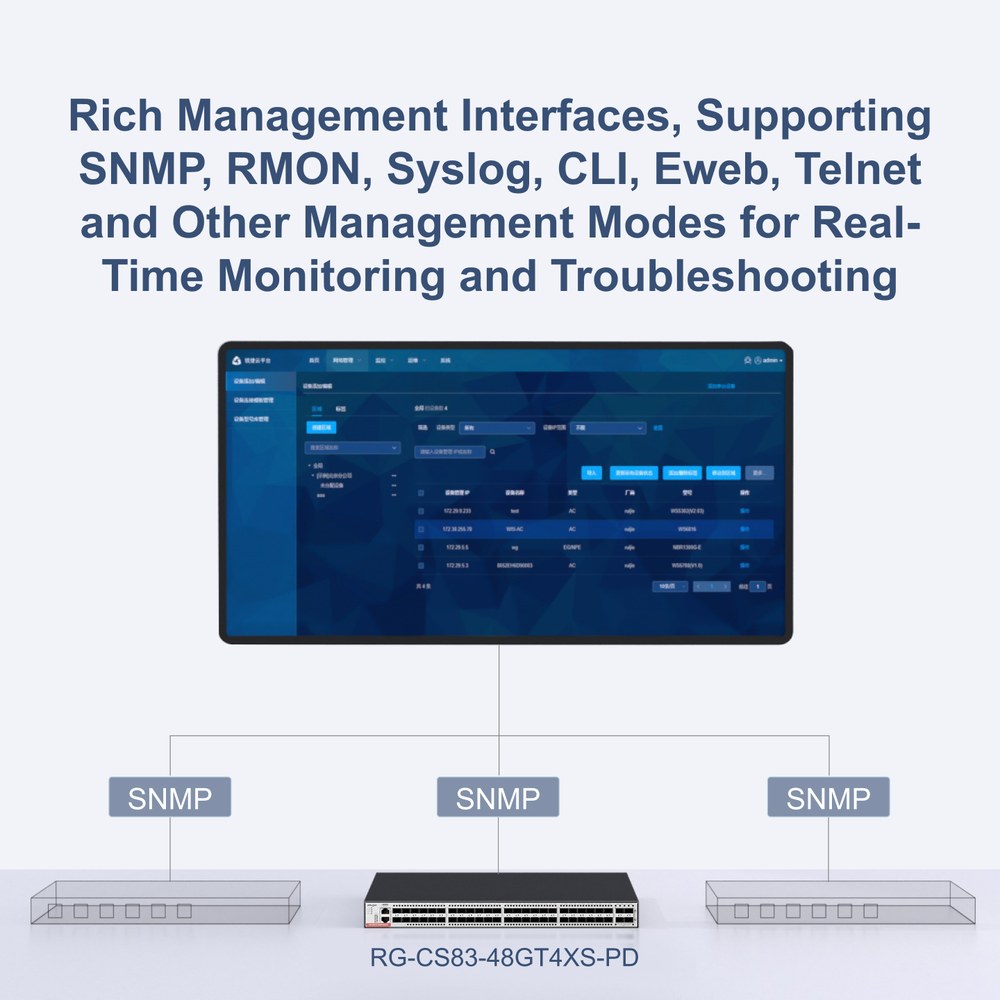

- Management via 1 x MGMT port, 1 x console port and 1 x USB port, with support for Ruijie Cloud
- Fan speed adjustment, power supply monitoring and hot swapping of power modules and cables
- Operating temperature of 0°C to 45°C in a 442 mm wide rack-mountable chassis
Power Modules (Not Included)
The RG-CS83-24GT4XS-PD requires at least one Ruijie power module to operate. Choose between the RG-PA600I-P-F and the RG-PA1000I-P-F. Using one RG-PA1000I-P-F or two RG-PA600I-P-F modules delivers the full 740 W PoE budget.
Compatible Products
Power modules: Ruijie RG-PA600I-P-F and RG-PA1000I-P-F PoE power modules.
Network uplinks: 1GE/10GE SFP+ transceivers and cables for the four uplink ports.

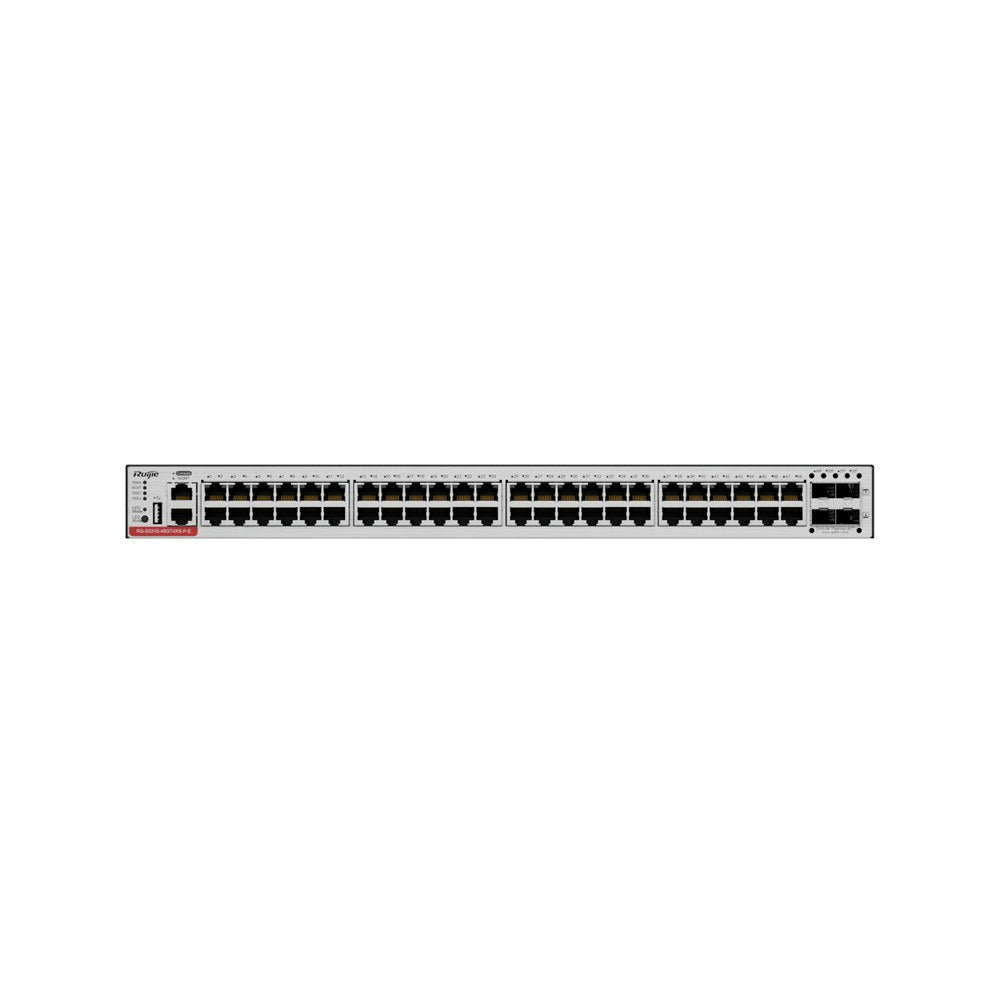

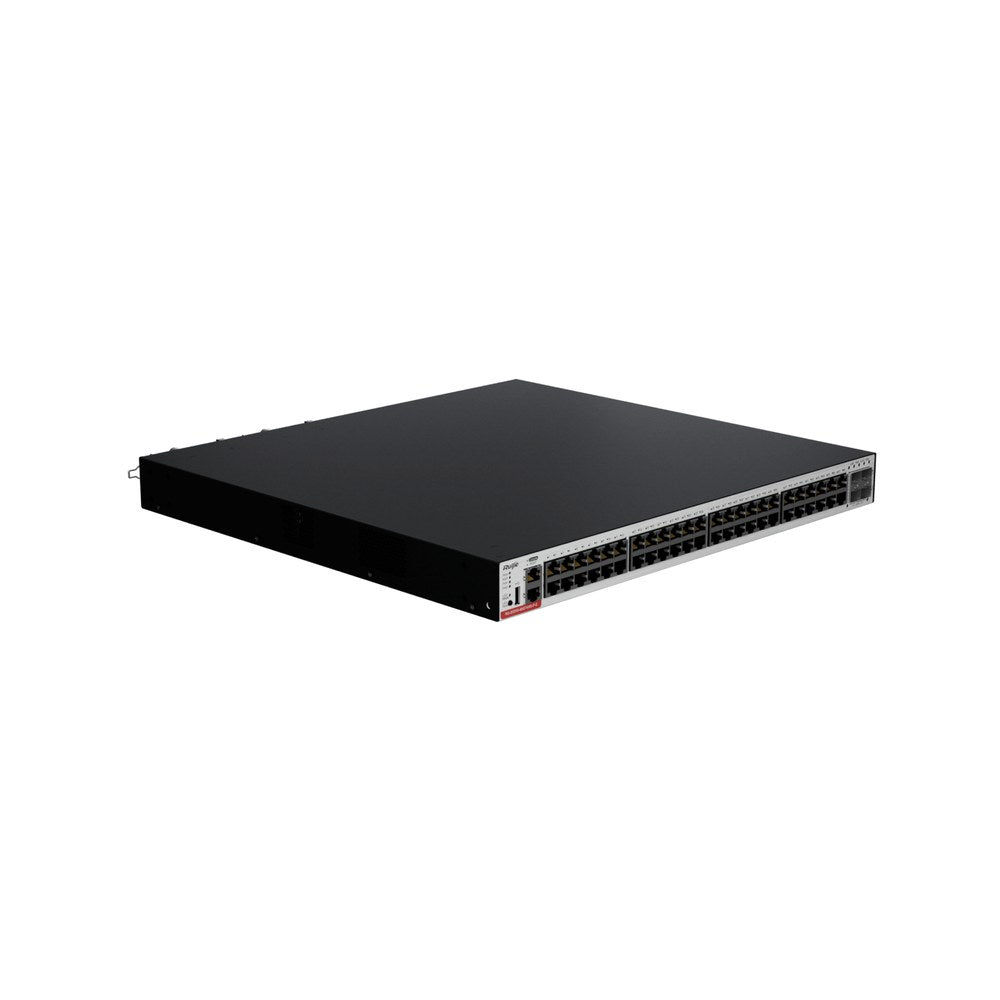

Related switches: The 48-port RG-CS83-48GT4XS-PD from the same series.
Ideal for: IT managers, system integrators and network administrators deploying gigabit PoE+ access in large enterprise networks, campuses, government and education environments, healthcare facilities and other sites needing reliable Layer 3 access switching with 10GE uplinks.
Click HERE to access the Datasheet
