RG-ES103F-P - Ruijie 2-Port 10/100BASE-T PoE+ Unmanaged PoE Extender with 1-Port Fast Ethernet PoE In (802.3af/at)
Description
Description

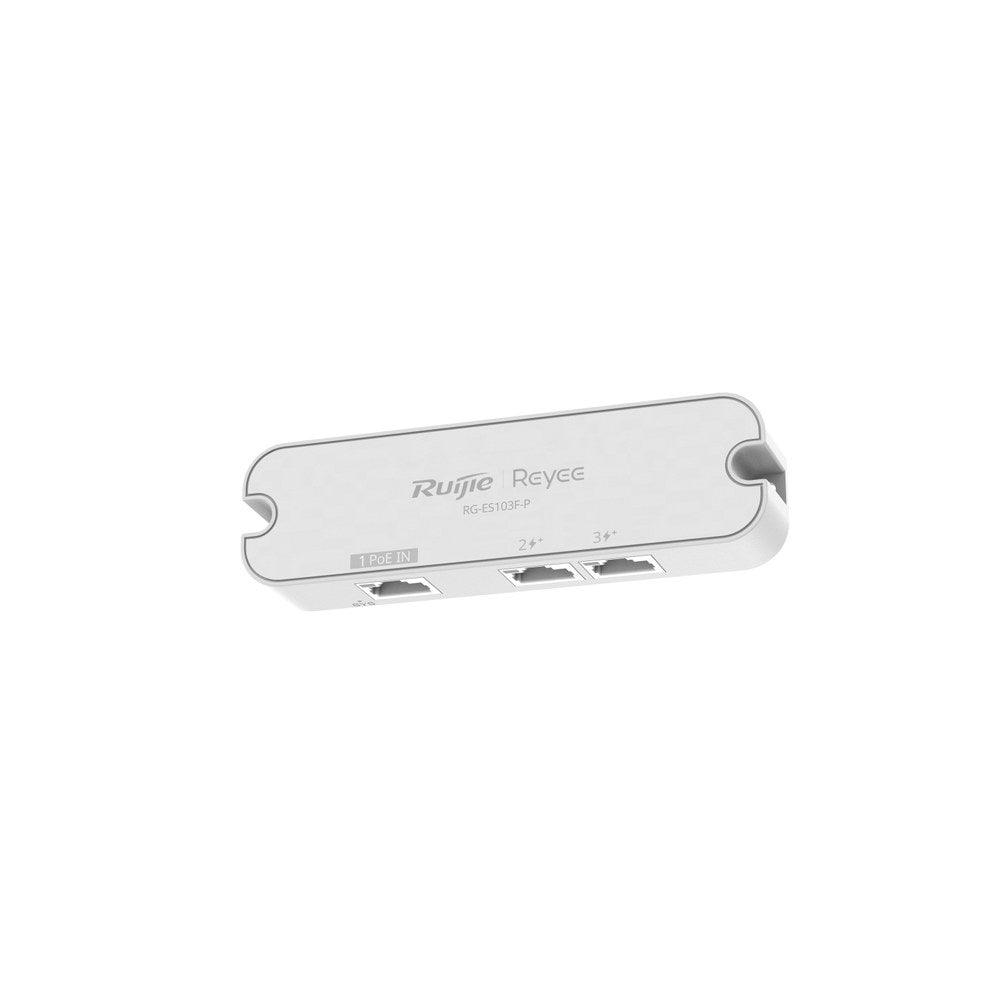

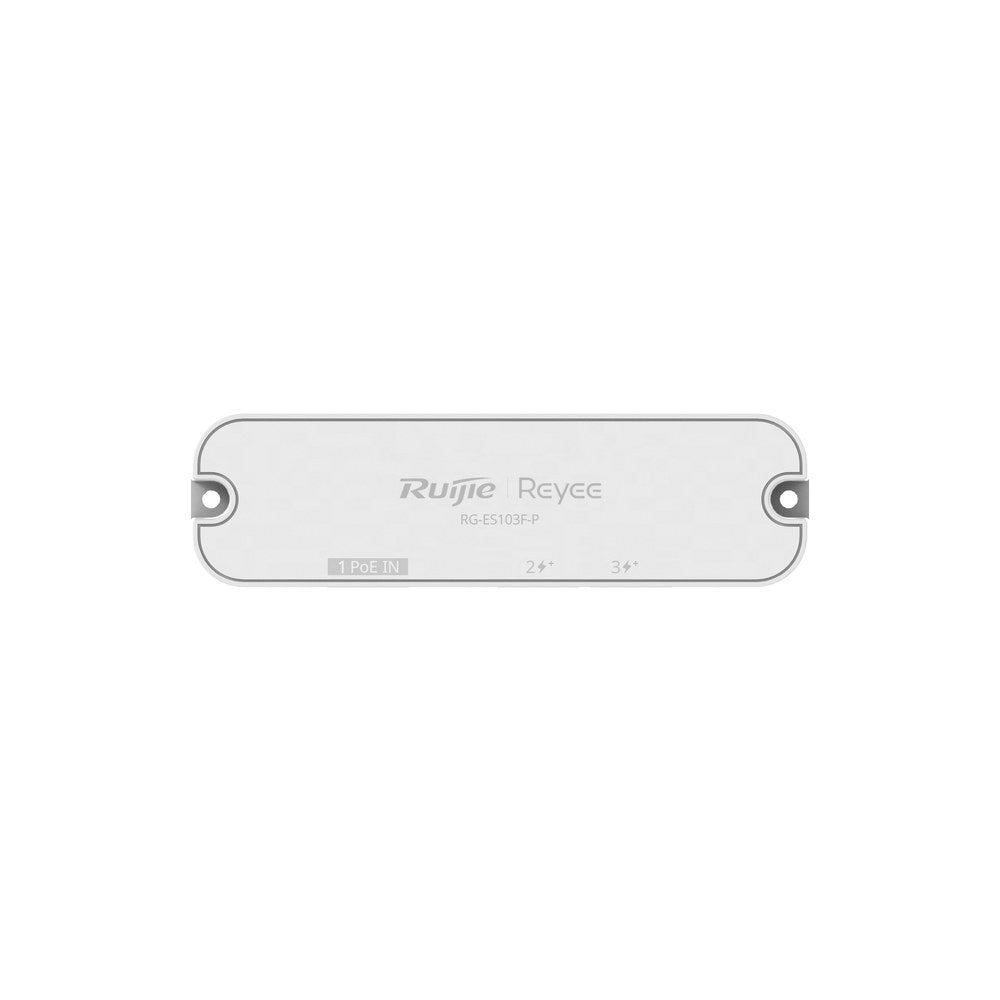

The Ruijie RG-ES103F-P is a compact 3-port PoE unmanaged switch and PoE extender from the Ruijie Reyee range, designed to extend your CCTV and IP camera network without extra mains power. It provides three 10/100BASE-T ports: one PoE In port that accepts power from an upstream PoE switch or injector, and two PoE/PoE+ (IEEE 802.3af/at) output ports to power downstream devices. With a 30 W PoE budget, the RG-ES103F-P is a cost-effective, plug-and-play way to add camera ports where a power outlet is not available.
Key Features
- PoE In and PoE Out – powered via its PoE input port, then passes power on to two PoE/PoE+ output ports.

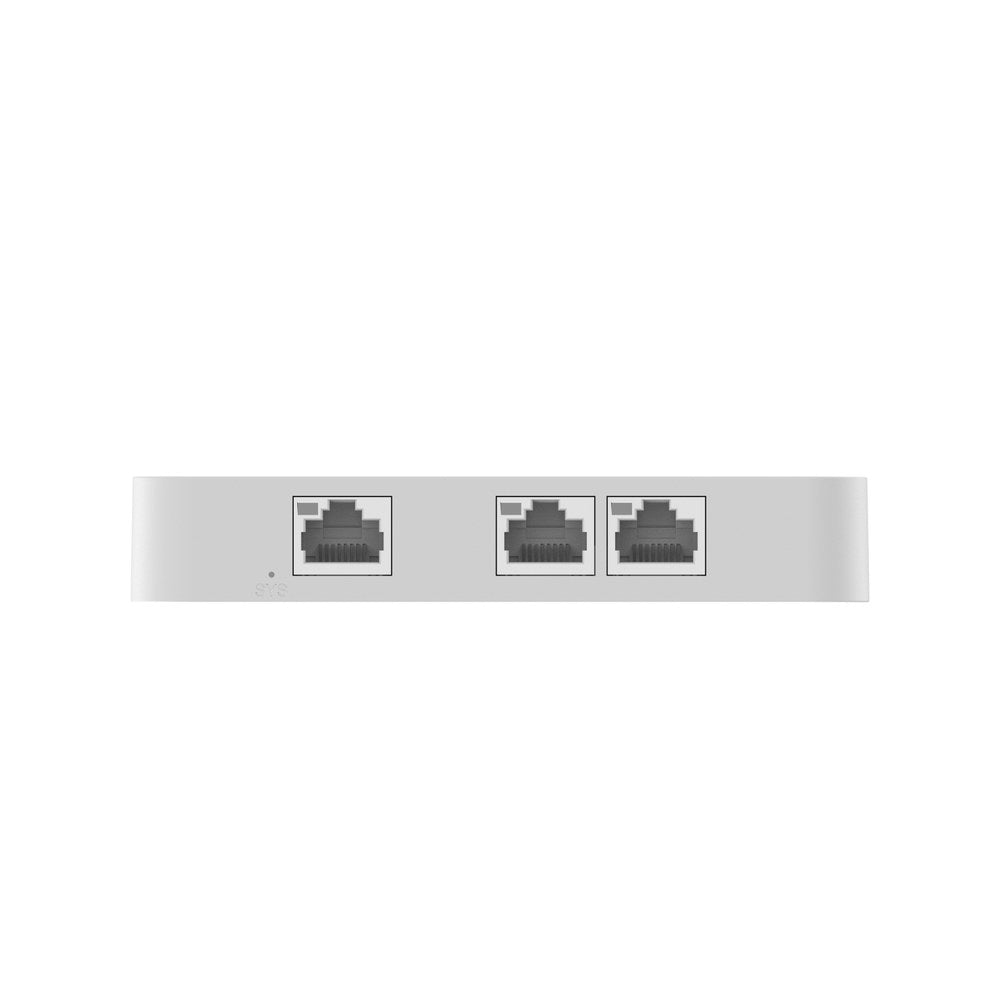

- Three 10/100BASE-T RJ45 ports (2 x PoE+ out, 1 x PoE in) with line-rate forwarding on all ports.
- 30 W total PoE budget using pins 1-2(+) and 3-6(-), compliant with IEEE 802.3af/at.
- Supports up to 2 concurrent cameras – suited to two 4MP IP cameras.
- Plug and play – unmanaged operation with no configuration required.
- 4 kV surge protection for added reliability in CCTV installations.
- Fanless, compact design with natural cooling for silent operation.
- Extended coverage – the coverage distance reaches up to 350 m when the uplink device supports long-distance transmission (for 350 m, a single downlink camera is recommended; actual performance varies with environment and cable quality).
- Performance: 0.6 Gbps switching capacity and 0.45 Mpps forwarding rate.
- Operating temperature of 0°C to 40°C, backed by a 3-year warranty.
Technical Snapshot
Model: RG-ES103F-P | Ports: 3 x 10/100BASE-T | PoE out ports: 2 | PoE standard: IEEE 802.3af/at | PoE budget: 30 W | Dimensions: 120 mm x 34 mm x 20.5 mm | Weight: 0.05 kg | Certifications include CE and CB.
Ideal for
Installers, small businesses, retail sites, homes and integrators who need to extend a PoE camera network by a few extra ports without running additional power, such as adding two IP cameras at the end of a single Ethernet run.
Compatible Products
Upstream power sources
Any IEEE 802.3af/at PoE switch or PoE injector, such as Ruijie Reyee PoE switches, can supply power to the PoE In port.
Downstream devices
IEEE 802.3af/at PoE-powered IP cameras and other PoE devices within the 30 W budget.
Click HERE to access the Datasheet
