RLC-520A - Reolink 5MP PoE IP Camera with Person/Vehicle Detection
Description
Description

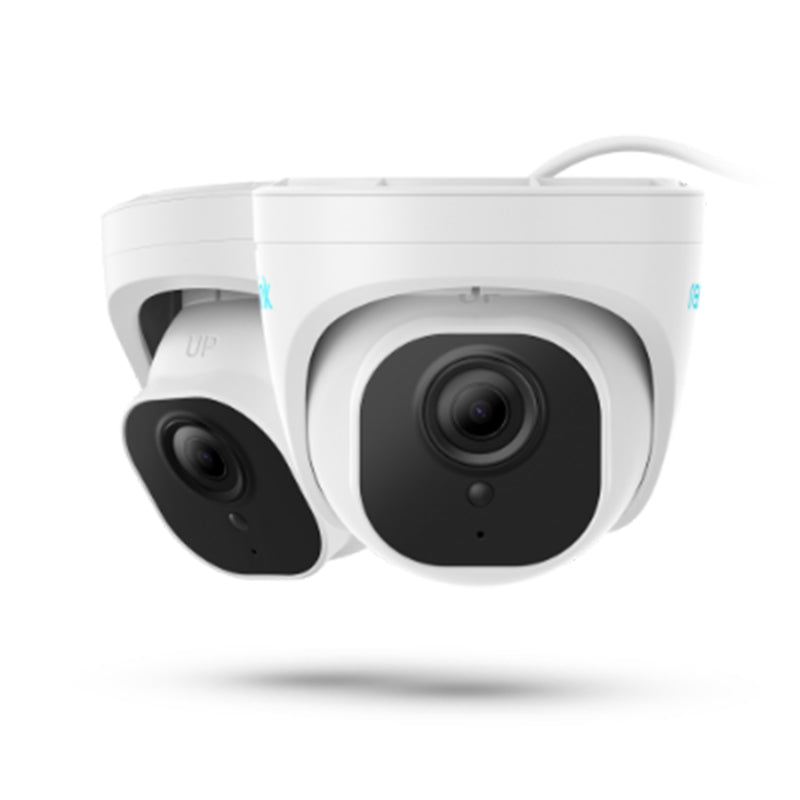

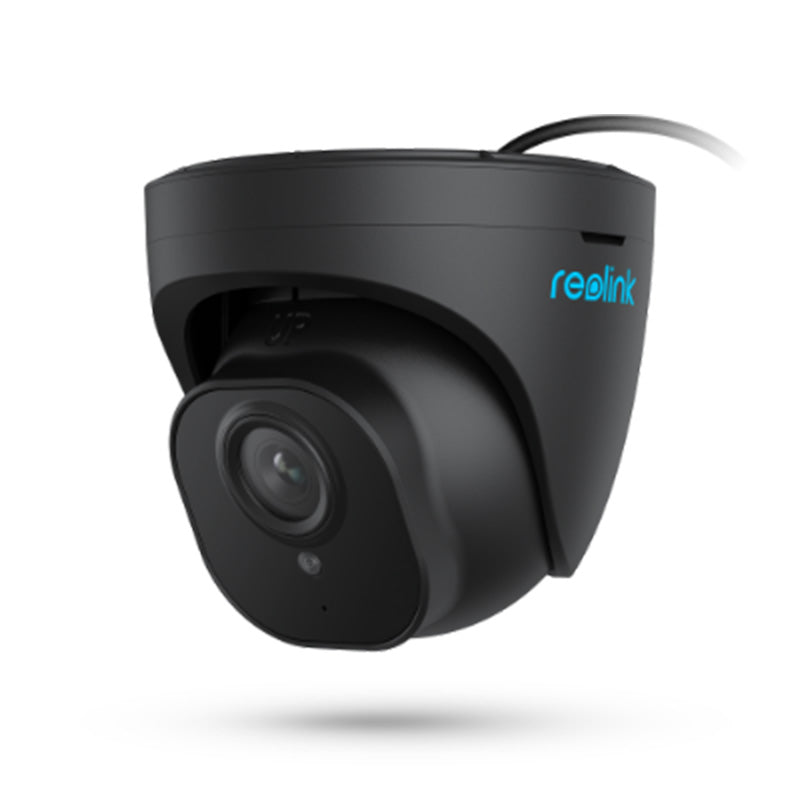

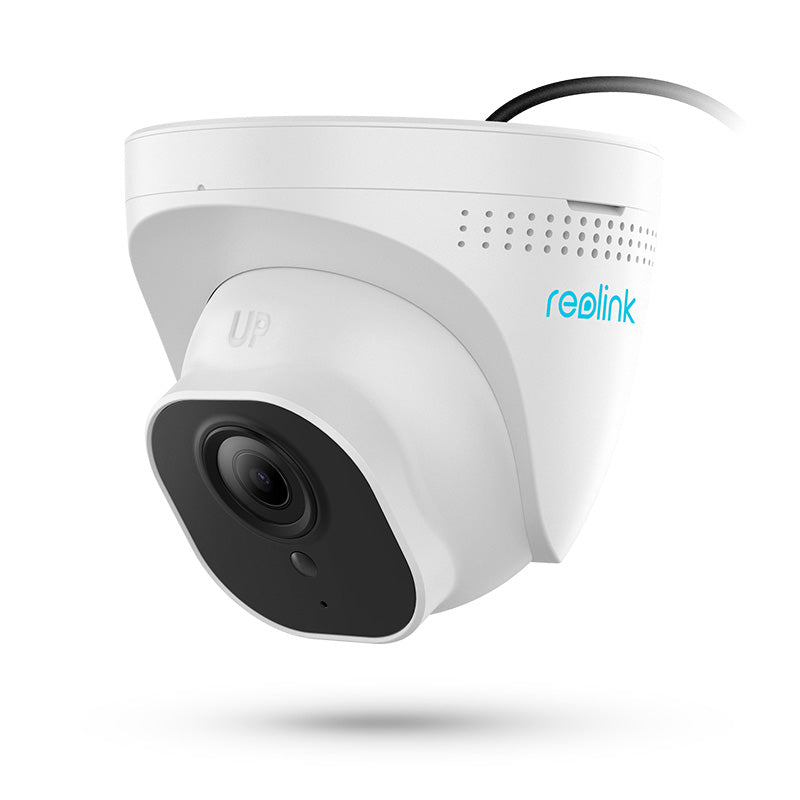

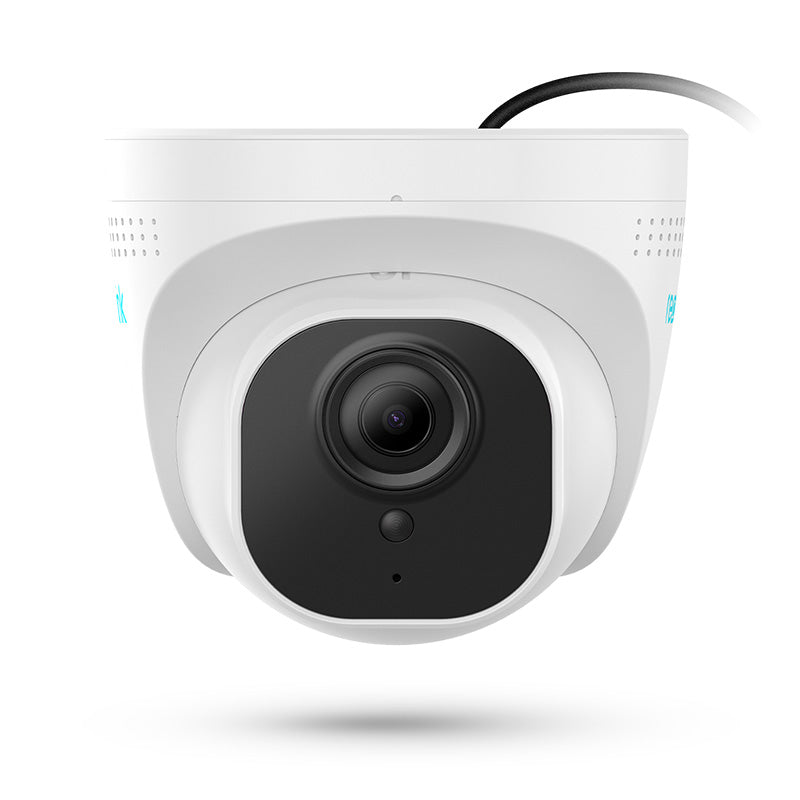

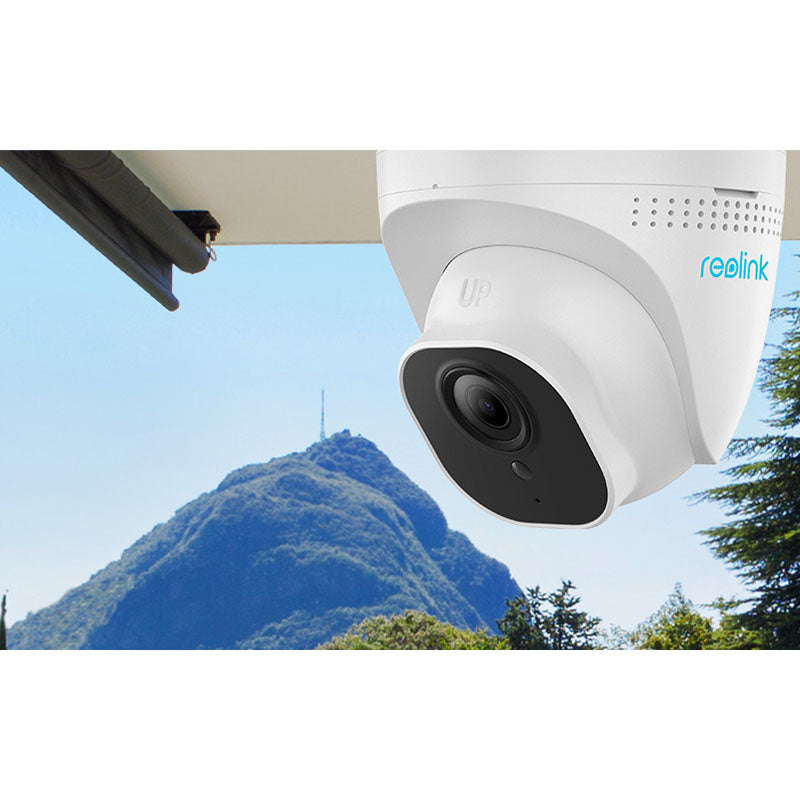

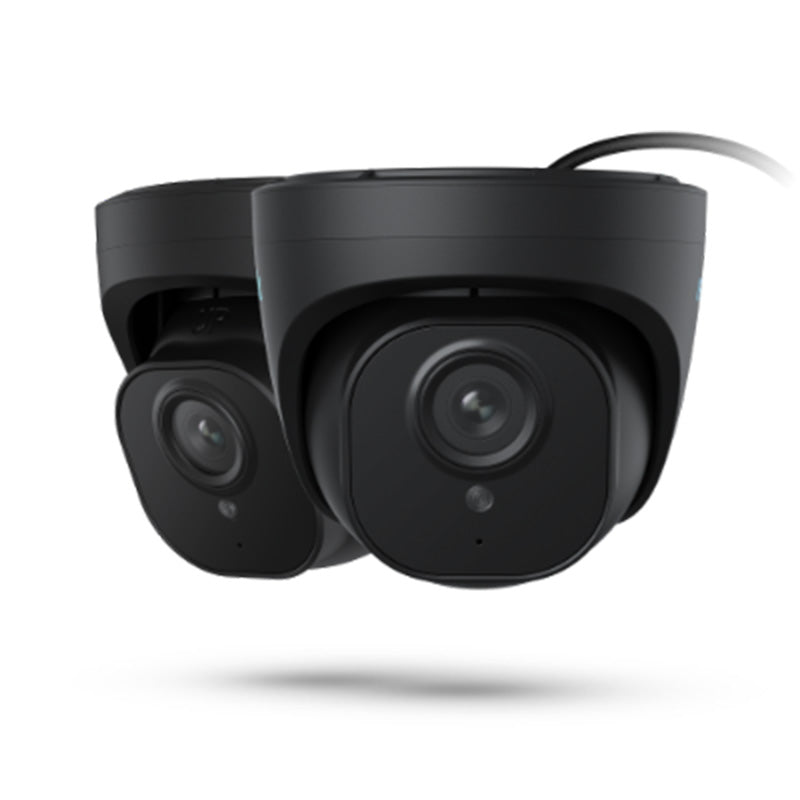

The Reolink RLC-520A is a 5MP Super HD outdoor dome PoE security camera that delivers crystal-clear surveillance with intelligent person, vehicle, and animal detection. Engineered for reliable 24/7 monitoring, this IP67 weatherproof camera combines professional-grade image quality with smart AI detection to keep false alarms to a minimum and ensure you're only alerted when it truly matters.
Featuring a 2560×1920 resolution at up to 30 frames per second, the RLC-520A captures footage with exceptional clarity and detail. Equipped with 18 infrared LEDs, it provides sharp black-and-white night vision up to 100 feet (30 metres), ensuring round-the-clock protection in complete darkness. The camera's built-in microphone adds an extra layer of security by capturing ambient audio alongside video footage.
Installation is straightforward thanks to Power over Ethernet (PoE) technology—a single cable transmits both data and power using IEEE 802.3af standard, simplifying wiring and reducing installation time. The camera supports flexible storage options including a microSD card up to 512GB, connection to a compatible Reolink NVR, or FTP backup, giving you complete control over your recordings without subscription fees.
Monitor your property from anywhere using the intuitive Reolink App or Client on iOS, Android, Windows, or Mac. Receive real-time push notifications and email alerts when motion is detected, and customise motion detection zones to focus on the areas that matter most. The RLC-520A also supports advanced features like time-lapse recording, ONVIF 2.1, and RTSP streaming for integration with third-party software such as Blue Iris and Synology Surveillance Station.
Key Features
- 5MP Super HD Resolution: 2560×1920 pixels for crystal-clear video with fine detail
- Smart Detection: AI-powered person, vehicle, and animal detection reduces false alarms
- 100ft Night Vision: 18 infrared LEDs provide clear black-and-white vision up to 30 metres in total darkness
- Audio Recording: Built-in microphone captures ambient sound

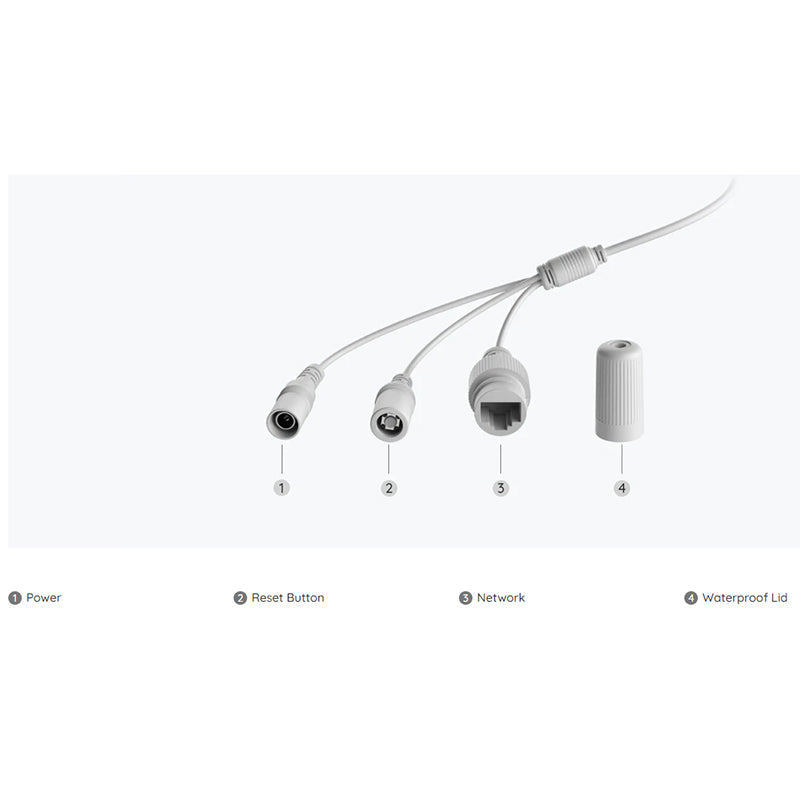

- PoE Connectivity: Single cable for both power and data (IEEE 802.3af); also supports DC 12V power

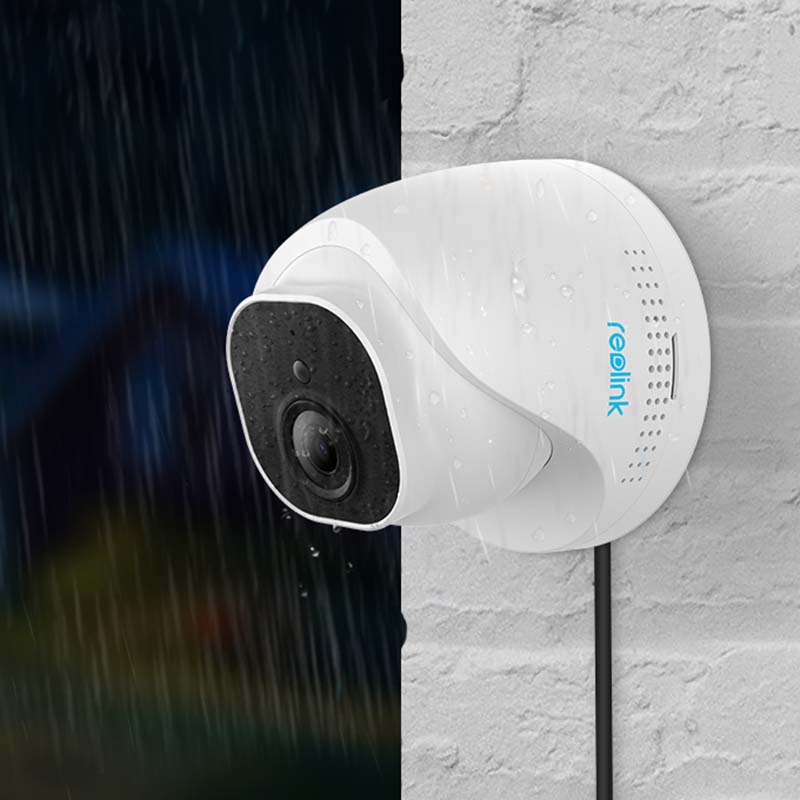

- IP67 Weatherproof: Rugged housing withstands harsh outdoor conditions

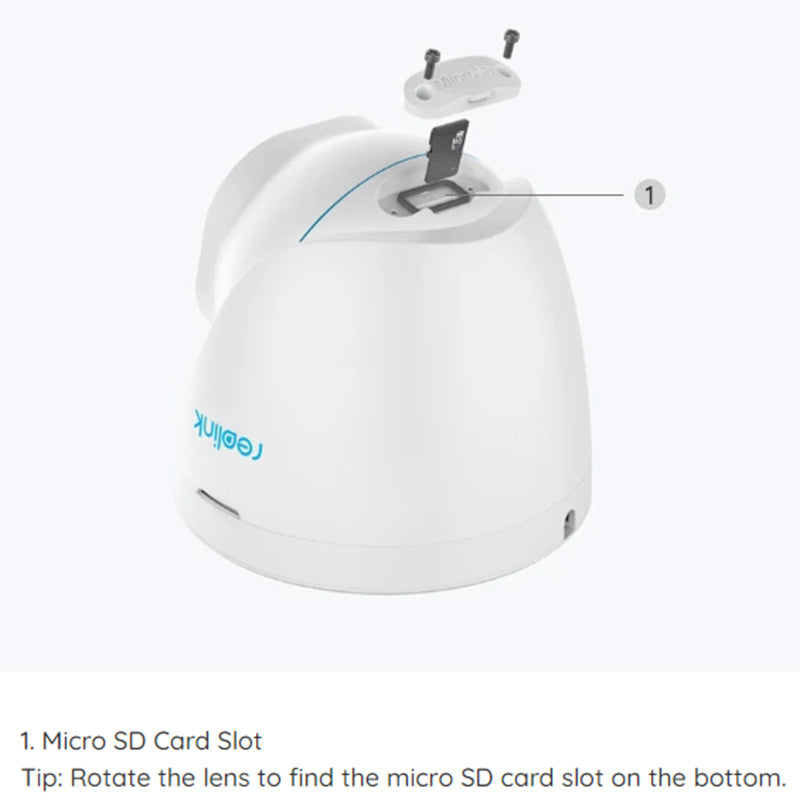

- Flexible Storage: MicroSD card support (up to 512GB), NVR compatibility, and FTP backup
- Remote Access: Live view and playback via Reolink App/Client from anywhere
- Customisable Alerts: Real-time push notifications and email alerts

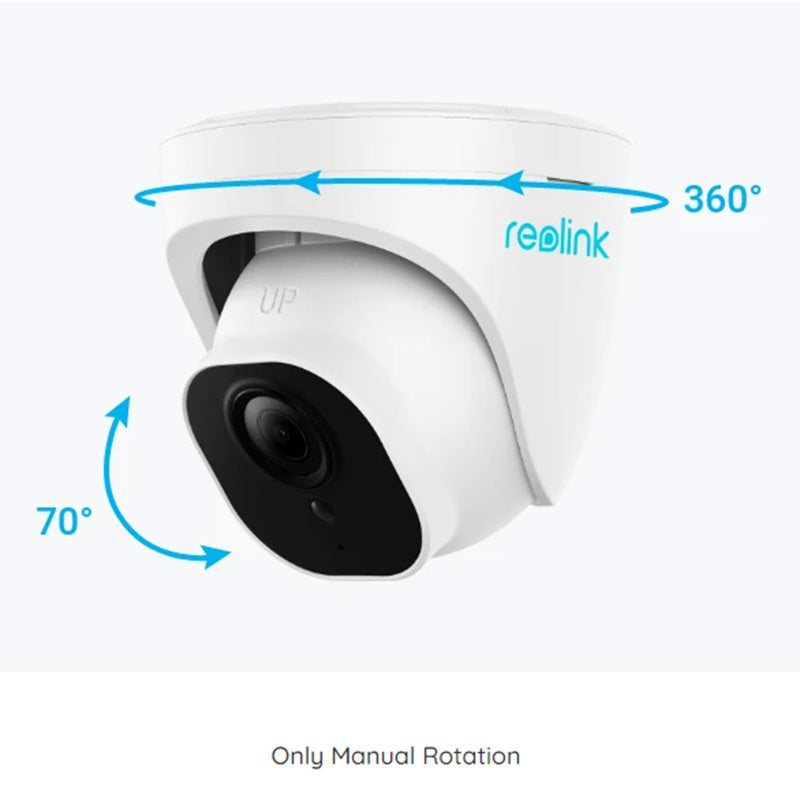

- Wide Field of View: 80° horizontal, 48° vertical viewing angle
- Time-Lapse Recording: Capture hours or days of activity in a short, shareable clip
- No Subscription Fees: All features available without monthly charges
Ideal for: Homeowners, small businesses, and DIY enthusiasts seeking reliable, high-definition outdoor surveillance with intelligent motion detection and flexible installation options.
Compatible Reolink NVRs
The RLC-520A works seamlessly with all current Reolink NVRs, including models with hardware versions N7MB01, N6MB01, N5MB01, N2MB02, N3MB01, and H3MB18. Popular compatible systems include the RLN8-410 and other Reolink PoE NVR models. The camera can also integrate with third-party systems via ONVIF Profile S and RTSP protocols.
Compatible Third-Party Systems
The RLC-520A supports integration with Synology Surveillance Station, Blue Iris, and other NVR software that supports ONVIF 2.1 and RTSP streaming protocols, offering flexibility for existing security setups.
Specifications

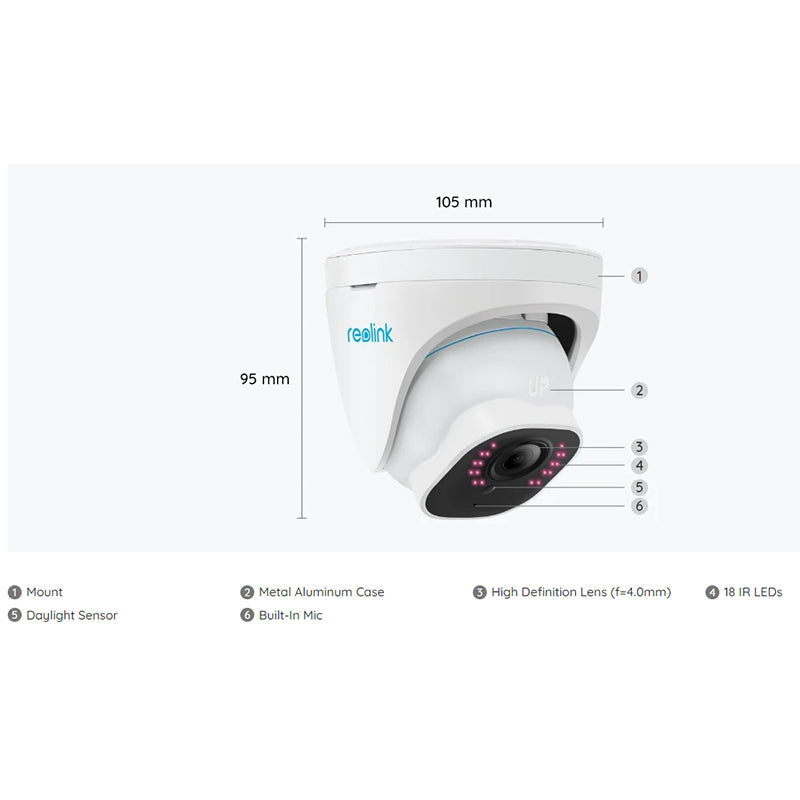

Image Sensor: 1/2.7" CMOS sensor
Video Compression: H.265/H.264
Frame Rate: Mainstream 2–30fps (default 30fps); Substream 4–15fps (default 10fps)
Bitrate: Mainstream 1024–8192Kbps (default 6144Kbps); Substream 64–512Kbps (default 256Kbps)
Lens: f=4.0mm fixed, F=2.0 with IR-cut filter
Power Consumption: <12W
Ethernet: 10/100Mbps RJ45
Supported Cables: CAT5, CAT6, CAT7 with T-568B connectors
Browser Support: Edge, Chrome, Firefox, Safari
Operating Temperature: -10°C to +55°C (14°F to 131°F)
FAQs
Can the RLC-520A be added to a Reolink NVR?
Yes, this camera can be added to Reolink NVRs for centralised management and 24/7 continuous recording.
What Ethernet cables are supported?
The camera supports T-568B connectors and works with CAT5, CAT6, and CAT7 Ethernet cables with 8-pin configuration.
Does the RLC-520A support cloud storage?
The RLC-520A does not currently support Reolink Cloud. You can save recordings to a microSD card (up to 512GB), connect to a Reolink NVR, or use an FTP server for backup.
Can I use this camera with Synology Surveillance Station?
Yes, the RLC-520A works with Synology Surveillance Station. Add the camera via the station interface, ensuring both devices are on the same local network.
Where are recordings saved?
When used without an NVR, recordings are saved to a microSD card (purchased separately). When connected to an NVR, recordings are saved to the NVR's hard drive.
-
