Description
Description
The Alta Labs Route10 Starter Kit (SKU: ROUTE10-STARTER+B) delivers a comprehensive, enterprise-grade networking solution designed for high performance and reliability. This complete bundle includes everything needed to build a professional network: the powerful Route10 router, two advanced WiFi 6 access points (AP6 and AP6-PRO), and the S8-POE managed switch — all managed through Alta Labs' intuitive cloud platform at no additional cost.
Ideal for: Small to medium businesses, home offices, professional installers, and tech enthusiasts seeking enterprise-grade performance with cloud-based management and seamless scalability.
Key Features
- Route10 10 Gbps Router: Four autosensing Ethernet ports supporting 10/100/1000/2500 Mbps connections, plus two 10 Gbps SFP+ ports for high-speed fibre connectivity
- Integrated PoE+ on Route10: Ports 2 and 3 provide PoE+ connectivity to power Alta Labs access points directly from the router
- Quad-Core Qualcomm Network Accelerator: Advanced processing power for exceptional routing performance and security features
- AP6 WiFi 6 Access Point: Dual-band, 4-stream WiFi 6 platform delivering optimal 2.4 GHz and 5 GHz performance with proprietary antenna design for superior range
- AP6-PRO WiFi 6 Access Point: High-performance 6-stream WiFi 6 with 4096 QAM (a WiFi 7 feature) providing combined 6.3 Gbps capacity, IP54-rated for commercial environments
- S8-POE Managed Switch: Eight 10/100/1000 Mbps Ethernet ports with PoE+ on ports 1-4, offering 60W total PoE budget capacity
- Intelligent Mesh Technology: Both access points feature mesh capability to extend WiFi coverage to hard-to-reach areas without running cables
- AltaPass™ Multi-Password Technology: Unique feature allowing multiple passwords for the same SSID with different access levels and bandwidth controls
- Cloud-Based Management: Free lifetime access to Alta Control cloud platform with mobile app support for iOS and Android
- Seamless Roaming: Support for 802.11k, v, and r standards ensures smooth transitions between access points
- Bluetooth Setup: All devices include Bluetooth functionality for streamlined configuration
- QuickMount™ Technology: Proprietary mounting system for fast, secure installation of access points
- Deep Packet Inspection Engine: Built-in DPI for advanced traffic management and security
- IGMP Snooping: Optimises network performance for IPTV and multicast video streams
- 802.1X Authentication: Enterprise-grade network authentication support

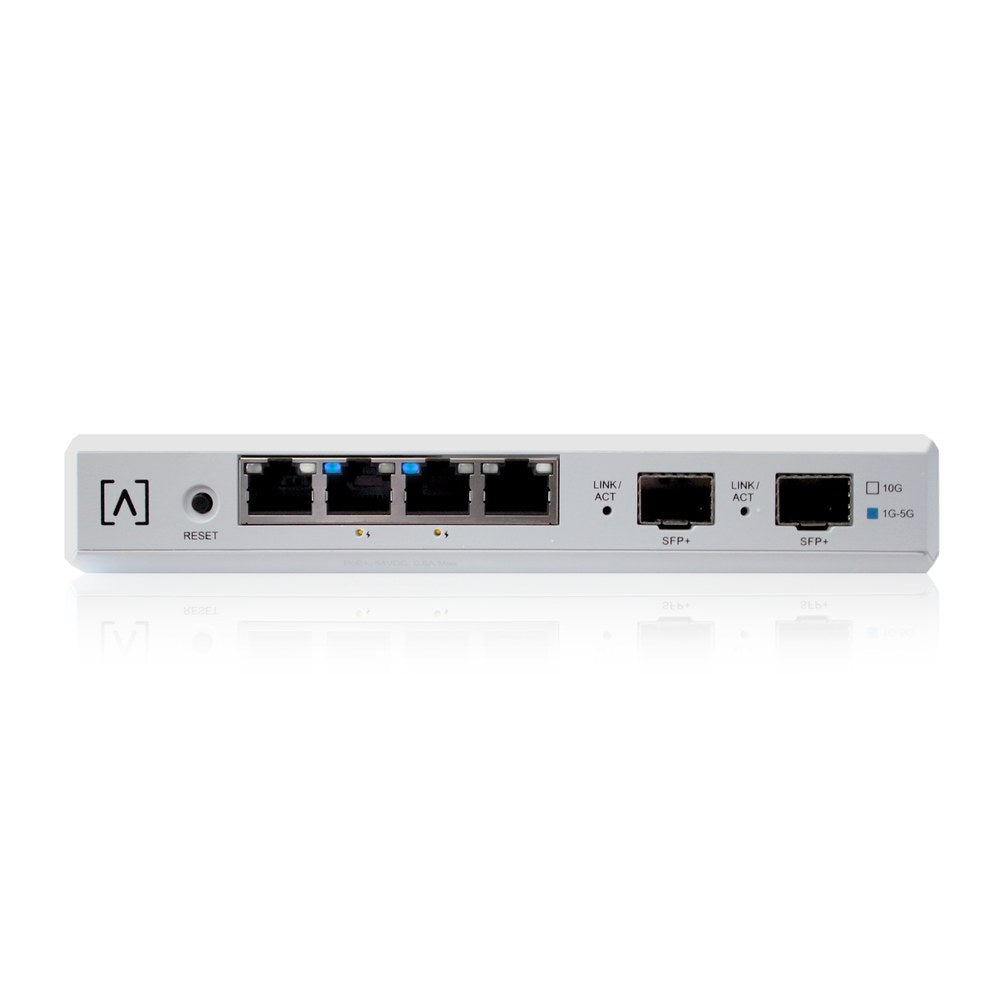

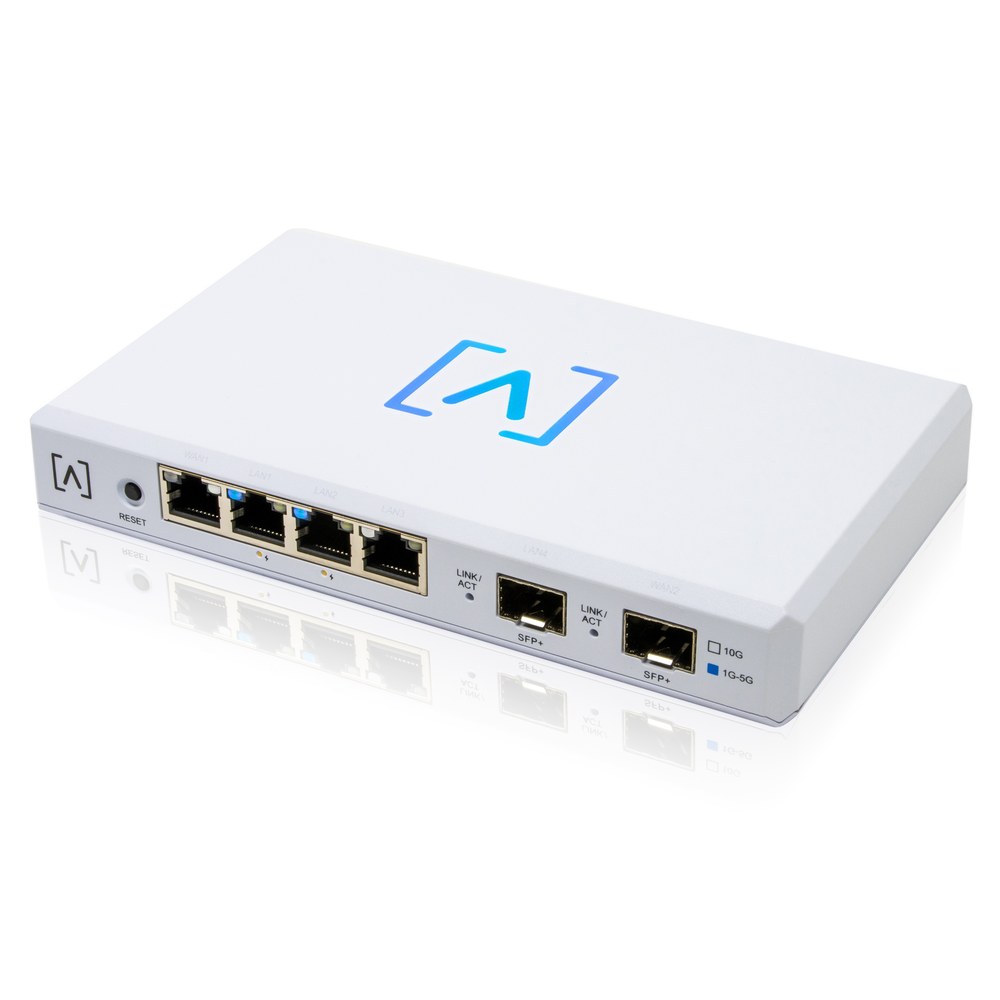

Route10 Router
The heart of this starter kit is the Route10 router, featuring assignable multi-WAN capability for failover and load balancing. With four 2.5 Gbps Ethernet ports and dual 10 Gbps SFP+ ports, the Route10 delivers exceptional throughput for demanding applications. PoE+ connectivity on ports 2 and 3 allows you to power access points directly, simplifying installation and reducing cable clutter.
AP6 and AP6-PRO Access Points
The kit includes both the AP6 and AP6-PRO access points. The AP6 is built on Qualcomm's dual-band, 4-stream WiFi 6 platform, whilst the AP6-PRO features a 6-stream design with 4096 QAM technology — one of the primary features of WiFi 7 — delivering up to 6.3 Gbps of combined WiFi capacity. The AP6-PRO is IP54-rated, making it suitable for higher-end commercial environments. Both access points feature Power over Ethernet for clean installation and include versatile mounting hardware with QuickMount™ technology.
S8-POE Managed Switch
The S8-POE switch provides eight Gigabit Ethernet ports with PoE+ support on the first four ports, offering up to 30W per port and a 60W total PoE budget. This compact managed switch can be desktop-mounted or wall-mounted using the included bracket. Advanced features include IGMP snooping, 802.1X authentication, and network loop detection to ensure reliable, secure network operation.
Compatible Products
Additional Alta Labs Access Points: Expand your wireless coverage by adding more AP6, AP6-PRO, or AP6-PRO-Outdoor access points to your network. All Alta Labs access points work seamlessly together with intelligent mesh formation.
Alta Labs Switches: Scale your wired infrastructure with additional S8-POE switches, or upgrade to the S16-POE or S24-POE switches for more ports and higher PoE budgets. The S24-POE includes 10 Gbps SFP+ uplink ports.
Alta Control Hardware Controller: For customers requiring local, self-hosted management instead of cloud-based control, the Control hardware appliance provides on-premises network management.
PoE Injectors: Alta Labs PoE+ injectors are available as optional accessories for powering access points in locations without PoE-capable switches.
The ROUTE10-STARTER+B provides a professional-grade networking foundation with room to grow. All hardware is managed through the free Alta Control platform, accessible via web browser or mobile app, offering remote configuration, real-time monitoring, detailed analytics, and automatic firmware updates. Experience enterprise networking made simple with the Alta Labs Route10 Starter Kit.
-
About Alta Labs
Futureproof and optimise your entire network with Alta Labs, an innovative provider of integrated wireless and networking solutions. Leveraging proprietary software and next-generation hardware technology, Alta Labs streamlines your network hardware configuration and simplifies installation to deliver a suite of customisable and interoperable solutions - all at a decent price point!
Alta Labs pairs seamless functionality with exceptional performance. Their full complement of access points, networking switches, routers and controllers enables you to effortlessly build your home or office network, whilst tailoring the implementation to your specific network system design.
Alta Labs has curated a selection of highly configurable switches designed to elevate connectivity in your home or business. Available in a range of different speeds and port configurations, they are offered with flexible mounting options and Bluetooth for seamless device setup.
For corner-to-corner Gigabit class connectivity, look for an Alta Labs Access Point. Each option in their range delivers high-performance WiFi 6 and PoE-powered functionality to facilitate seamless roaming throughout your network.
The innovative, high-performance Alta Labs Router is designed to complete their product ecosystem. It offers maximum performance at a minimal retail price point.
Each element of the network can be managed through one of the Alta Labs centralised management options - cloud-based management through their Alta Cloud Management Platform, SaaS software for self-hosting, or Control, their hardware-based local controller.
Powered by SoundVision Technologies, a global audio and electrics manufacturer, and partnering with trusted networking brands such as TruAudio and VSSL, the industry-leading team of professionals at Alta Labs have extensive experience in the network technology development space.
-
