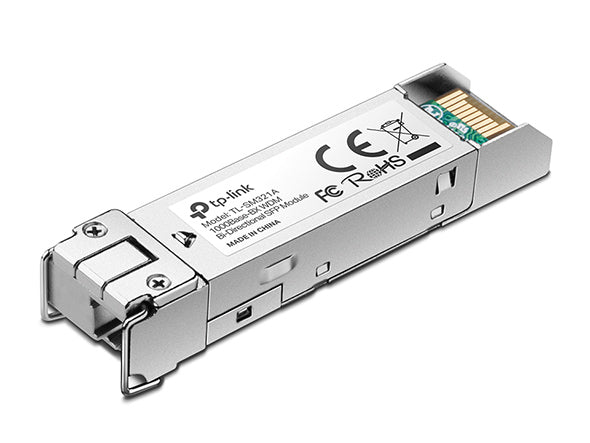

TP-Link 1000Base-BX WDM Bi-Directional SFP Module (TL-SM321A-2)

Adopts the latest standard 1000Base-BX

Up to 2 km transmission distance in 9/125 μm SMF (Single-Mode Fiber)

Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)

Supports Digital Diagnostic Monitoring (DDM)

Supports Hot Swappable



HARDWARE FEATURES

DDM Yes

SFP-MSA Yes

Hot Swappable Yes

MEDIA CONVERTER & MODULE

Standards and Protocols IEEE 802.3z, TCP/IP

Wave Length TX: 1550 nm

RX: 1310 nm

Power Supply 3.3 V

Safety & Emission FCC, CE

Cabel Single-Mode Fiber

Fiber Type 9/125 μm Single-Mode

Max. Cable Length 2 KM

Data Rate 1.25 Gbps

Port Type LC Simplex

Environment Operating Temperature: 0–70 °C (32–158 °F)

Storage Temperature: -40–85 °C ( -40–185 °F)

Operating Humidity: 10–90% RH, Non-Condensing

Storage Humidity: 5–90% RH, Non-Condensing
