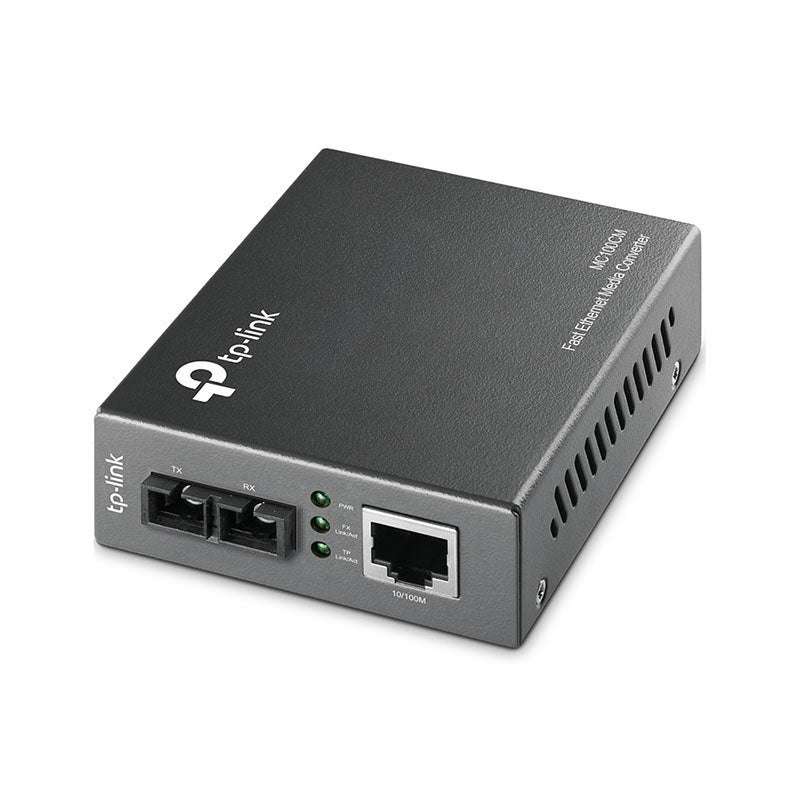

MC100CM TP-Link 10/100Mbps Multi-Mode Media Converter

Price:

$0.00$44.28

SKU: MC100CM


Chat 7am to 10pm - 7 days a week

We love what we do!

 Shipping Costs From

Standard - $15 or Express - $20

Want The Best Prices?

Request a quote


TP-Link MC100CM Media Converter 10/100Mbps RJ45 to 100M multi-mode SC fiber up to 2km chassis mountable



The MC100CM is a media converter designed to convert 100BASE-FX fibre to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed for use with multi-mode fibre cable utilising the SC-Type connector.



The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.



Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-Link's 19" system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port and front panel status LEDs.



The MC100CM will transmit at extended fibre optic distances utilising multi-mode fibre up to 2 kilometres.



Features:


Convert 100BASE-FX fibre to 100Base-T copper media or vice versa.
Auto negotiation of 10/100Mbps and auto MID/MID-X for TX port.
Provide switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port.
Link Fault Passthrough and Far End Fault minimise the loss caused by link failure timely.
Easy-to-view LED indicators provide status to monitor network activity easily.
Extend fibre distance up to 2km.
External power supply.

  • Datasheets and Guides

Click HERE to access the Datasheet

Click HERE to access the Installation Guide
