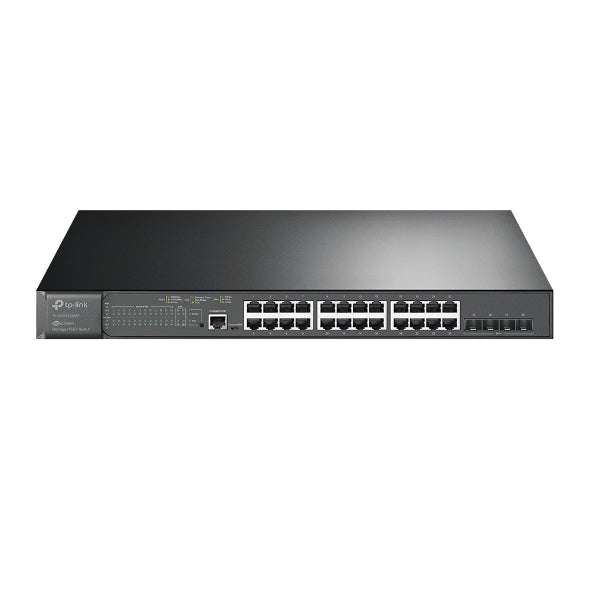

TP-Link TL-SG3428XMP JetStream 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+



10G Lightning-Fast Uplink: 4— 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.

384 W PoE Budget: 24— 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*.

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.

Centralised Management: Cloud access and Omada app for ultra convenience and easy management.

Static Routing: Helps route internal traffic for more efficient use of network resources.

Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.

Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities



HARDWARE FEATURES

Interface 24— 10/100/1000 Mbps RJ45 Ports

4— 10G SFP+ Slots

1— RJ45 Console Port

1— Micro-USB Console Port

Fan Quantity 2

Power Supply 100-240 V AC~50/60 Hz

Dimensions ( W x D x H ) (440 — 330 — 44 mm)

Mounting Rack Mountable

Max Power Consumption 34.4 W (110V/60Hz) ( no PD device connected)

465.8 W (110V/60Hz) ( with 384 W PD device connected)

Max Heat Dissipation 117.38 BTU/h (110 V/60 Hz) (no PD device connected)

1589.31 BTU/h (110 V/60 Hz) (with 384 W PD device connected)



PERFORMANCE

Switching Capacity 128 Gbps

Packet Forwarding Rate 95.23 Mpps

MAC Address Table 16 K

Jumbo Frame 9 KB



Quality of Service

8 priority queues

802.1p CoS/DSCP priority

Queue scheduling

- SP (Strict Priority)

- WRR (Weighted Round Robin)

- SP+WRR

Bandwidth Control

- Port/Flow based Rating Limiting

Smoother Performance

Action for Flows

- Mirror (to supported interface)

- Redirect (to supported interface)

- Rate Limit

- QoS Remark
