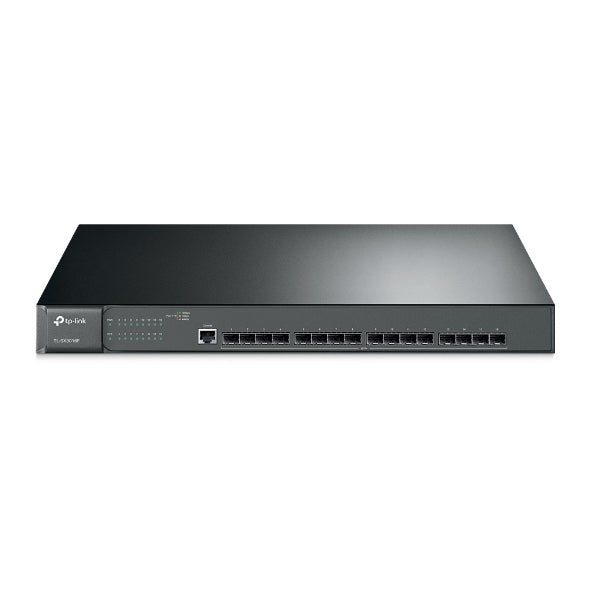

TP-Link TL-SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch



16— Full 10 Gbps SFP+ Slots - Lightning-fast full 10 Gbps SFP+ slots provide high-bandwidth aggregation connectivity

Centralized Cloud Management - Integrates into Omada SDN for cloud access and remote management

Abundant L2 and L2+ Features - Supports a complete lineup of L2 and L2+ features including Static Routing, enterprise-level QoS, IGMP Snooping, and more

Robust Security Strategies - Helps protect LAN area investment with integrated IP-MAC-Port Binding, ACL, Port Security, 802.1X Authentication, and more

Robust Hardware Design - Its fanless design ensures silent operation, while its durable metal casing and up to 45 ℃ operation temperature ensures reliability



General

Interface 8 10GE SFP+ Slots 16 10GE SFP+ Slots

Console 1 RJ45 Console Port, 1 Micro-USB Console Port

Flash 32 MB

DRAM 256 MB

Port Standard IEEE 802.3z: 1000BASE-X Gigabit Ethernet (Optical fiber)

IEEE 802.3ae: 10 Gigabit Ethernet over fiber



Performance

Switching Capacity 160 Gbps 320 Gbps

Packet Forwarding Rate 119.04 Mpps 238.08 Mpps

MAC Address Table 32K

Packet Buffer 16 Mbit 24 Mbit

Transmission Method Store and Forward

Number of IP Interfaces 16

Number of Static

Routers 48 (IPv4, IPv6)

Jumbo Frame 9 KB



Physical & Environment

Dual Redundant

Power Supply - 2 Fixed AC Power Supply

Power Supply 100-240 V AC~50/60 Hz

Max Power

Consumption 15.46 W (220 V/50 Hz) 32.74 W (220 V/50 Hz)

Max Heat Dissipation 52.75 BTU/hr (220 V/50 Hz) 111.71 BTU/hr (220 V/50 Hz)

Standby Power

Consumption 5.91 W (110 V/60 Hz) 13.33 W (110 V/60 Hz)



Dimensions (W x D x H) 17.3 — 7.1 — 1.7 in (440 — 180 — 44 mm) 17.3 — 8.7 — 1.7 in (440 — 220 — 44 mm)

Fan Quantity Fanless 1

Installation Rack Mountable
