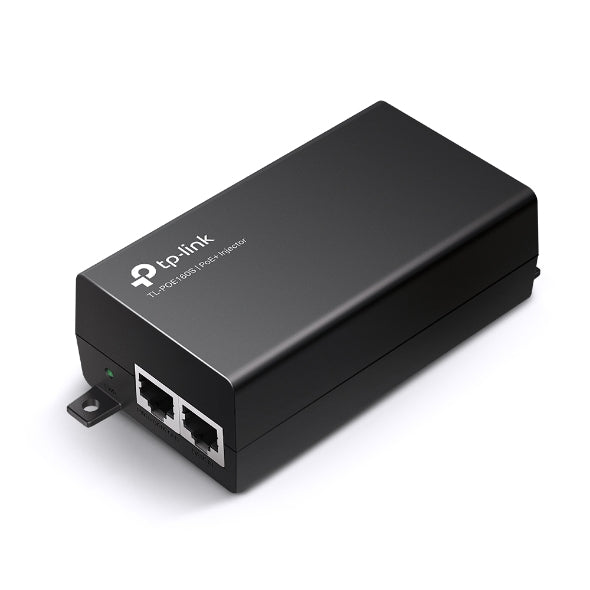

TP-Link TL-POE160S PoE+ Injector

2 Gigabit ports ensure faster transmission

Complies with IEEE802.3af/at standards, supplies up to 30 W

Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable

Automatically determines and supplies the exact power to meet the device's need

Wall-mounting and desktop design accommodates most installation scenarios

Plug & Play installation, requires no configuration

Integrated power supply



NETWORK

Standards and Protocols IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at



GENERAL

Certification FCC, CE, RoHS

Environment Operating Temperature: 0°C to 40°C (32°F to 104°F)

Storage Temperature: -40°C to 70°C (-40°F to 158°F)

Operating Humidity: 10% to 90%RH non-condensing

Storage Humidity: 5% to 90%RH non-condensing



HARDWARE FEATURES

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)

EIA/TIA-568 100Ω STP (maximum 100 m)

100BASE-TX: UTP category 5, 5e cable (maximum 100 m)

EIA/TIA-568 100Ω STP (maximum 100 m)

1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)

Ports 1 10/100/1000Mbps RJ45 data-in port

1 10/100/1000Mbps RJ45 power+data-out port

1 AC socket

Power Consumption Input: 100-240 V, 50/60 Hz

Output: Auto-determine the necessary power requirements (max. 30 W)

Basic Function Auto-Sensing Algorithm enables providing power with 802.3af/at PD

Auto-determine the necessary power requirements

Wall-mounting and desktop installation supported

Plug-and-Play

LED Indicator ON: Supplying power normally

OFF: No power supply



Dimensions ( W x D x H ) 4.9*2.3*1.4 in (125*59.4*36.8 mm)
