WG8022 - WatchGuard Transceiver 40Gb Short-Range QSFP+ for WatchGuard Firebox M
Description
Description

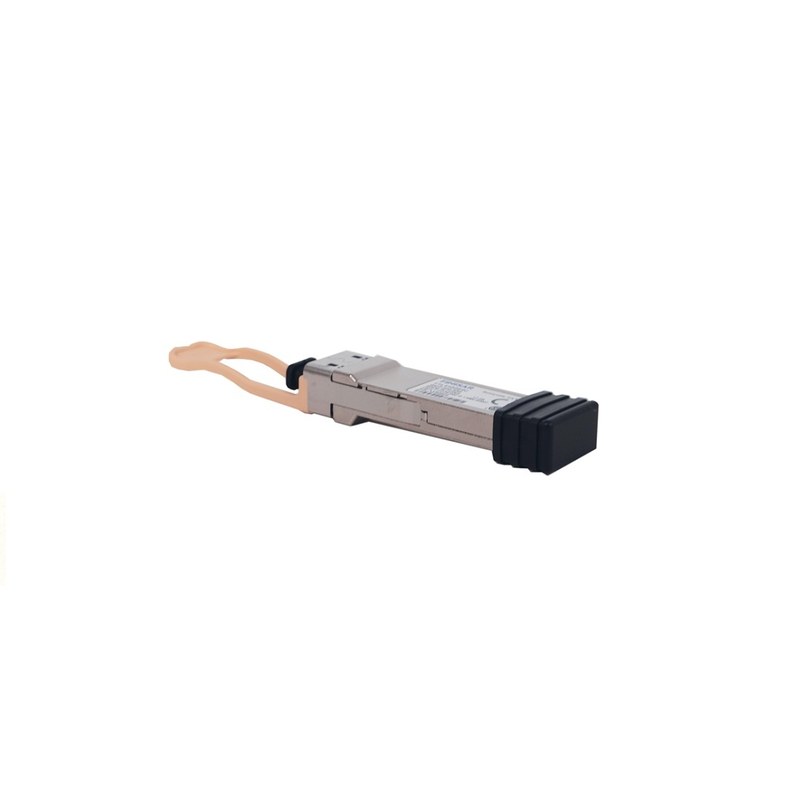

The WatchGuard WG8022 40Gb Short-Range QSFP+ Transceiver is the WatchGuard-branded 40GBase-SR4 multi-mode QSFP+ transceiver for the WatchGuard Firebox M 2 Port 40Gb QSFP+ Fiber Module. Supplied under SKU WG8022, it lets you light up the QSFP+ ports on your Firebox M appliance so you can connect to 40Gb Ethernet fibre infrastructure with a transceiver that WatchGuard lists as supported for this purpose.
The QSFP+ ports on the WatchGuard 2 Port 40Gb QSFP+ Fiber Module do not work out of the box: a compatible QSFP+ transceiver must be plugged in before the interfaces can be used. The WG8022 is one of the transceivers WatchGuard documents for this role, making it a straightforward choice for high-speed fibre uplinks, core network links and data centre connectivity on your Firebox M firewall.
Key Features
- 40Gb QSFP+ form factor for 40 Gigabit Ethernet connectivity
- 40GBase-SR4 multi-mode fibre transceiver, rated for up to 150m (Gen2 QSFP+)
- Listed by WatchGuard as a supported transceiver for the Firebox M 2 Port 40Gb QSFP+ Fiber Module (WG8023)
- Supported across the Firebox M4600, M4800, M5600 and M5800 models that accept the QSFP+ fibre interface module
- Link and activity status shown on the module's per-port indicators, with an orange connection light showing a 40 Gbps link
- Hot-pluggable: WatchGuard states that all transceivers in its supported list can be added without shutting down the system, apart from SFP/SFP+ transceivers on 8 x 1Gb SFP fibre modules in the M4600 and M5600
Ideal for
Network administrators, IT managers and managed service providers running a WatchGuard Firebox M4600, M4800, M5600 or M5800 who need to add 40Gb multi-mode fibre connectivity to their firewall.
Compatible Products
Interface module
WatchGuard Firebox M 2 Port 40Gb QSFP+ Fiber Module (WG8023)
Firewall appliances
WatchGuard Firebox M4600, M4800, M5600 and M5800
FAQs
Which Firebox models support the WG8022?
The WG8022 is intended for use with the 2 Port 40Gb QSFP+ Fiber Module (WG8023), which WatchGuard lists as supported on the Firebox M4600, M4800, M5600 and M5800.
What type of fibre does it use?
It is a 40GBase-SR4 multi-mode transceiver (150m, Gen2 QSFP+), so it requires suitable multi-mode fibre cabling.
Do I need a transceiver to use the QSFP+ ports?
Yes. WatchGuard states that you must plug in a compatible QSFP+ transceiver before the interfaces on the module can be used.
Can I fit it while the firewall is running?
WatchGuard states that transceivers on its supported list are hot-pluggable, with the sole exception of SFP/SFP+ transceivers on 8 x 1Gb SFP fibre modules in the M4600 and M5600. The QSFP+ transceiver is not subject to that exception.
Is this a single-mode or long-range transceiver?
No. The WG8022 is the short-range multi-mode option. WatchGuard lists separate 40GBase-LR4 single-mode QSFP+ transceivers for 10km links.
